Amplifier: Testing and Inspection

Stereo Component Amplifier Power Source Circuit

DESCRIPTION
This circuit provides power to the stereo component amplifier.

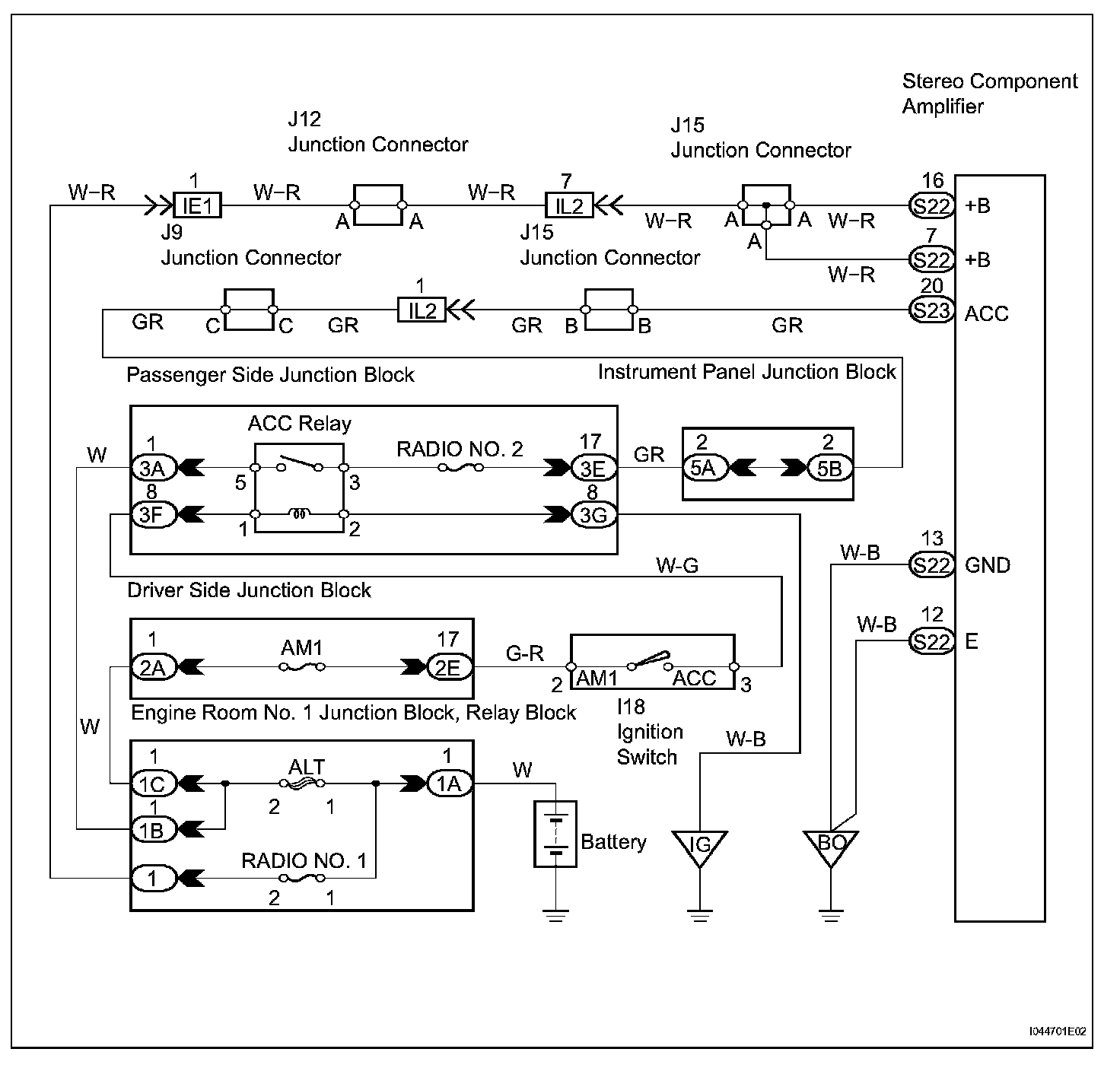

Wiring Diagram:

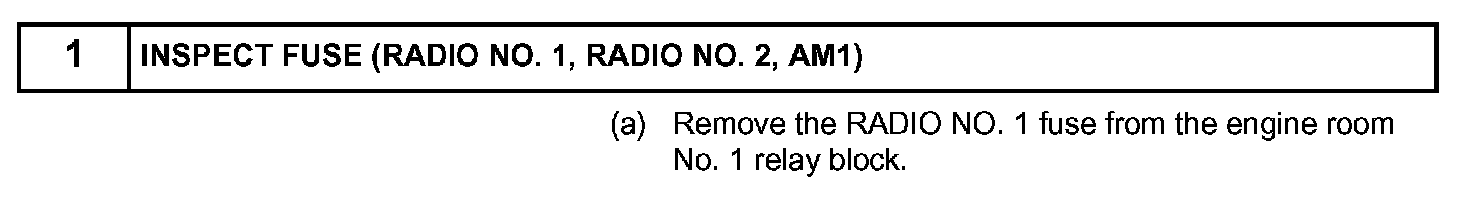

Step 1:




Step 1 (Continued)-2:




INSPECTION PROCEDURE
