Home >> Lexus >> 2007 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Vehicle Position Mark Deviates Greatly

Vehicle Position Mark Deviates Greatly

Vehicle Position Mark Deviates Greatly

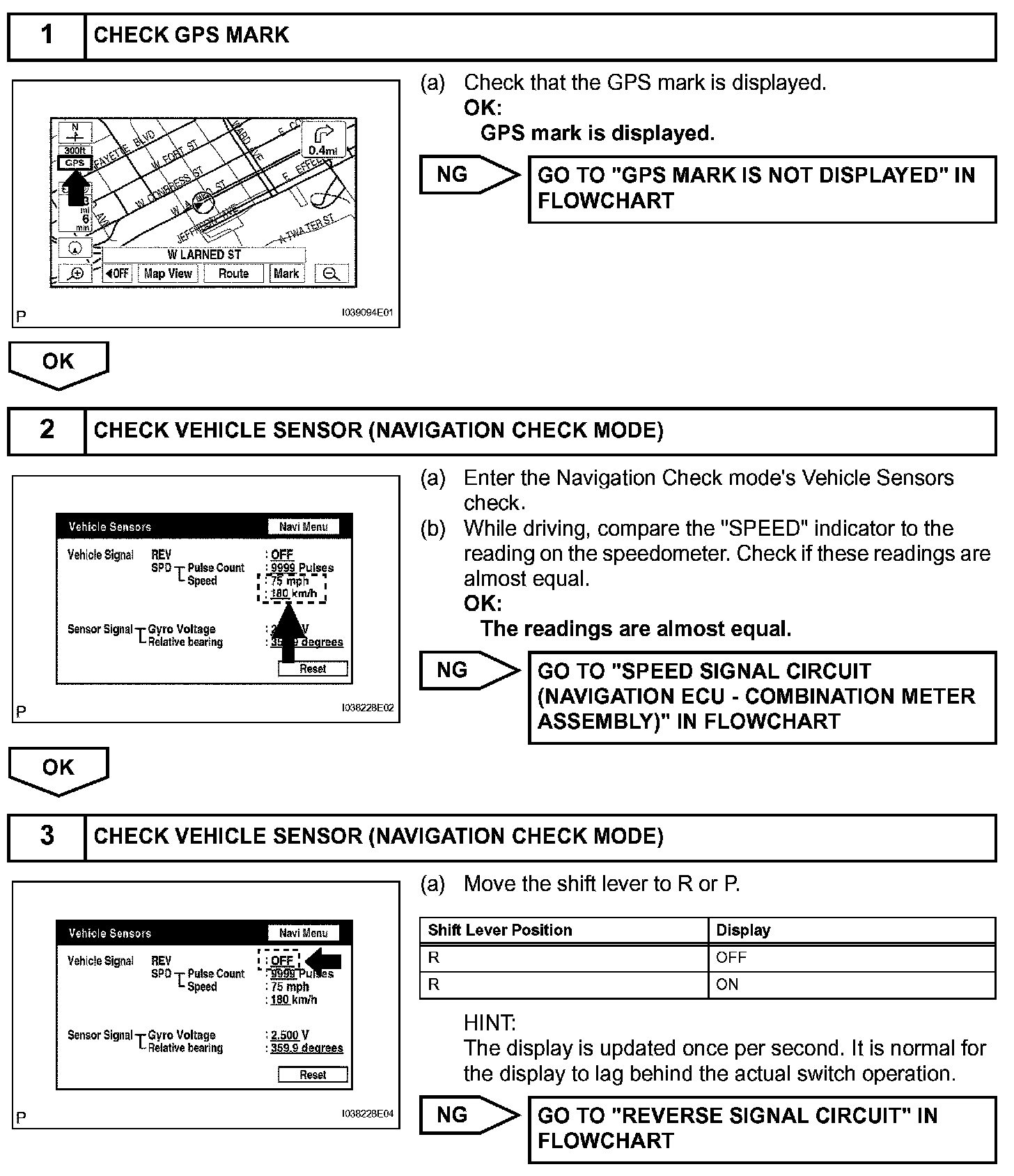

Step 1-3:




Step 3 (Continued):

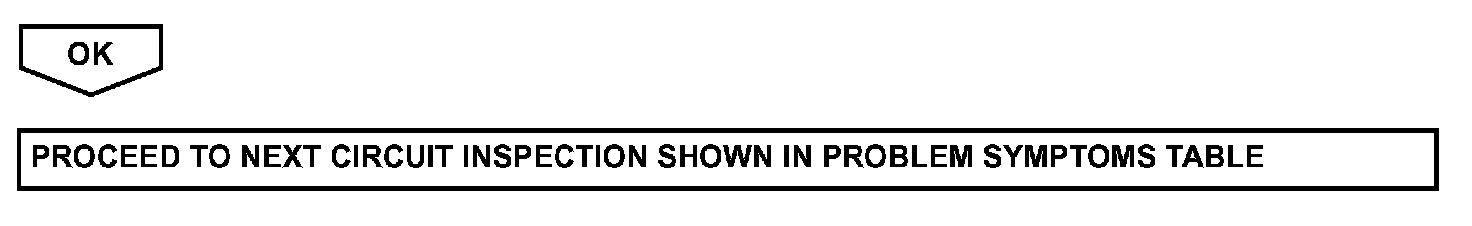

INSPECTION PROCEDURE
