Home >> Lexus >> 2007 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> GPS Mark Is Not Displayed

GPS Mark Is Not Displayed

GPS Mark is not Displayed

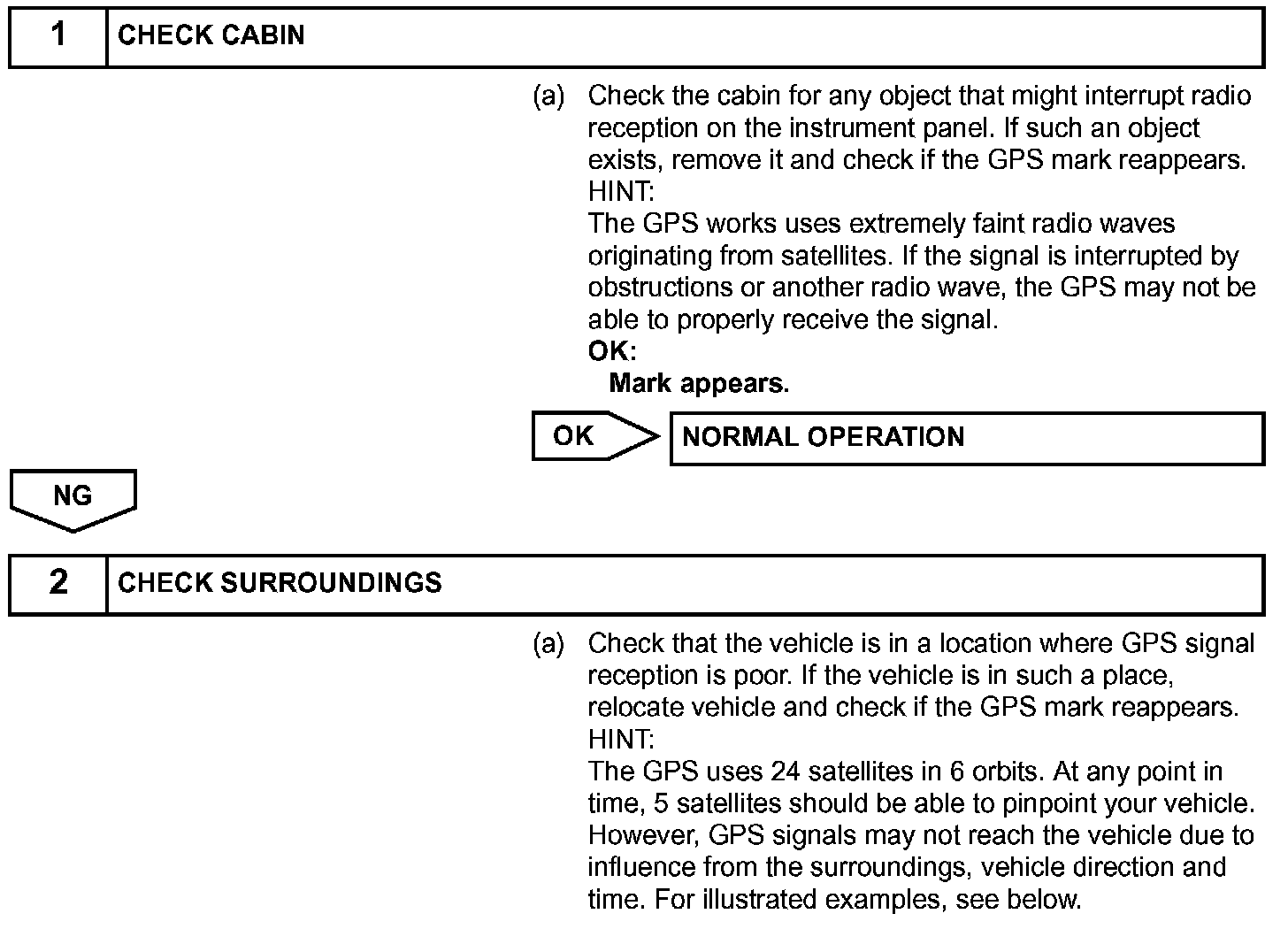

Step 1-2:

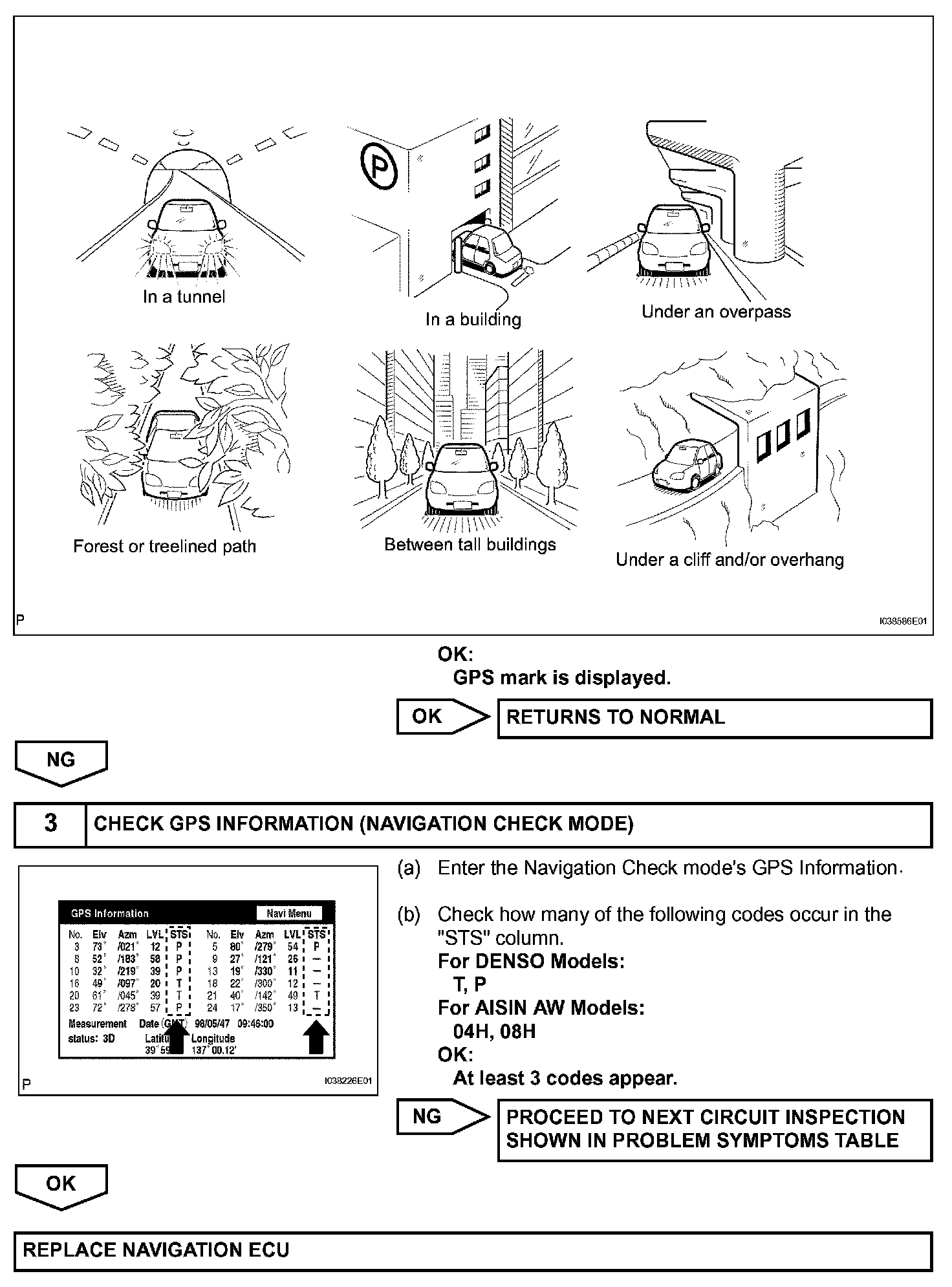

Step 2 (Continued)-3:




INSPECTION PROCEDURE
