Display Panel Does Not Open, Tilt or Tilts Improperly
Display Panel Does Not Open, Tilt or Tilts Improperly
Display Panel does not Open, Tilt or Tilts Improperly

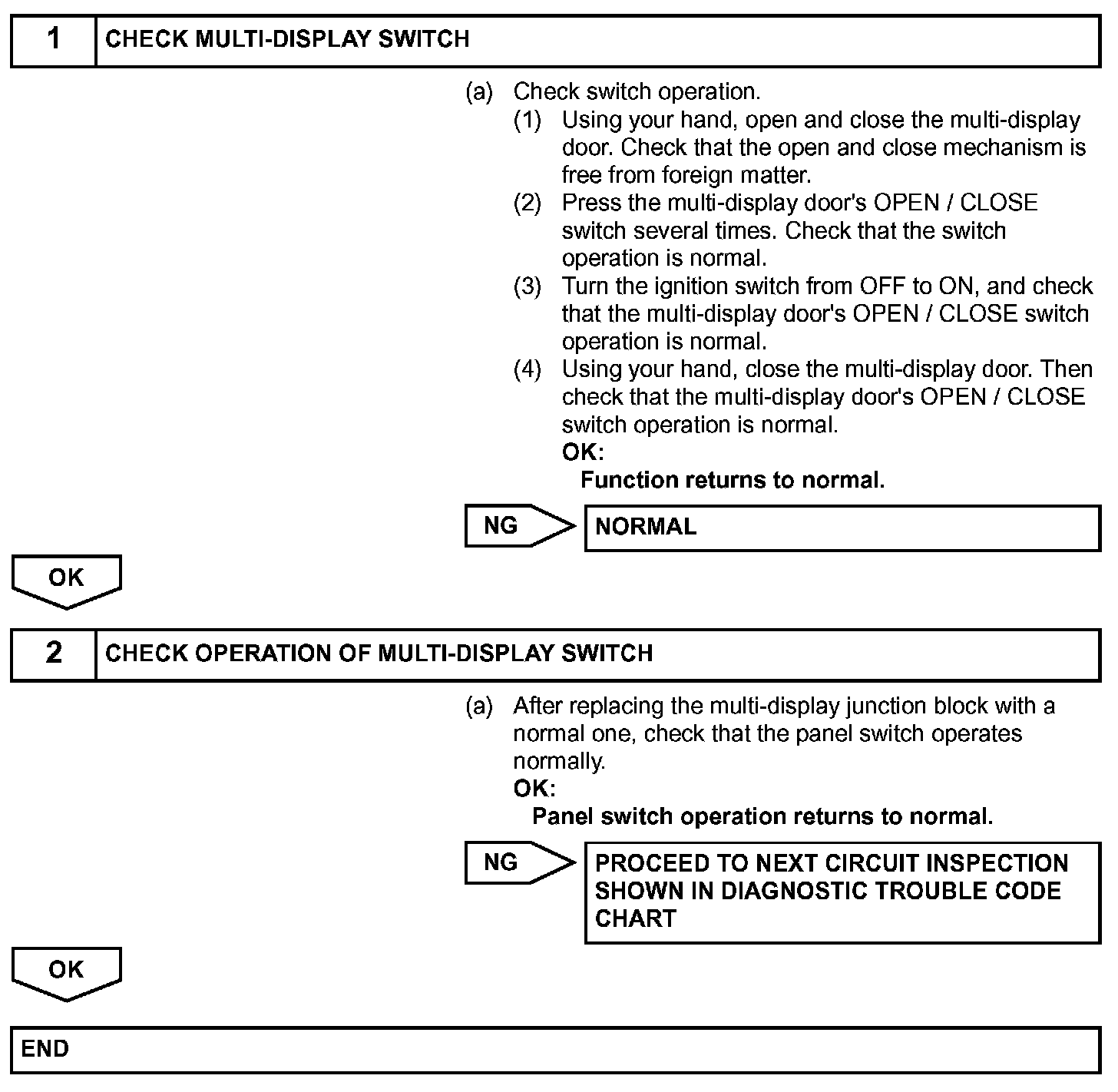

Step 1-2:
INSPECTION PROCEDURE
