Vehicle Speed Signal Circuit Between Navigation ECU and Combination Meter
Vehicle Speed Signal Circuit between Navigation ECU and Combination MeterDESCRIPTION
The navigation ECU receives the vehicle speed signal and GPS antenna information, and then adjusts the vehicle position on the display.

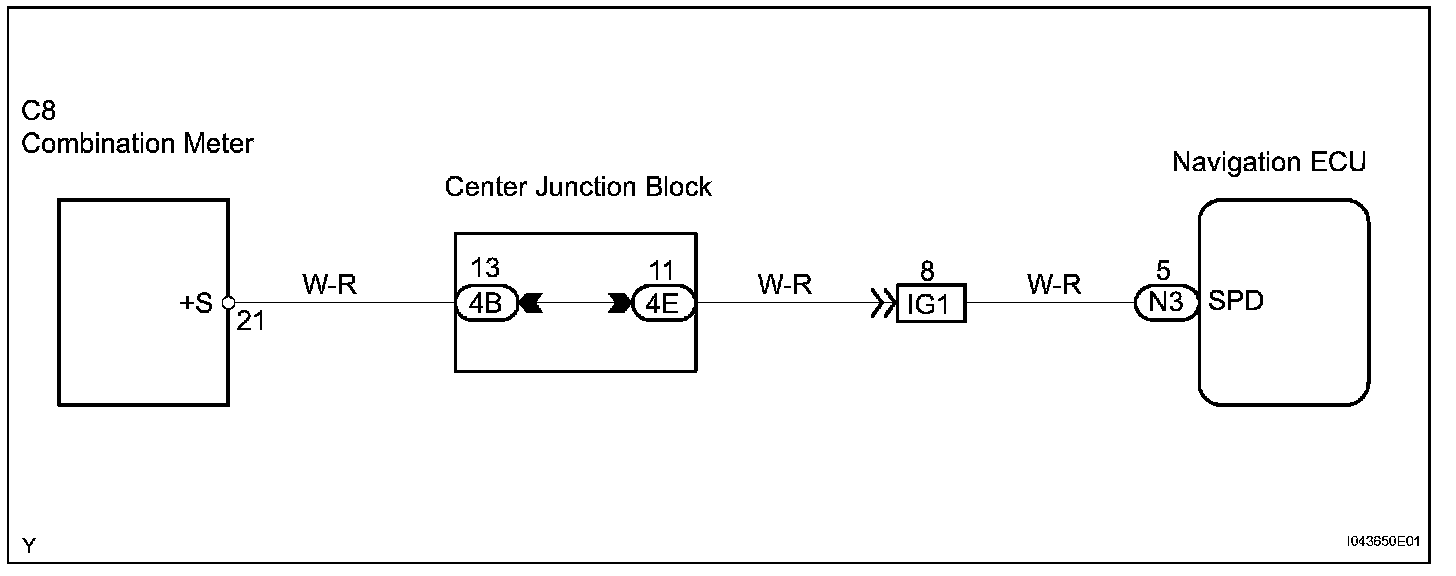

Wiring Diagram:
Step 1:
Step 1 (Continued)-2:

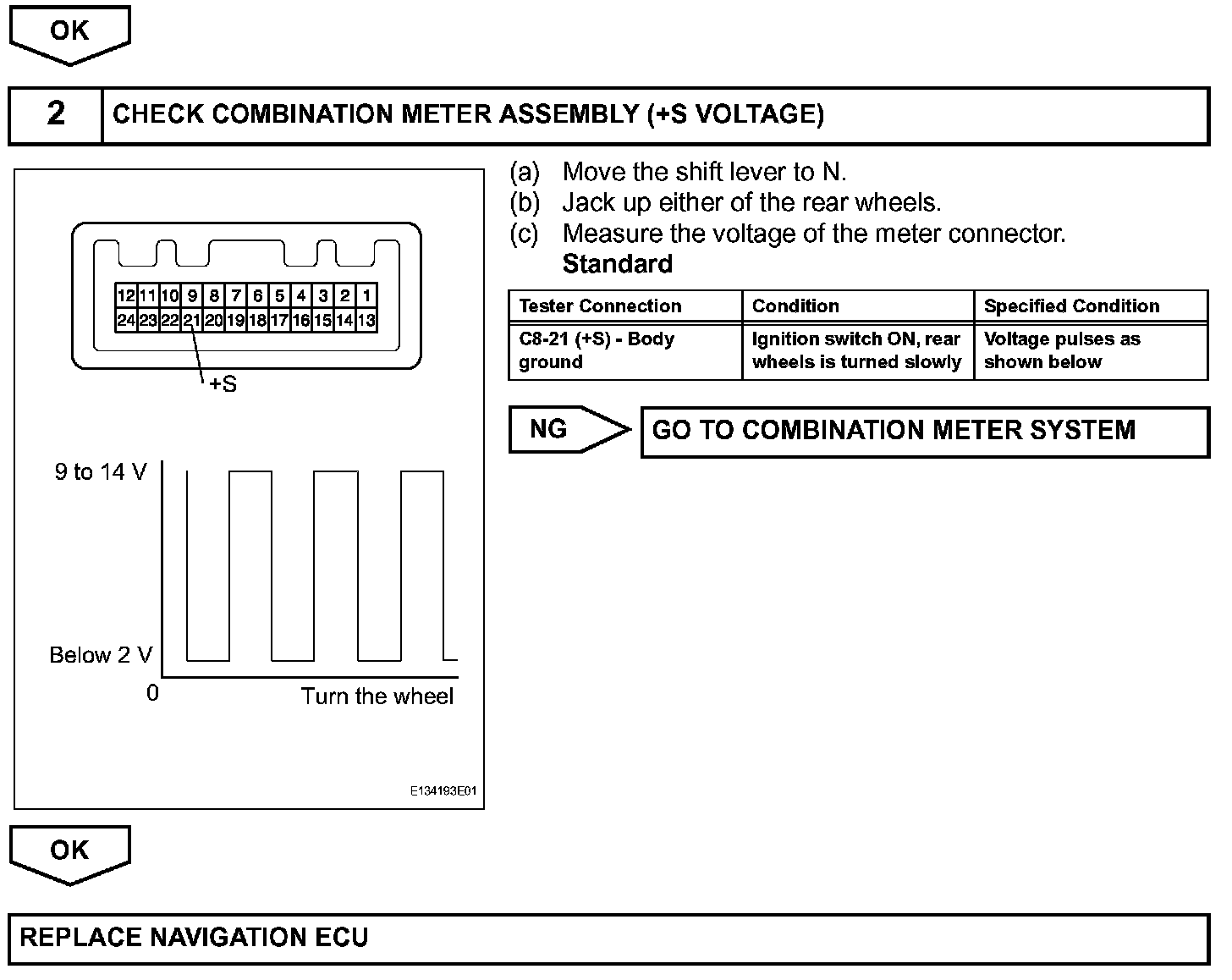

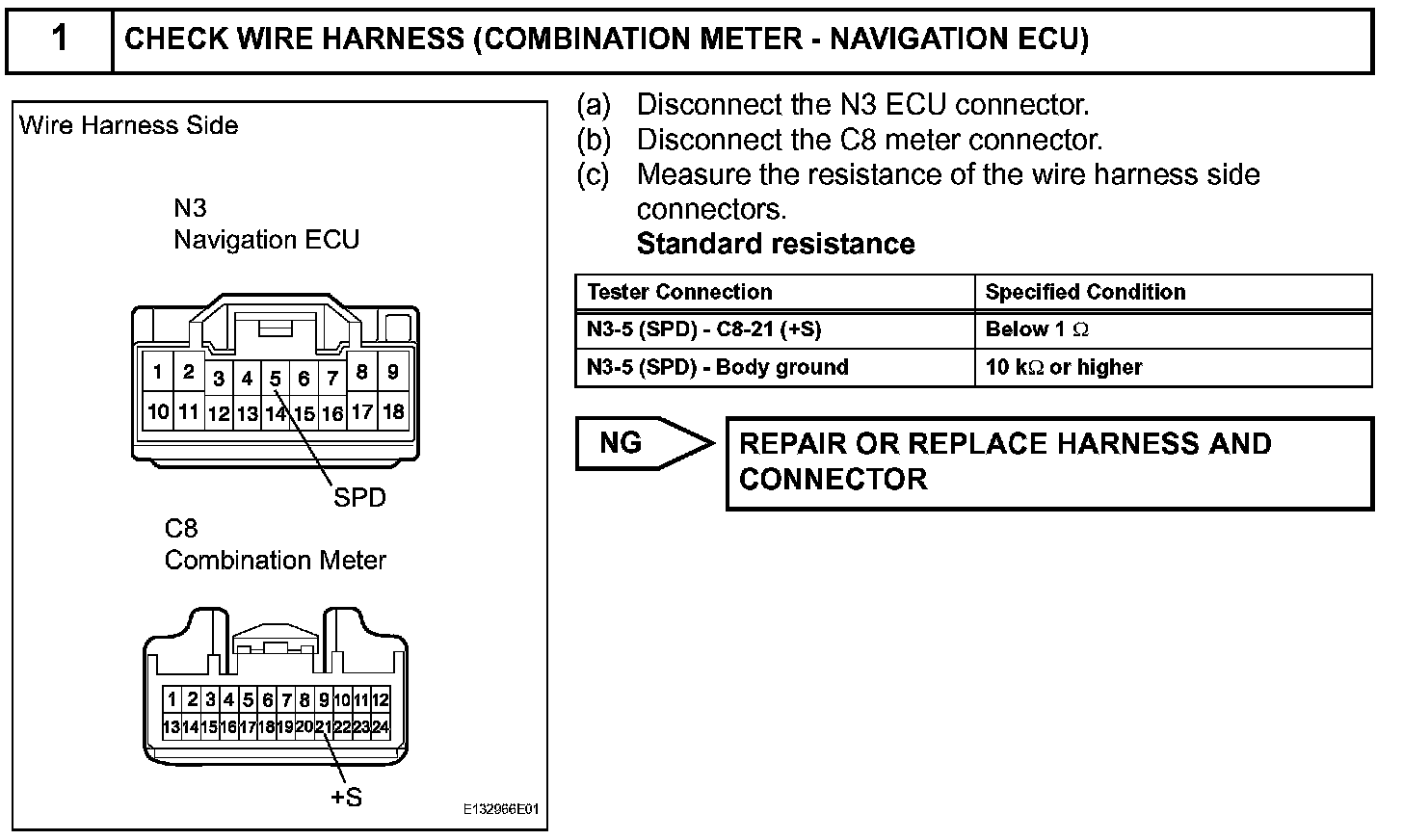

INSPECTION PROCEDURE
