Vehicle Speed Signal Circuit Between Multi-Display and Combination Meter

Vehicle Speed Signal Circuit between Multi-display and Combination Meter

DESCRIPTION

The multi-display performs the switch operation control by receiving the vehicle speed signal from the combination meter.

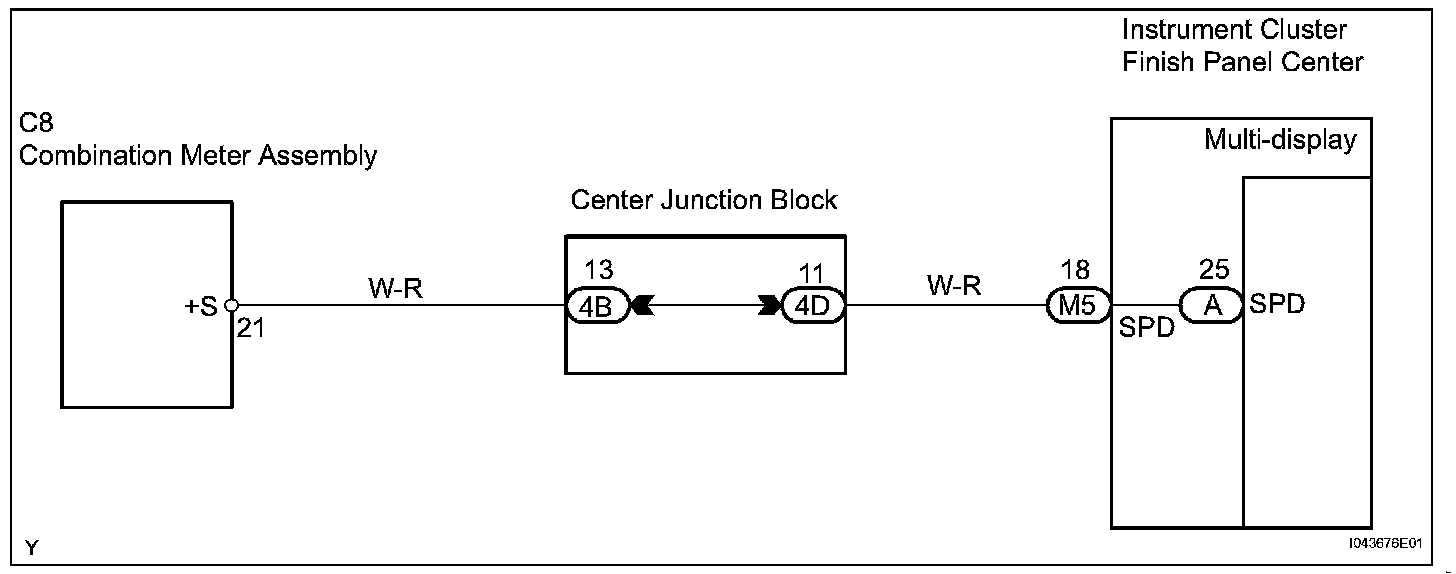

Wiring Diagram:

Step 1:

Step 1 (Continued)-3:

Step 3 (Continued):

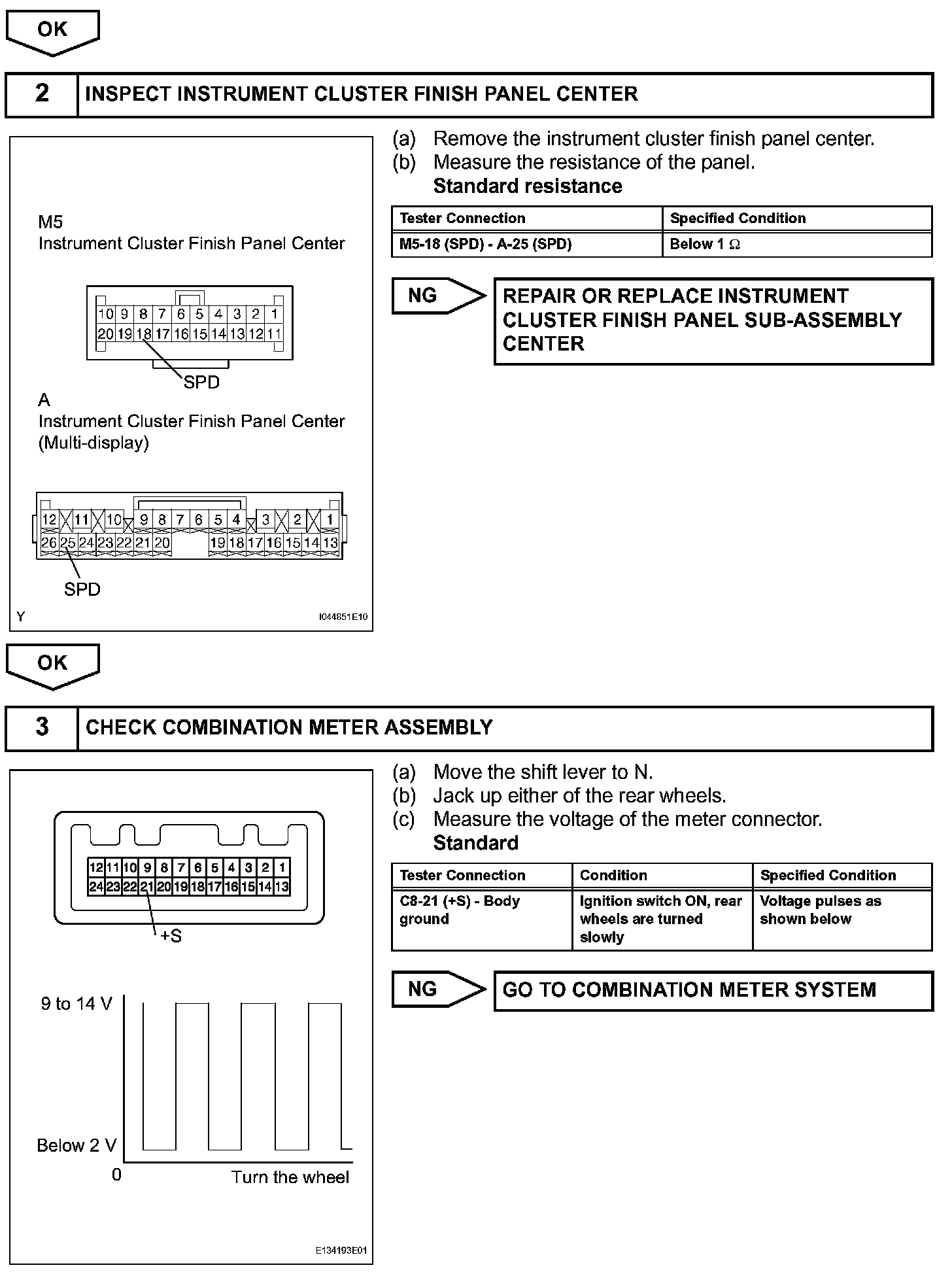

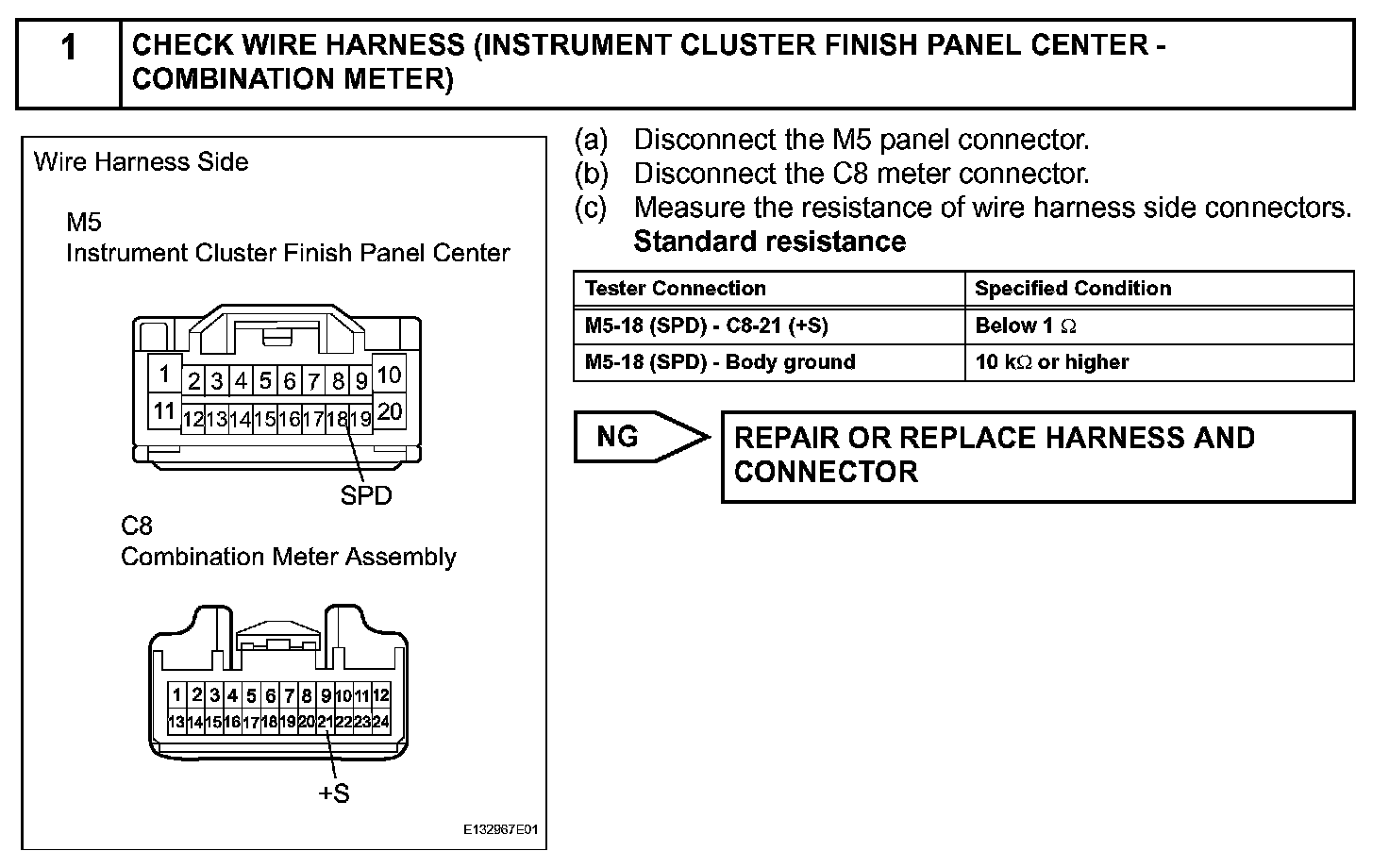

INSPECTION PROCEDURE
