Reverse Signal Circuit
Reverse Signal CircuitDESCRIPTION
The navigation ECU receives the reverse signal from the passenger side junction block ECU and information about the GPS antenna, and then adjusts the vehicle position.

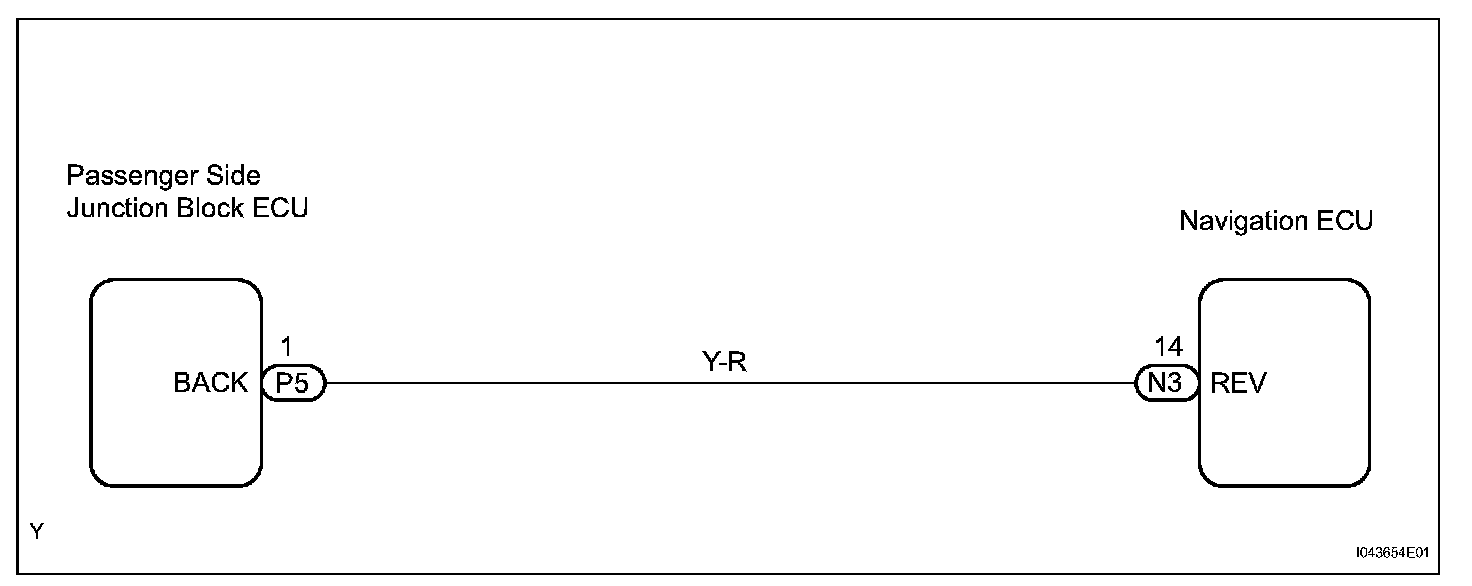

Wiring Diagram:

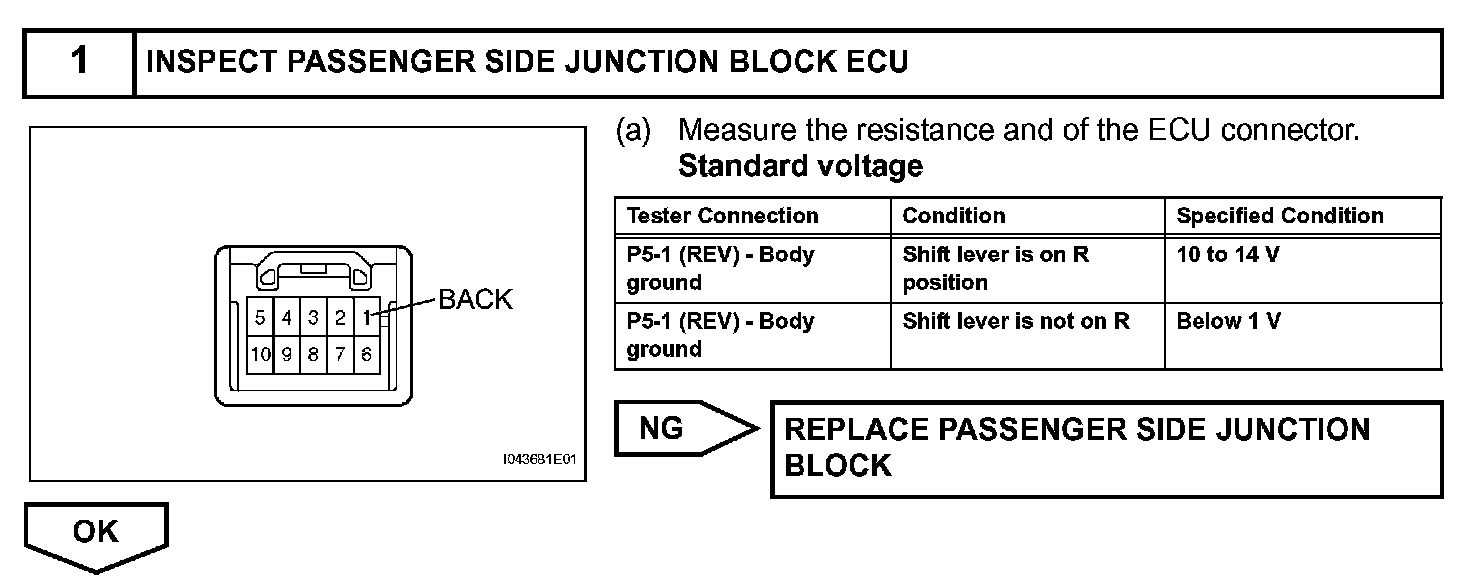

Step 1:

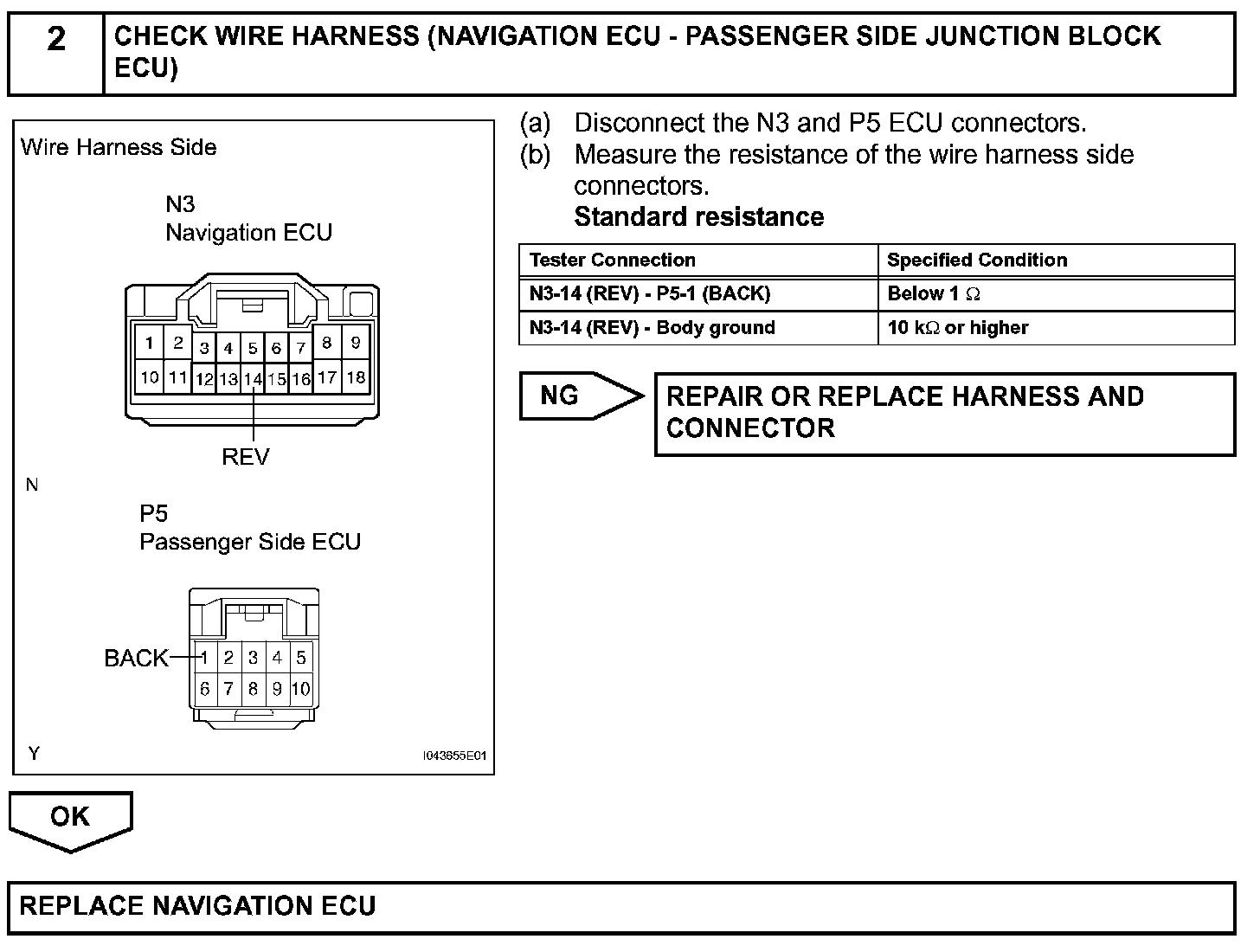

Step 2:
INSPECTION PROCEDURE
