Parking Brake Switch Circuit

Parking Brake Switch Circuit

DESCRIPTION

The multi-display receives signals from the parking brake switch.

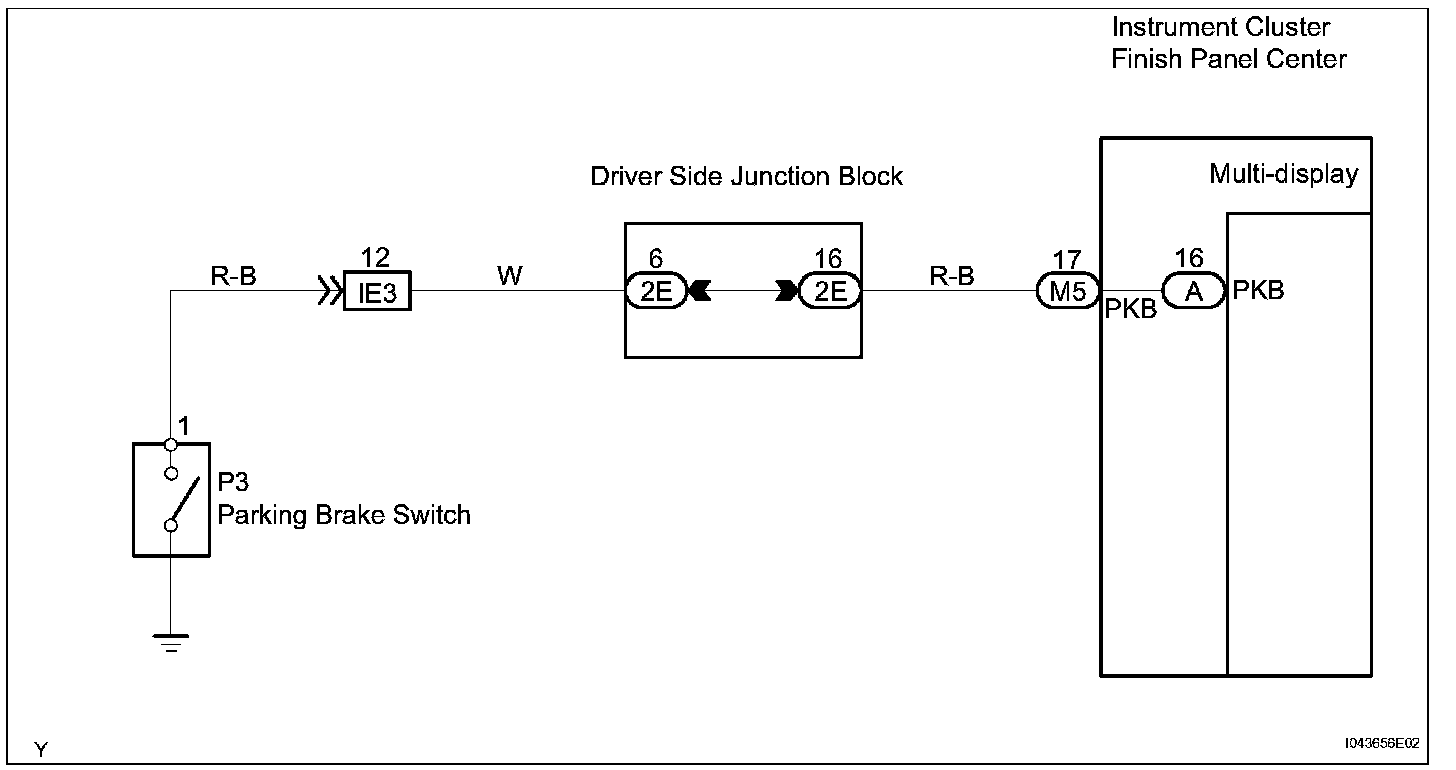

Wiring Diagram:

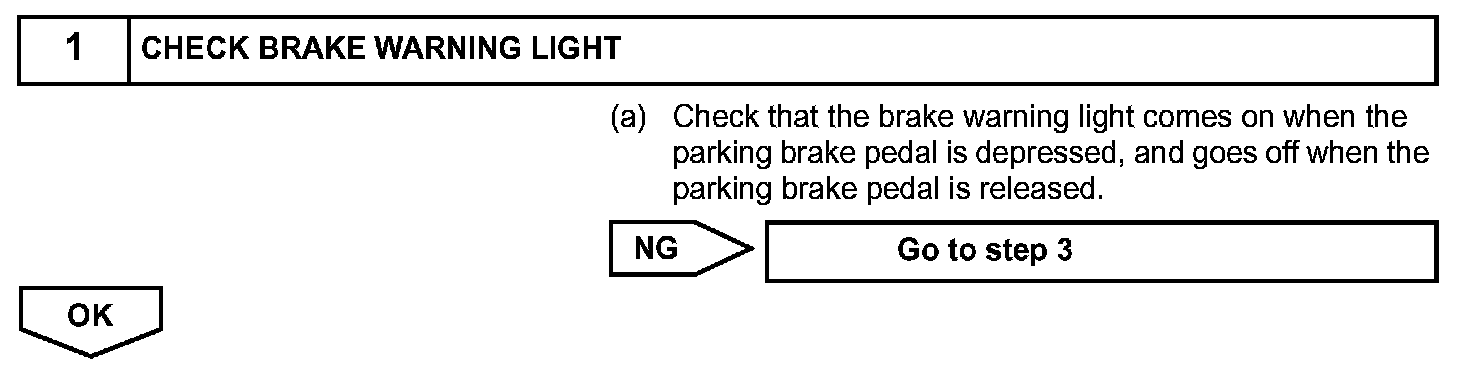

Step 1:

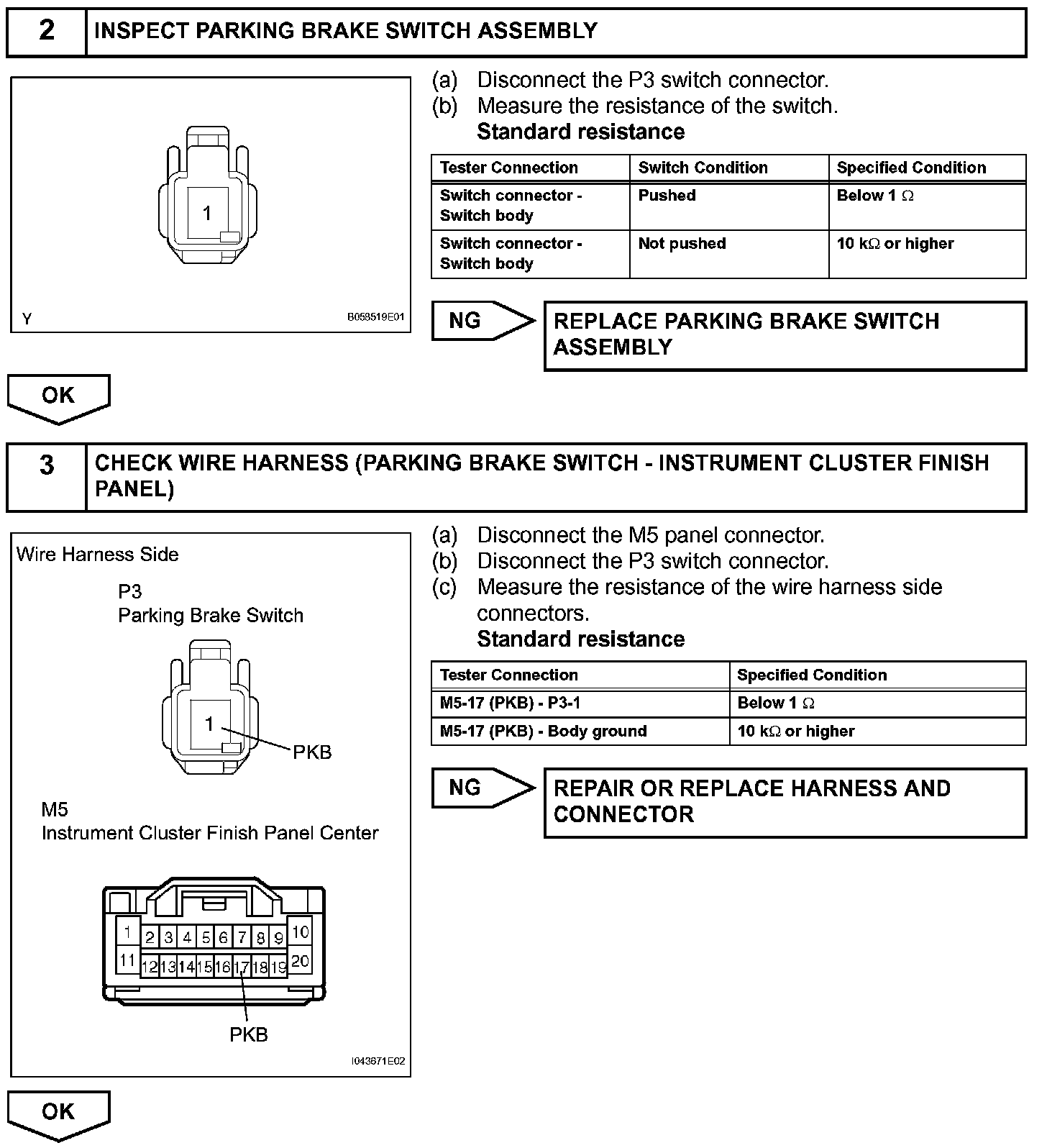

Step 2-3:

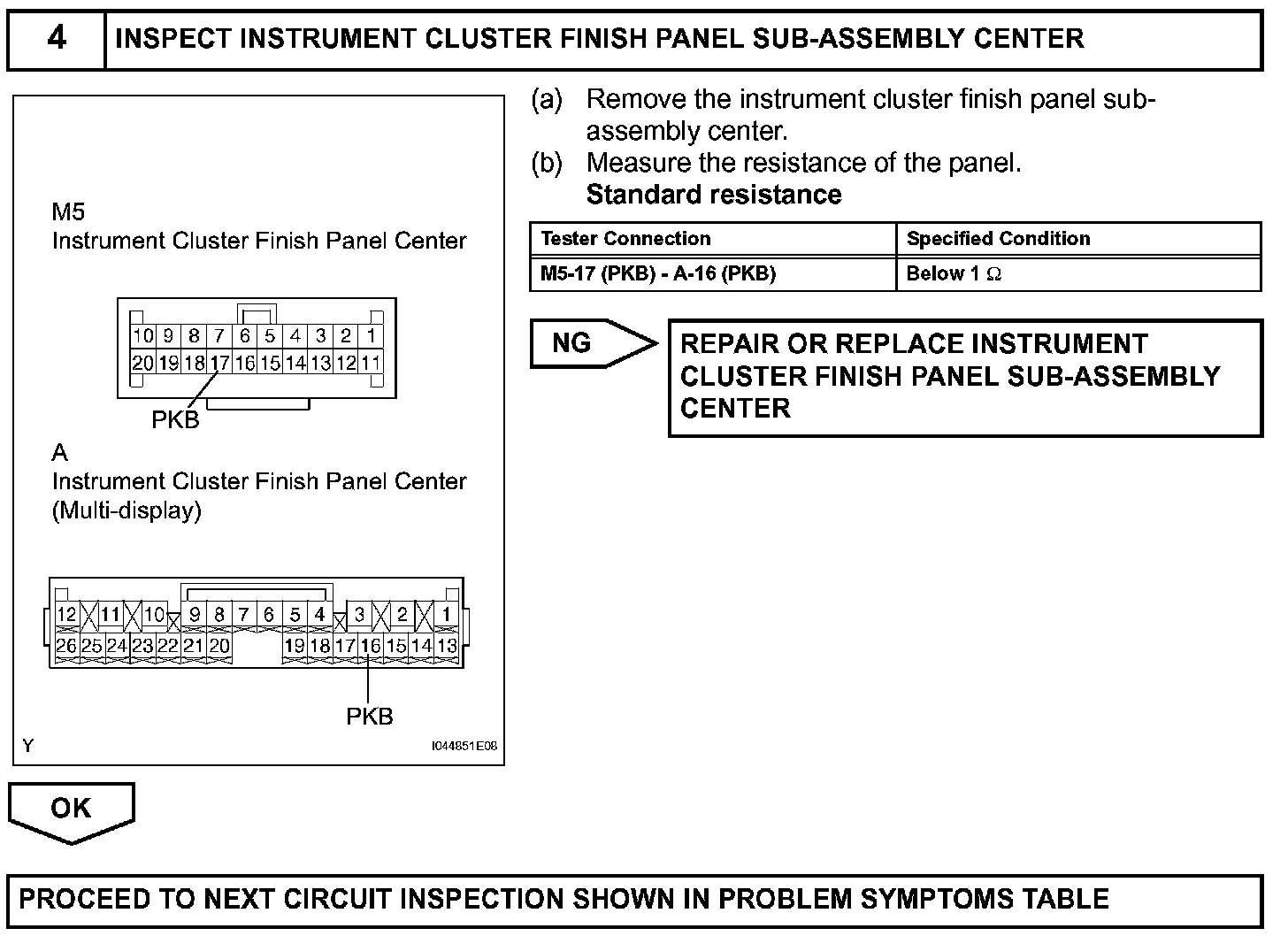

Step 4:




INSPECTION PROCEDURE
