Navigation ECU Power Source Circuit

Navigation ECU Power Source Circuit

DESCRIPTION

This circuit provides power to the navigation ECU.

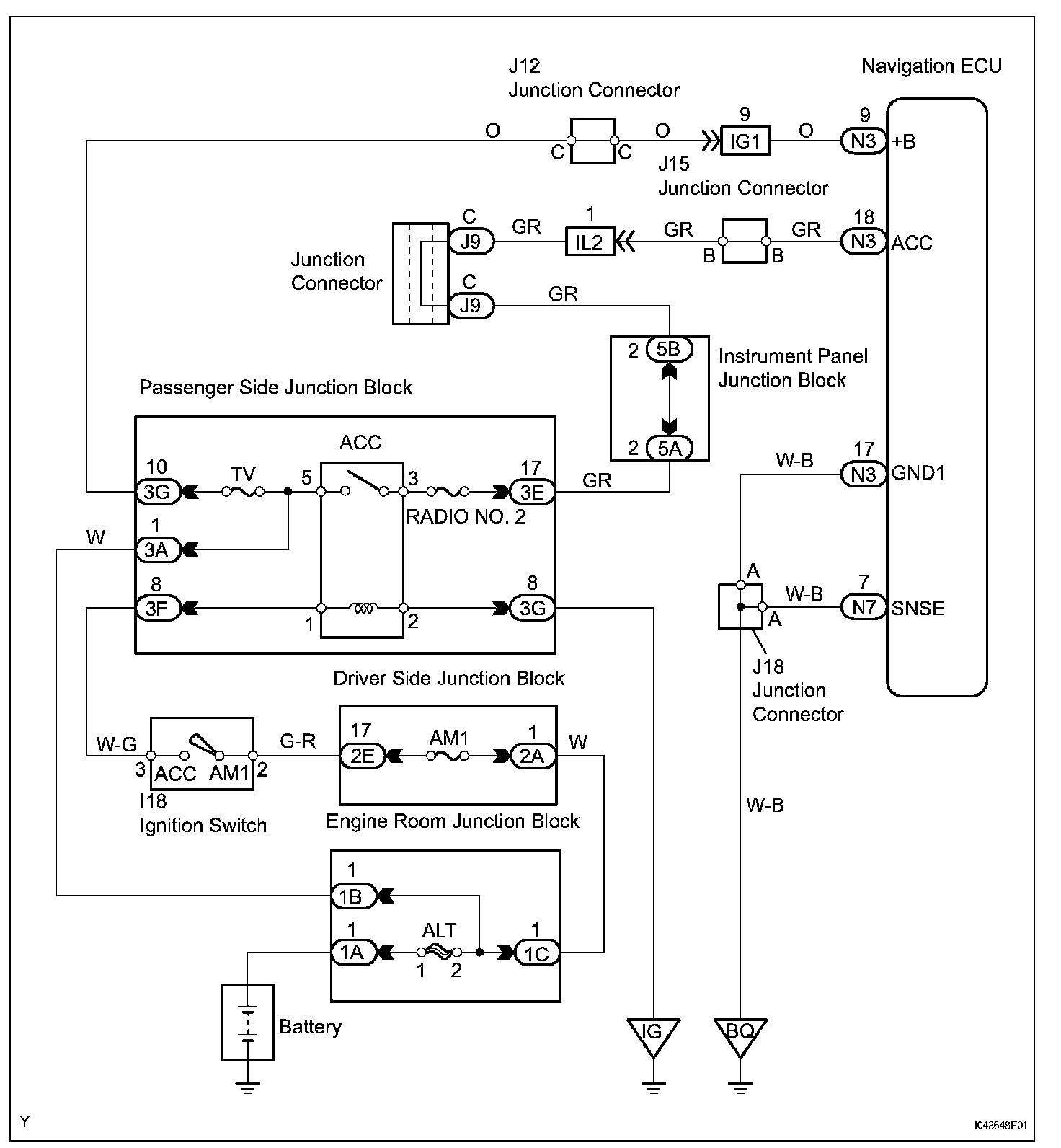

Wiring Diagram:

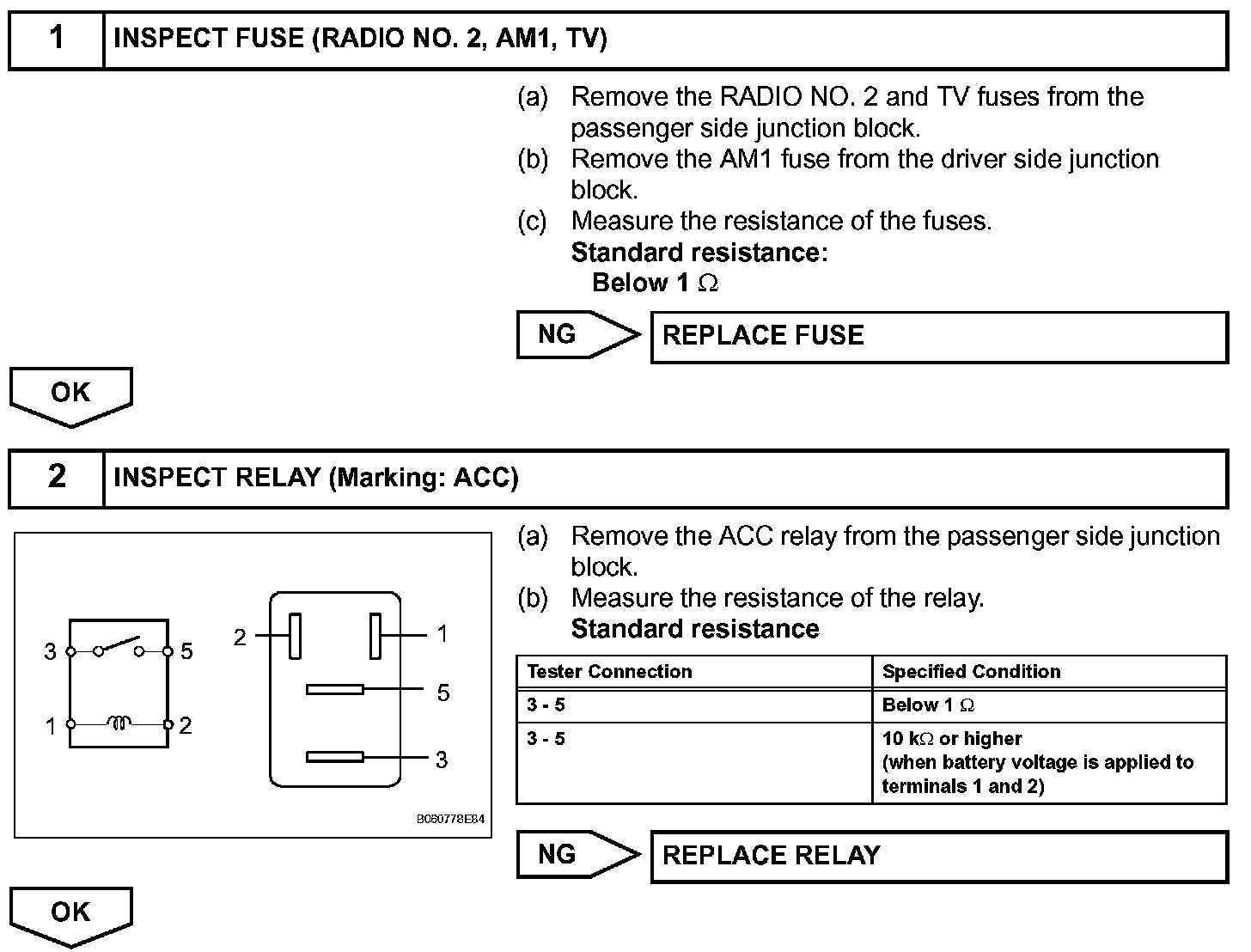

Step 1-2:

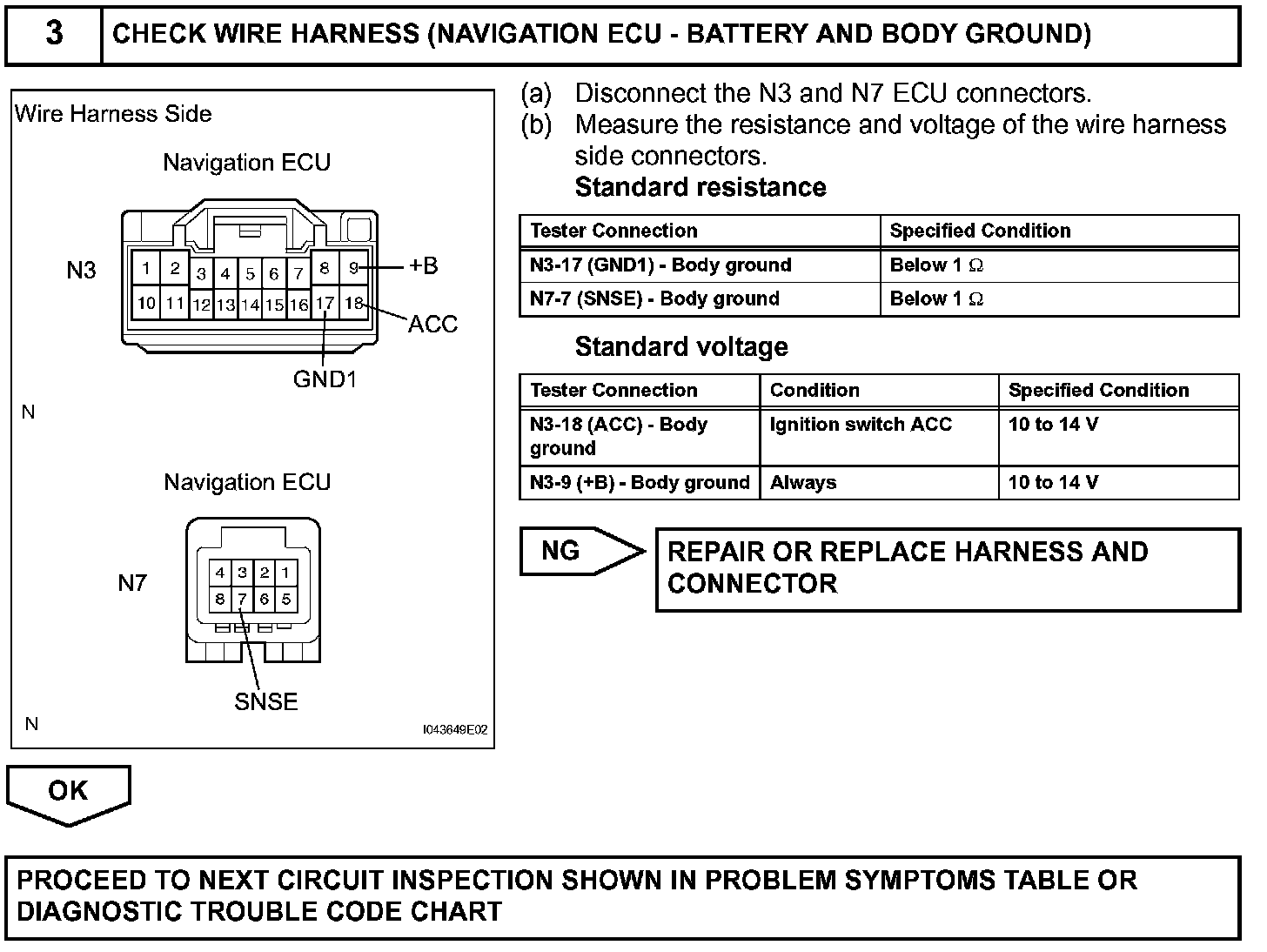

Step 3:

INSPECTION PROCEDURE
