Multi-Display Power Source Circuit

Multi-display Power Source Circuit

DESCRIPTION

This circuit provides power to the multi-display.

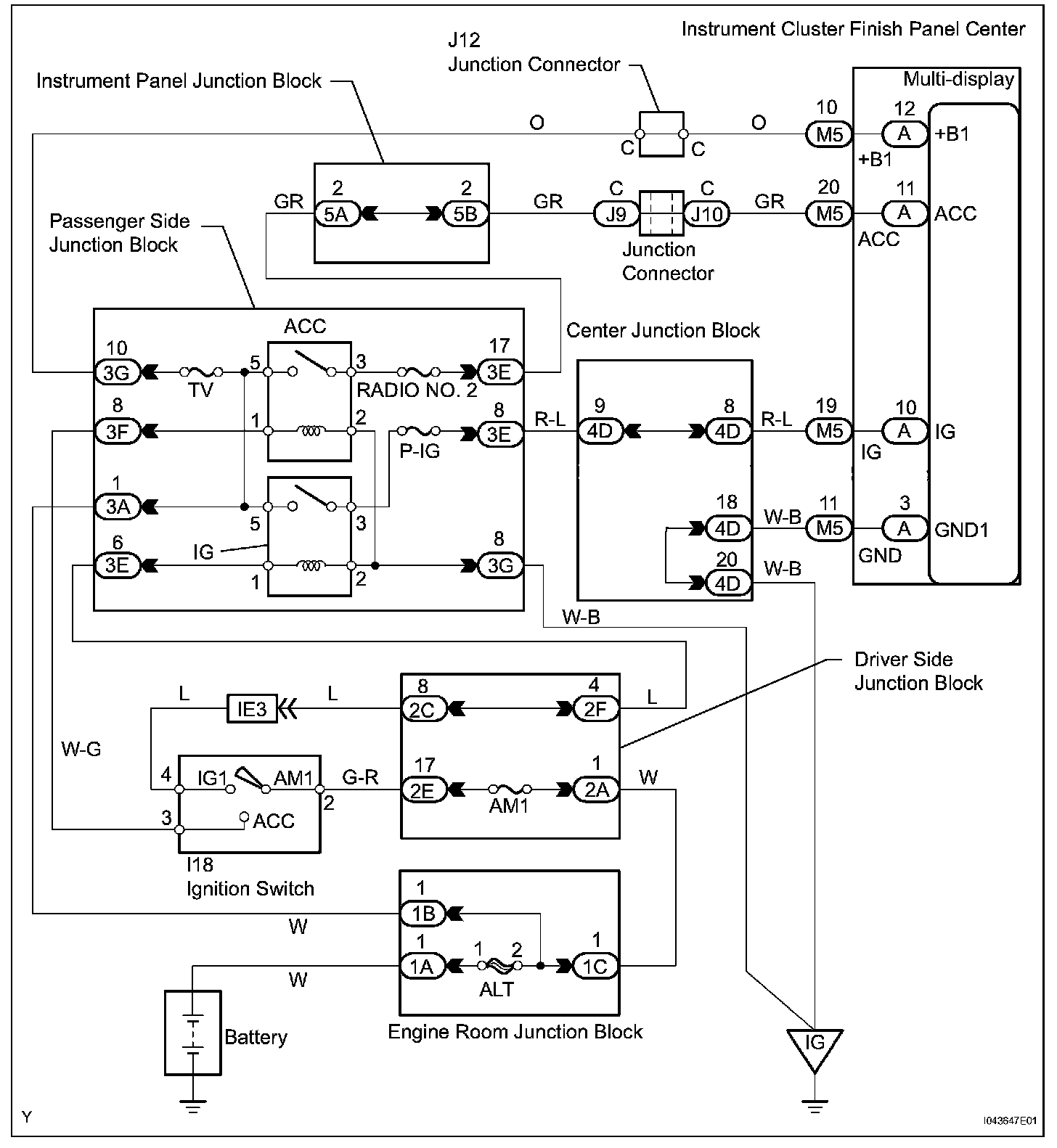

Wiring Diagram:

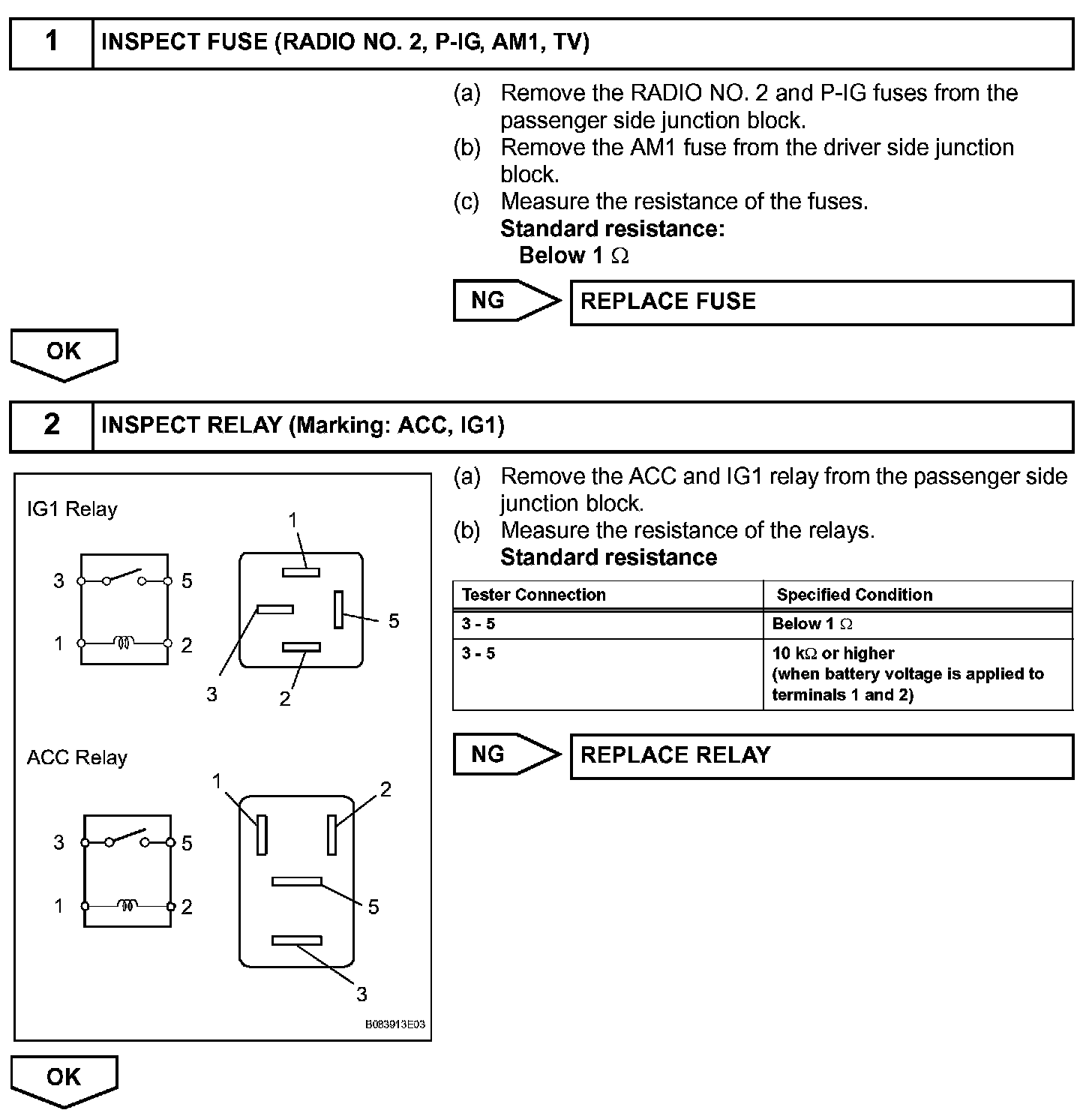

Step 1-2:

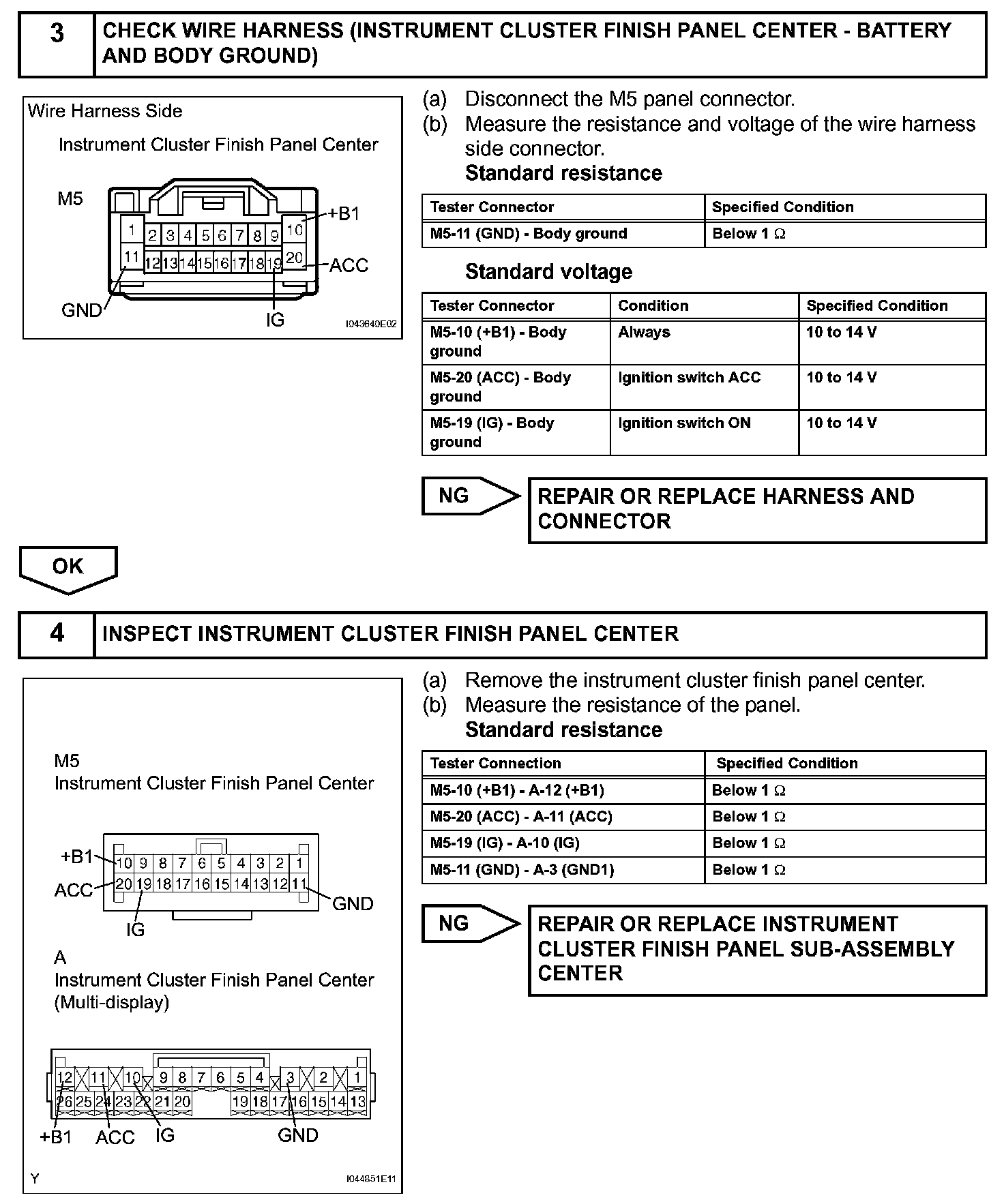

Step 3-4:

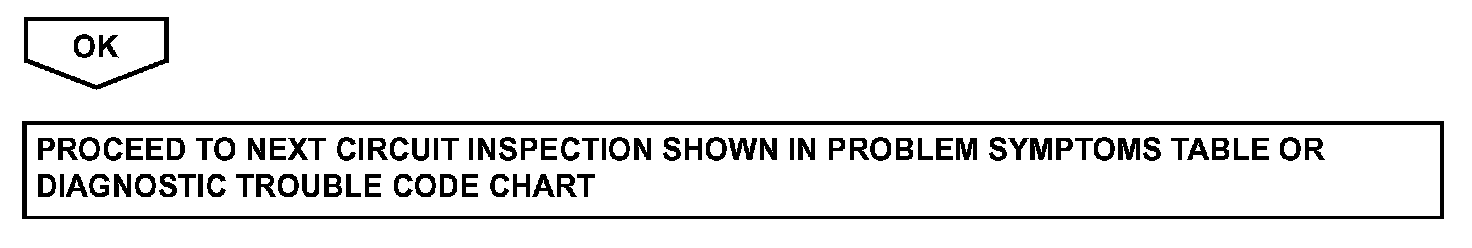

Step 4 (Continued):




INSPECTION PROCEDURE
