Microphone Circuit Between Multi-Display and Navigation ECU

Microphone Circuit between Multi-display and Navigation ECU

DESCRIPTION

This circuit sends a microphone signal from the multi-display to the navigation ECU.

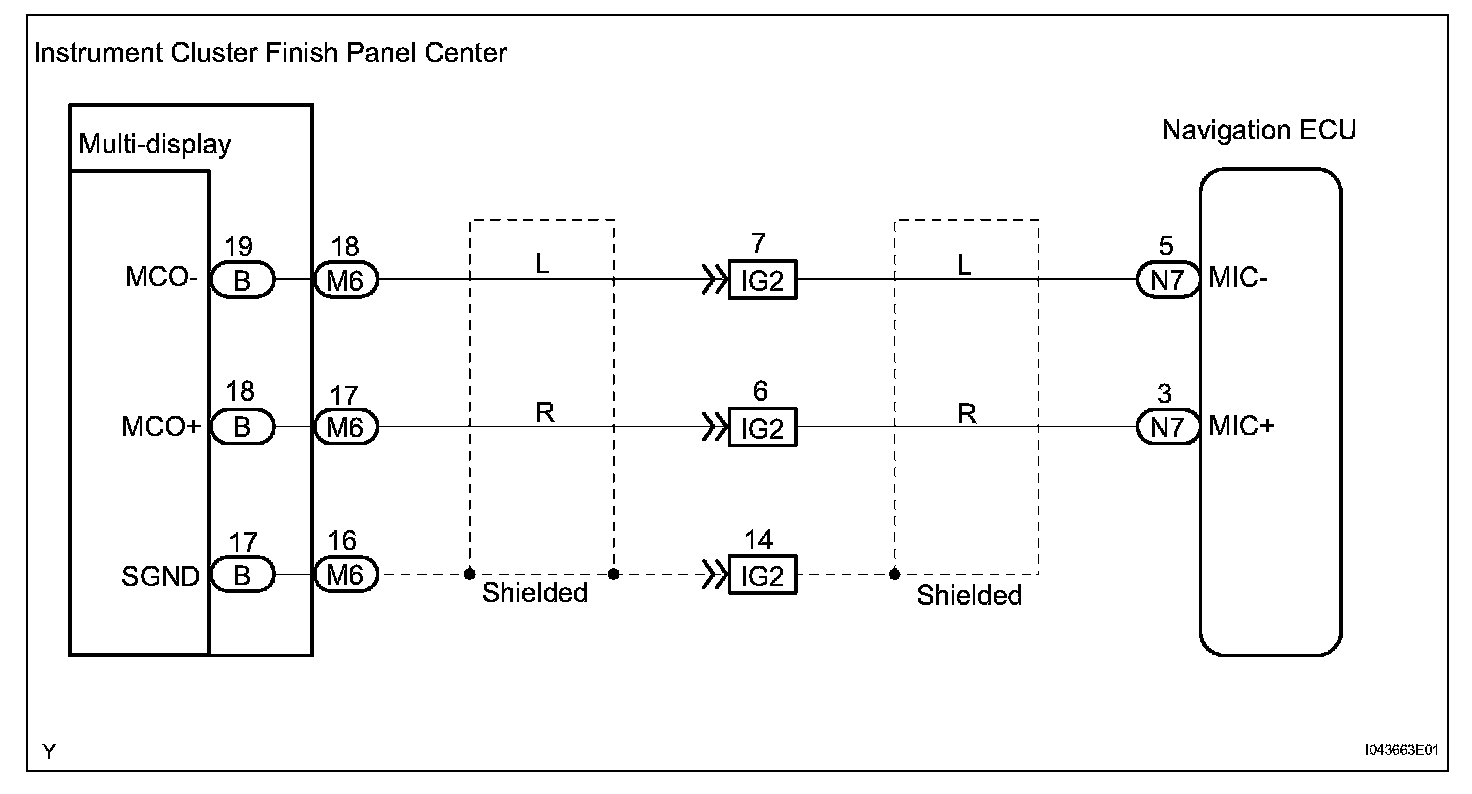

Wiring Diagram:






Step 1-2:




Step 2 (Continued):

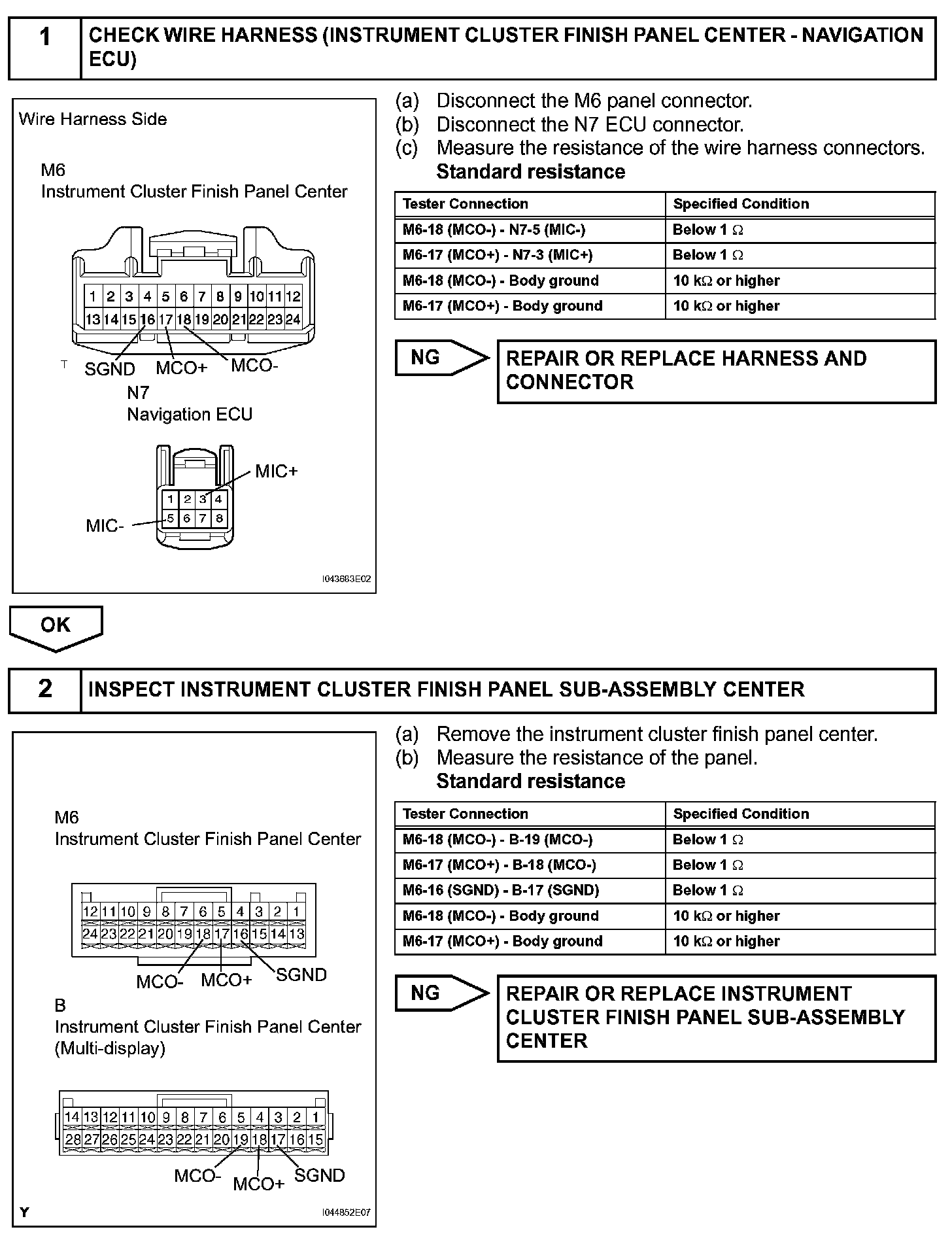

INSPECTION PROCEDURE
