Illumination Circuit

Illumination Circuit

DESCRIPTION

This circuit sends a nighttime illumination signal from the driver side junction block ECU to multi-display.

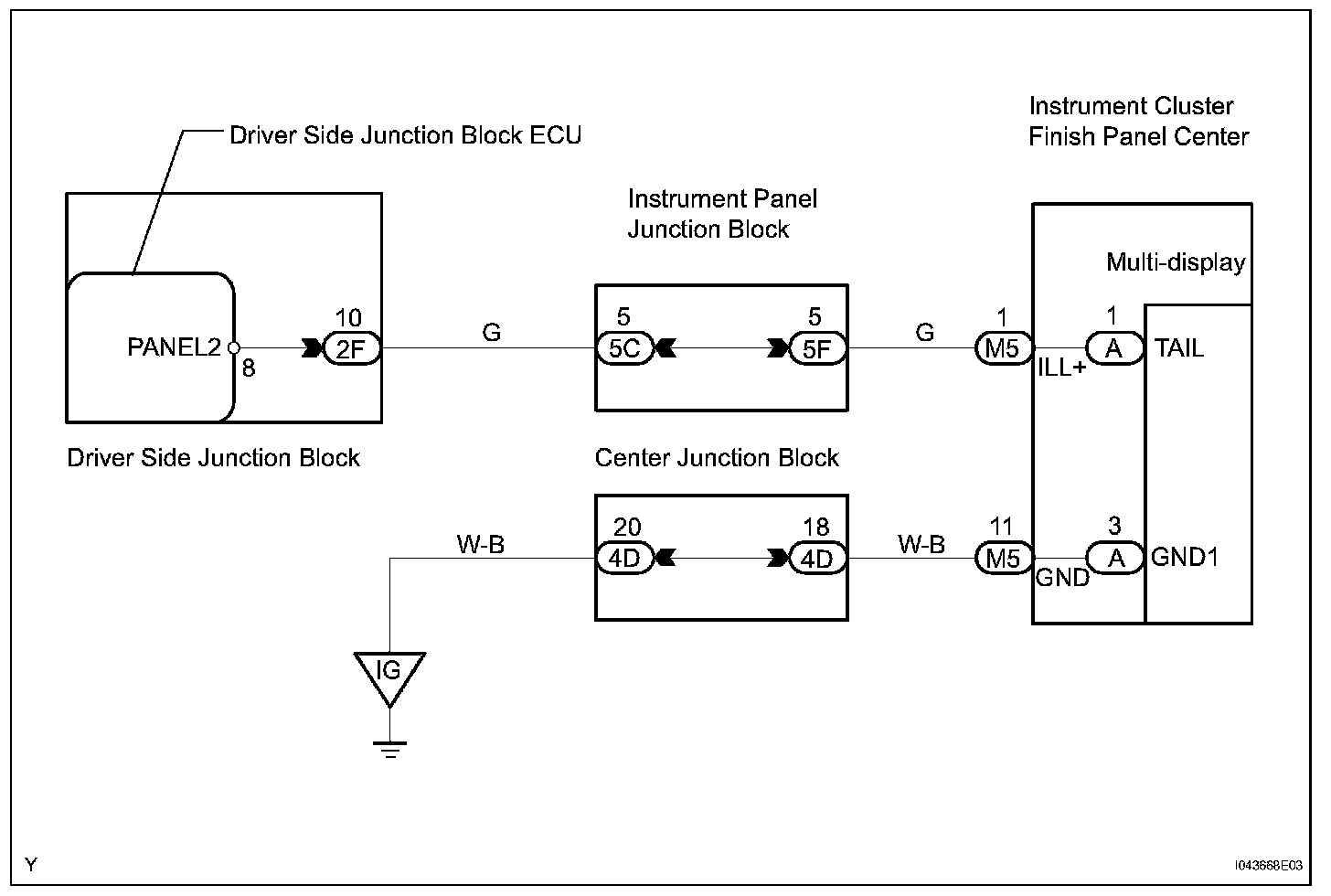

Wiring Diagram:

Step 1:

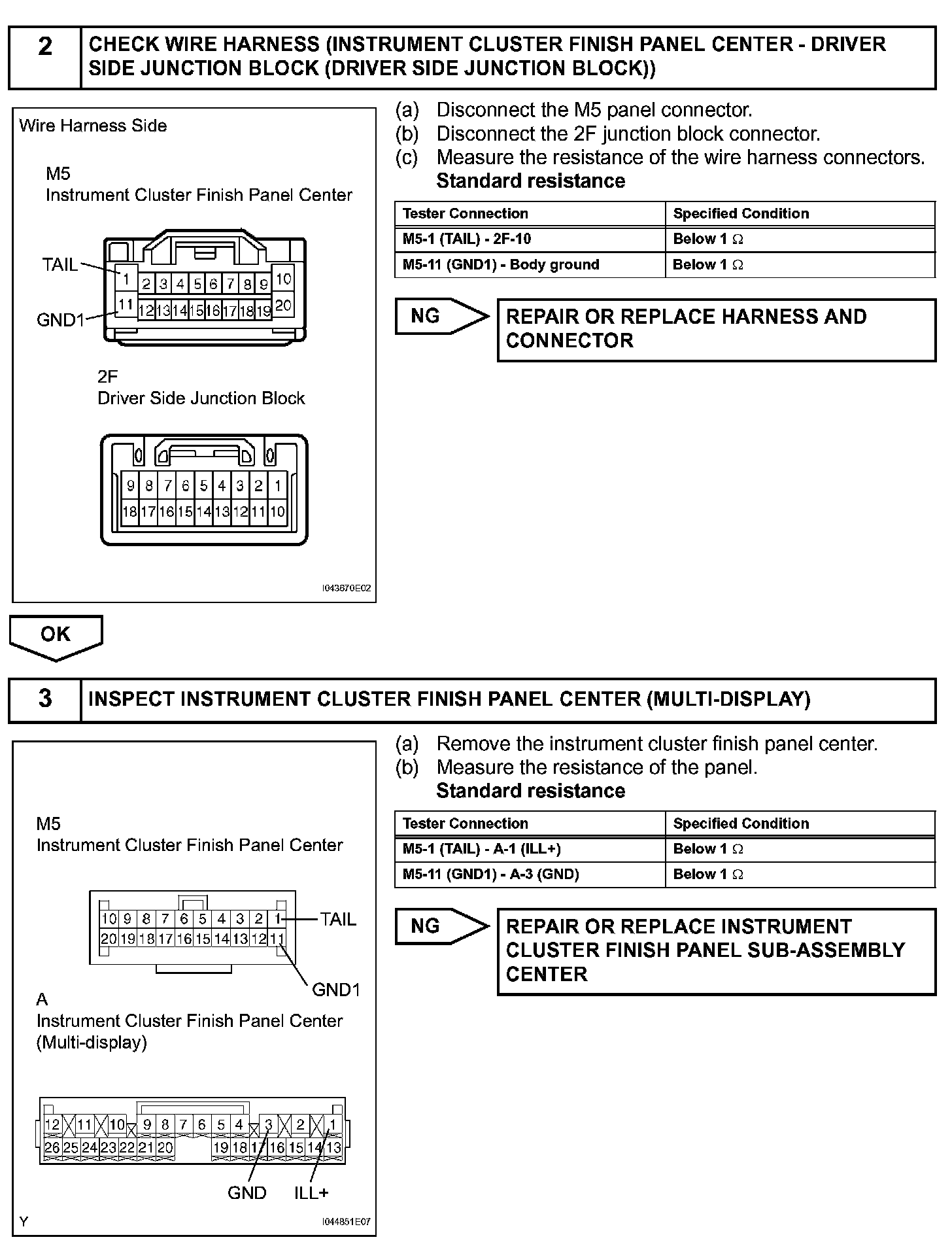

Step 2-3:

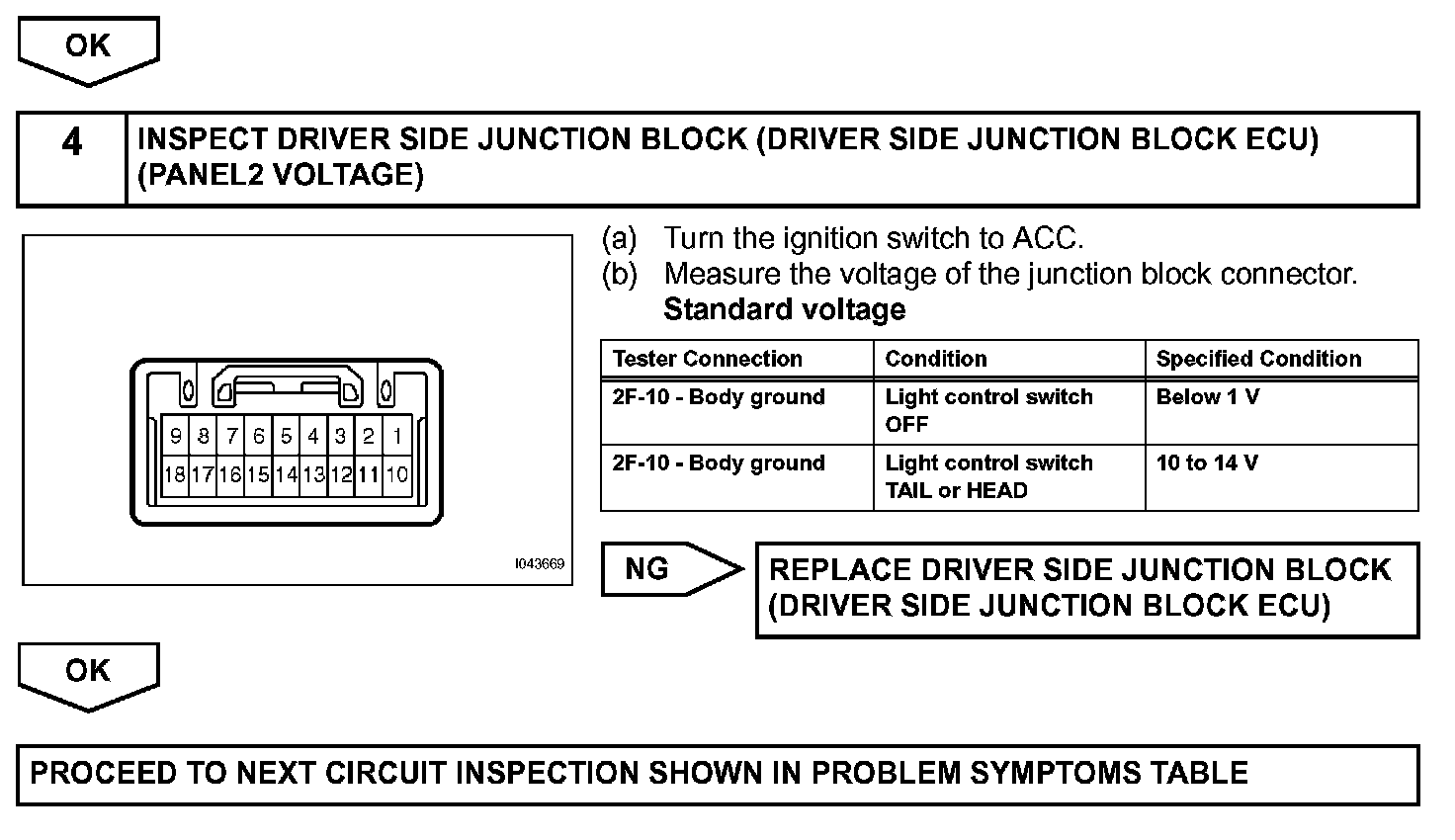

Step 3 (Continued)-4:

INSPECTION PROCEDURE
