Door Control Switch Circuit
Door Control Switch CircuitDESCRIPTION
The display panel can be opened, closed or tilted by pressing the panel switch on A/C control.

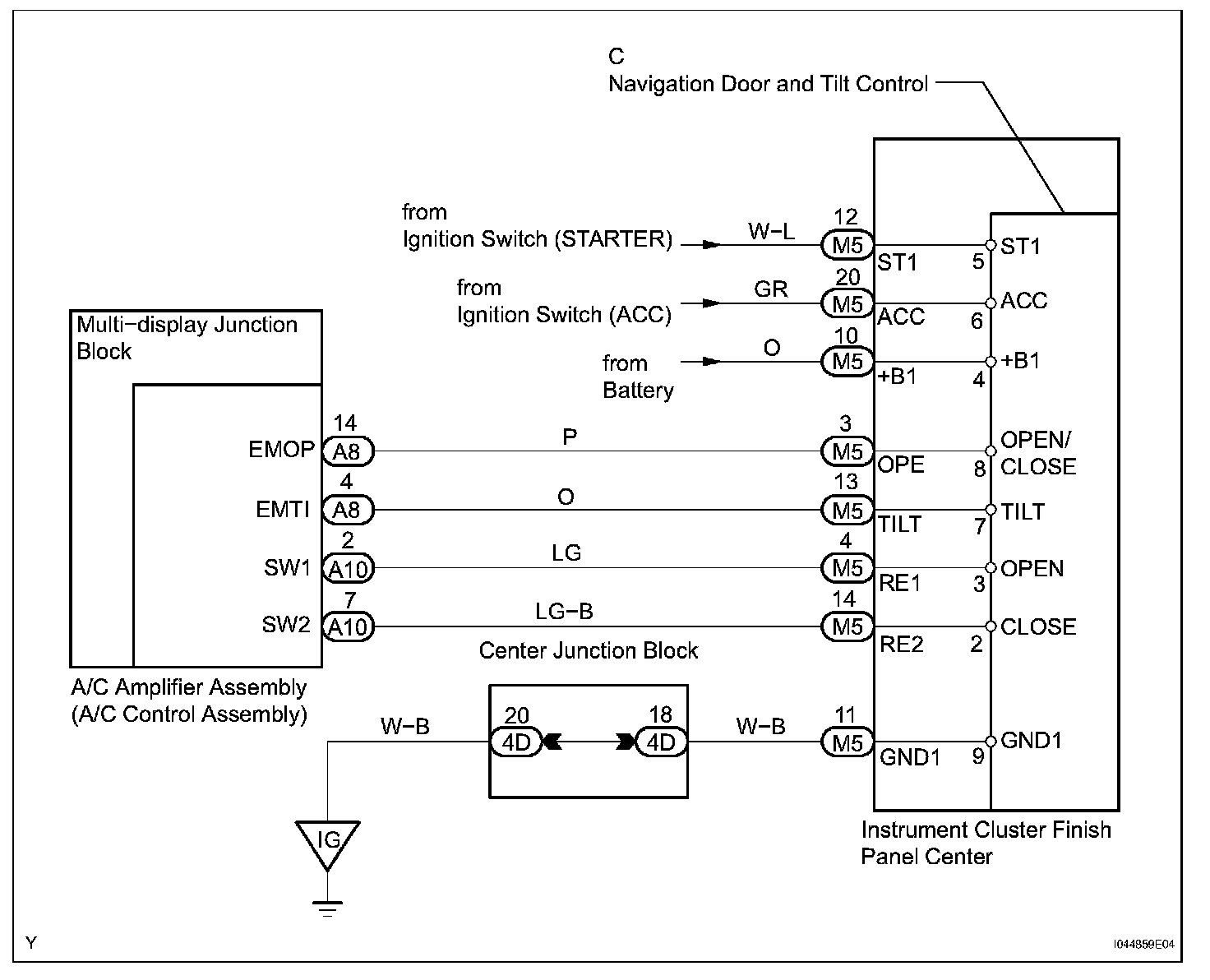

Wiring Diagram:

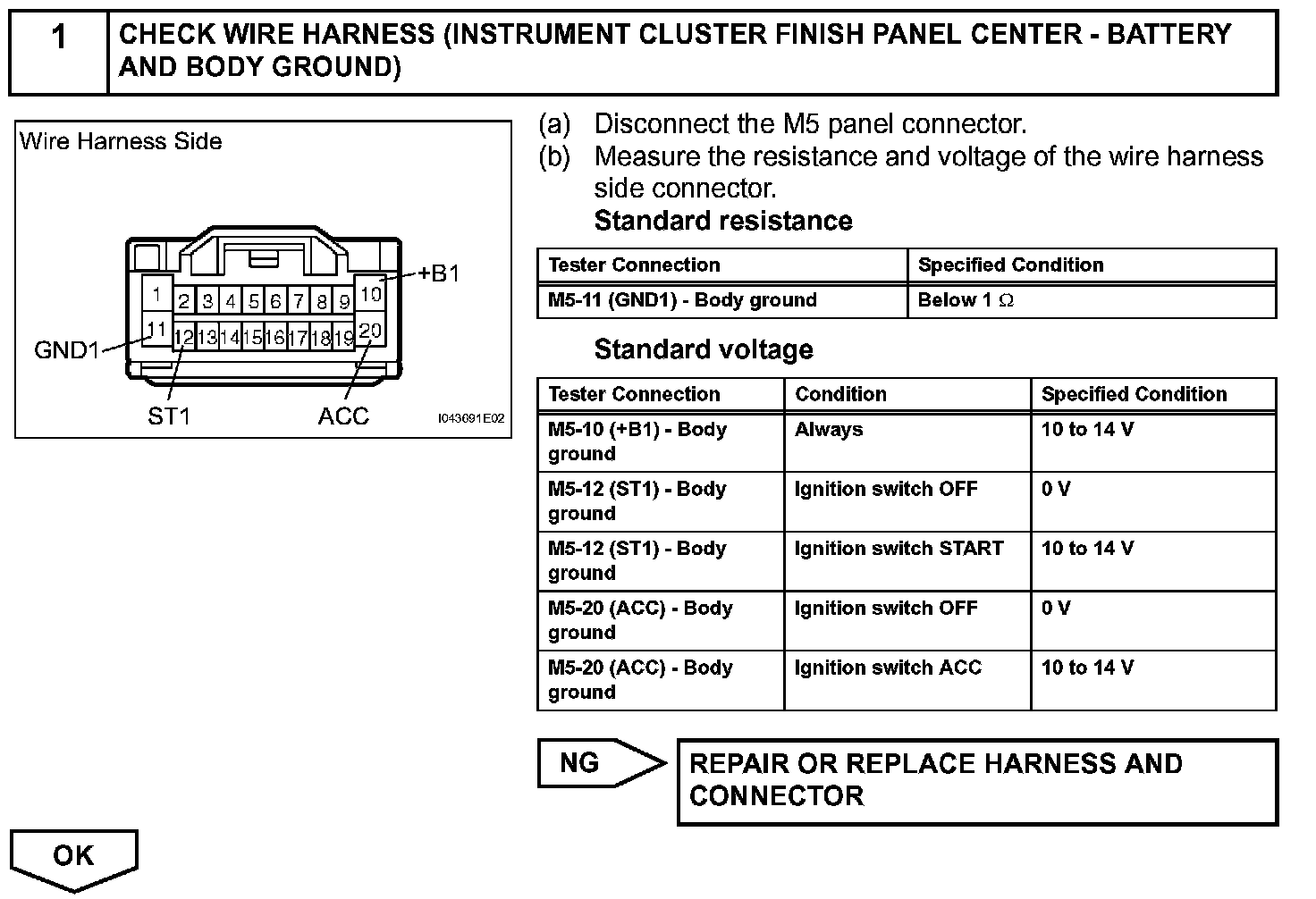

Step 1:
Step 2:

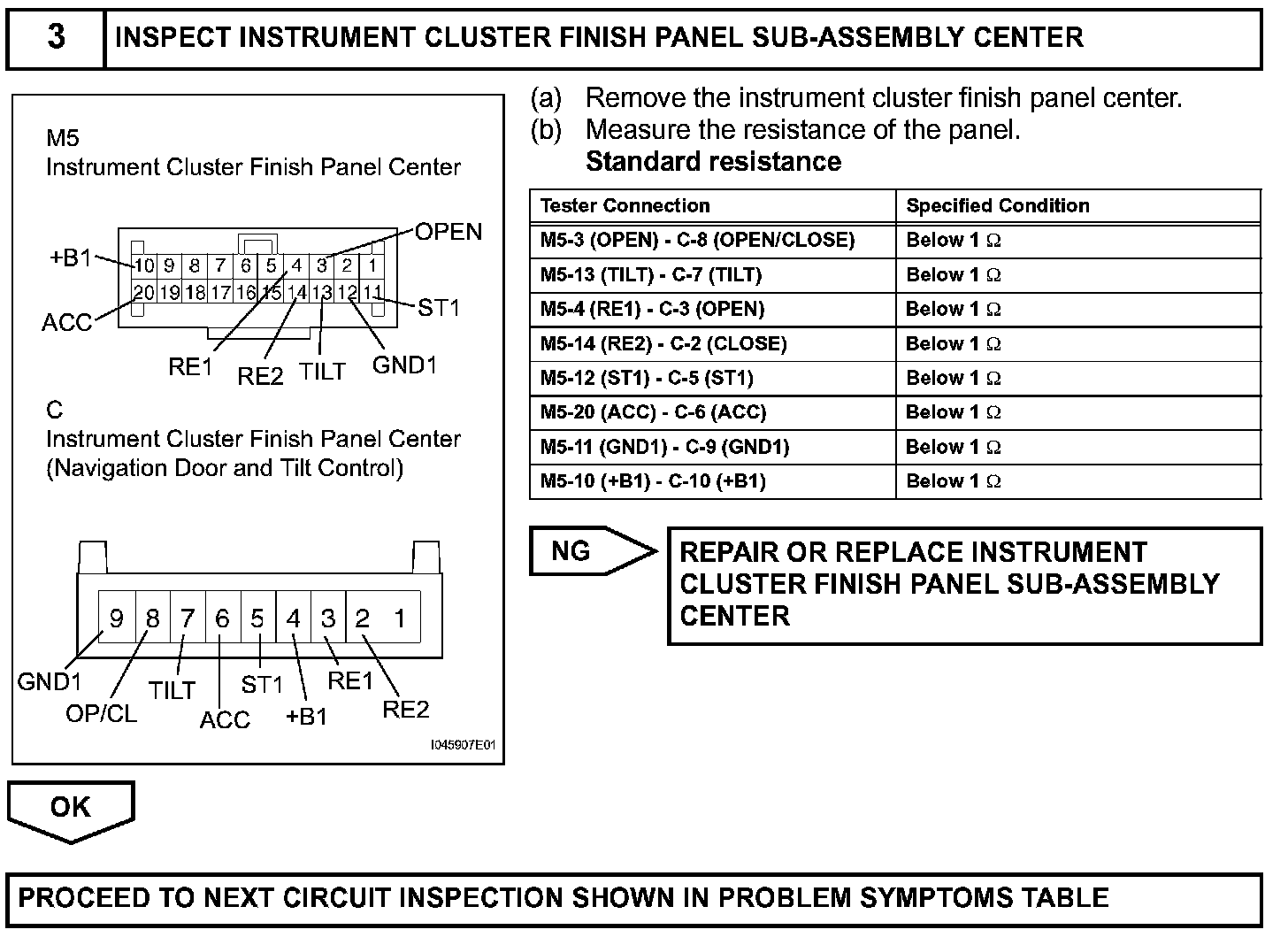

Step 3:
INSPECTION PROCEDURE
DESCRIPTION
The display panel can be opened, closed or tilted by pressing the panel switch on A/C control.
INSPECTION PROCEDURE
