Display Signal Circuit Between Navigation ECU and Multi-Display

Display Signal Circuit between Navigation ECU and Multi-display

DESCRIPTION

This is the display signal circuit from the navigation ECU to the multi-display.

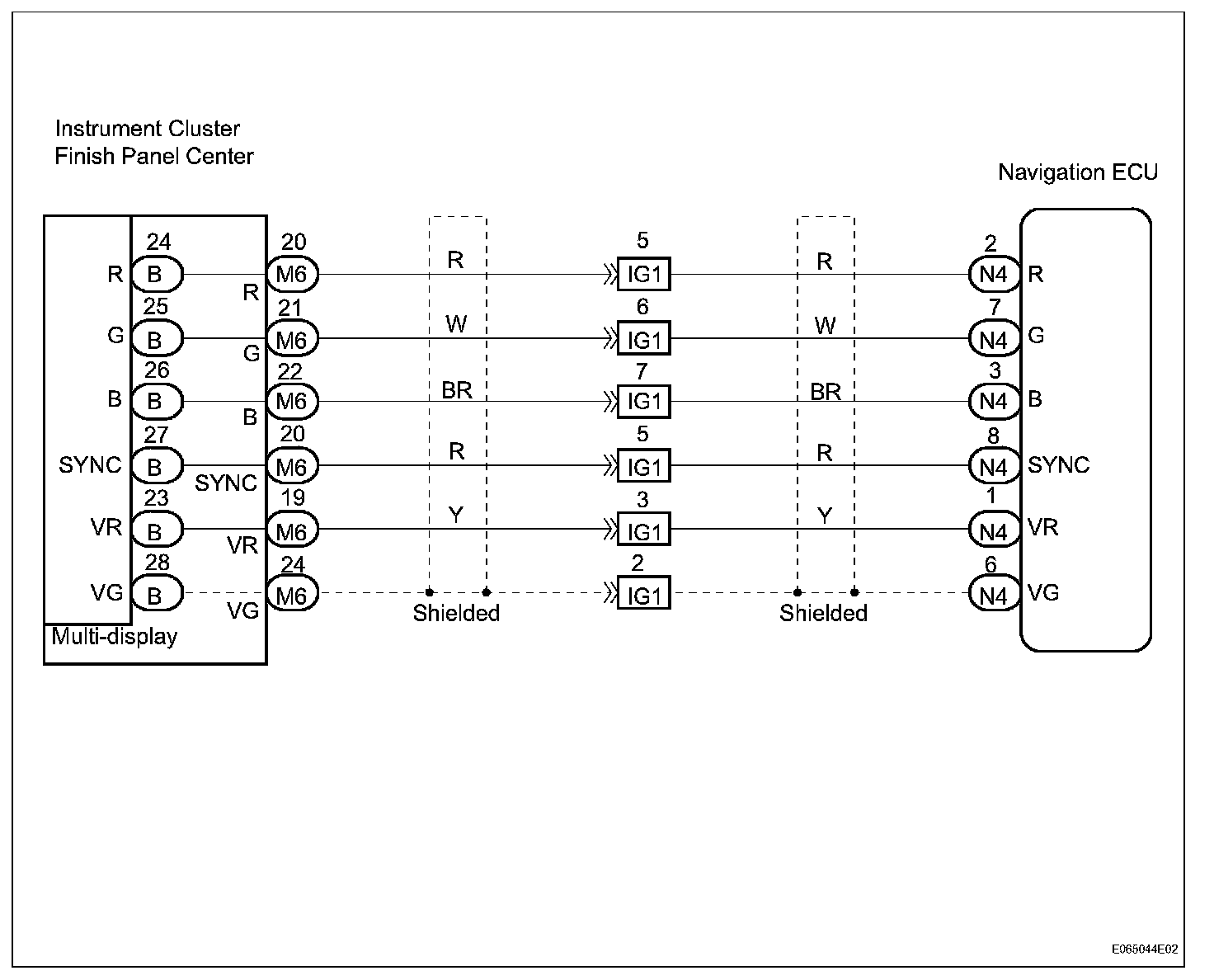

Wiring Diagram:






Step 1:

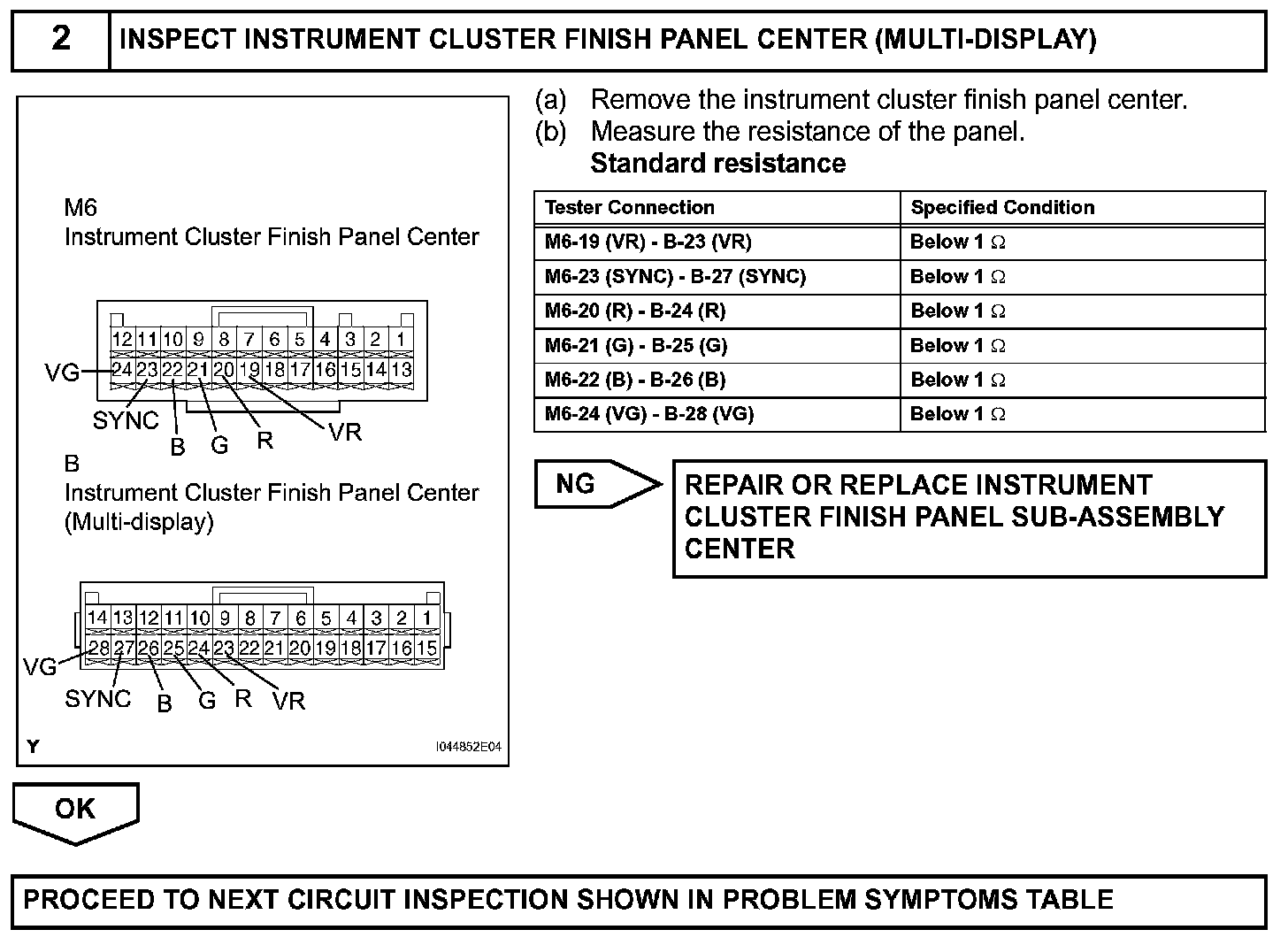

Step 2:




INSPECTION PROCEDURE
