Cellular Phone Voice Circuit Between Multi-Display and Navigation ECU

Cellular Phone Voice Circuit between Multi-display and Navigation ECU

DESCRIPTION

This circuit sends a voice signal of the cellular phone from the multi-display to the navigation ECU.

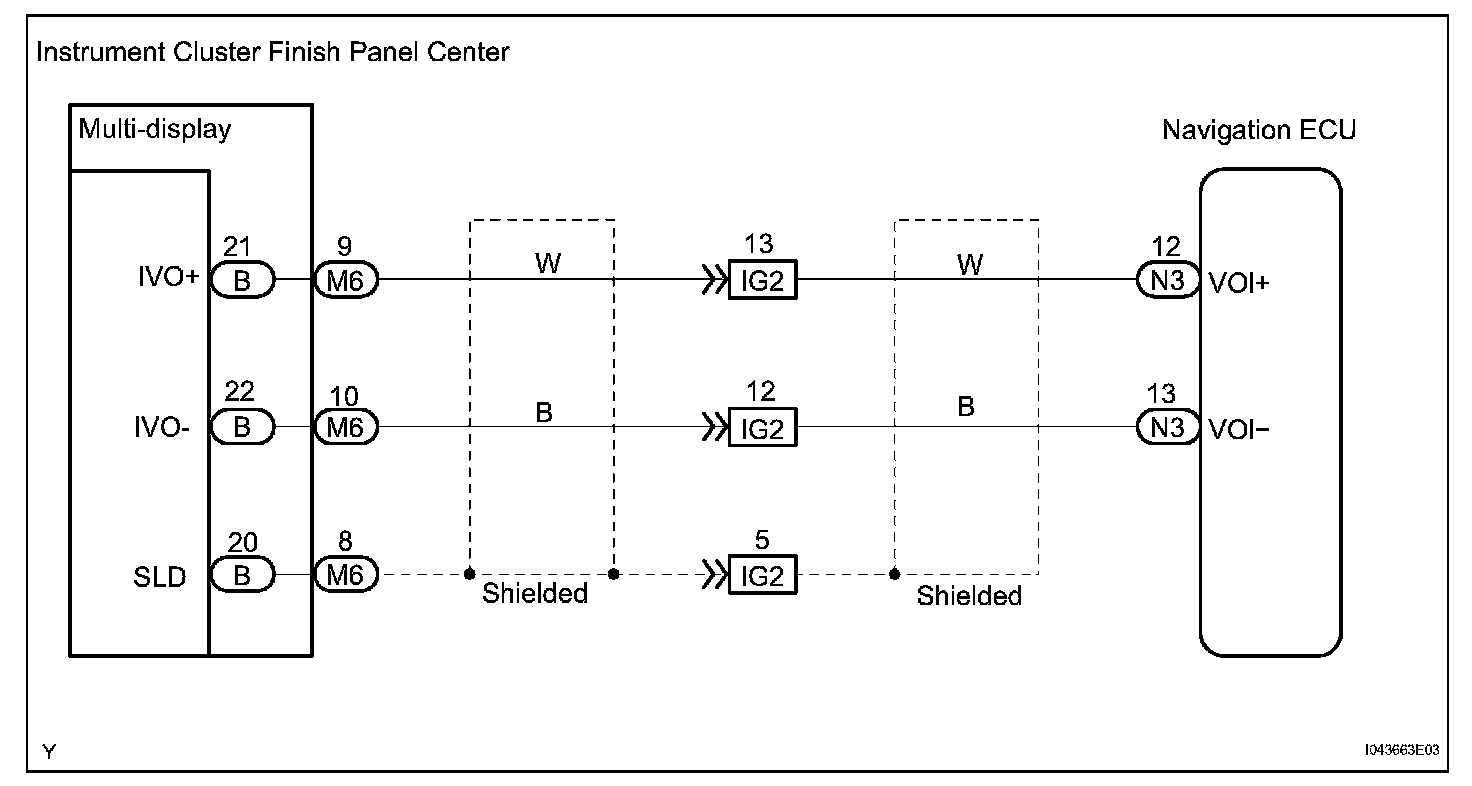

Wiring Diagram:

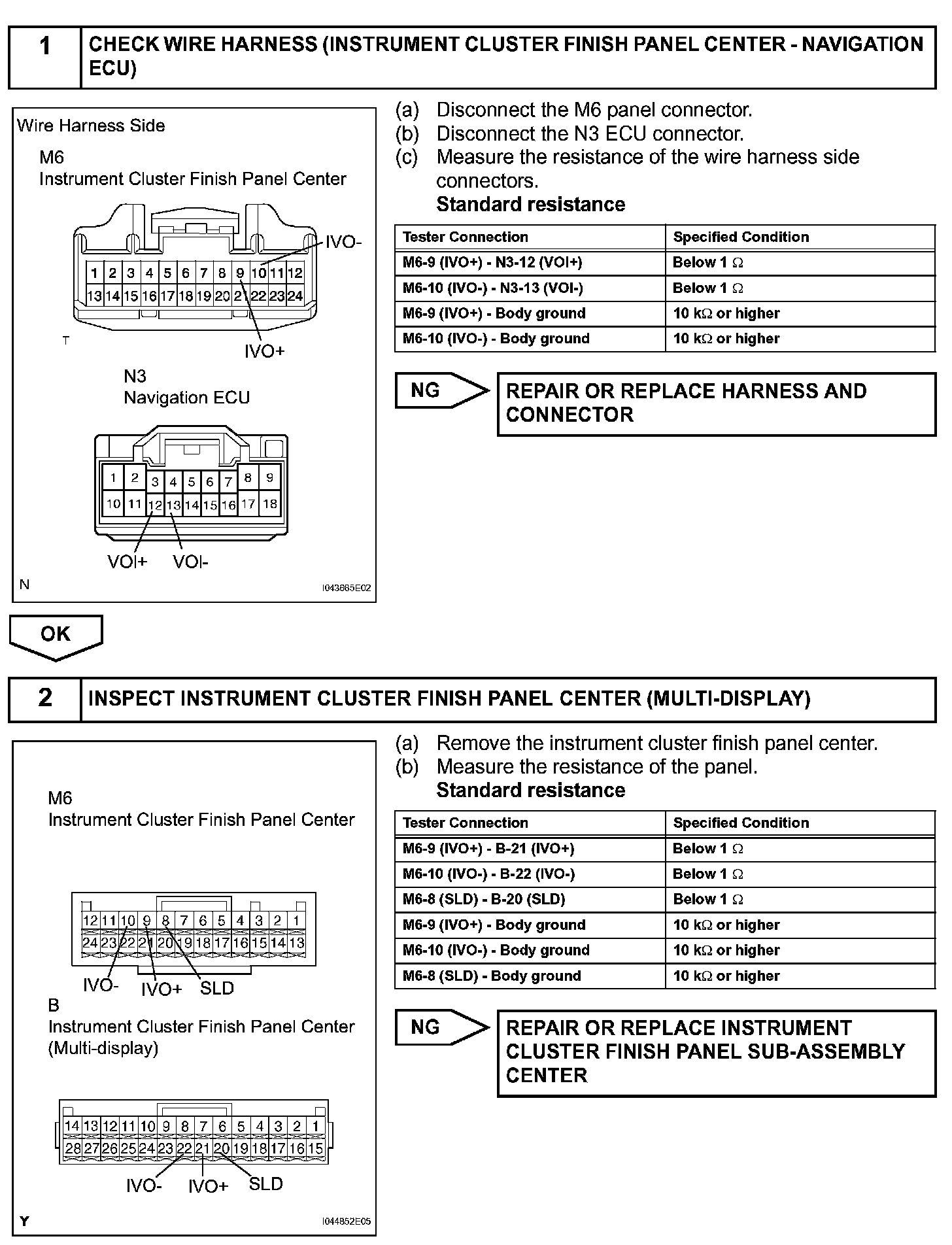

Step 1-2:




Step 2 (Continued):




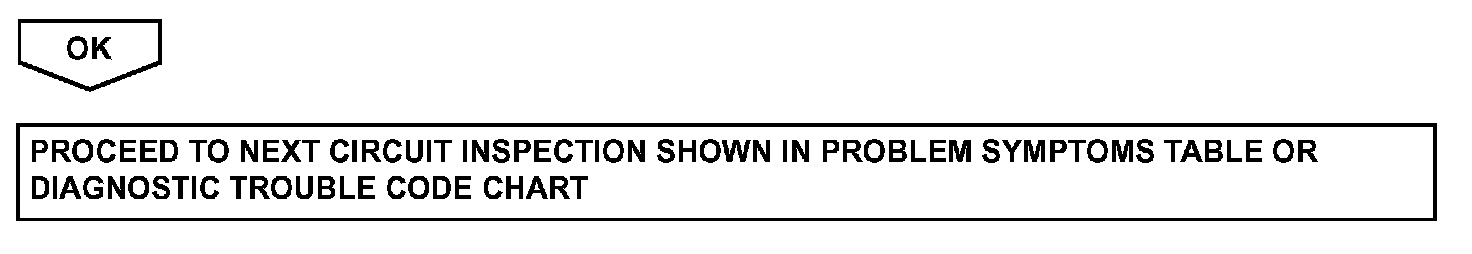

INSPECTION PROCEDURE
