AVC-LAN Circuit Between Radio Receiver and Stereo Component Amplifier

AVC-LAN Circuit between Radio Receiver and Stereo Component Amplifier

DESCRIPTION

The navigation system uses the AVC-LAN to control communication between all of its units. Each unit is connected to the AVC-LAN and communicates by sending and receiving switch signals.

When the AVC-LAN has a +B short or a GND short, communication is cut and the navigation system will not function normally.

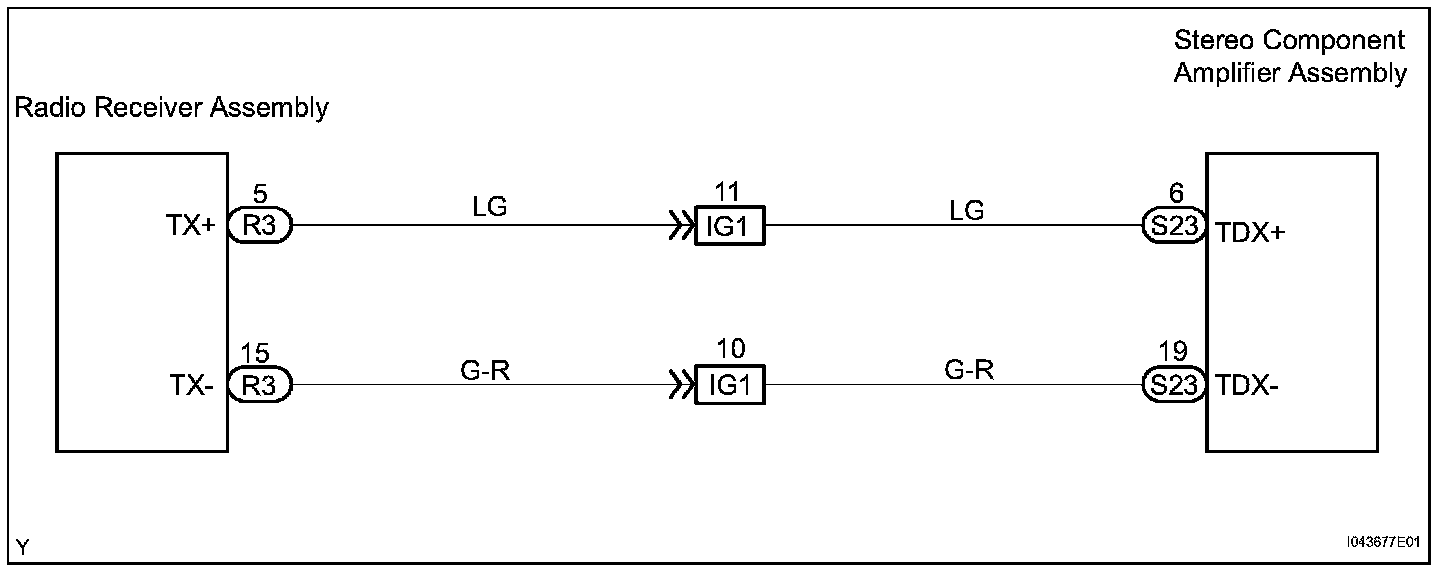

Wiring Diagram:

Step 1:

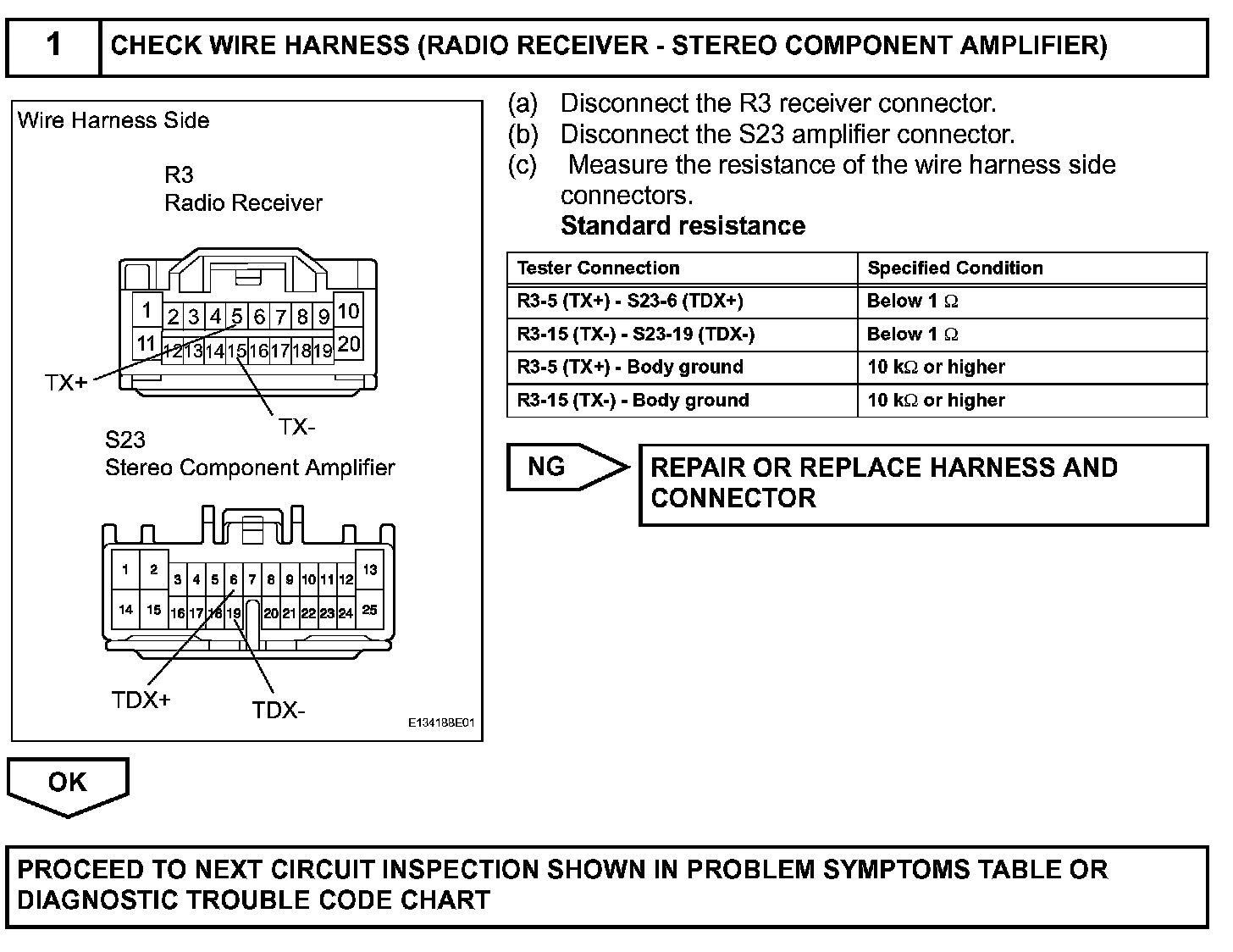

INSPECTION PROCEDURE
