Garage Door Opener Transmitter: Description and Operation

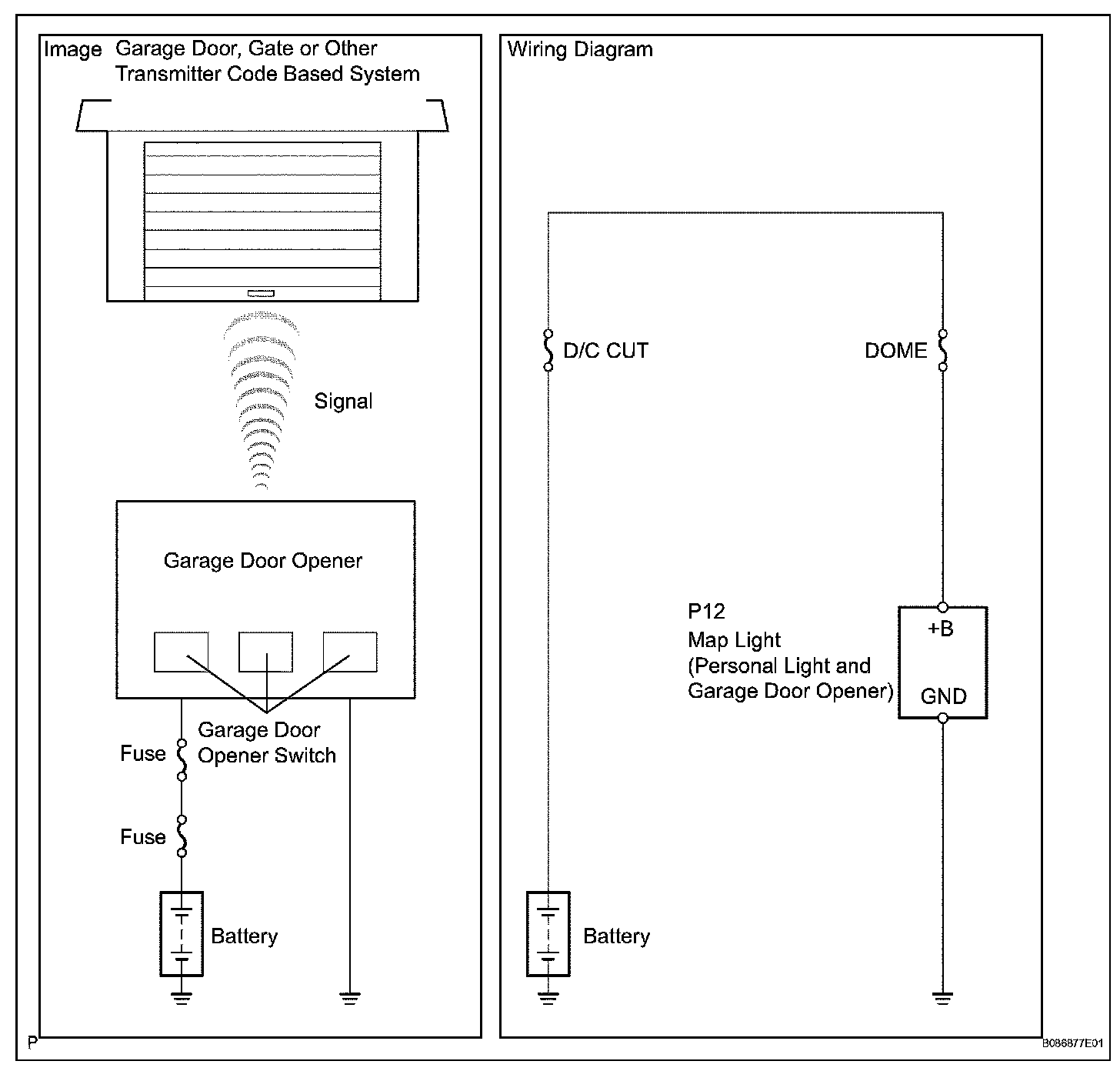

System Diagram:

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

The vehicle's garage door opener can reproduce transmitter codes of garage doors, entry gates and other transmitter code based systems, eliminating the need for each system's transmitter. Transmitter codes must be registered to the vehicle's garage door opener. A maximum of 3 transmitter codes can be registered.
