Reading Diagnostic Trouble Codes
>>
With Manufacturer's Scan Tool
With Manufacturer's Scan Tool
CHECK DTC
a.

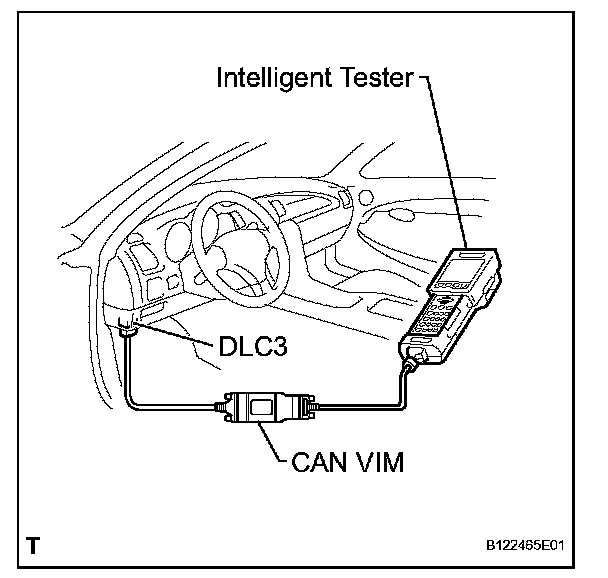

Connect the intelligent tester (with CAN VIM) to the DLC3.
b.
Turn the ignition switch ON.
c.
Read the DTCs by given the directions on the tester's screen.
