Theft Deterrent System

Terminals Of Control Module/Pinouts - Check Theft Warning ECU:

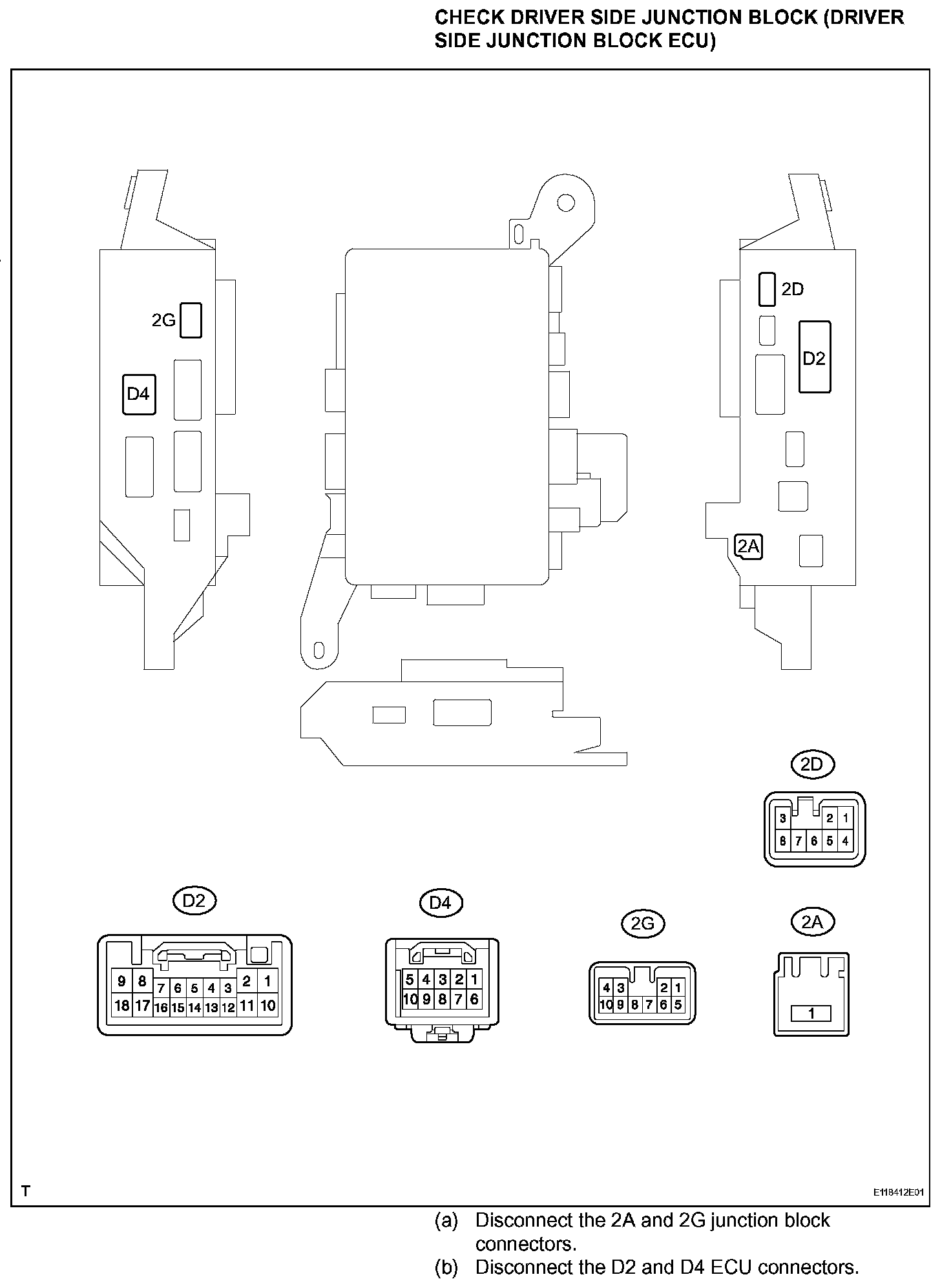

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Driver Side Junction Block ECU) (Part 1):

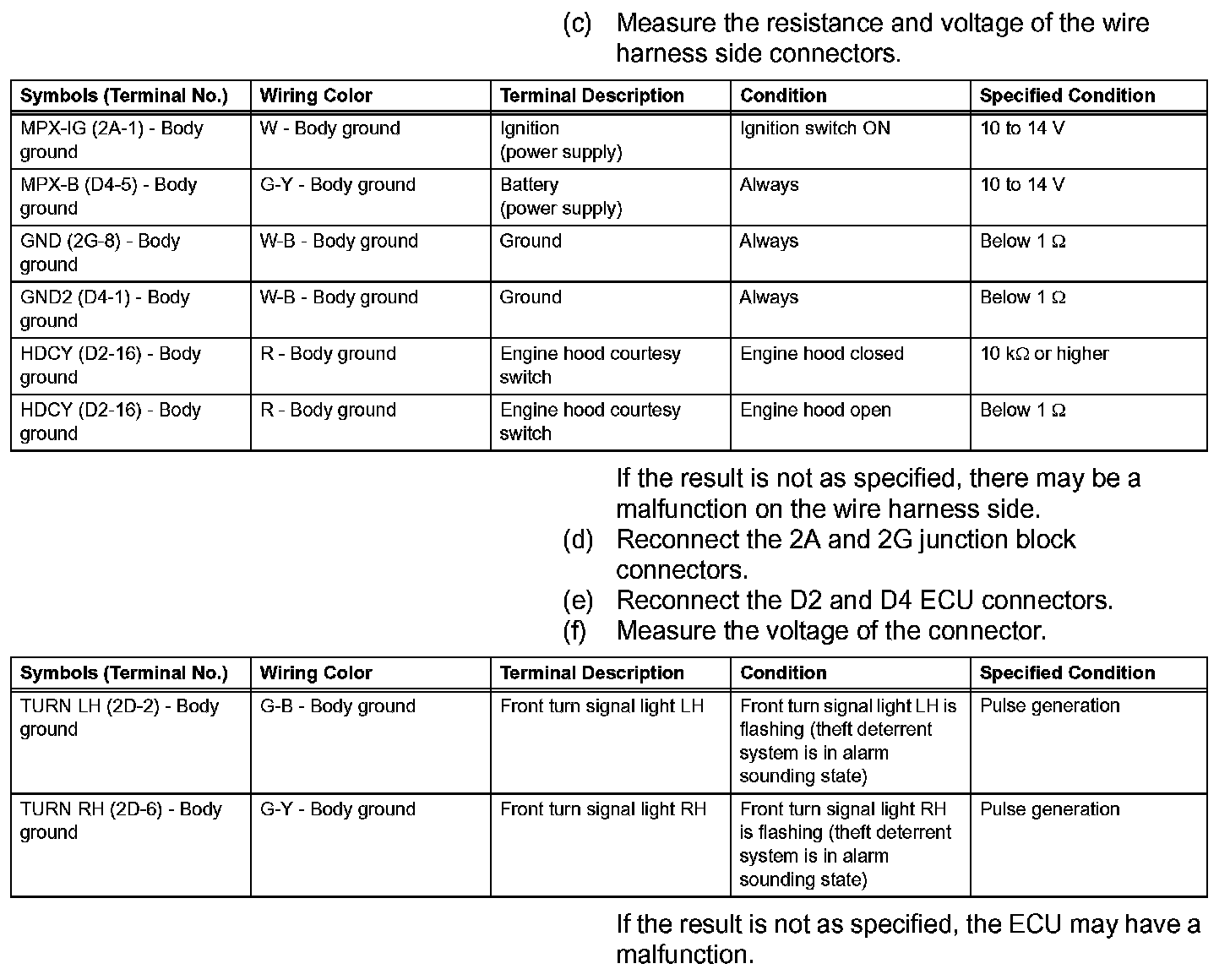

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Driver Side Junction Block ECU) (Part 2):

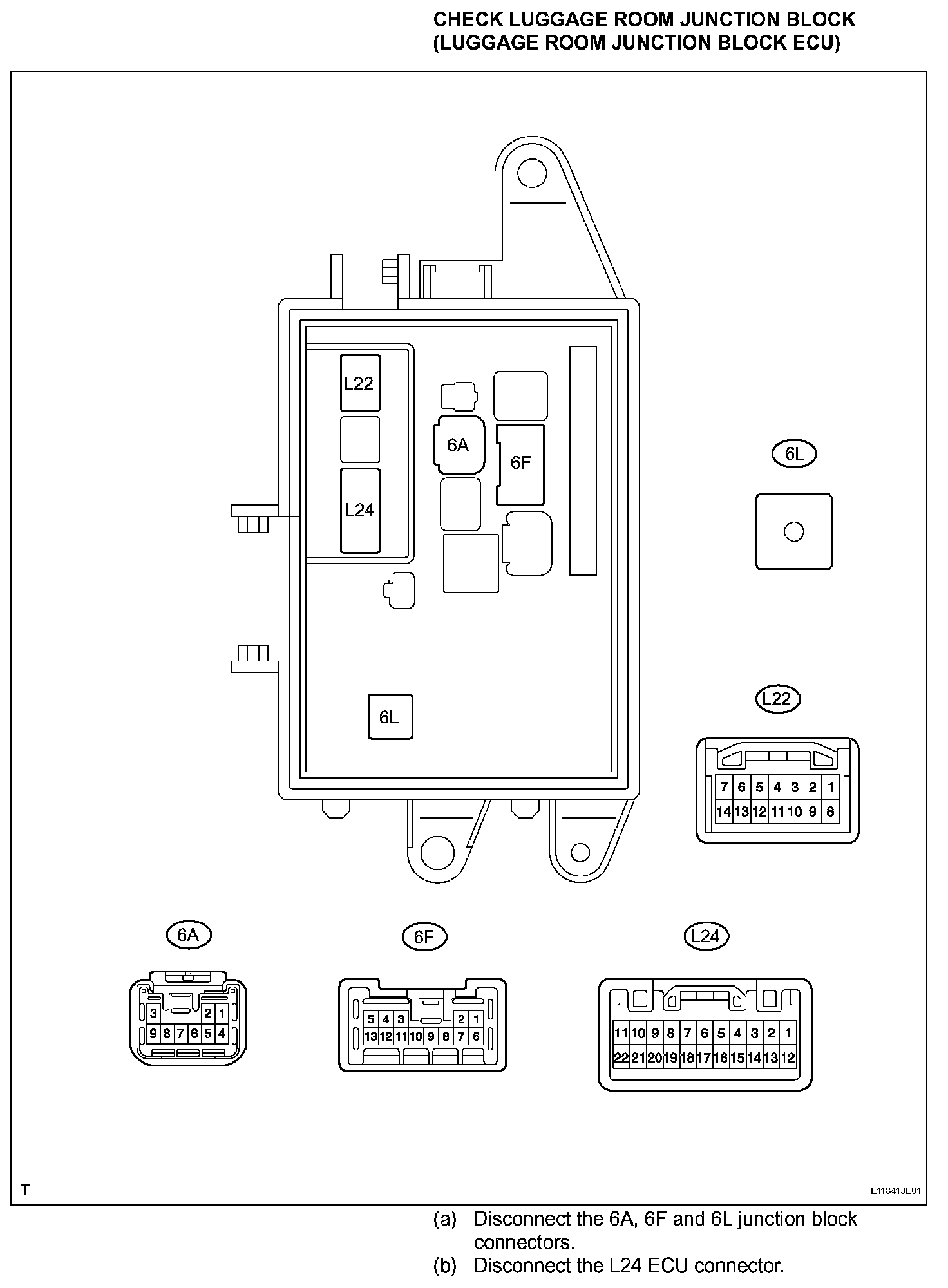

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block (Luggage Room Junction Block ECU) (Part 1):

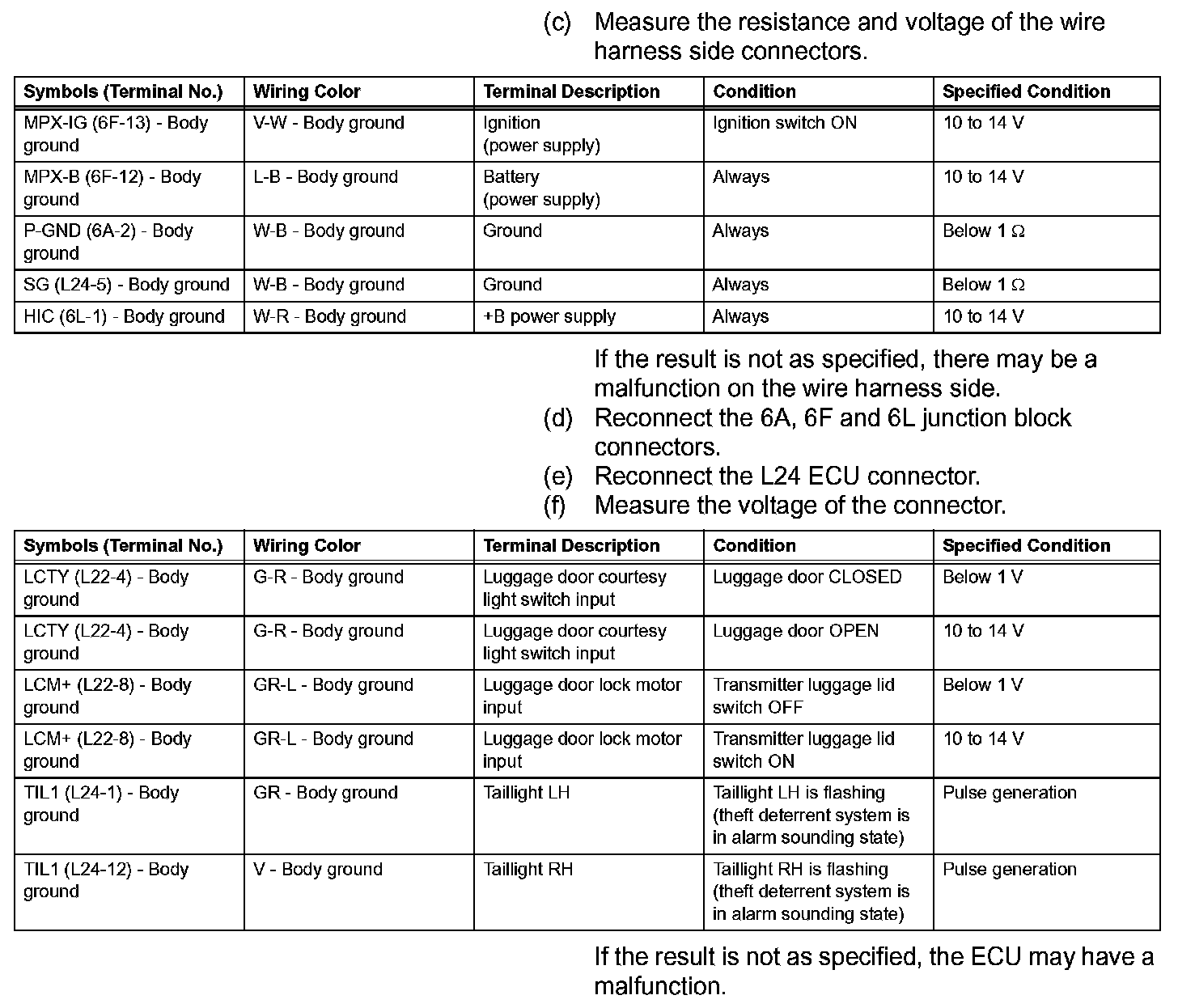

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block (Luggage Room Junction Block ECU) (Part 2):

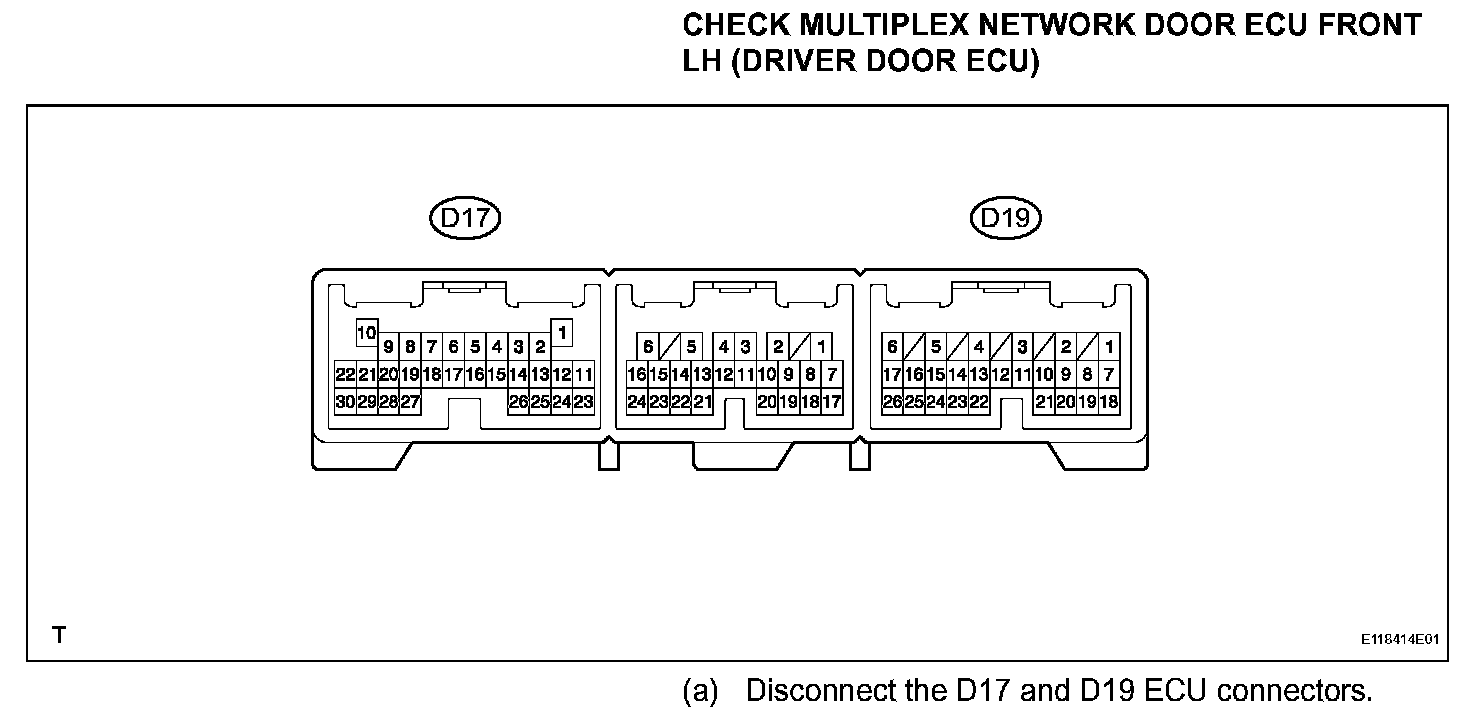

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH (Driver Door ECU) (Part 1):

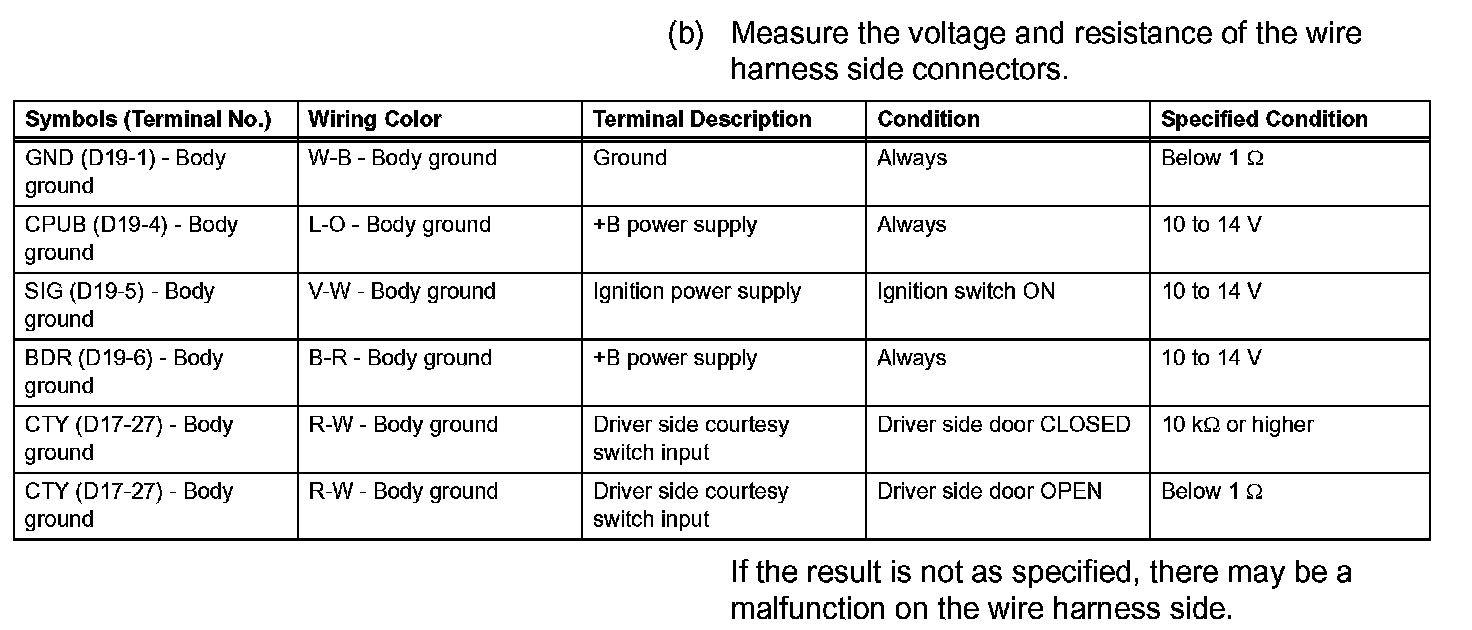

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH (Driver Door ECU) (Part 2):

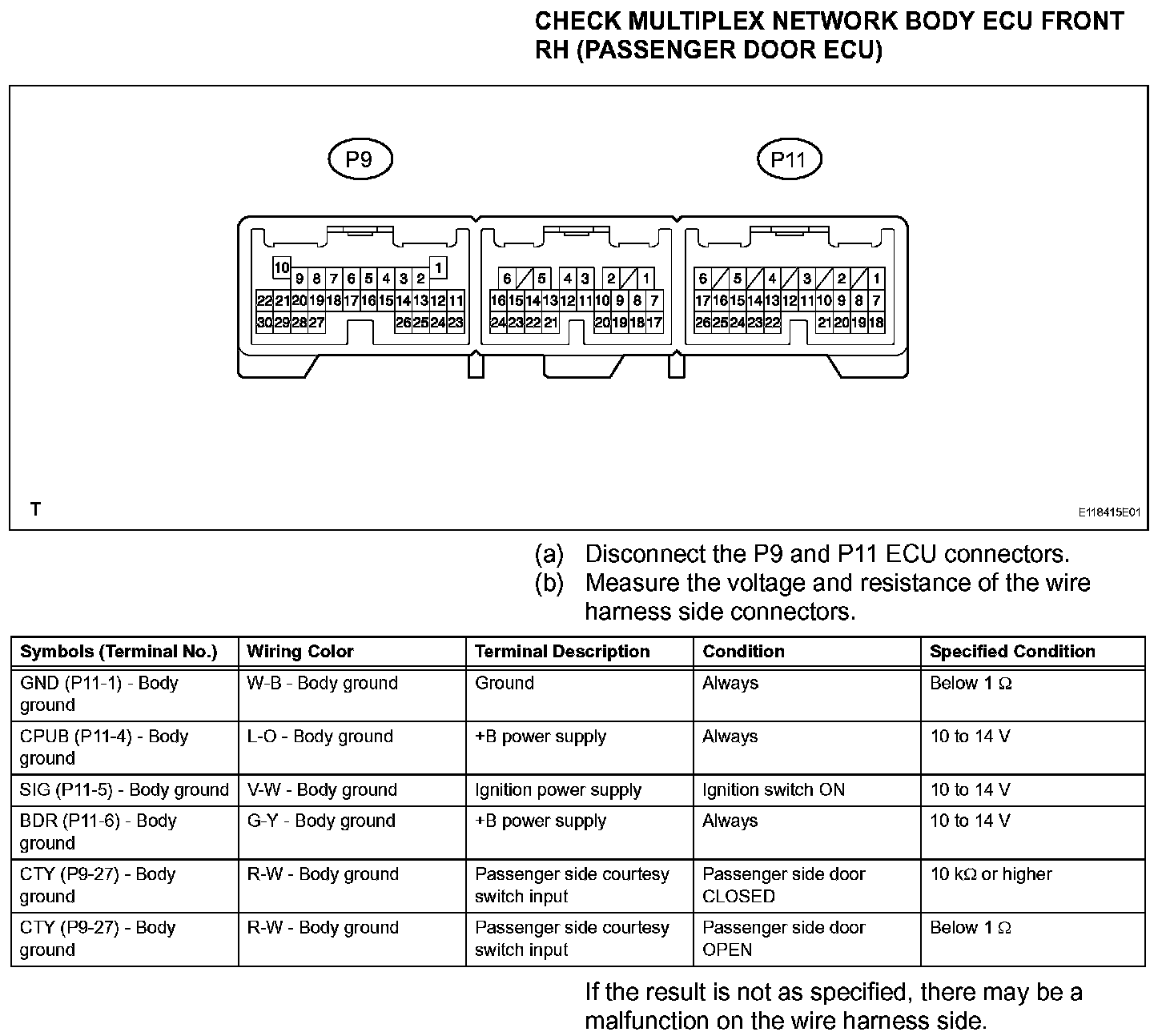

Terminals Of Control Module/Pinouts - Check Multiplex Network Body ECU Front RH (Passenger Door ECU):

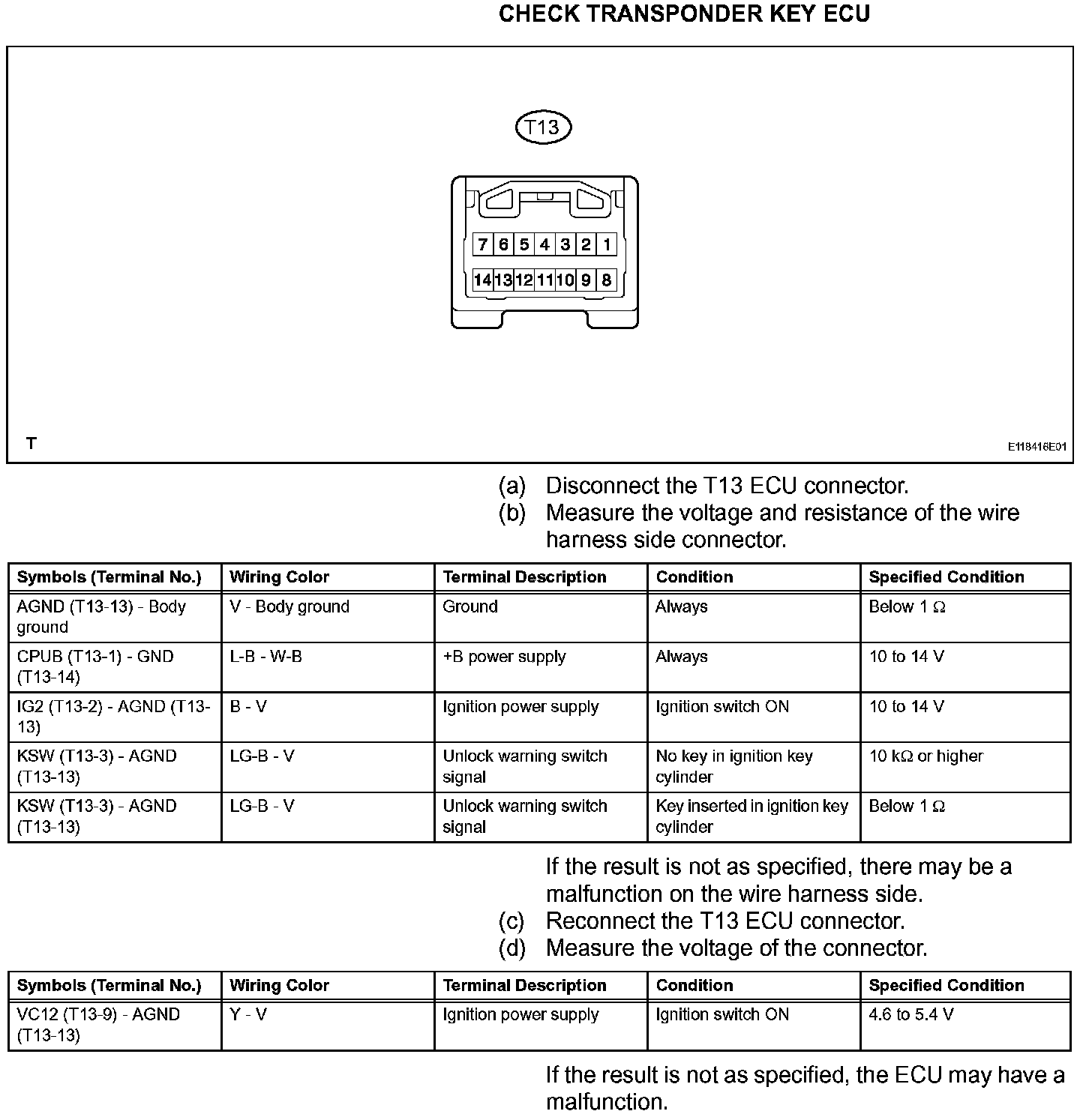

Terminals Of Control Module/Pinouts - Check Transponder Key ECU:

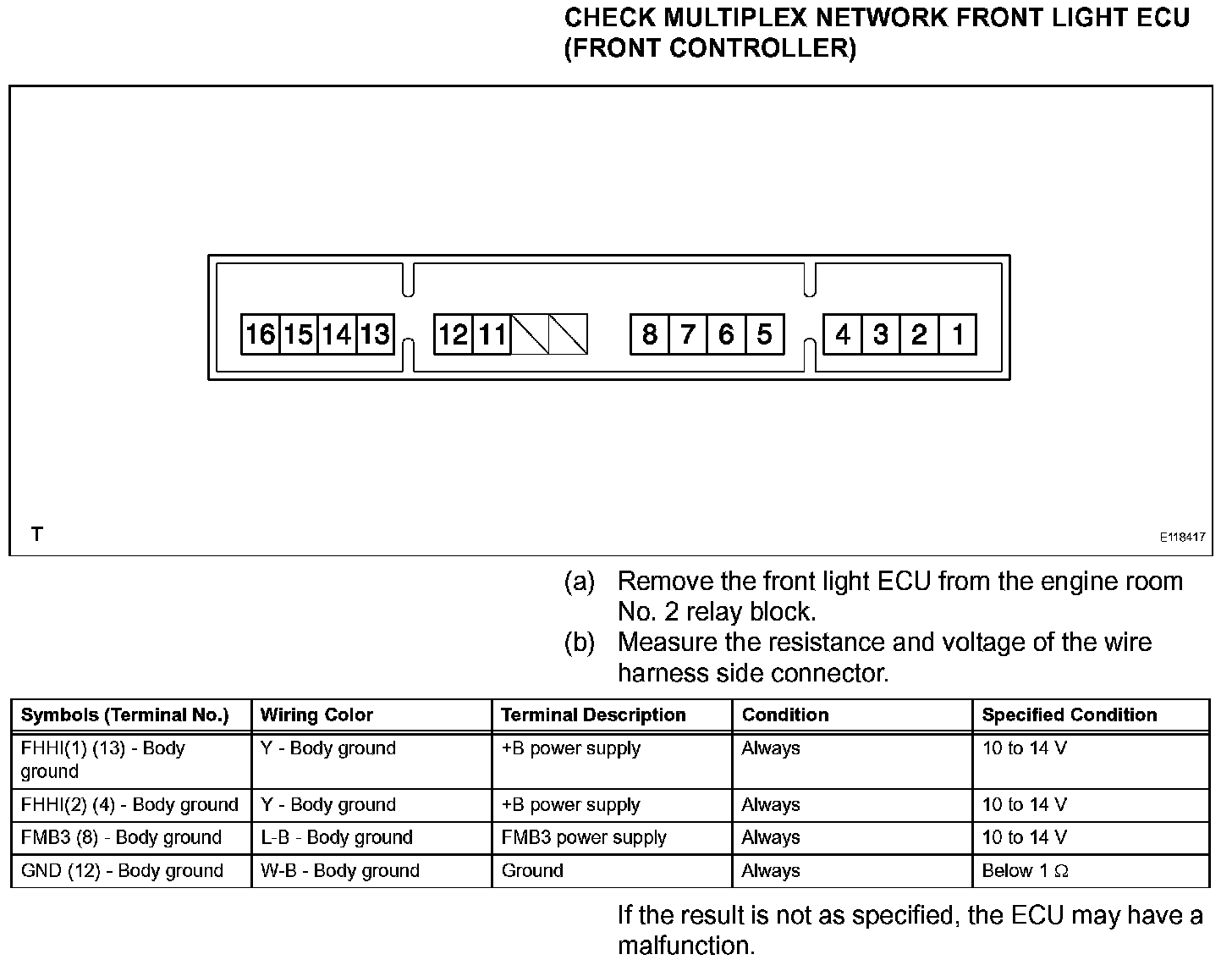

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Light ECU (Front Controller):
