Theft Deterrent System

Ignition Switch Circuit

DESCRIPTION

When the ignition switch is turned ON, battery positive (+) voltage is applied to the theft warning ECU.

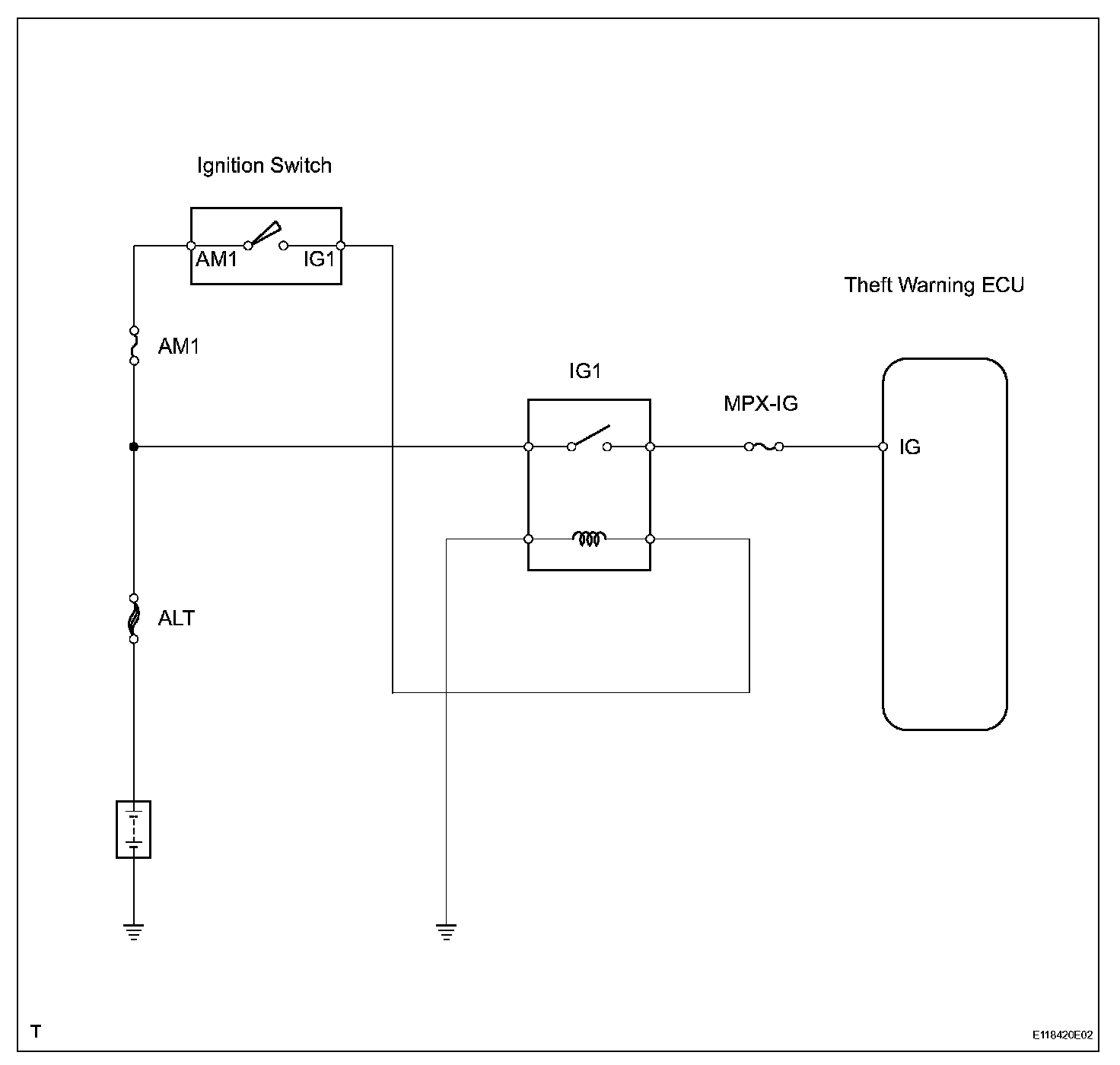

Wiring Diagram:

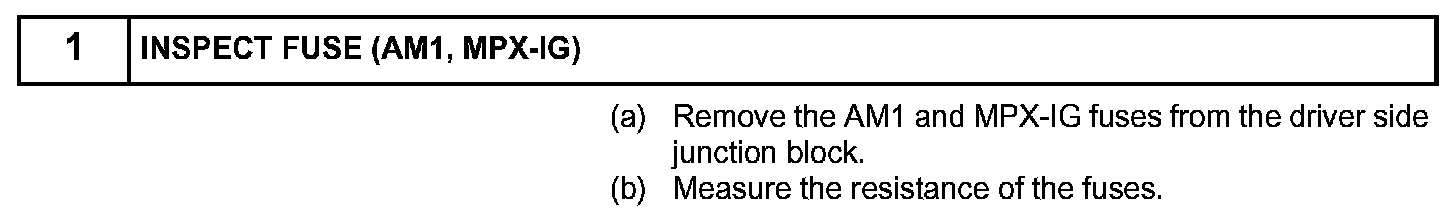

Step 1:

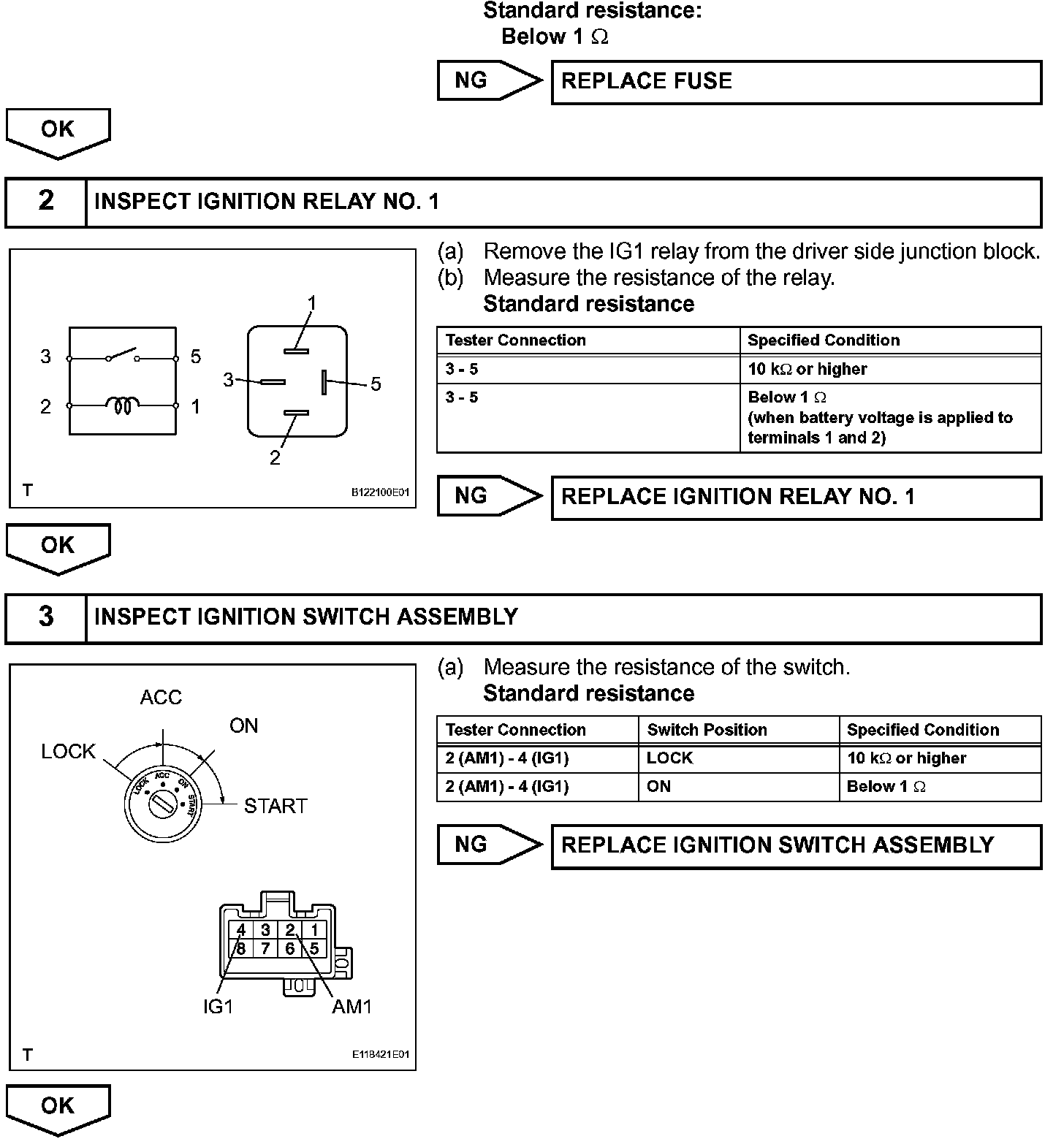

Step 1 (Continued)-3:

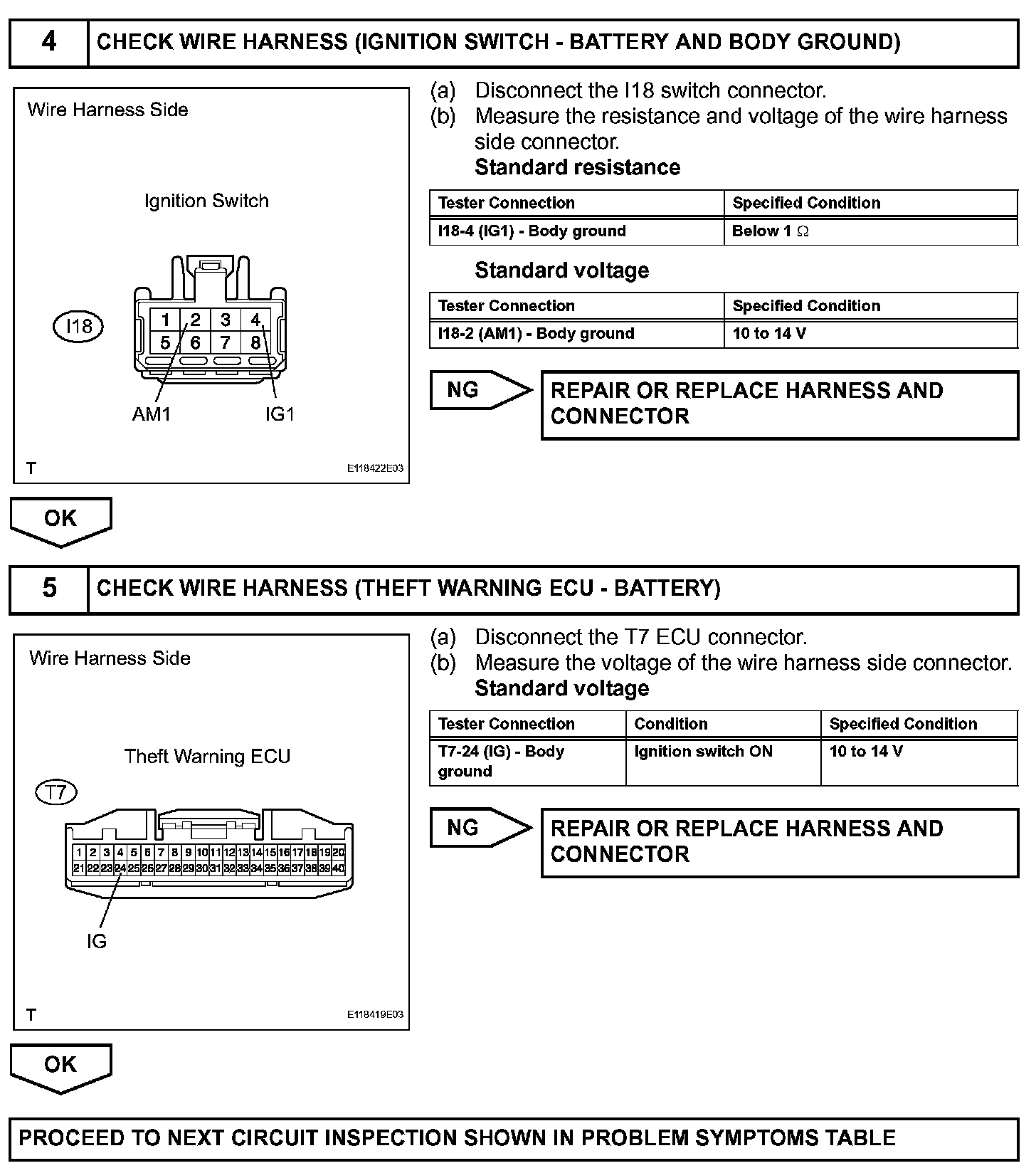

Step 4-5:

INSPECTION PROCEDURE
