Power Source Circuit

Power Source Circuit

DESCRIPTION
This circuit provides power to operate the transponder key ECU.

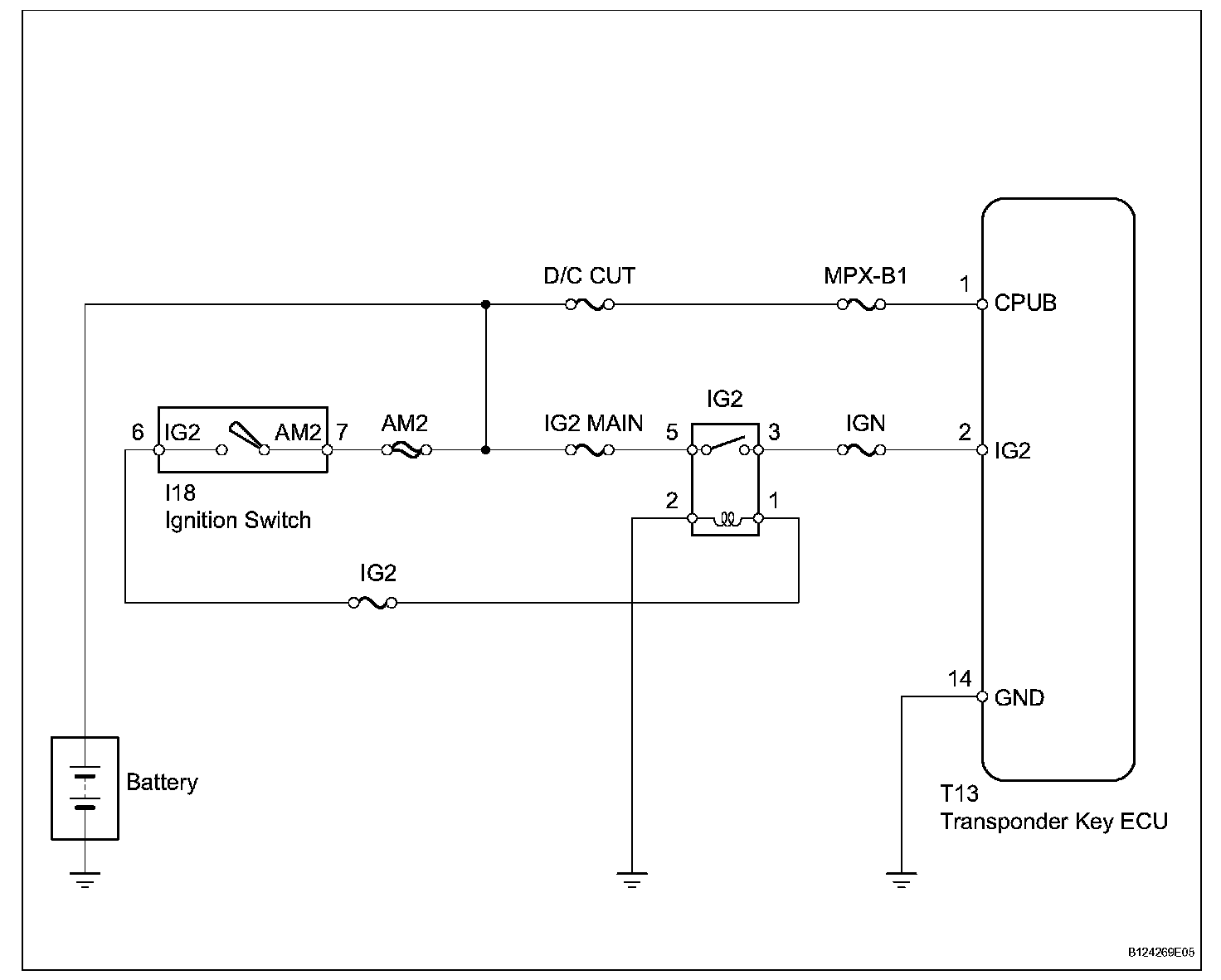

Wiring Diagram:






Step 1:

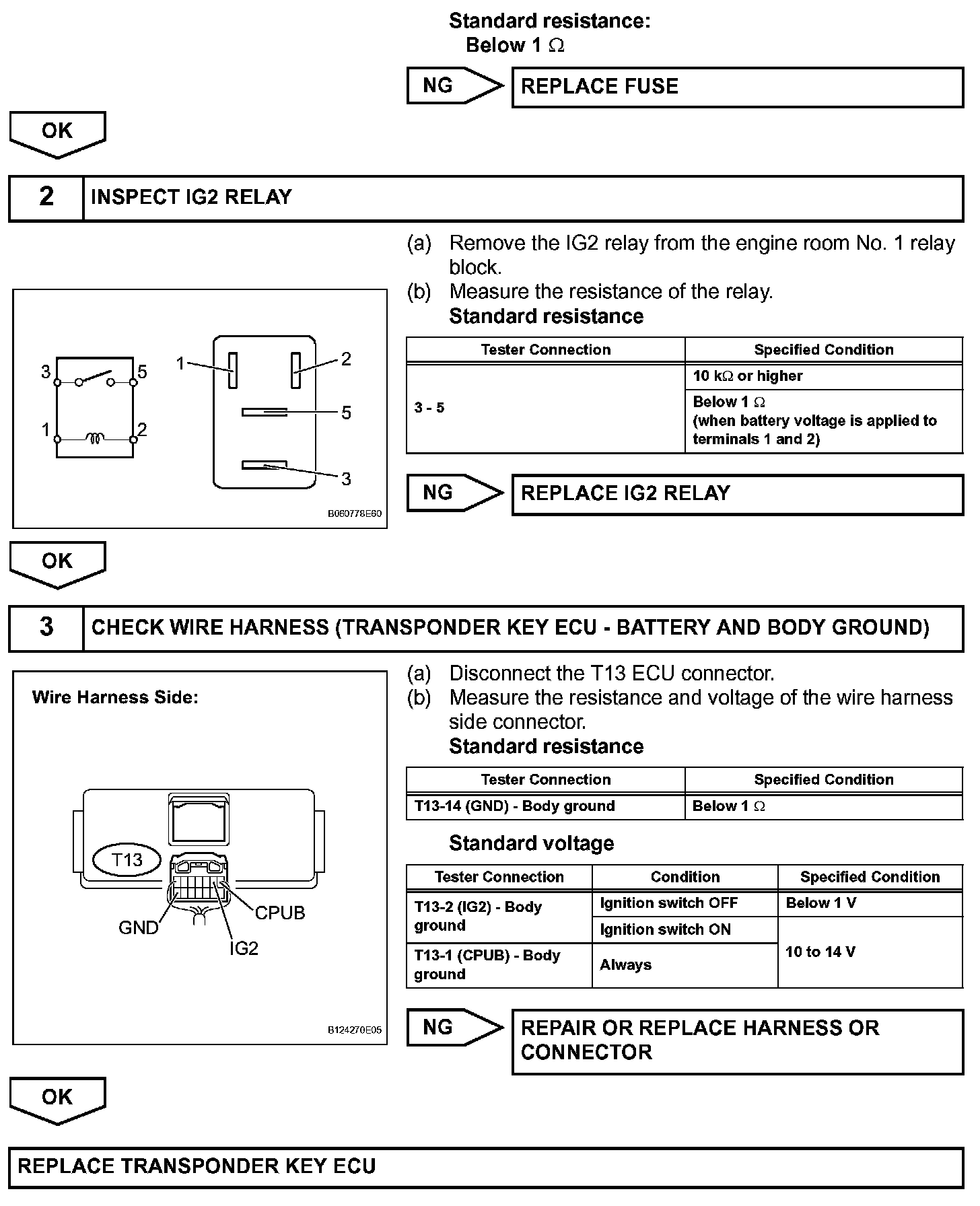

Step 1 (Continued)-3:




INSPECTION PROCEDURE
