Component Inspection

INSPECTION

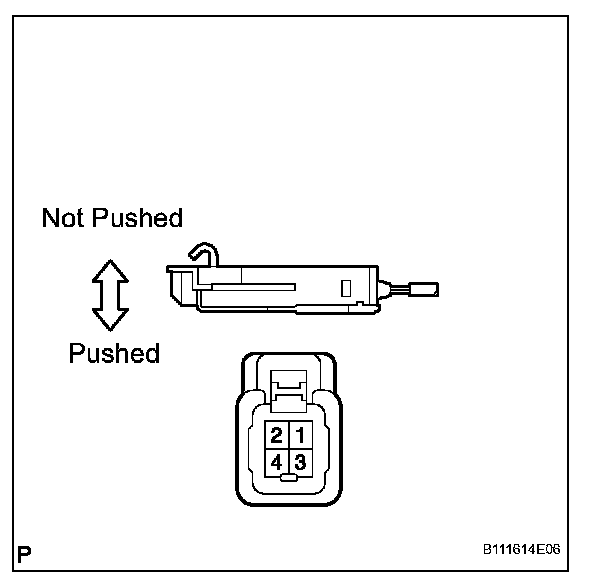

1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

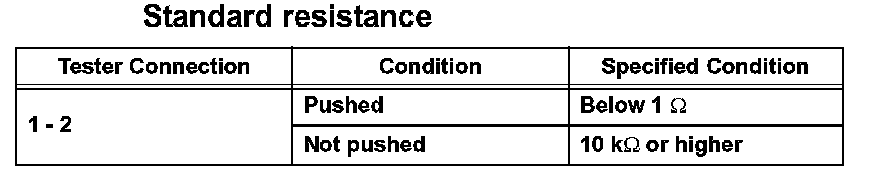

a. Measure the resistance of the switch.

If the result is not as specified, replace the switch assembly.
