Component Inspection

INSPECTION

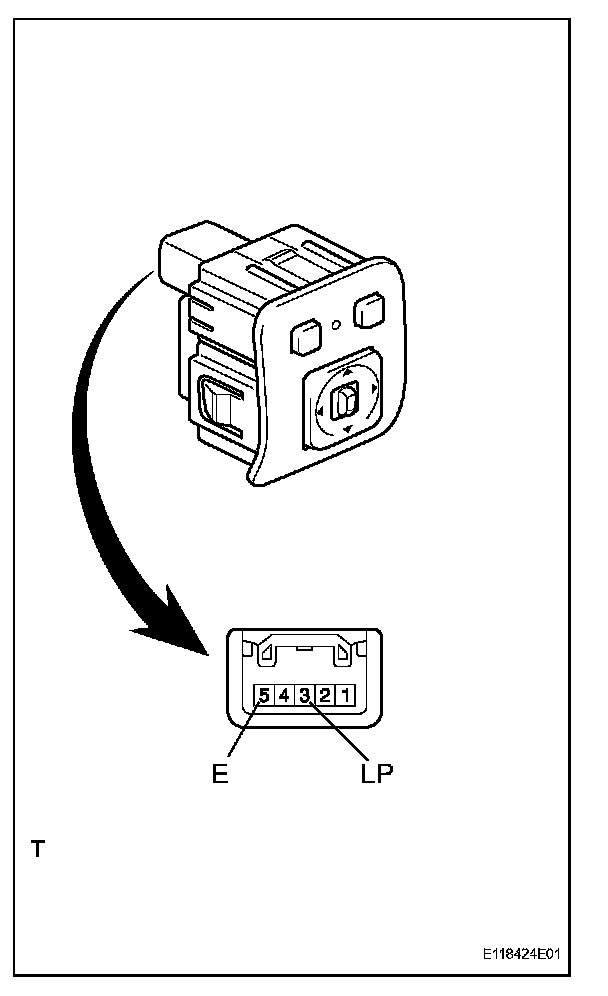

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY (for Security Indicator)

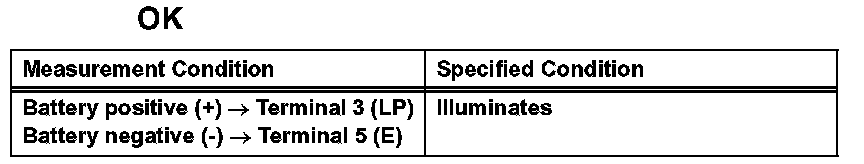

a. Apply battery voltage between the terminals of the indicator, and check the lighting condition of the security indicator.

NOTE:
- If the positive (+) lead and the negative (-) lead are incorrectly connected, the security indicator does not illuminate.
- A voltage of more than 12 V will damage the security indicator.
- If the voltage is too low, the security indicator will not illuminate.

If the result is not as specified, replace the switch assembly.
