Driver Side Door ECU Power Source Circuit
Driver Side Door ECU Power Source CircuitDESCRIPTION
This circuit supplies power to operate the multiplex network door ECU front LH (driver door ECU).

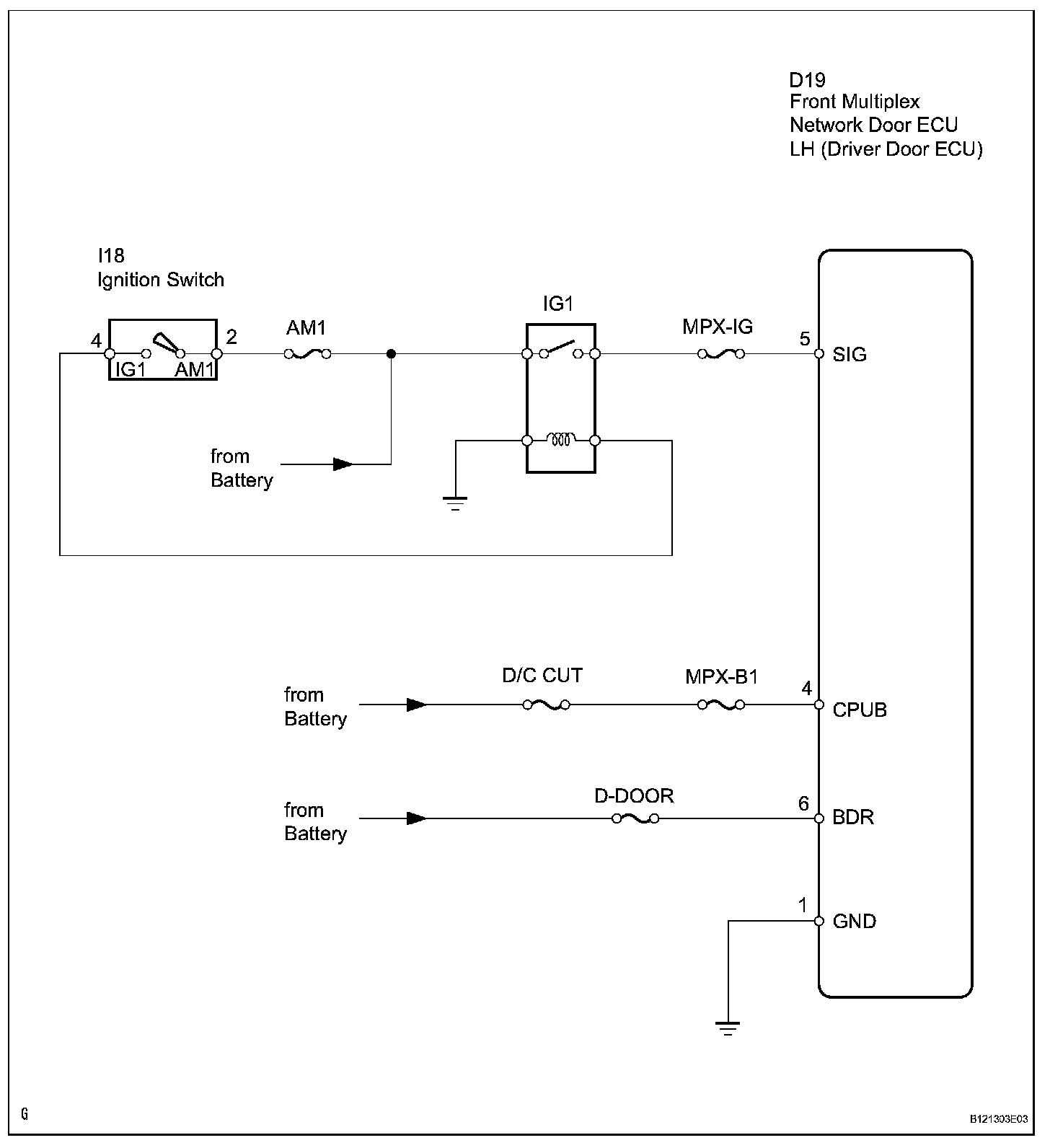

Wiring Diagram:

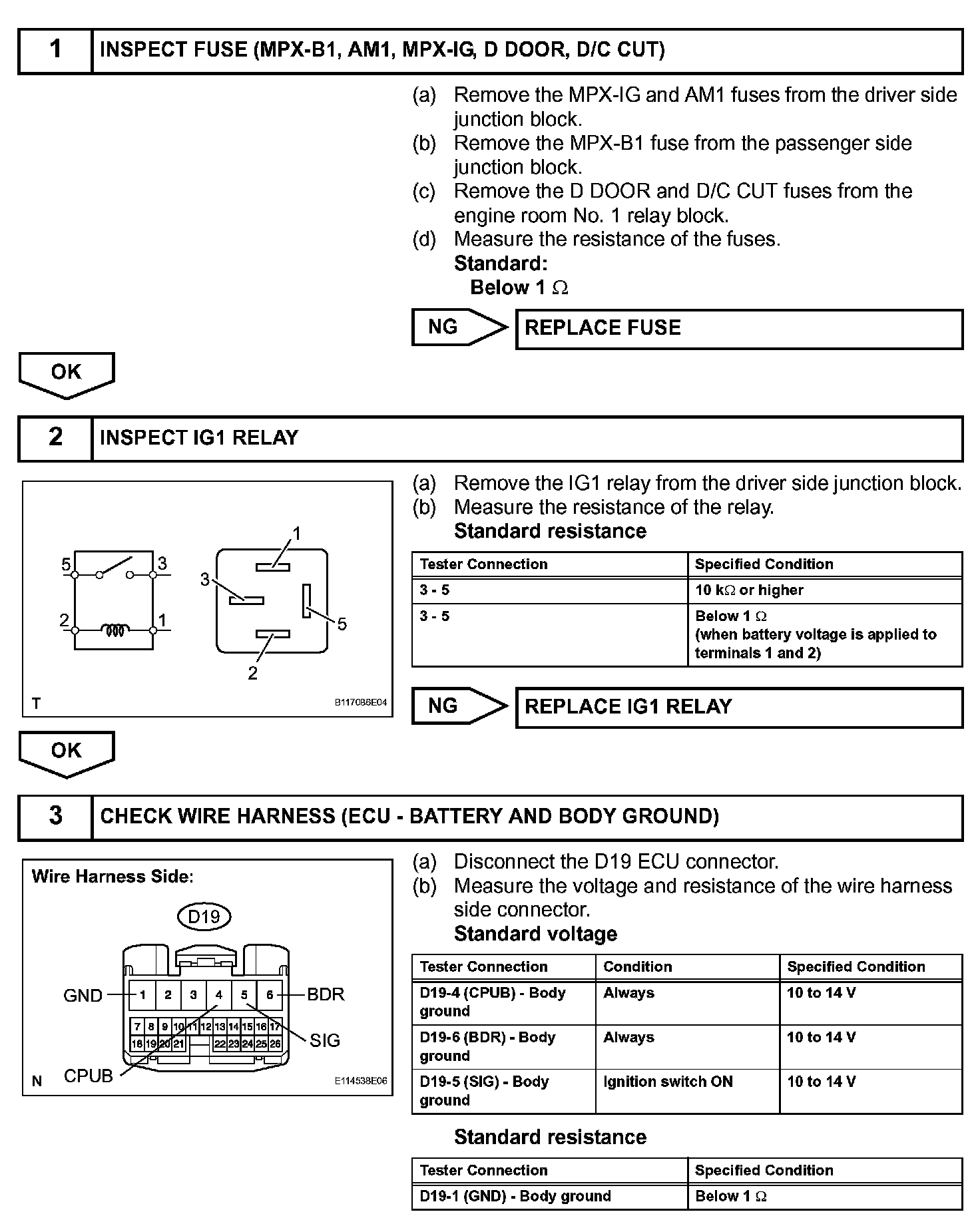

Step 1-3:

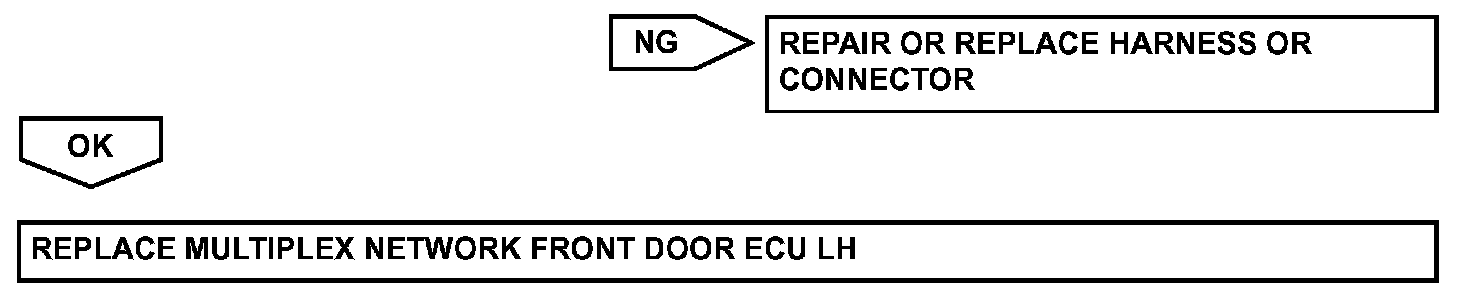

Step 3 (Continued):
INSPECTION PROCEDURE
