Security Horn Circuit
Security Horn CircuitDESCRIPTION
When the theft deterrent system is operating, a relay in the theft warning ECU (theft deterrent ECU) turns ON and OFF continuously at 0.4 seconds intervals, causing the security horn to sound.
Wiring Diagram:

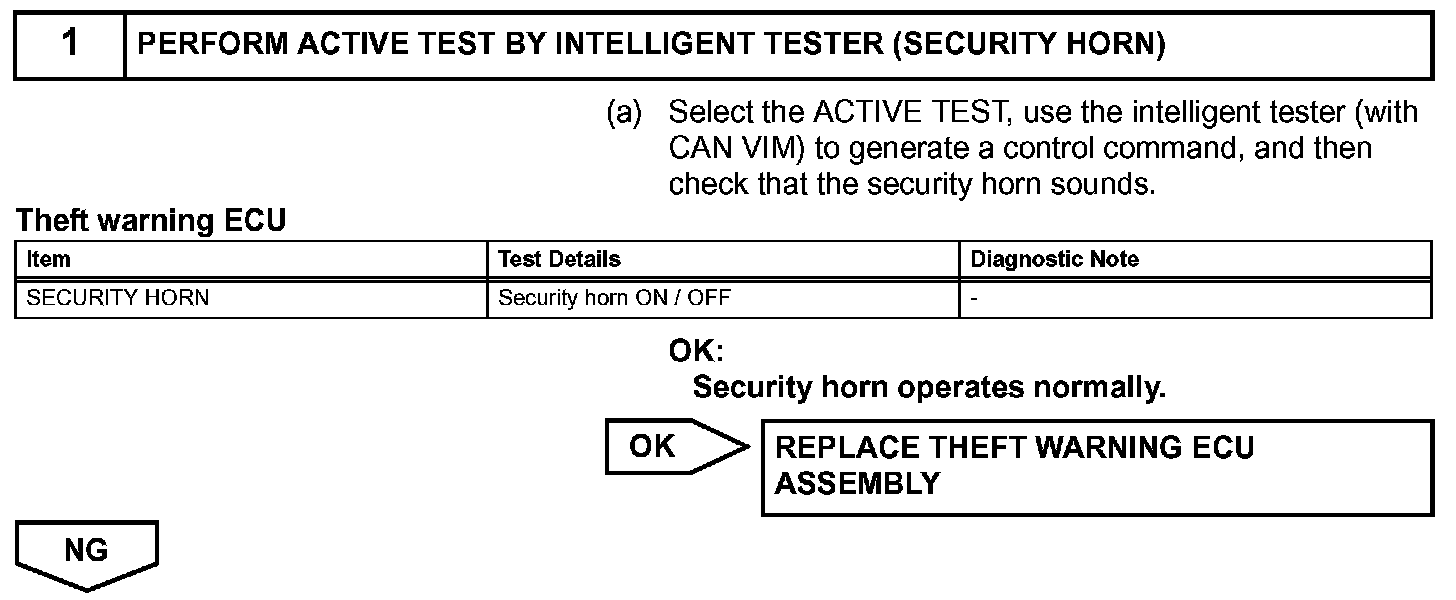

Step 1:
Step 2-3:
INSPECTION PROCEDURE
