Horn Circuit
Horn CircuitDESCRIPTION
When the theft deterrent system is switched from the arming state to the alarm sounding state, the theft warning ECU transmits a signal to cause the horns to sound at intervals of 0.4 seconds.

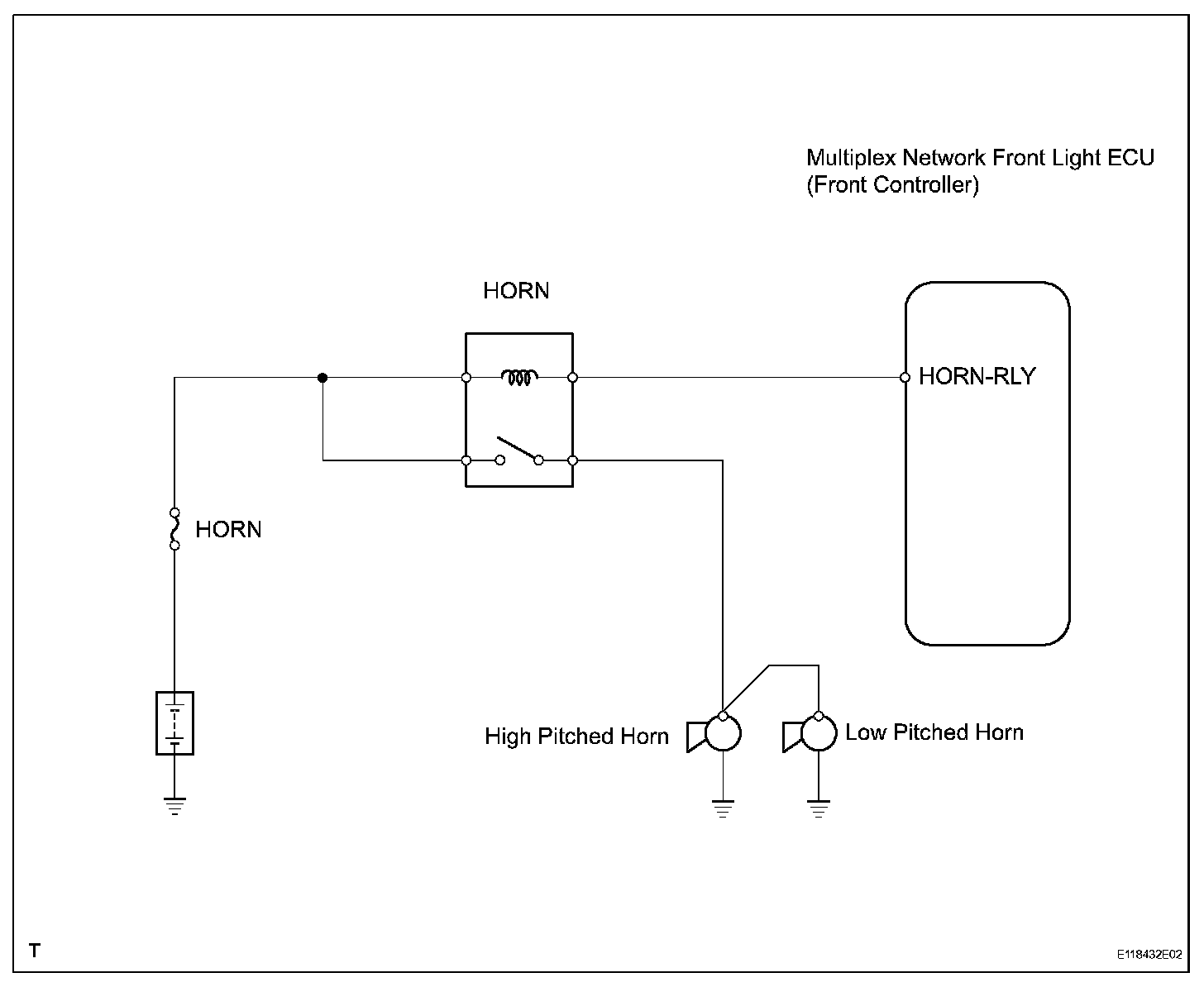

Wiring Diagram:

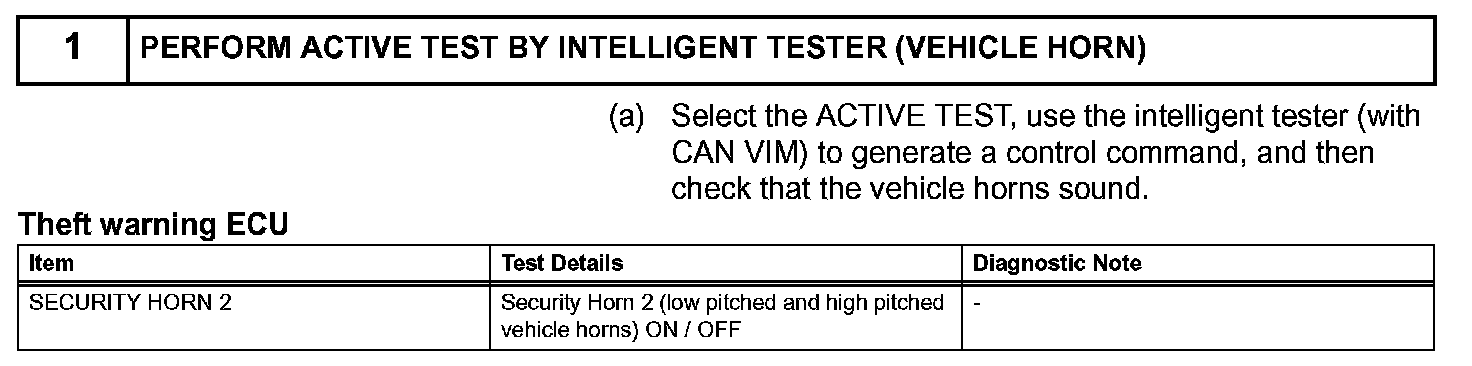

Step 1:

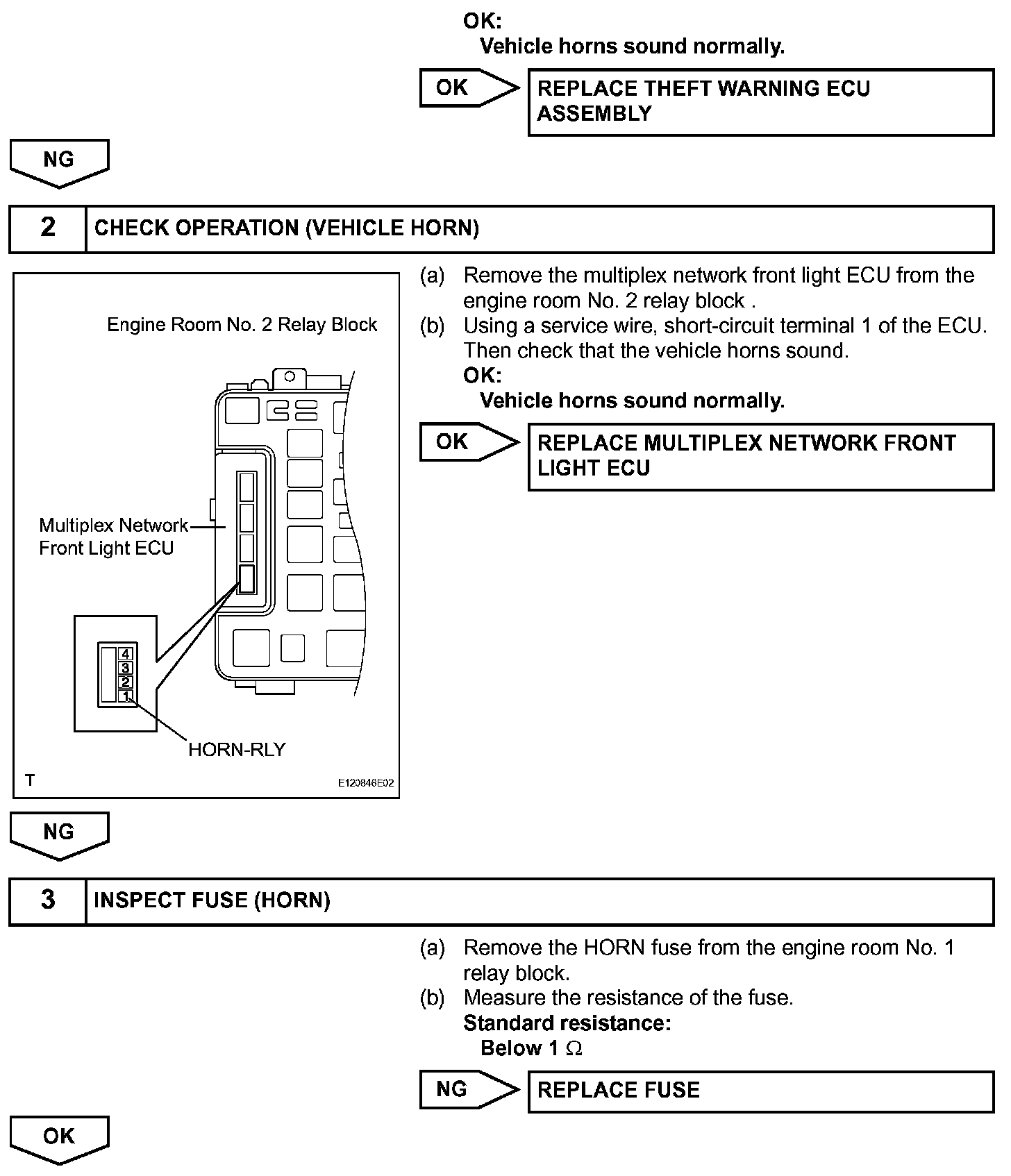

Step 1 (Continued)-3:

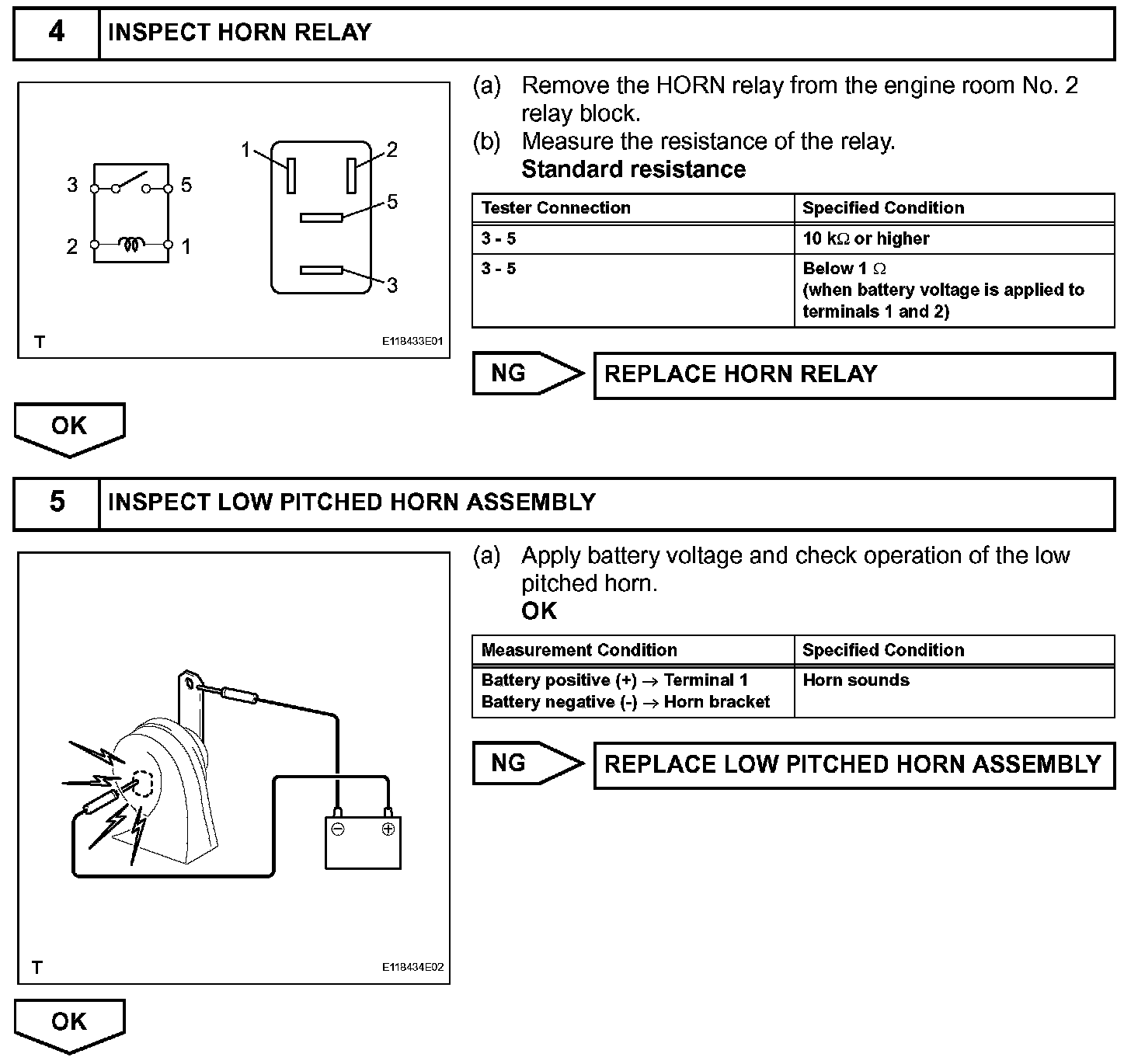

Step 4-5:

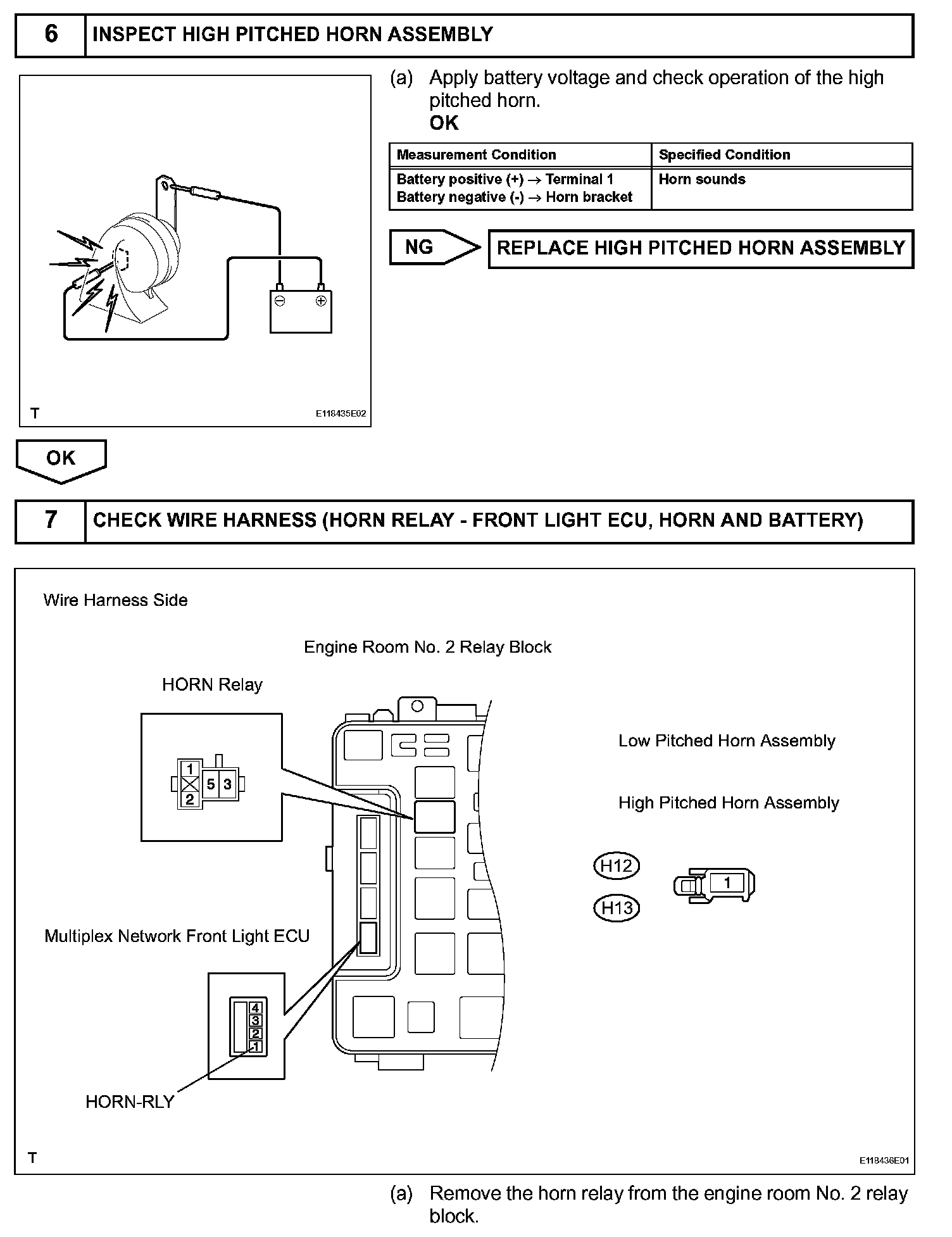

Step 6-7:

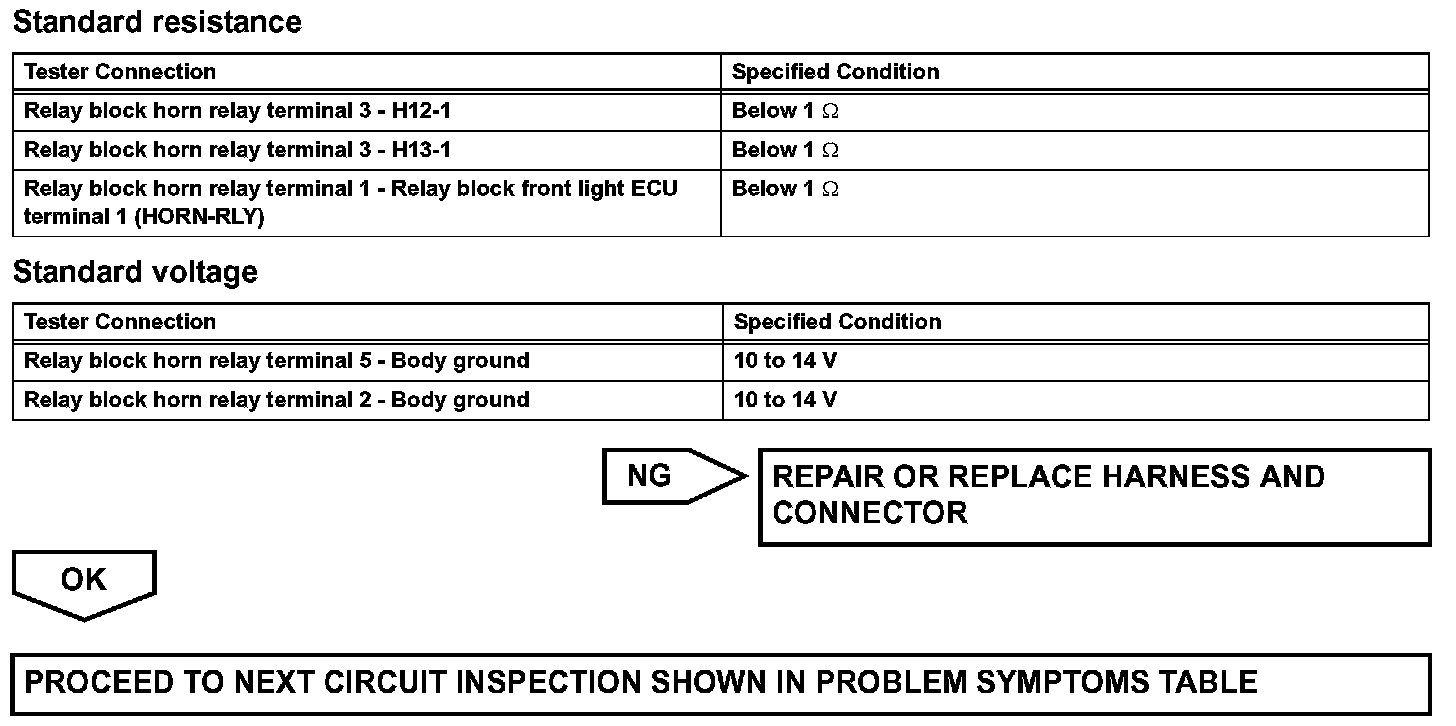

Step 7 (Continued):
INSPECTION PROCEDURE
