RADIO ANTENNA HOLDER

REMOVAL

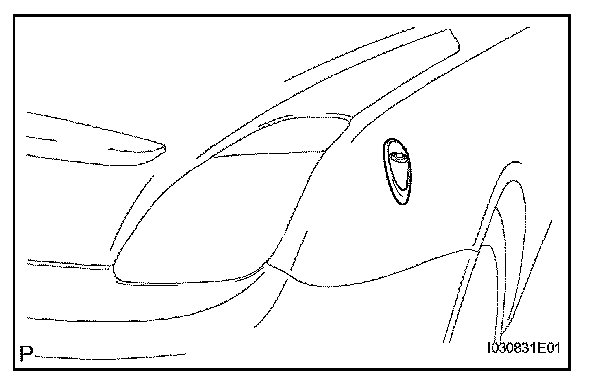

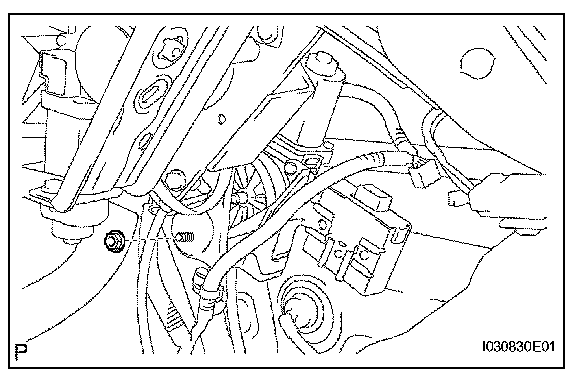

1. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY RH

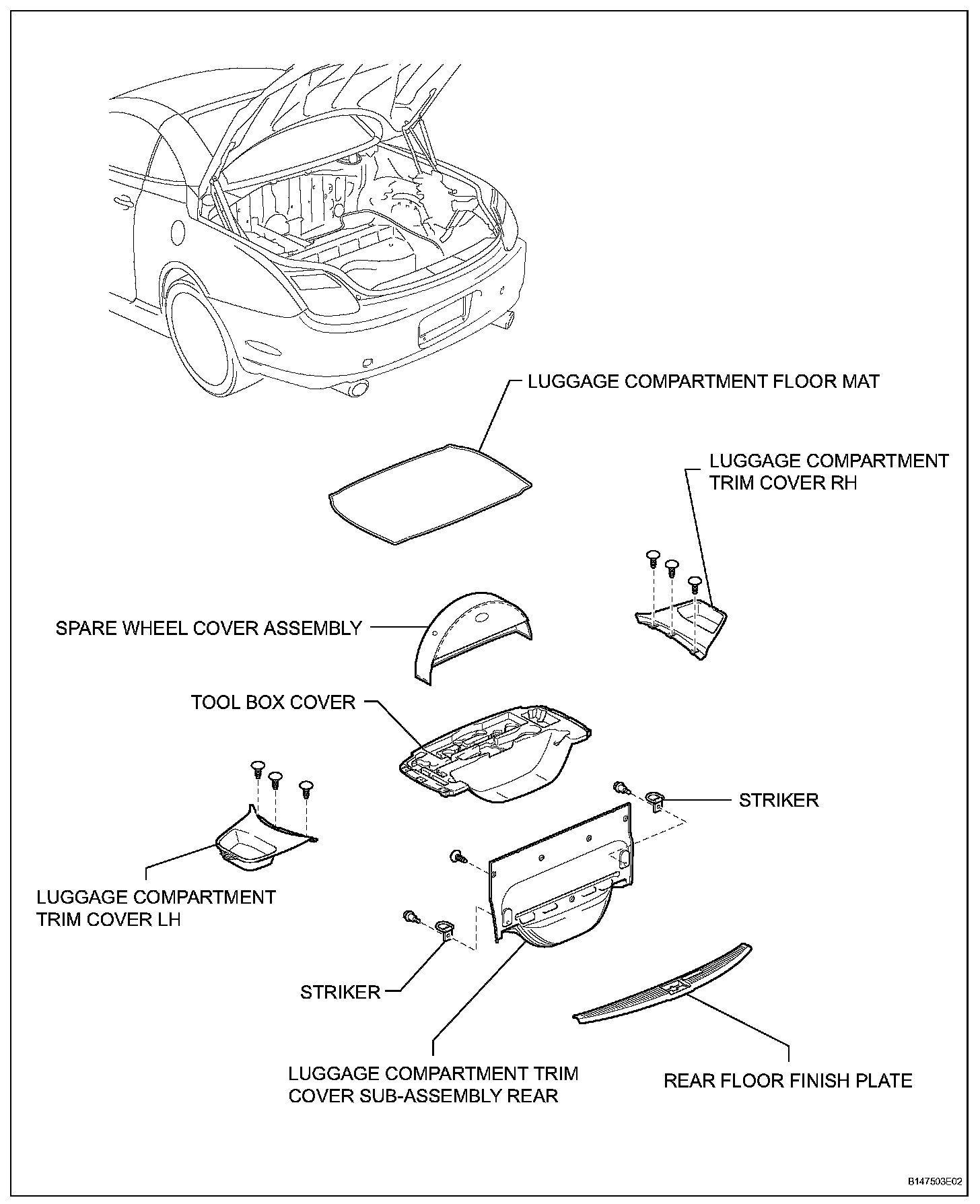

3. REMOVE REAR FLOOR FINISH PLATE
4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
7. REMOVE SPARE WHEEL COVER ASSEMBLY
8. REMOVE TOOL BOX COVER
9. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR

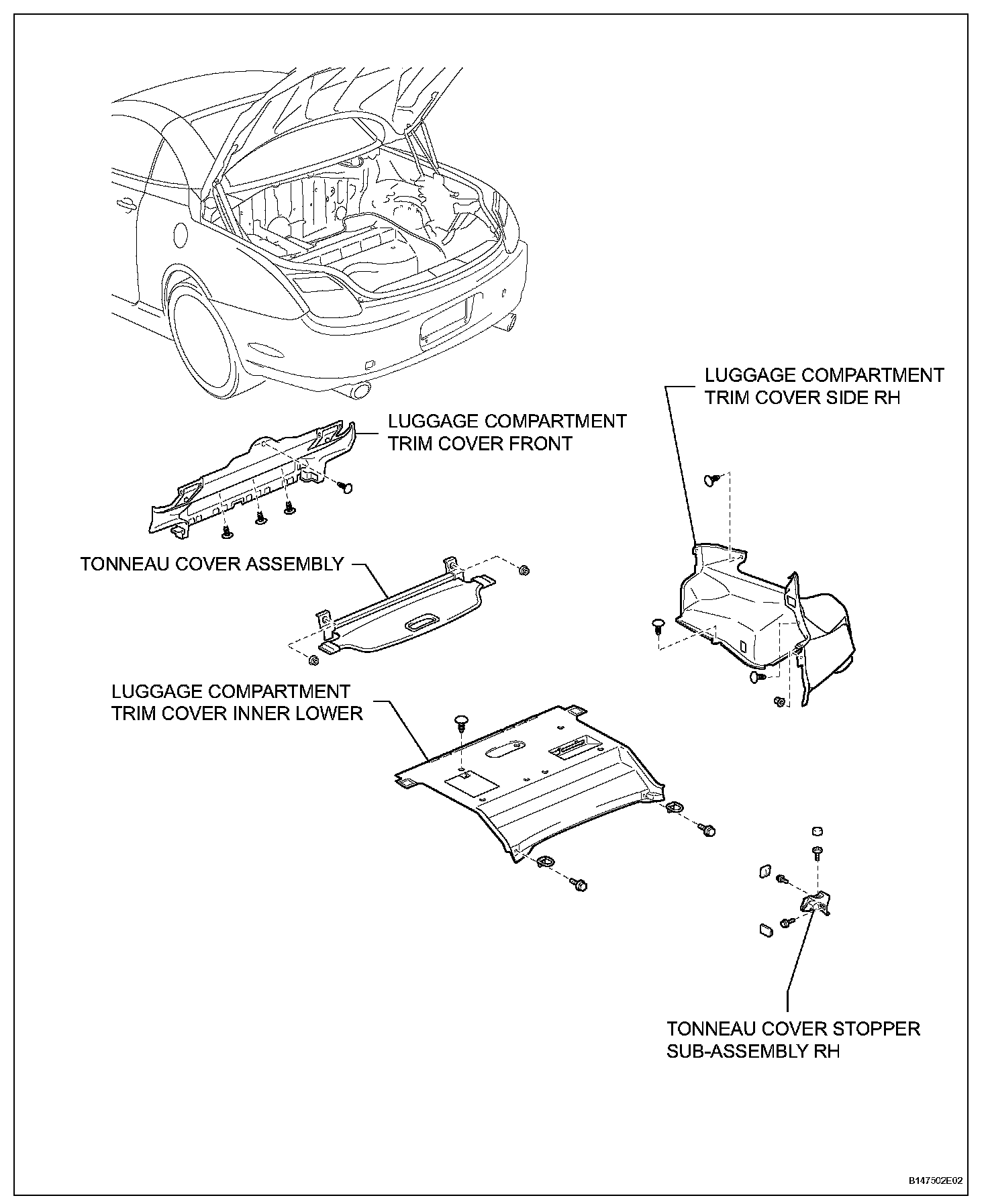

10. REMOVE TONNEAU COVER ASSEMBLY
11. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
12. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
13. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH

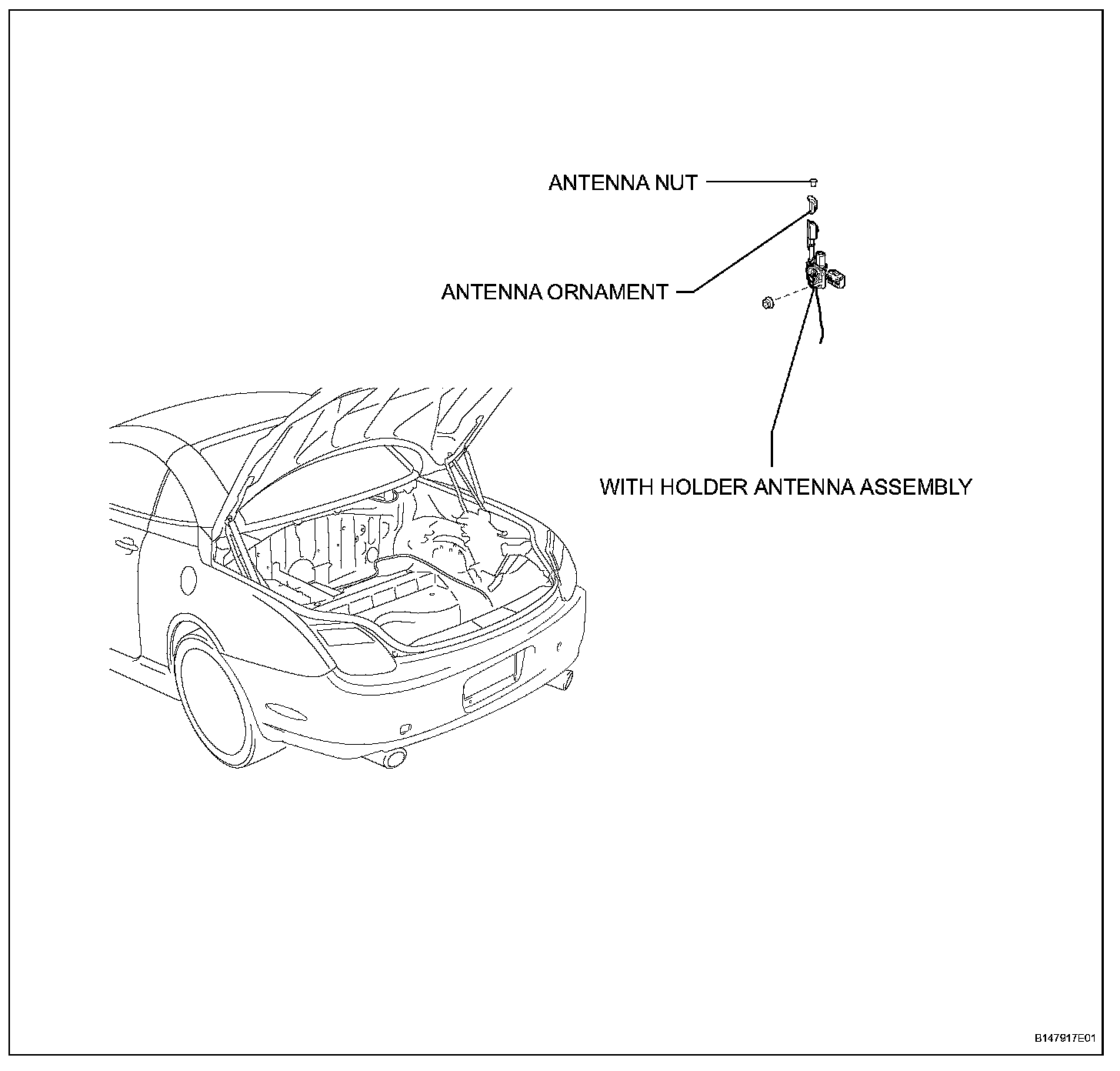

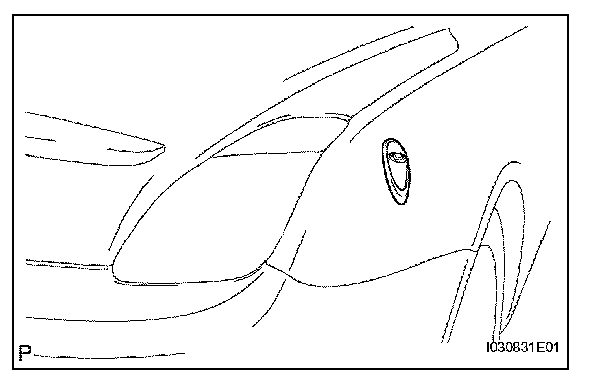

14. REMOVE WITH HOLDER ANTENNA ASSEMBLY
a. Remove the nut and antenna ornament.




b. Disconnect the connector and cord plug from the antenna.
c. Remove the nut and antenna.

INSTALLATION




1. INSTALL WITH HOLDER ANTENNA ASSEMBLY
a. Install the antenna with the nut.
b. Connect the connector and plug to the antenna.




c. Install the antenna ornament with the nut.

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE RH
3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT
4. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
5. INSTALL TONNEAU COVER ASSEMBLY
6. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR
7. INSTALL TOOL BOX COVER
8. INSTALL SPARE WHEEL COVER ASSEMBLY
9. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
10. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
11. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
12. INSTALL REAR FLOOR FINISH PLATE
13. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY RH

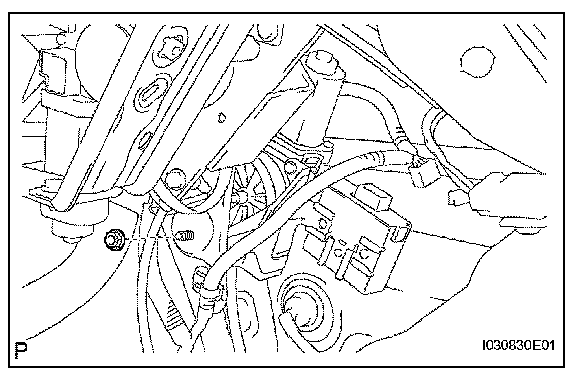

14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
15. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
