Radio Antenna Cord

Radio Antenna Cord:

RADIO ANTENNA CORD

REMOVAL

1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. INSPECT CENTER FRONT WHEEL

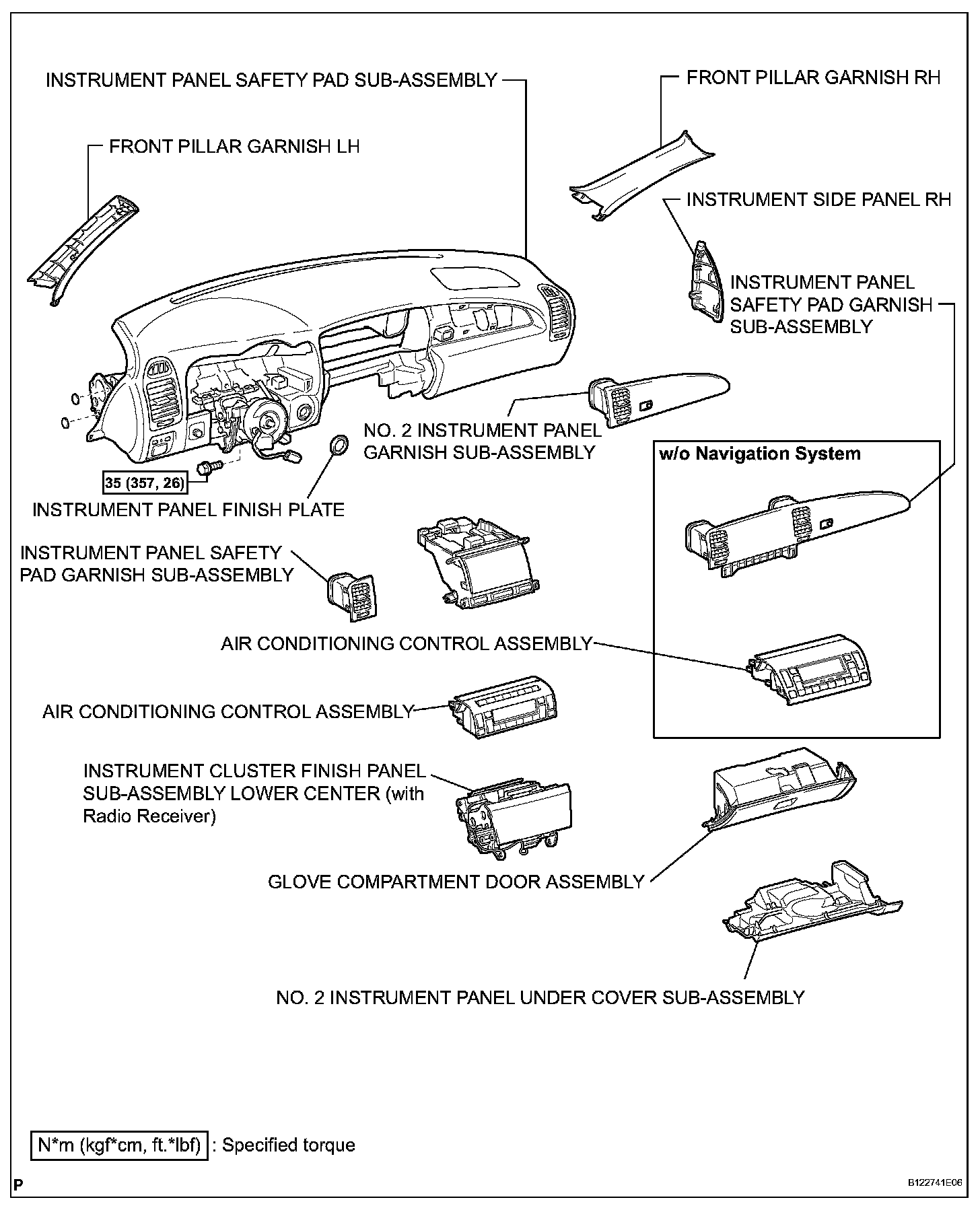

4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
a. Remove the instrument panel safety pad.

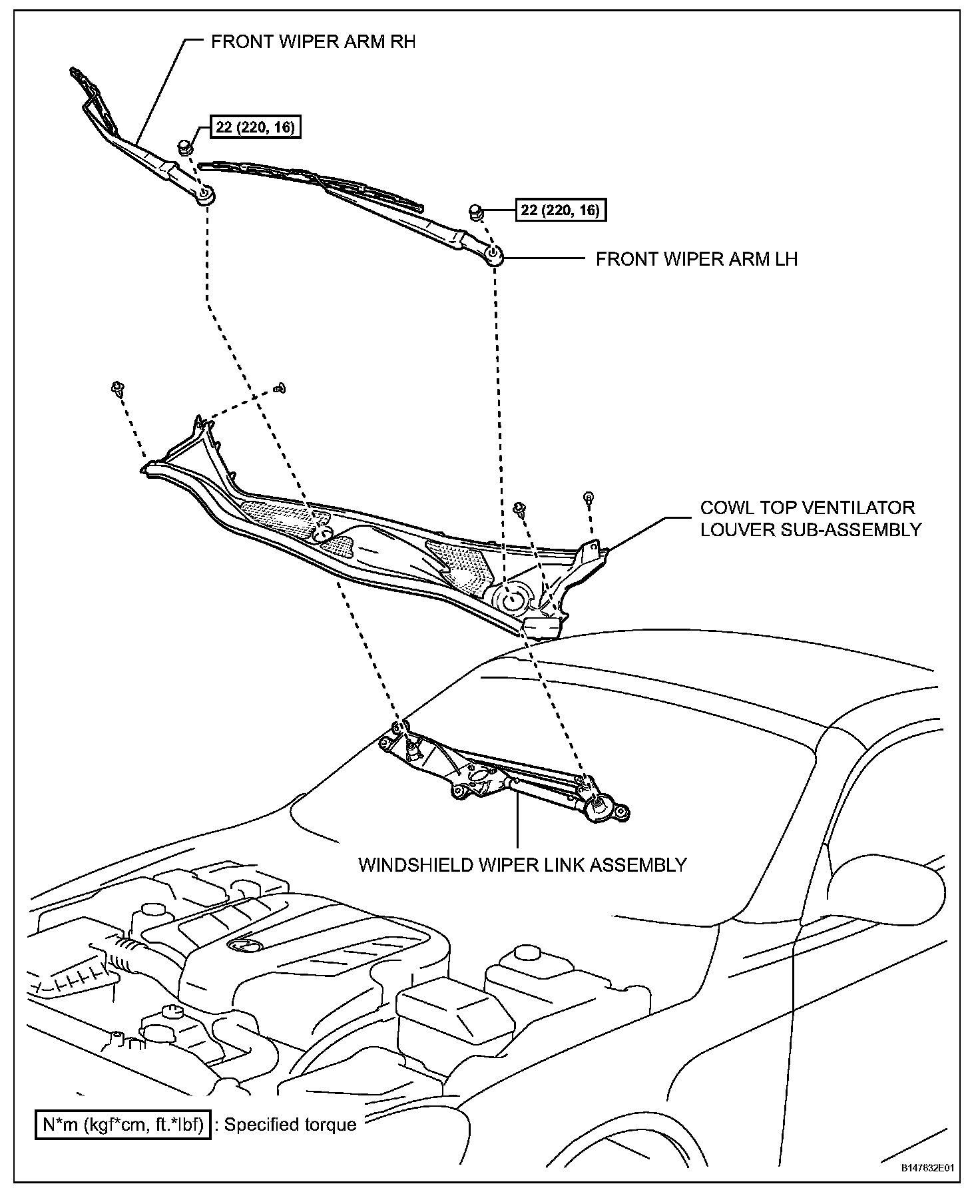

5. REMOVE FRONT WIPER ARM RH
6. REMOVE FRONT WIPER ARM LH
7. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
8. REMOVE WINDSHIELD WIPER LINK ASSEMBLY

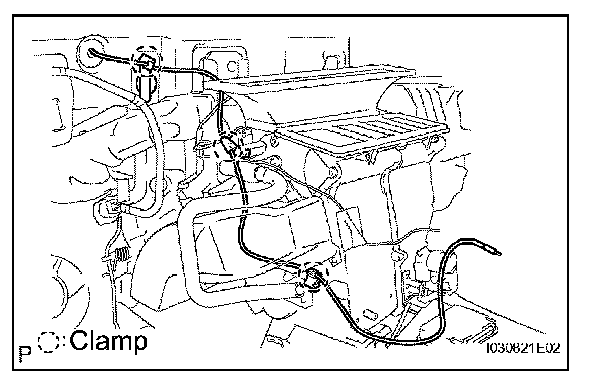

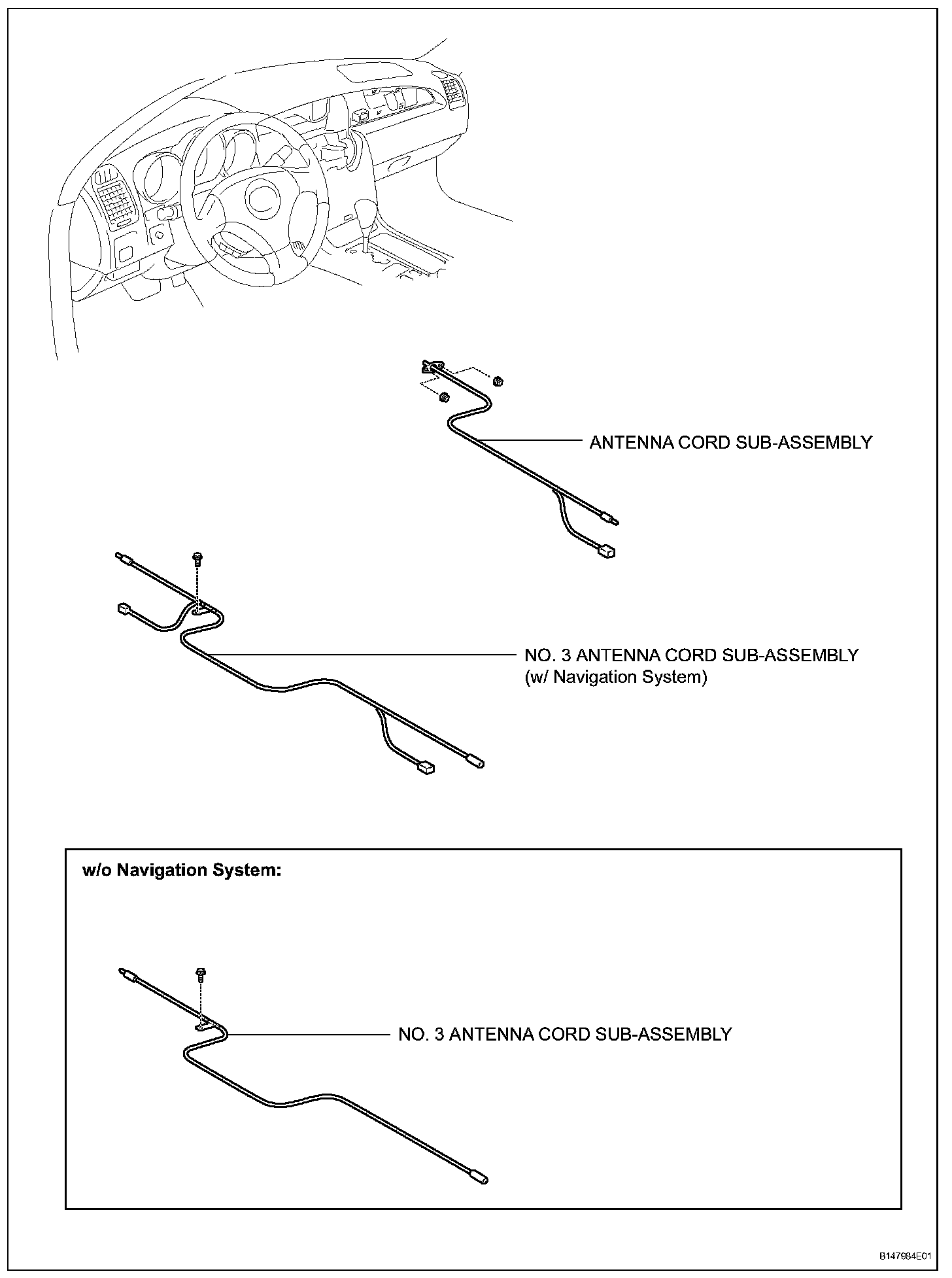

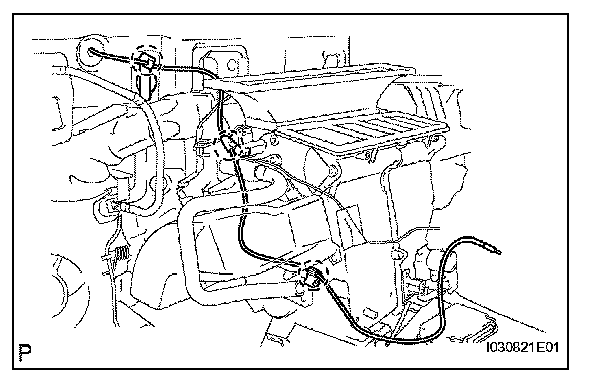

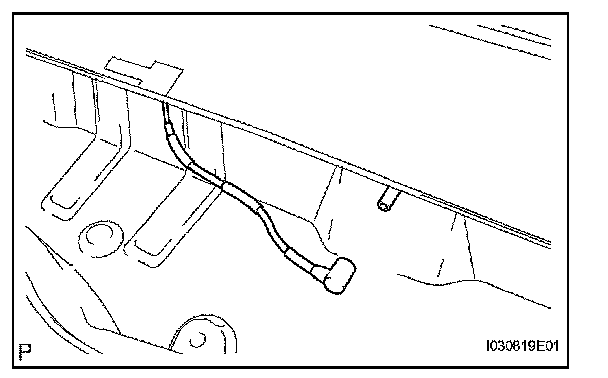

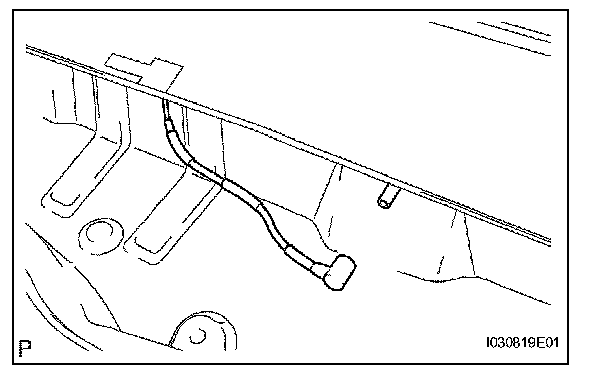

9. REMOVE ANTENNA CORD SUB-ASSEMBLY
a. Disconnect the connector.

b. Remove the 3 clamps.

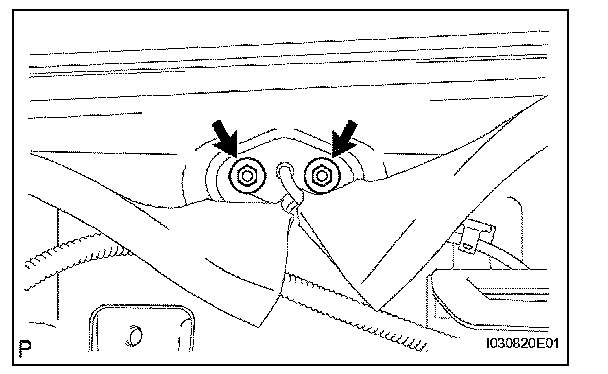

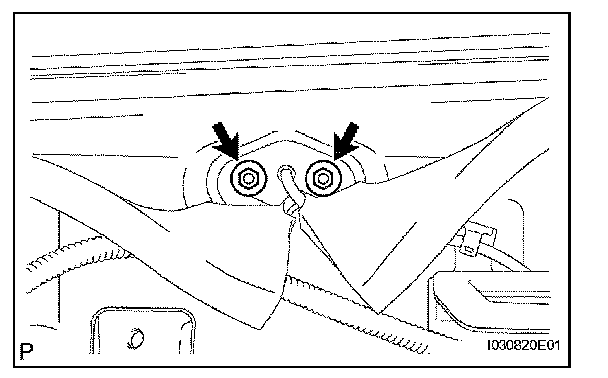

c. Remove the 2 nuts and antenna cord.

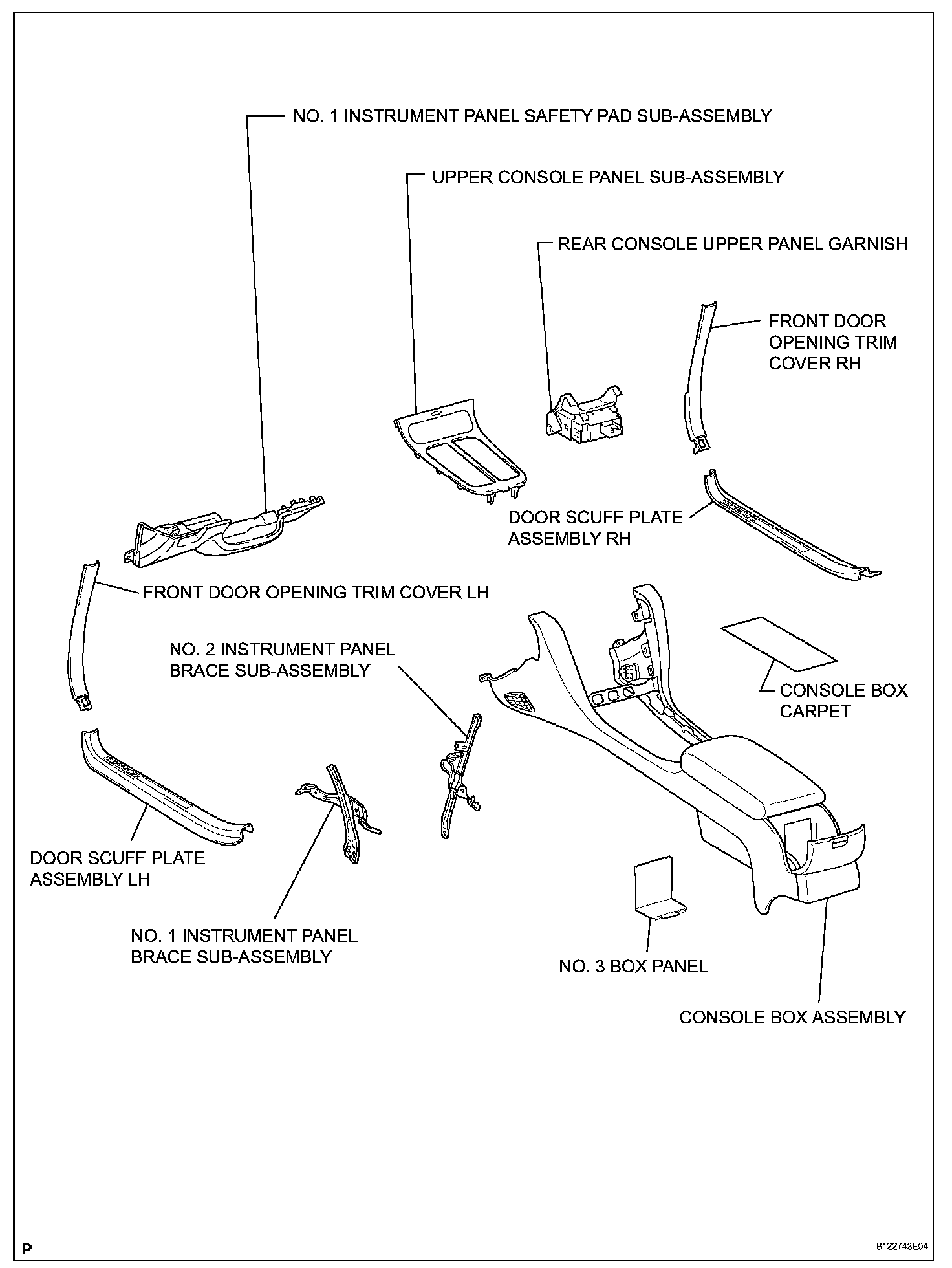

10. REMOVE CONSOLE UPPER PANEL GARNISH REAR
11. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
12. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

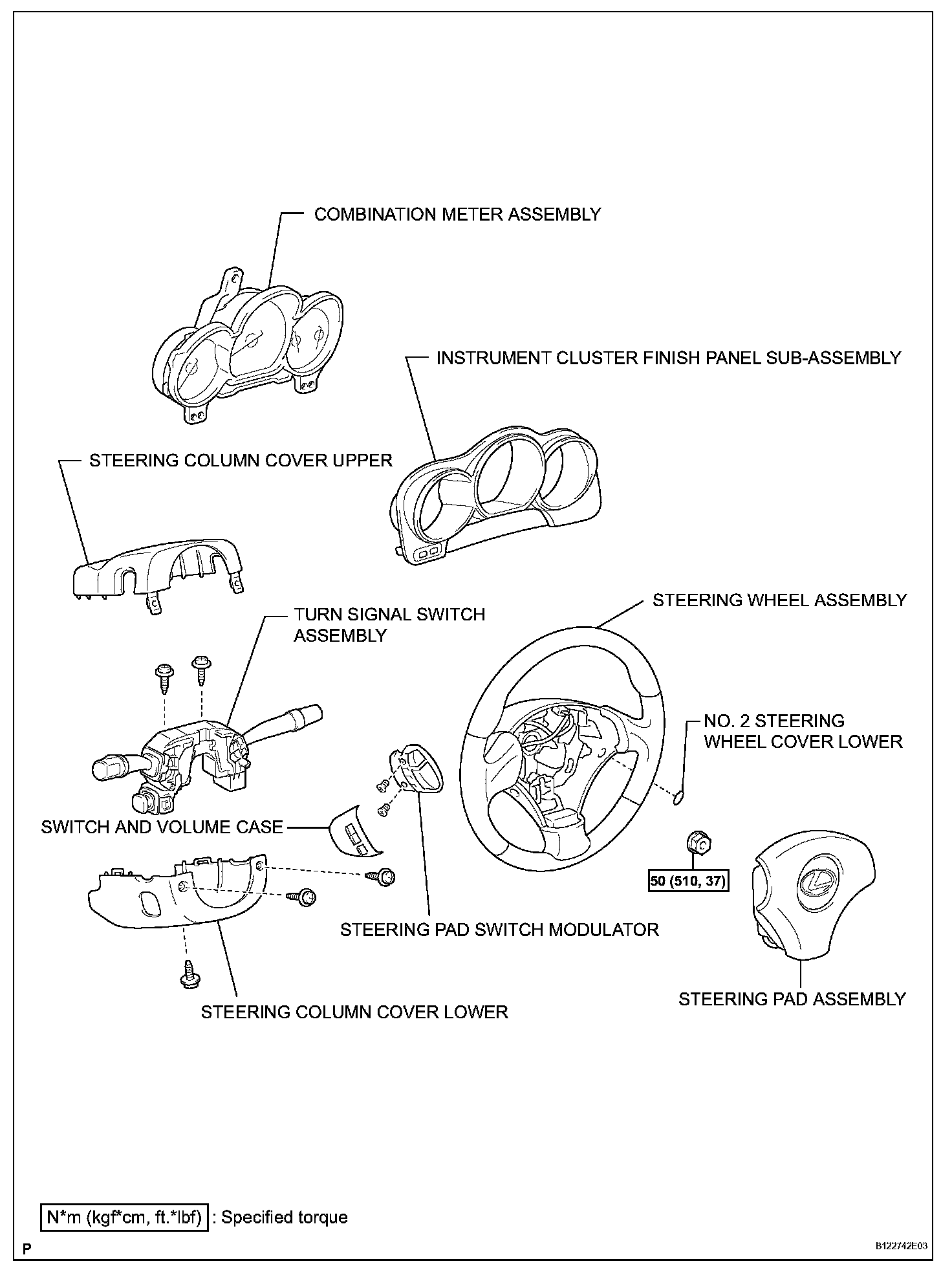

13. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
14. REMOVE CONSOLE BOX CARPET
15. REMOVE NO.3 BOX PANEL
16. REMOVE CONSOLE BOX ASSEMBLY

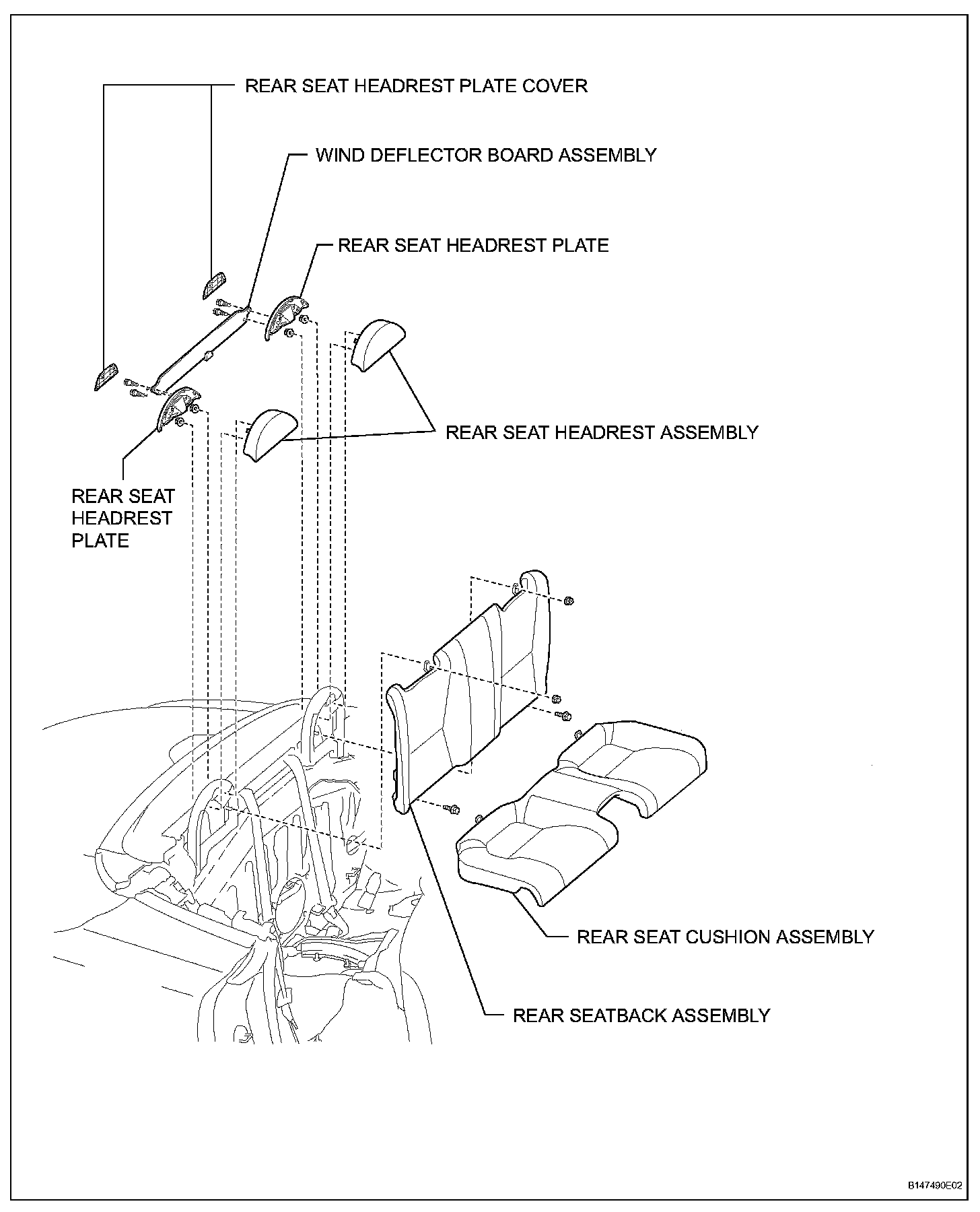

17. REMOVE REAR SEAT CUSHION ASSEMBLY
18. REMOVE REAR SEAT HEADREST PLATE COVER
19. REMOVE WIND DEFLECTOR BOARD ASSEMBLY
20. REMOVE REAR SEAT HEADREST PLATE
21. REMOVE REAR SEAT HEADREST ASSEMBLY
22. REMOVE REAR SEATBACK ASSEMBLY
23. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY RH
24. REMOVE REAR FLOOR FINISH PLATE

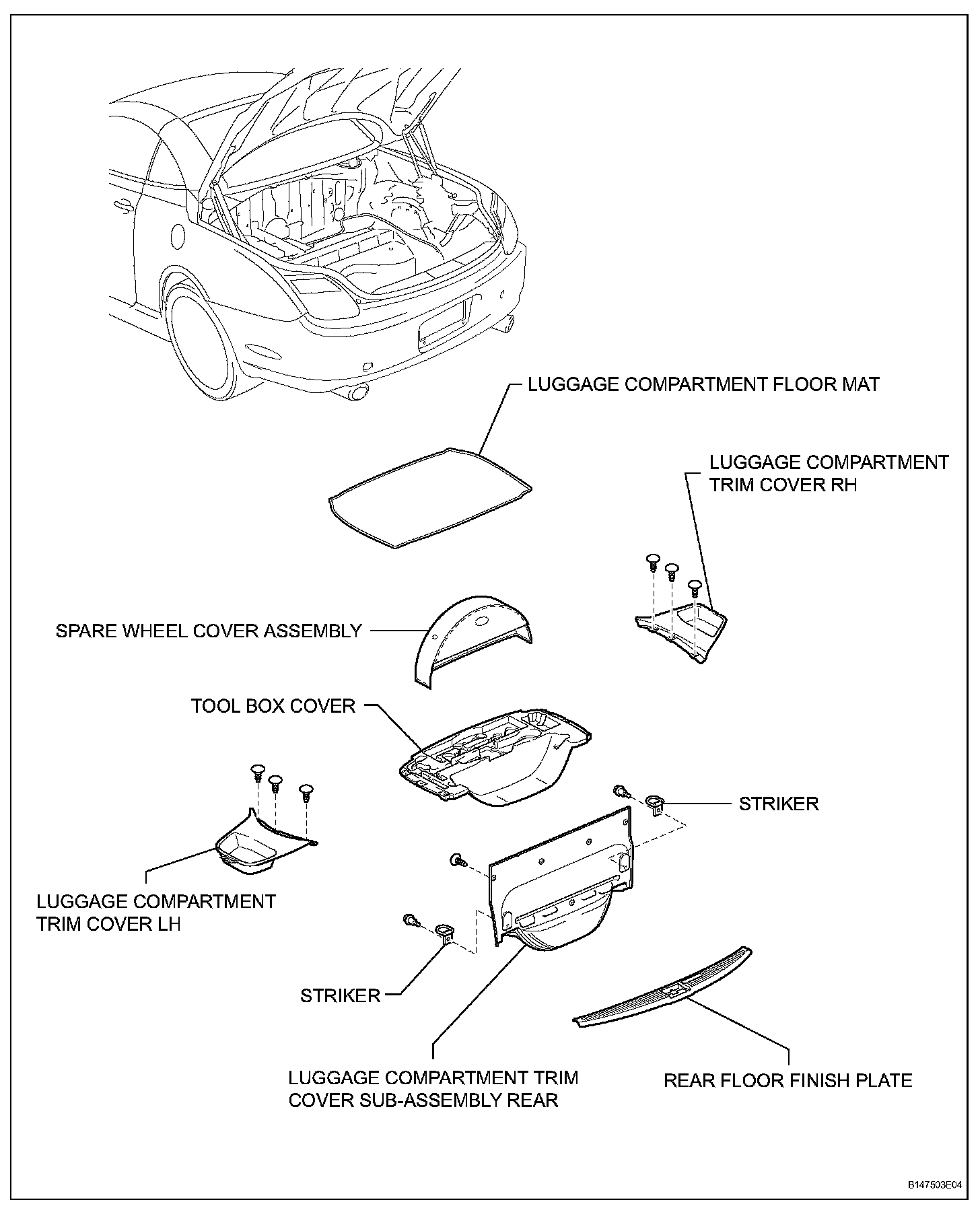

25. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
26. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
27. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
28. REMOVE SPARE WHEEL COVER ASSEMBLY
29. REMOVE TOOL BOX COVER
30. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR

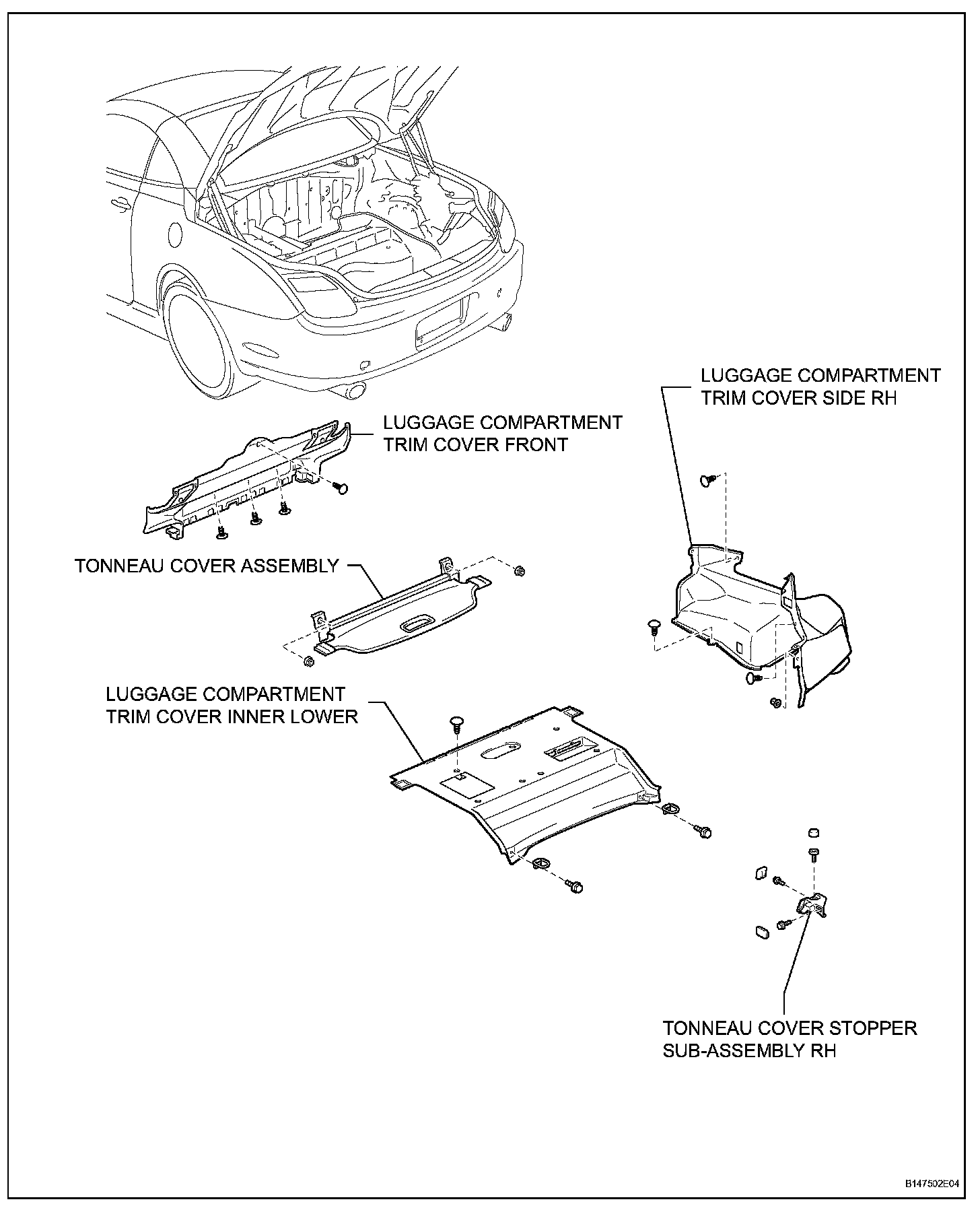

31. REMOVE TONNEAU COVER ASSEMBLY
32. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
33. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
34. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH

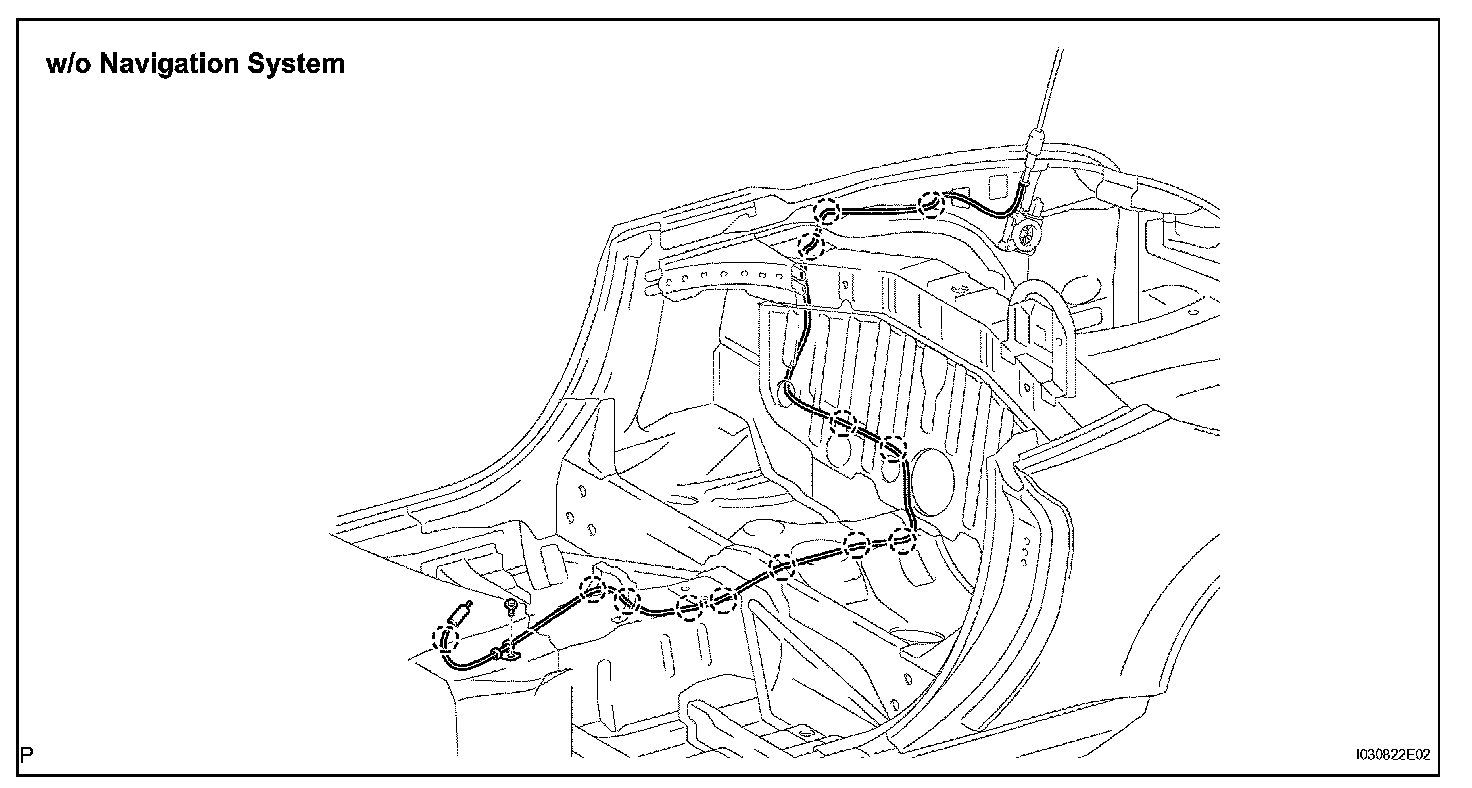

35. REMOVE NO.3 ANTENNA CORD SUB-ASSEMBLY

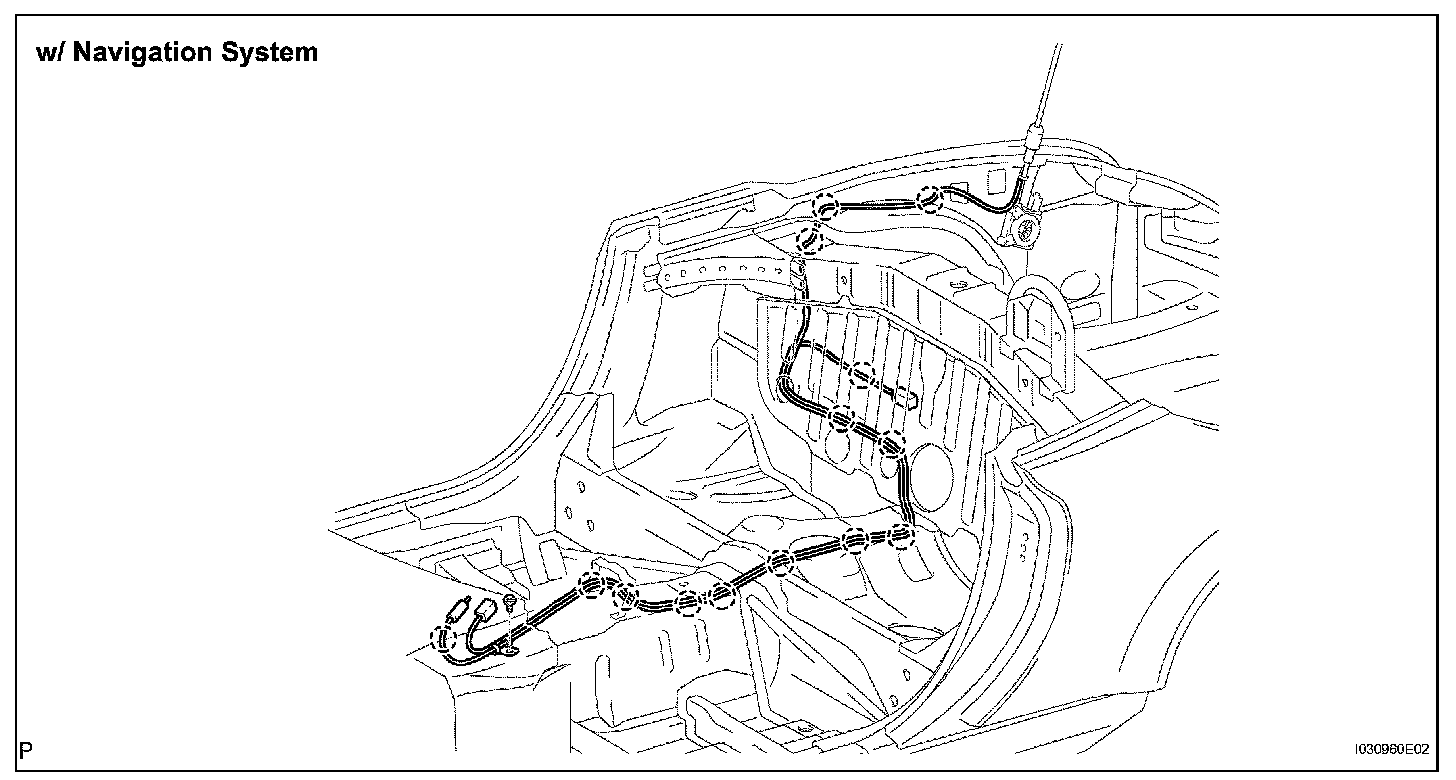

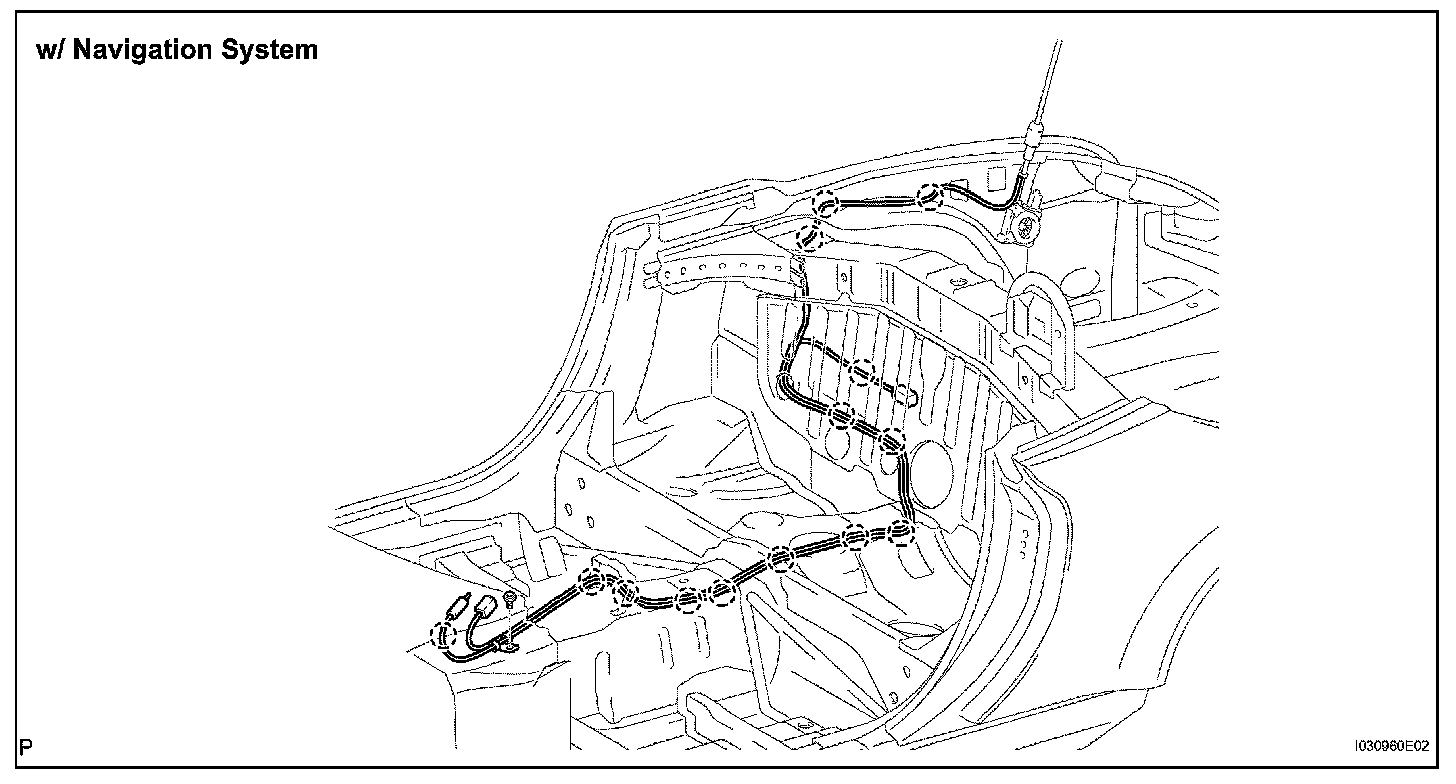

a. w/ Navigation System:
1. Disconnect the 4 connectors.
2. Remove the bolt.

3. Remove the 14 clamps and antenna cord.

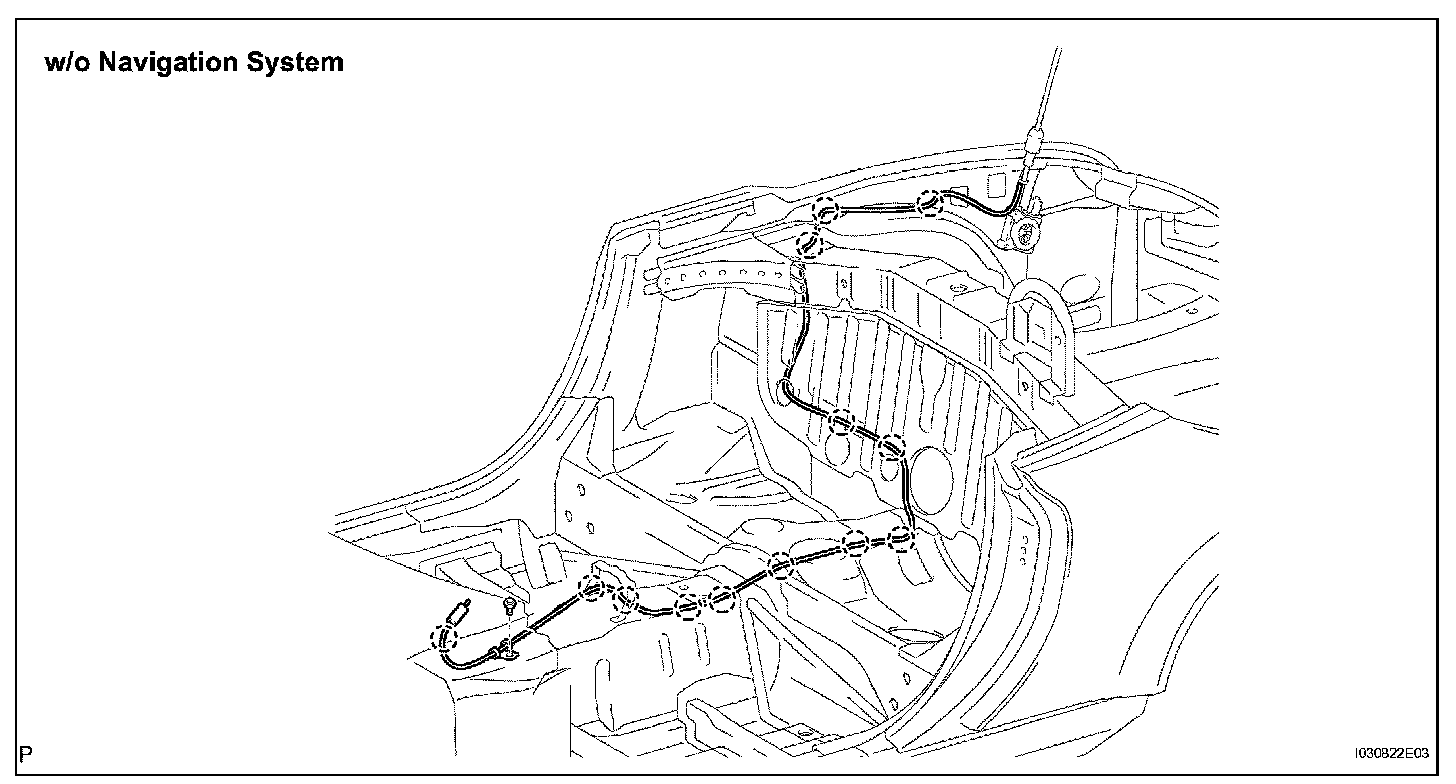

b. w/o Navigation System:
1. Disconnect the 2 connectors.
2. Remove the bolt.

3. Remove the 13 clamps and antenna cord.

INSTALLATION

1. INSTALL NO.3 ANTENNA CORD SUB-ASSEMBLY
a. w/o Navigation System:
1. Install the antenna cord and 13 clamps.
2. Install the bolt.

3. Connect the 2 connectors.

b. w/ Navigation System:
1. Install the antenna cord and 14 clamps.
2. Install the bolt.

3. Connect the 4 connectors.

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE RH
3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT
4. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
5. INSTALL TONNEAU COVER ASSEMBLY
6. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR
7. INSTALL TOOL BOX COVER
8. INSTALL SPARE WHEEL COVER ASSEMBLY
9. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
10. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
11. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
12. INSTALL REAR FLOOR FINISH PLATE
13. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY RH
14. INSTALL REAR SEATBACK ASSEMBLY
15. INSTALL REAR SEAT HEADREST ASSEMBLY
16. INSTALL REAR SEAT HEADREST PLATE
17. INSTALL WIND DEFLECTOR BOARD ASSEMBLY
18. INSTALL REAR SEAT HEADREST PLATE COVER
19. INSTALL REAR SEAT CUSHION ASSEMBLY
20. INSTALL CONSOLE BOX ASSEMBLY
21. INSTALL NO.3 BOX PANEL
22. INSTALL CONSOLE BOX CARPET
23. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
24. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
25. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
26. INSTALL REAR CONSOLE UPPER PANEL GARNISH

27. INSTALL ANTENNA CORD SUB-ASSEMBLY
a. Install the antenna cord with the 2 nuts.

b. Install the 3 clamps.

c. Connect the connector.

28. INSTALL WINDSHIELD WIPER LINK ASSEMBLY
29. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
30. INSTALL FRONT WIPER ARM LH
31. INSTALL FRONT WIPER ARM RH

32. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
a. Install the instrument panel safety pad.

33. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

34. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
