Antenna, Navigation: Service and Repair

Navigation Antenna:

NAVIGATION ANTENNA

REMOVAL

1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. INSPECT CENTER FRONT WHEEL

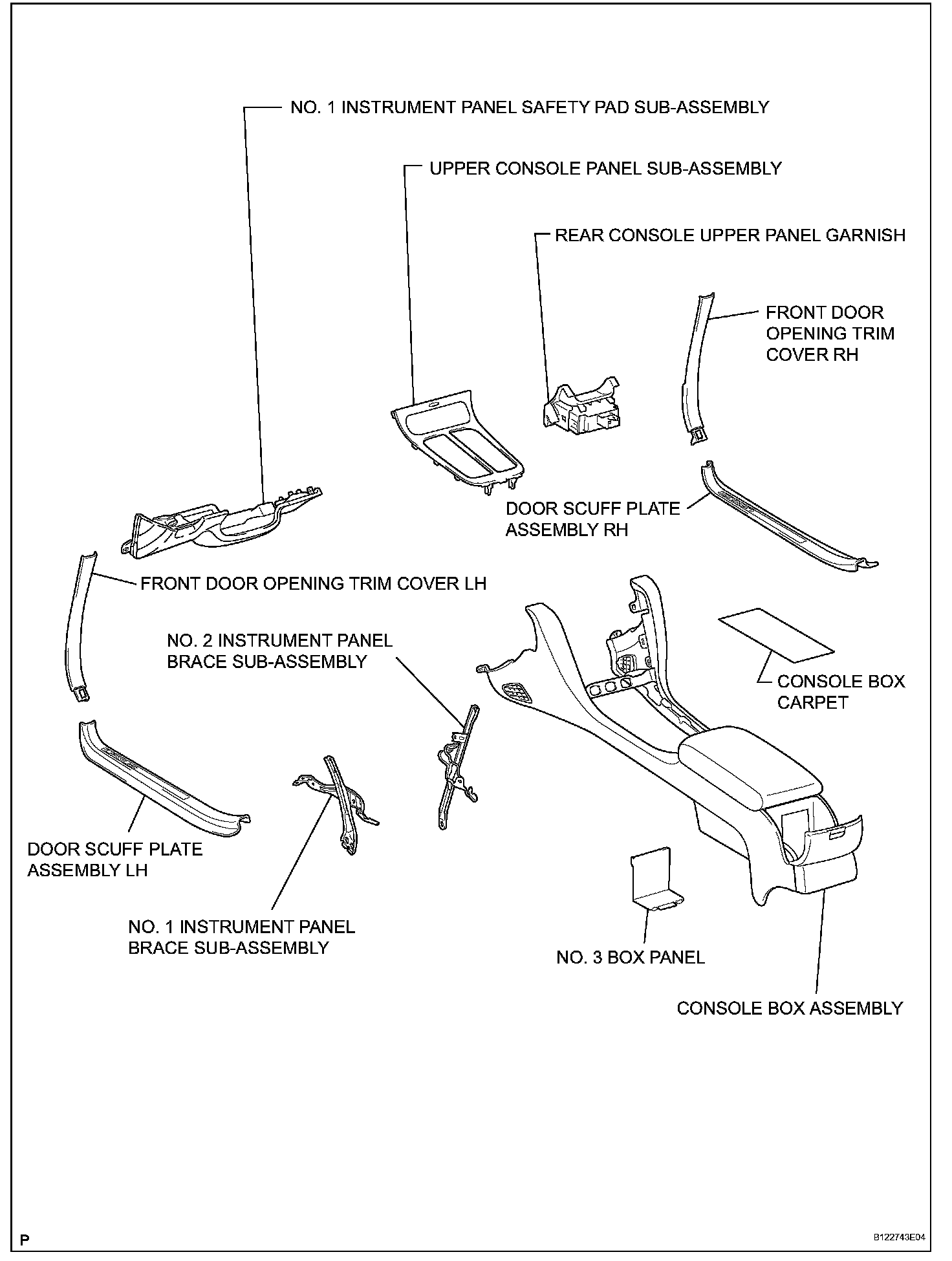

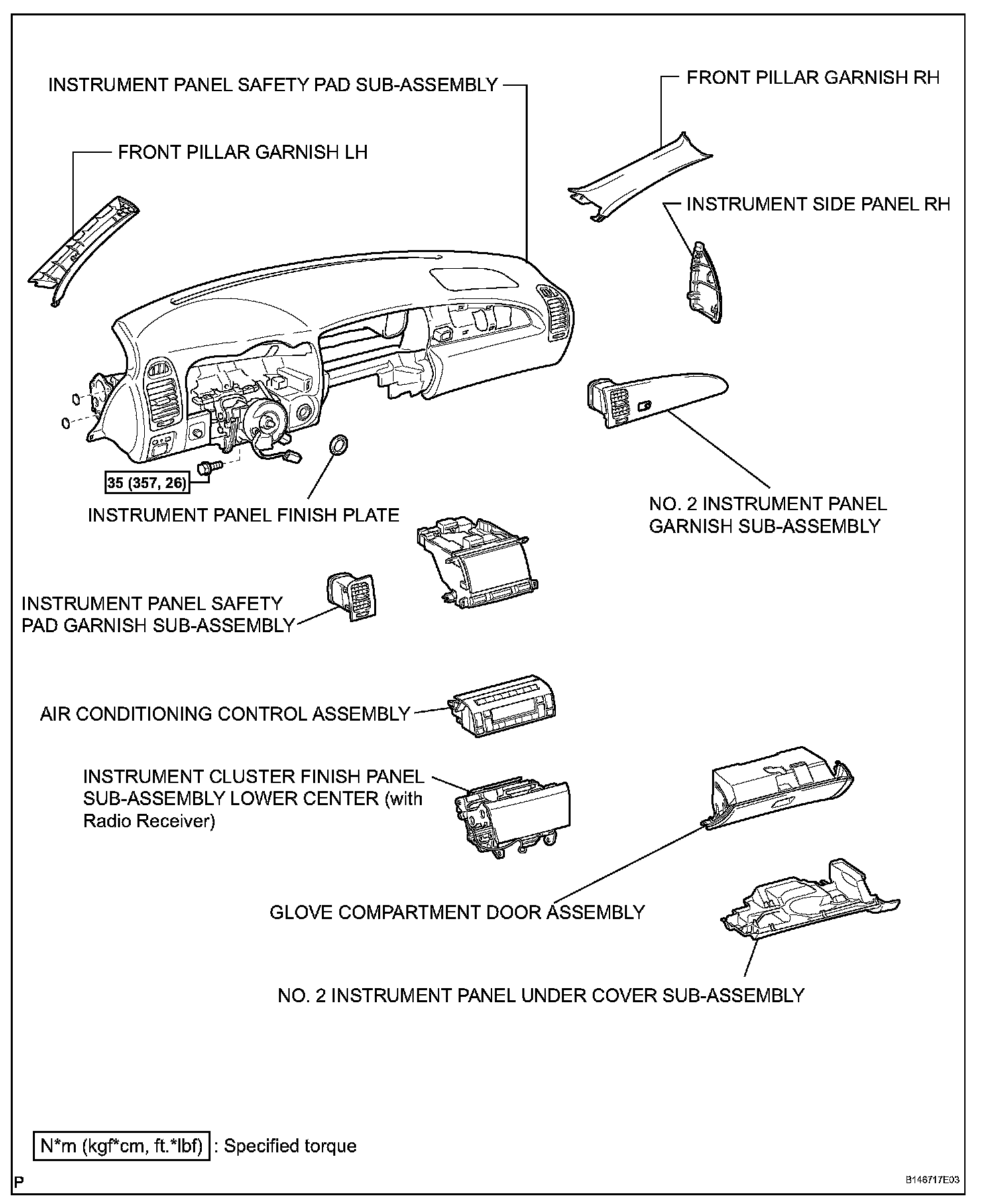

4. REMOVE INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY

a. Remove the instrument panel safety pad.

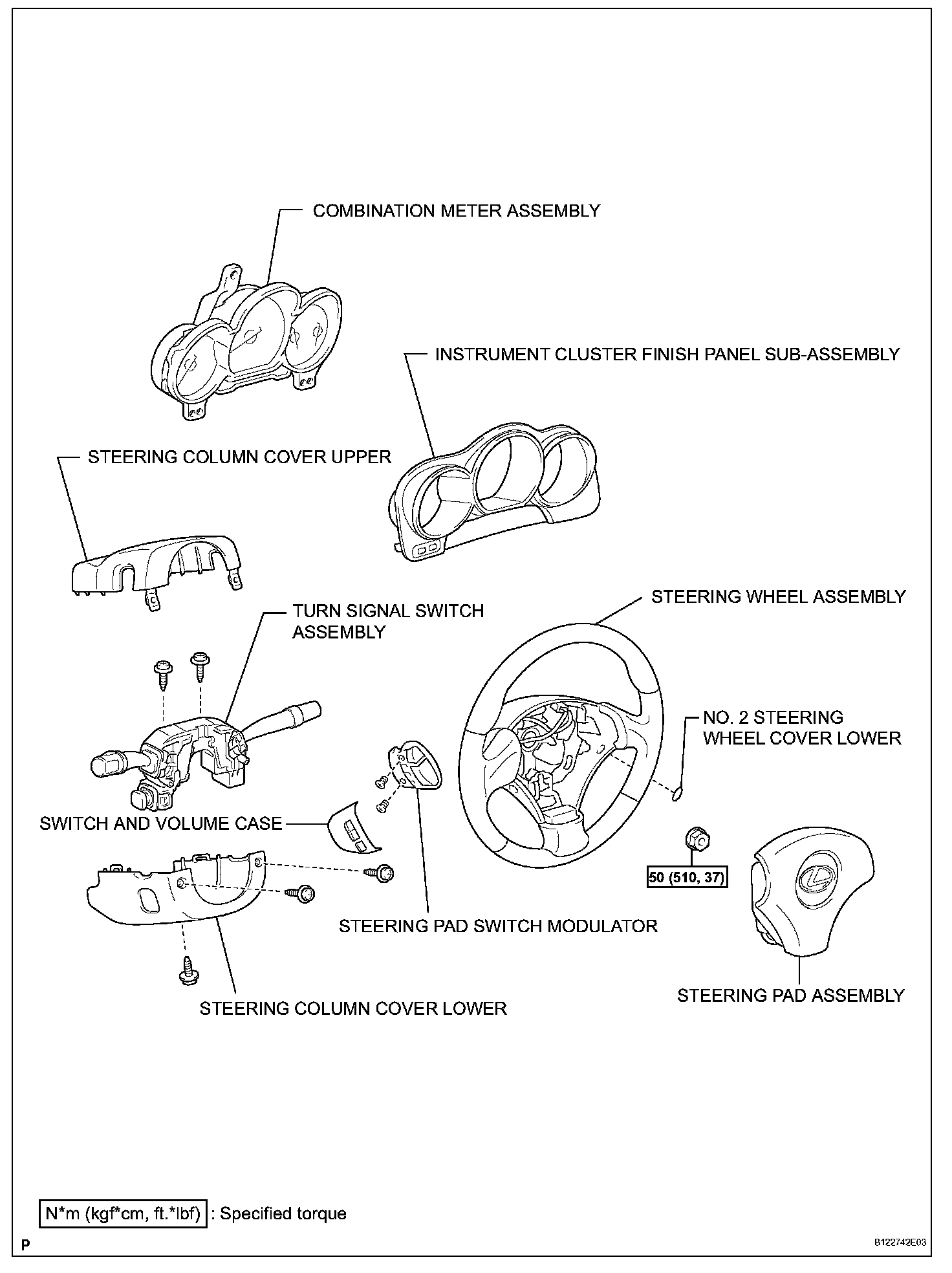

5. REMOVE STEERING COLUMN ASSEMBLY

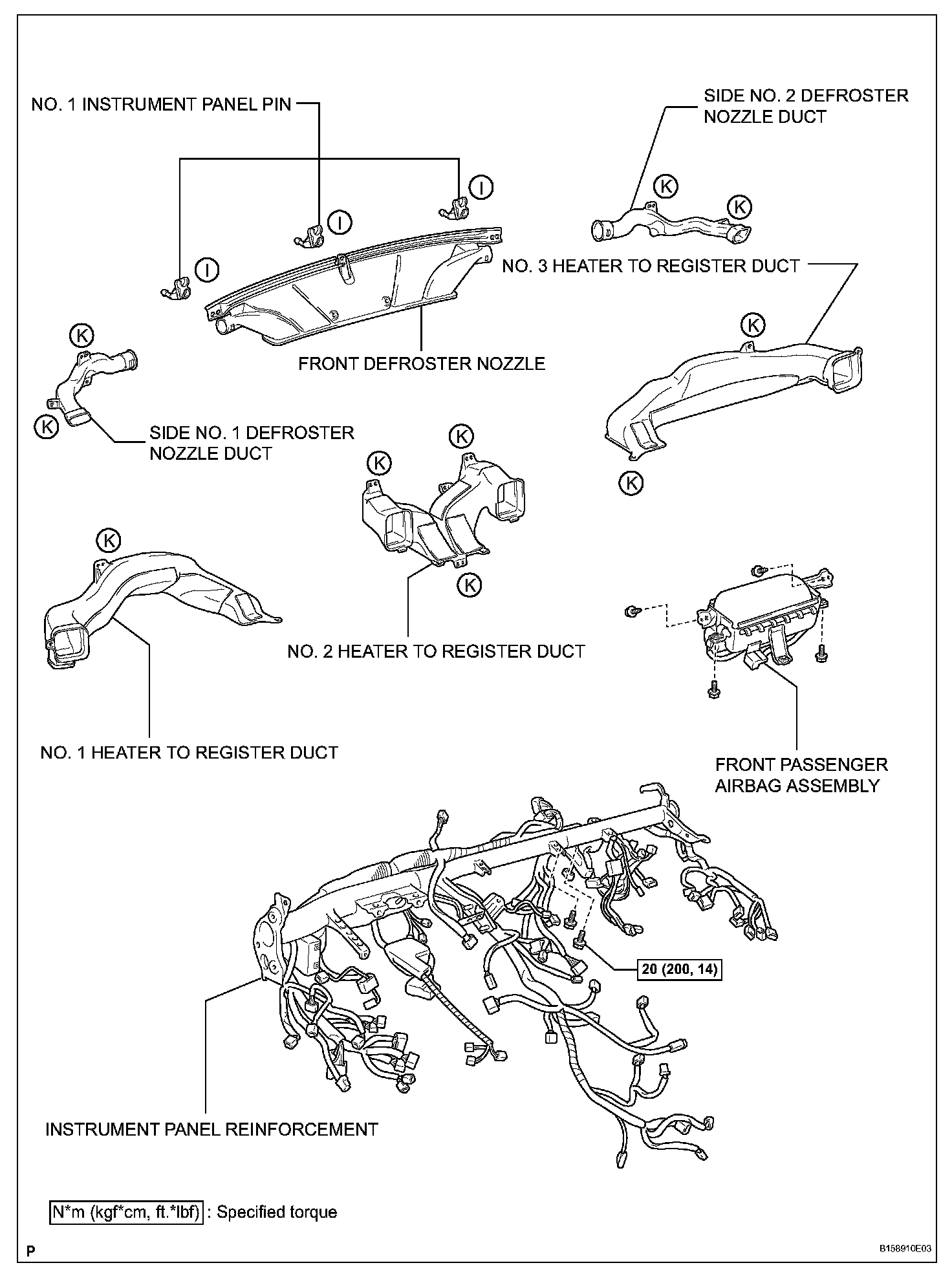

6. REMOVE NO.1 INSTRUMENT PANEL PIN
7. REMOVE NO.1 SIDE DEFROSTER NOZZLE DUCT
8. REMOVE NO.2 SIDE DEFROSTER NOZZLE DUCT
9. REMOVE FRONT DEFROSTER NOZZLE
10. REMOVE NO.1 HEATER TO REGISTER DUCT
11. REMOVE NO.3 HEATER TO REGISTER DUCT
12. REMOVE NO.2 HEATER TO REGISTER DUCT
13. REMOVE INSTRUMENT PANEL REINFORCEMENT

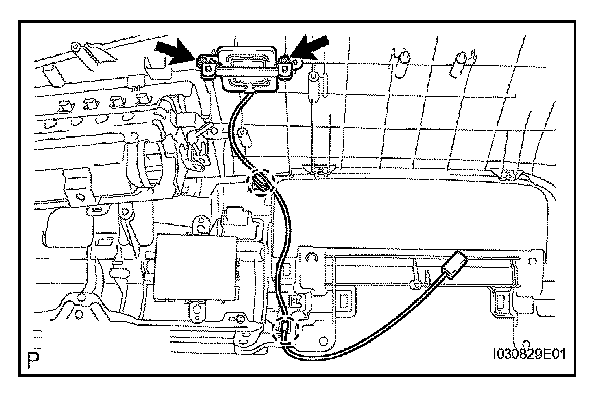

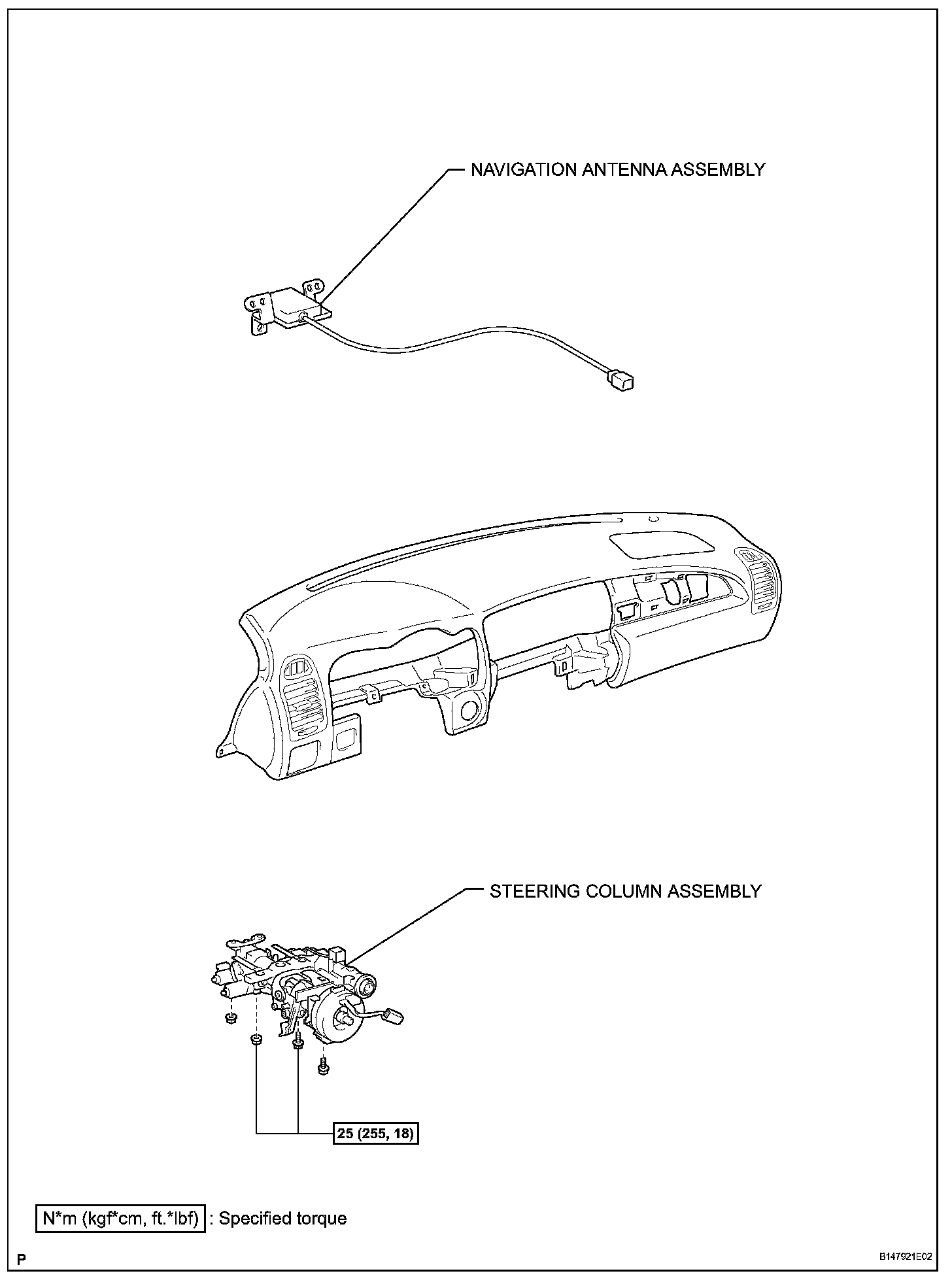

14. REMOVE NAVIGATION ANTENNA ASSEMBLY

a. Remove the 2 clamps.
b. Remove the 2 screws and antenna.

INSTALLATION

HINT: A bolt without a torque specification is shown in the standard bolt chart.

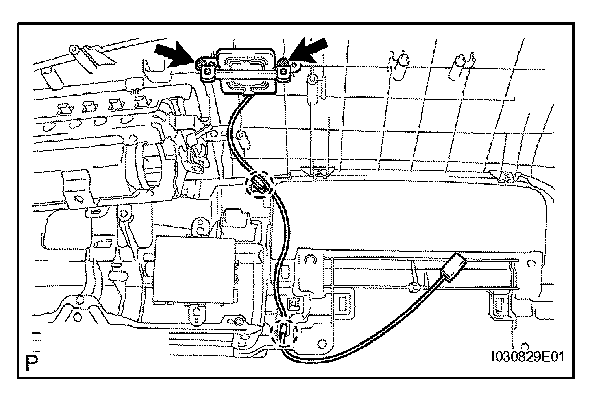

1. INSTALL NAVIGATION ANTENNA ASSEMBLY

a. Install the antenna with the 2 screws.
b. Install the 2 clamps.

2. INSTALL INSTRUMENT PANEL REINFORCEMENT
3. INSTALL NO.2 HEATER TO REGISTER DUCT
4. INSTALL NO.3 HEATER TO REGISTER DUCT
5. INSTALL NO.1 HEATER TO REGISTER DUCT
6. INSTALL FRONT DEFROSTER NOZZLE
7. INSTALL NO.2 SIDE DEFROSTER NOZZLE DUCT
8. INSTALL NO.1 SIDE DEFROSTER NOZZLE DUCT
9. INSTALL NO.1 INSTRUMENT PANEL PIN
10. INSTALL STEERING COLUMN ASSEMBLY
11. INSTALL INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY

a. Install the instrument panel safety pad.

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
13. PERFORM INITIALIZATION

a. Perform initialization. Testing and Inspection

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
