DTC P2759 Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)

DESCRIPTION

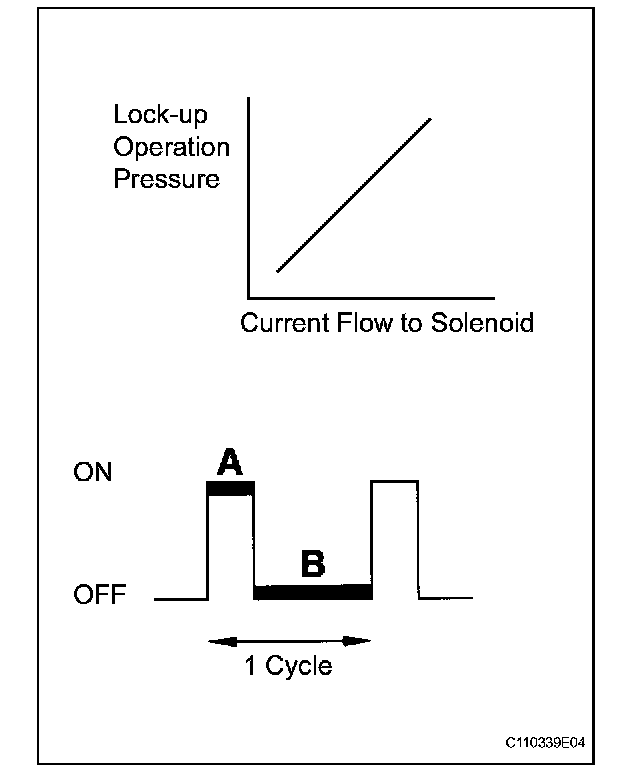

The amount of current flow to the solenoid is controlled by the duty ratio* of the ECM output signal. The higher the duty ratio, the higher the lock-up hydraulic pressure becomes during the lock-up operation.





*: The duty ratio is the ratio of the current ON time (A) to the total of the current ON and OFF time (A + B). Duty Ratio (%) = A / (A + B) x 100

P2759:

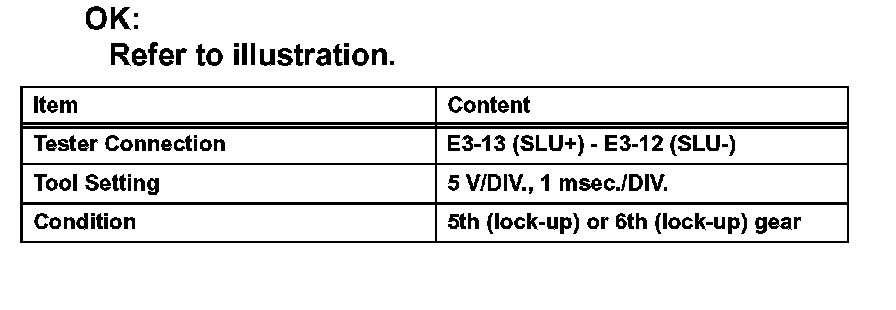

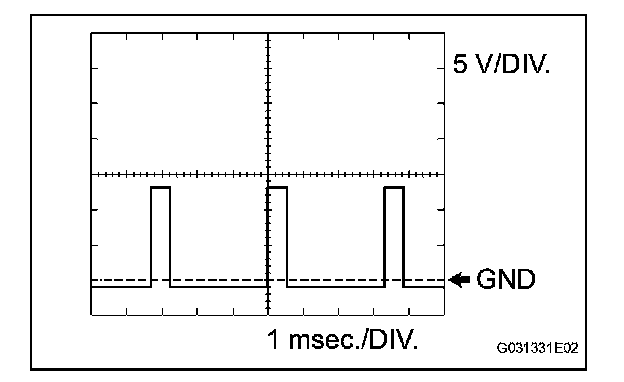

1. Reference: Inspect using an oscilloscope. Check the waveform of the ECM connector.
OK: Refer to illustration.





MONITOR DESCRIPTION

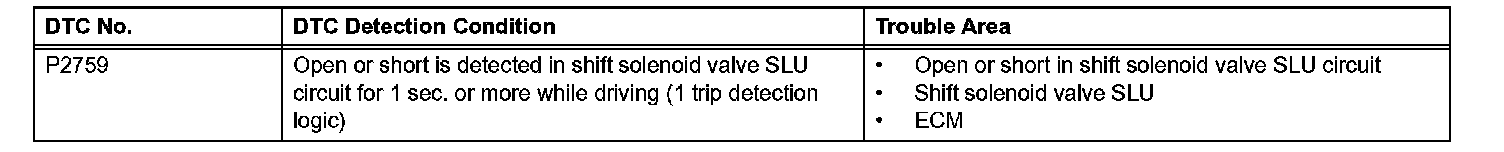

When an open or short in a shift solenoid valve SLU circuit is detected, the ECM determines that there is a malfunction. The ECM will illuminate the MIL and store this DTC.

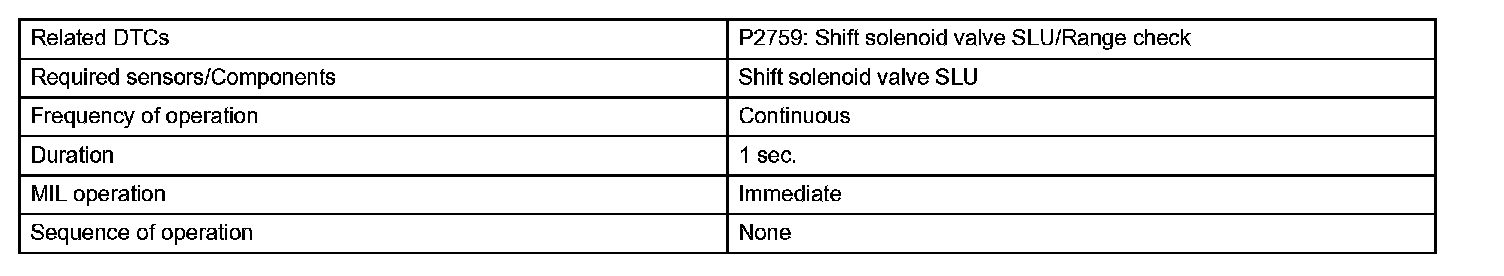

MONITOR STRATEGY

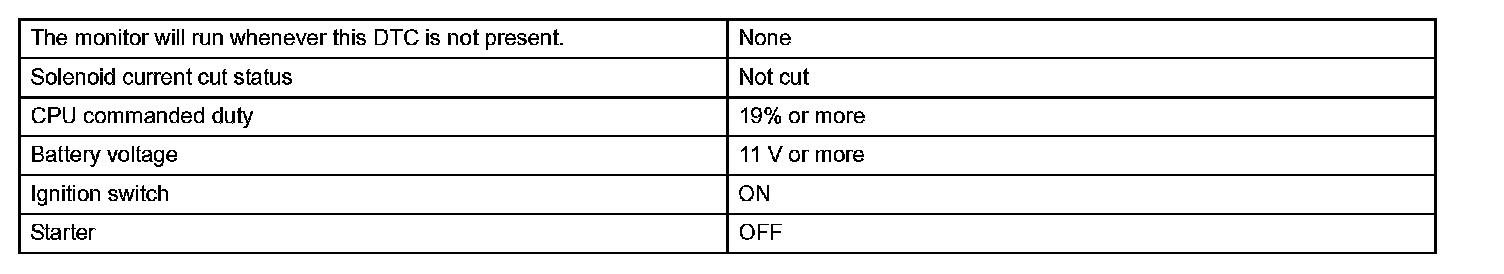

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

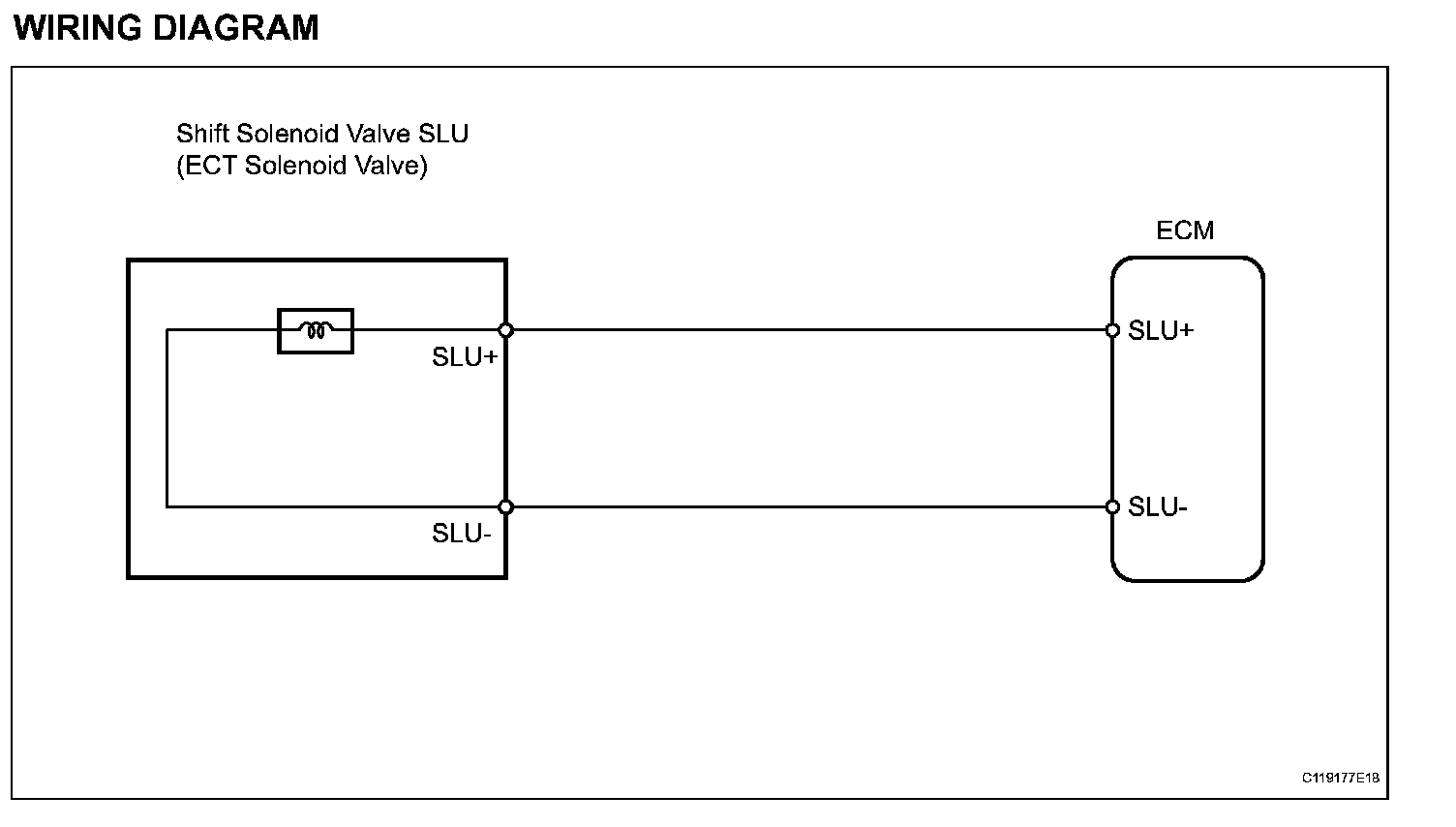

WIRING DIAGRAM:

INSPECTION PROCEDURE

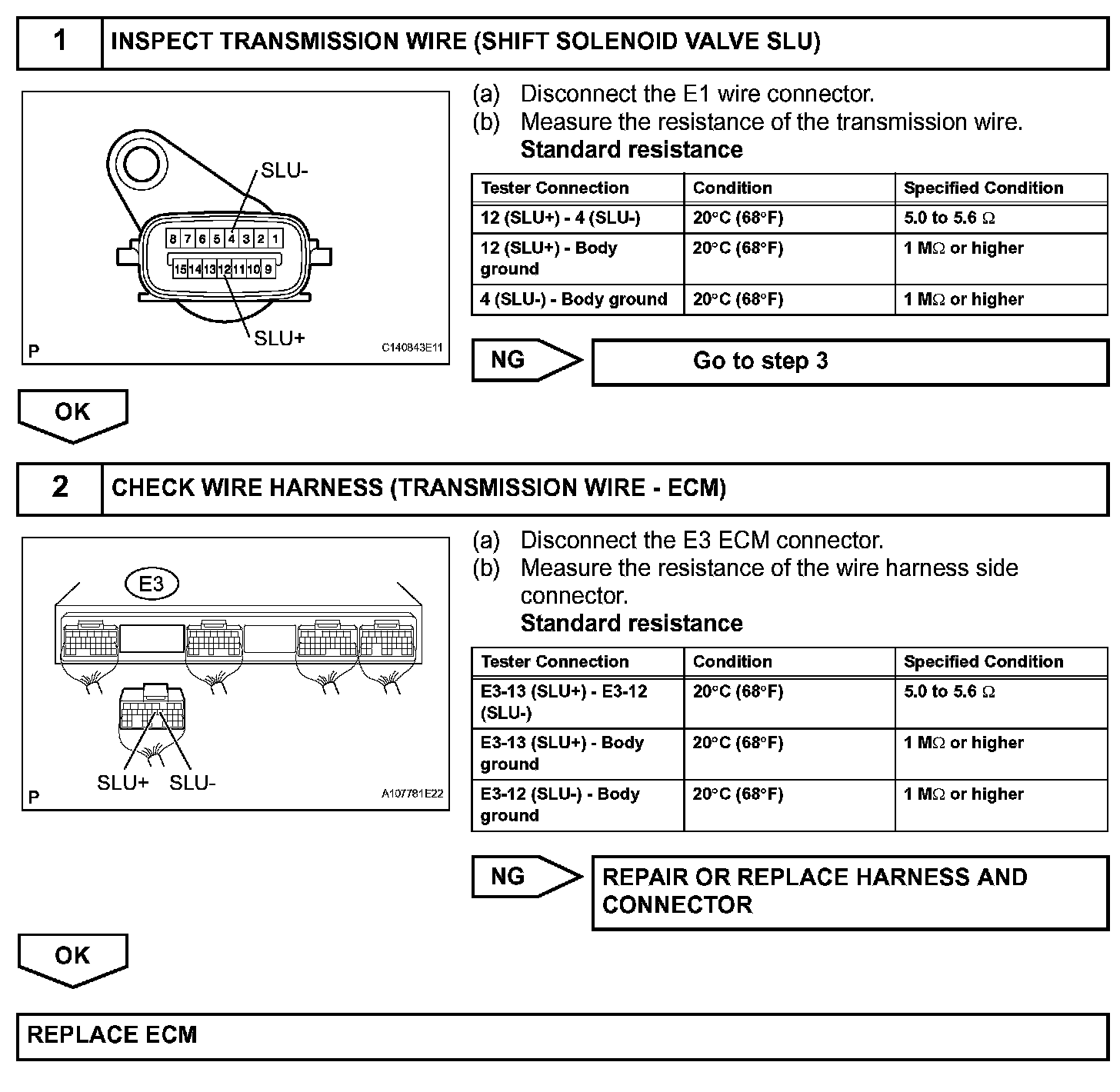

Steps 1-2:

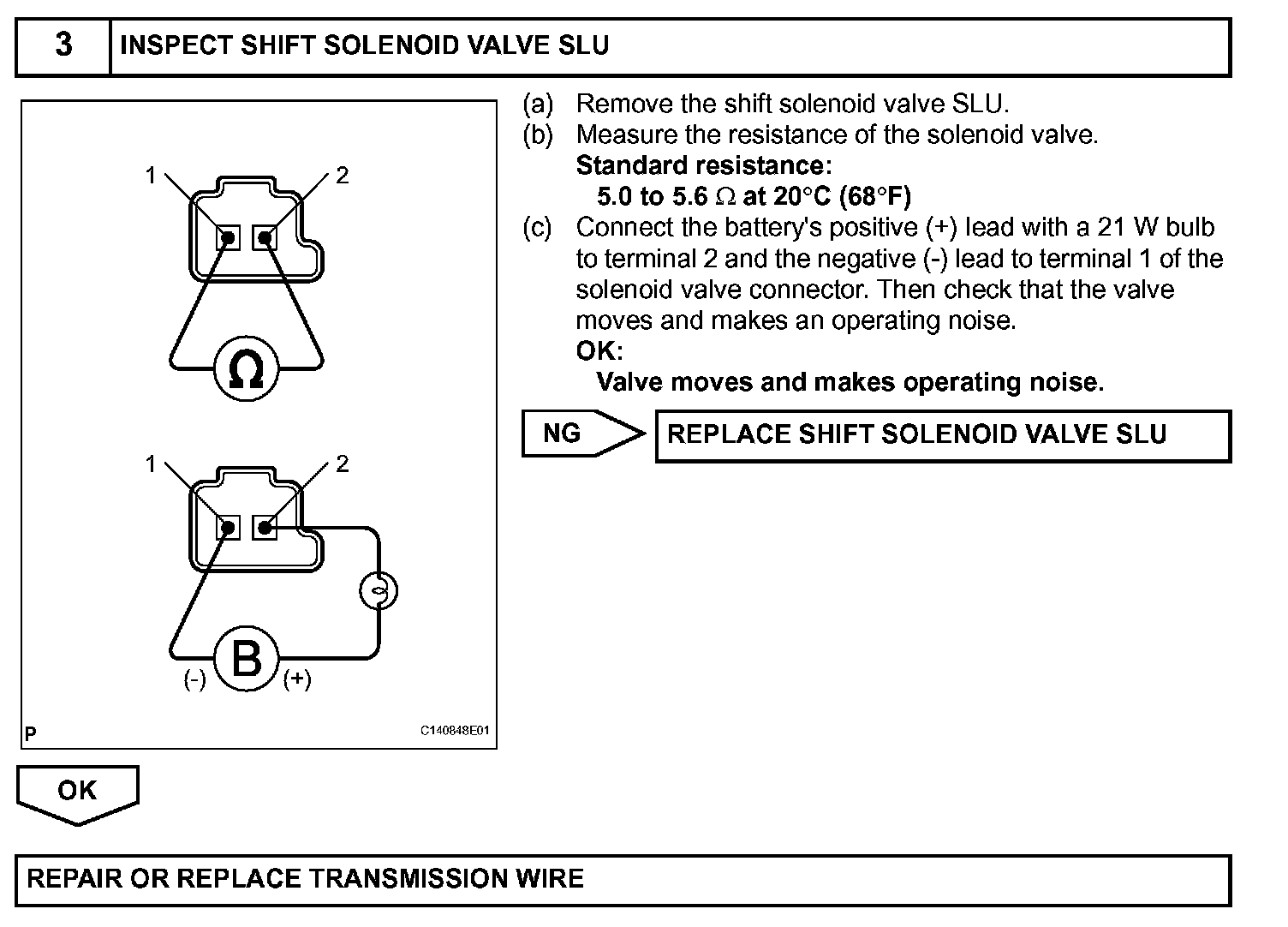

Step 3:
