P0657

DTC P0657 Actuator Supply Voltage Circuit / Open

DESCRIPTION

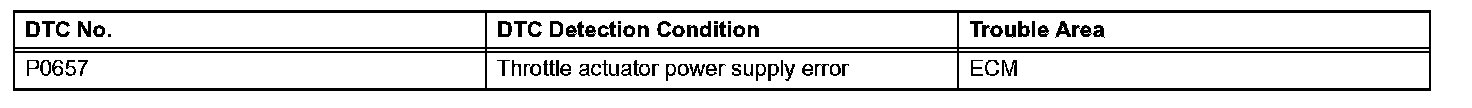

DTC Detection Condition:

The ECM monitors the output voltage to the throttle actuator. This self-check ensures that the ECM is functioning properly. The output voltage usually is 0 V when the ignition switch is turned OFF. If the output voltage is higher than 7 V when the ignition switch is turned OFF, the ECM will illuminate the MIL and set a DTC when the ignition switch is turned ON.

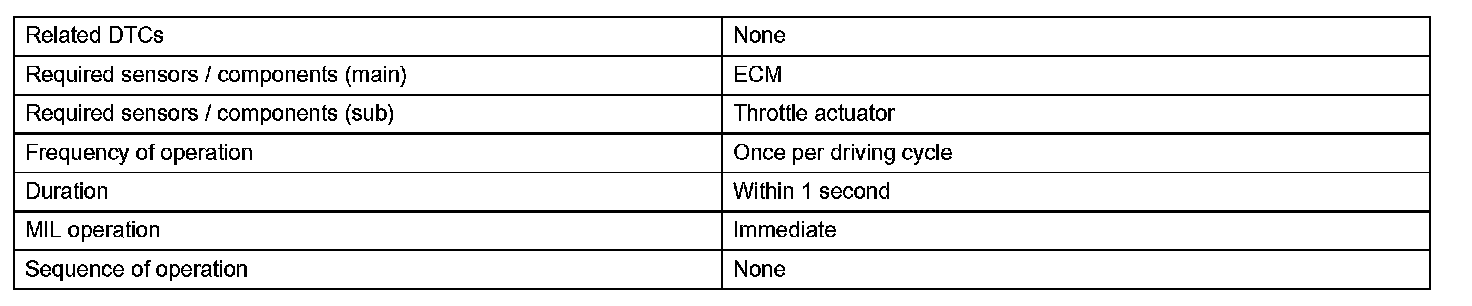

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunctions Thresholds:

MONITOR DESCRIPTION

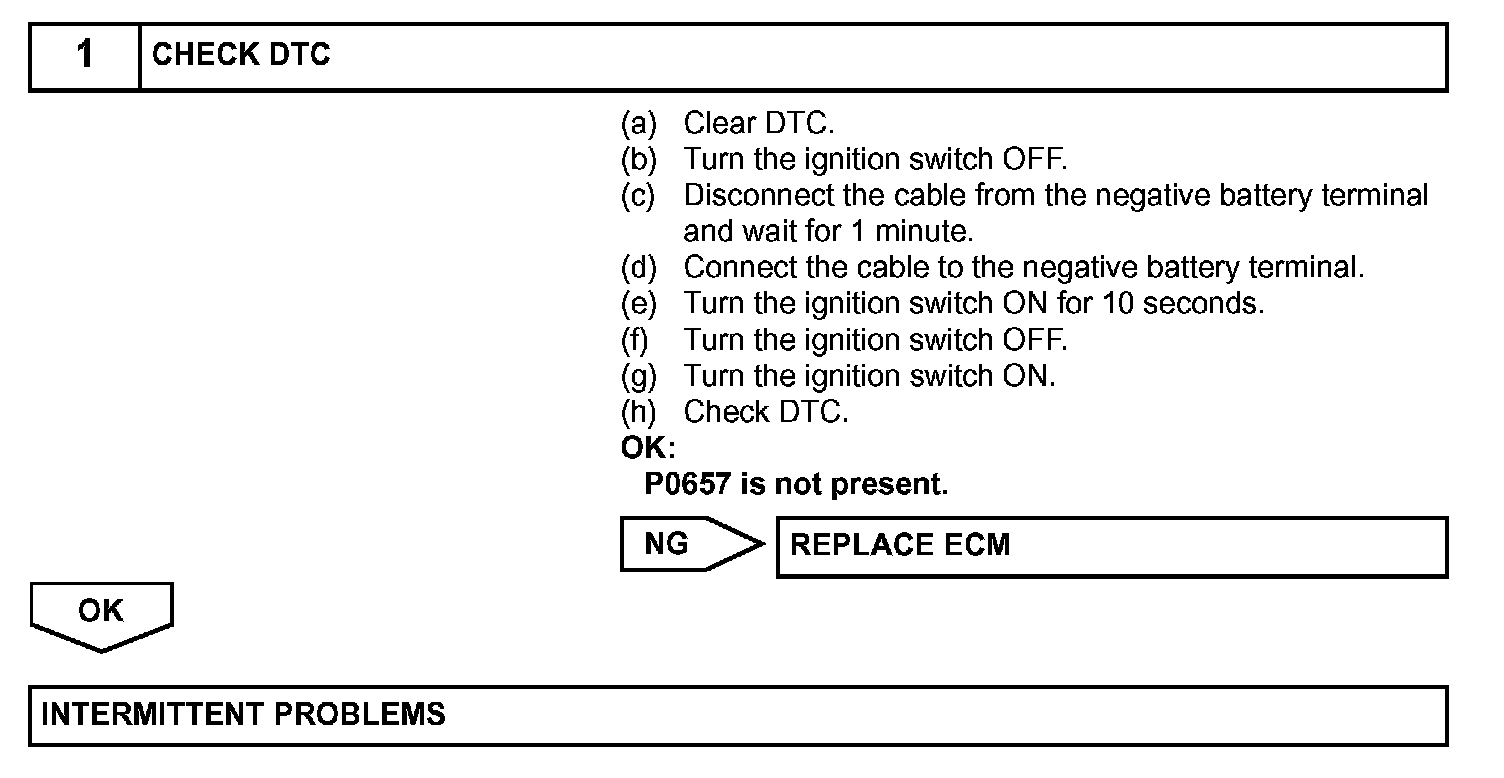

Step 1:

INSPECTION PROCEDURE
