P0630

DTC P0630 VIN not Programmed or Mismatch - ECM / PCM

DESCRIPTION

DTC Detection Condition:

DTC P0630 is set if the Vehicle Identification Number (VIN) is not stored in the ECM or the input VIN is not accurate. Input the VIN with the intelligent tester.

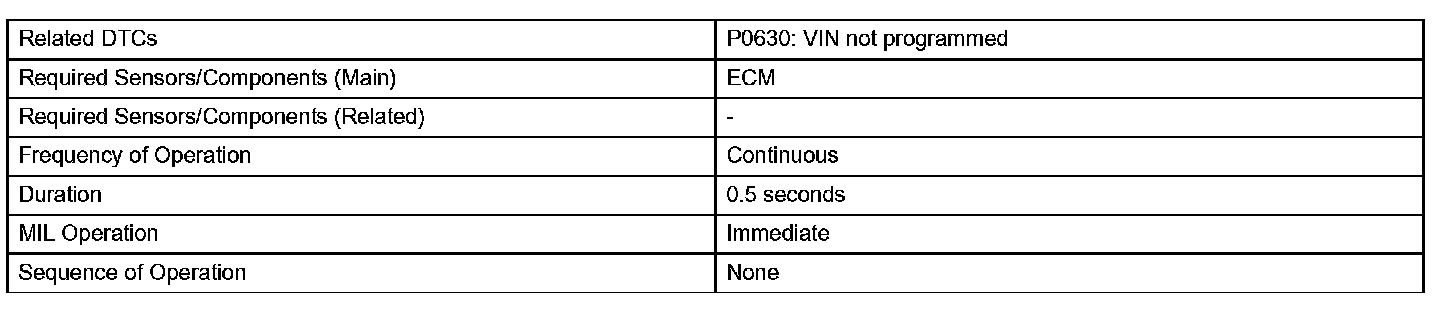

Monitor Strategy:

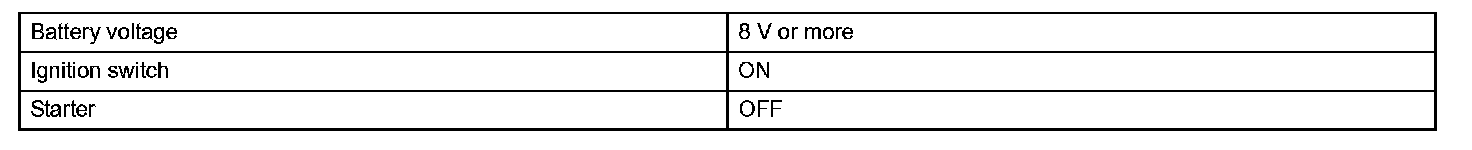

Typical Enabling Conditions:

Typical Malfunctions Thresholds:

Component Operating Range:

MONITOR DESCRIPTION

Step 1:

Step 2:

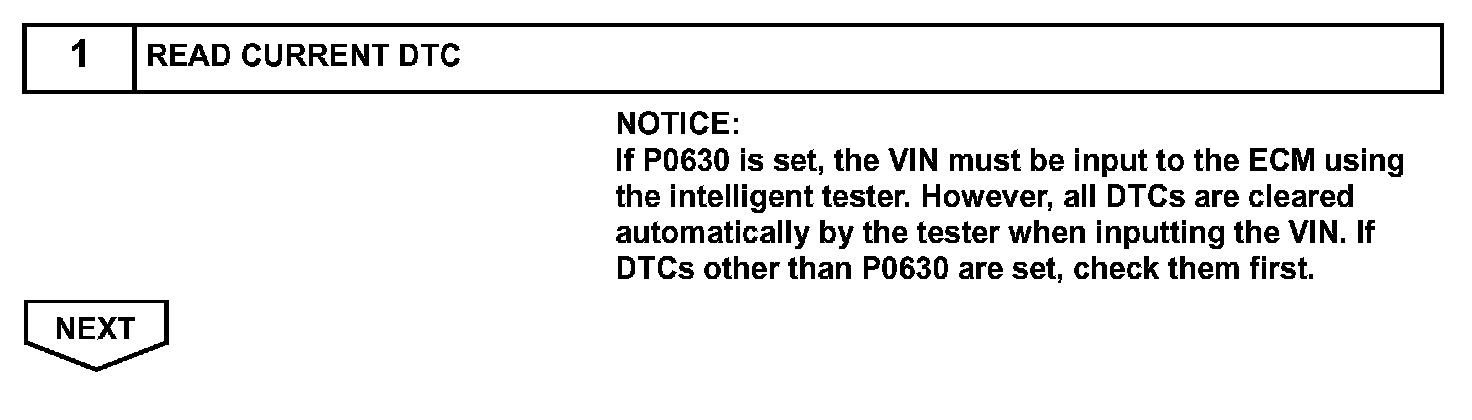

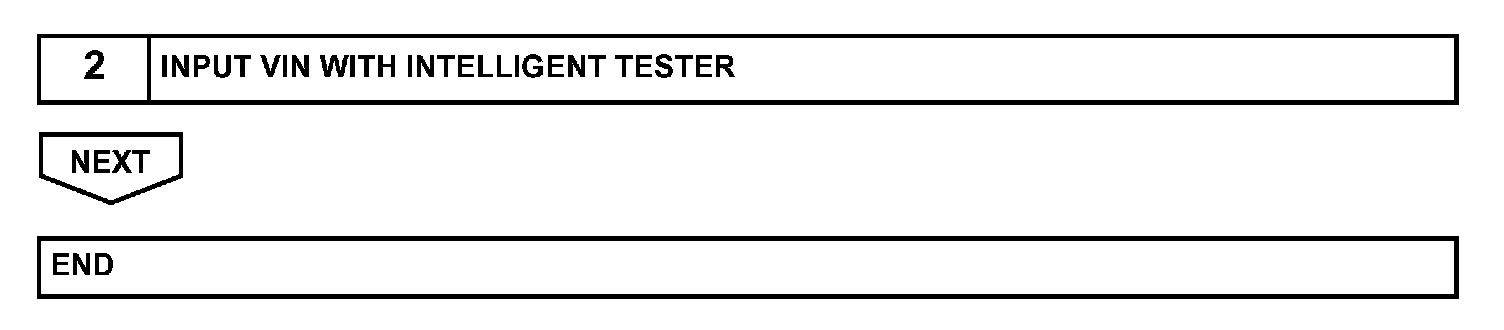

INSPECTION PROCEDURE
