P0617
DTC P0617 Starter Relay Circuit HighDESCRIPTION

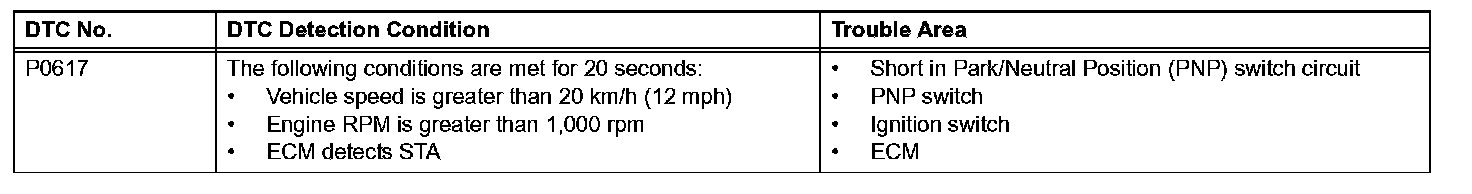

DTC Detection Condition:
While the engine is being cranked, the positive (+) battery voltage is applied to terminal STA of the ECM. If the ECM detects the Starter Control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The ECM then illuminates the MIL and sets the DTC.
This monitor runs when the vehicle is driven at 20 km/h (12.4 mph) for 20 seconds or more.
Monitor Strategy:

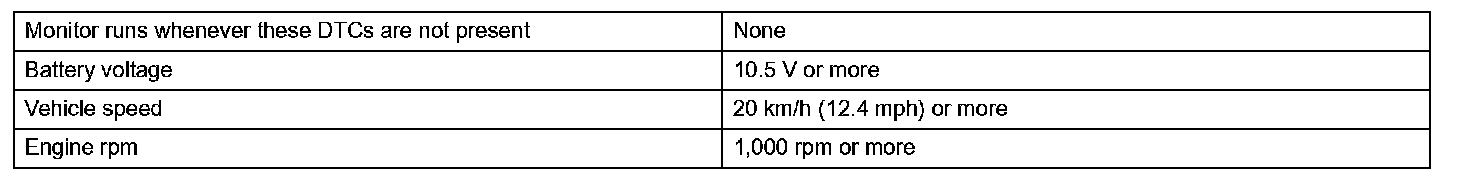

Typical Enabling Conditions:
Typical Malfunctions Thresholds:
Component Operating Range:
MONITOR DESCRIPTION

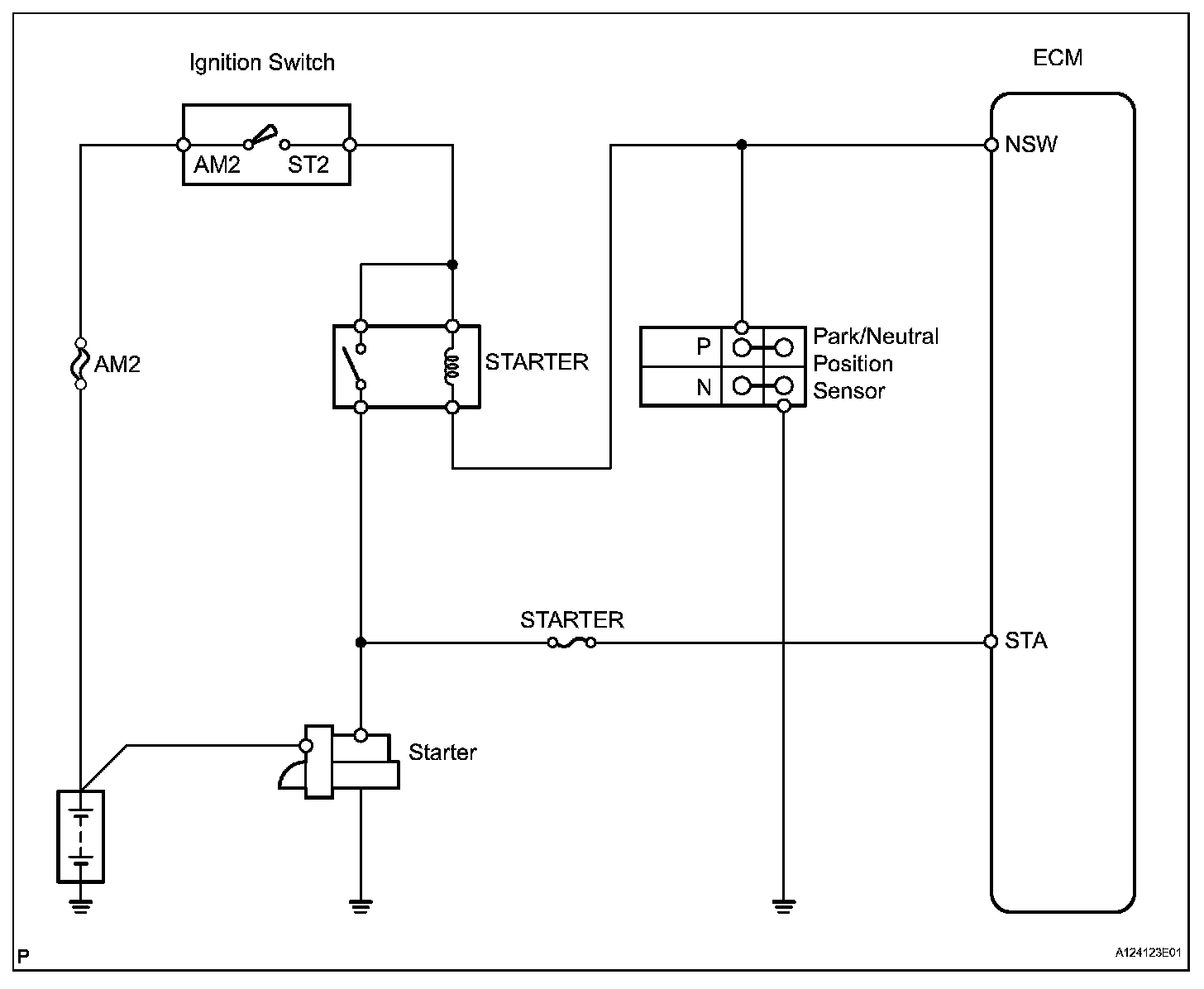

Wiring Diagram:

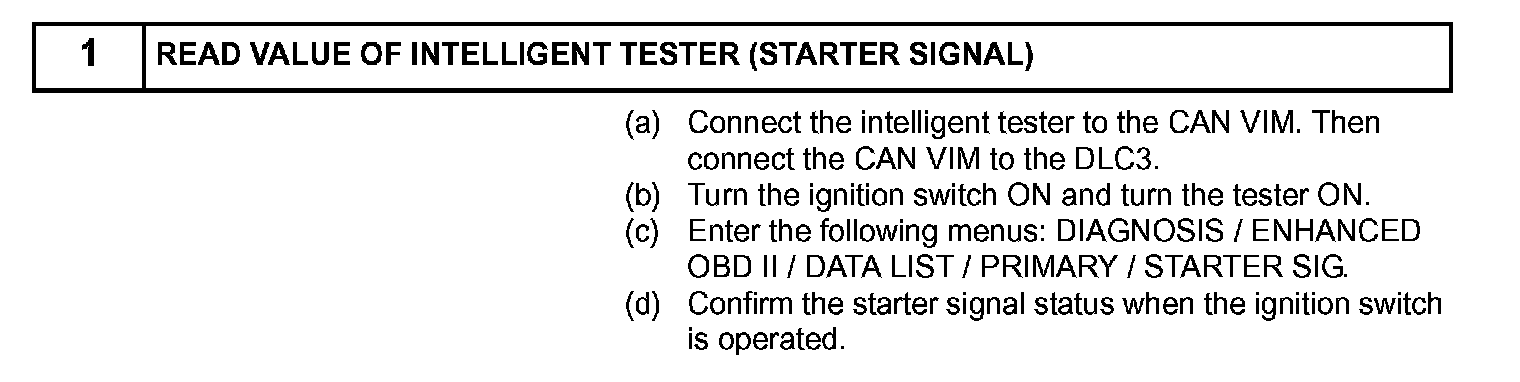

Step 1:

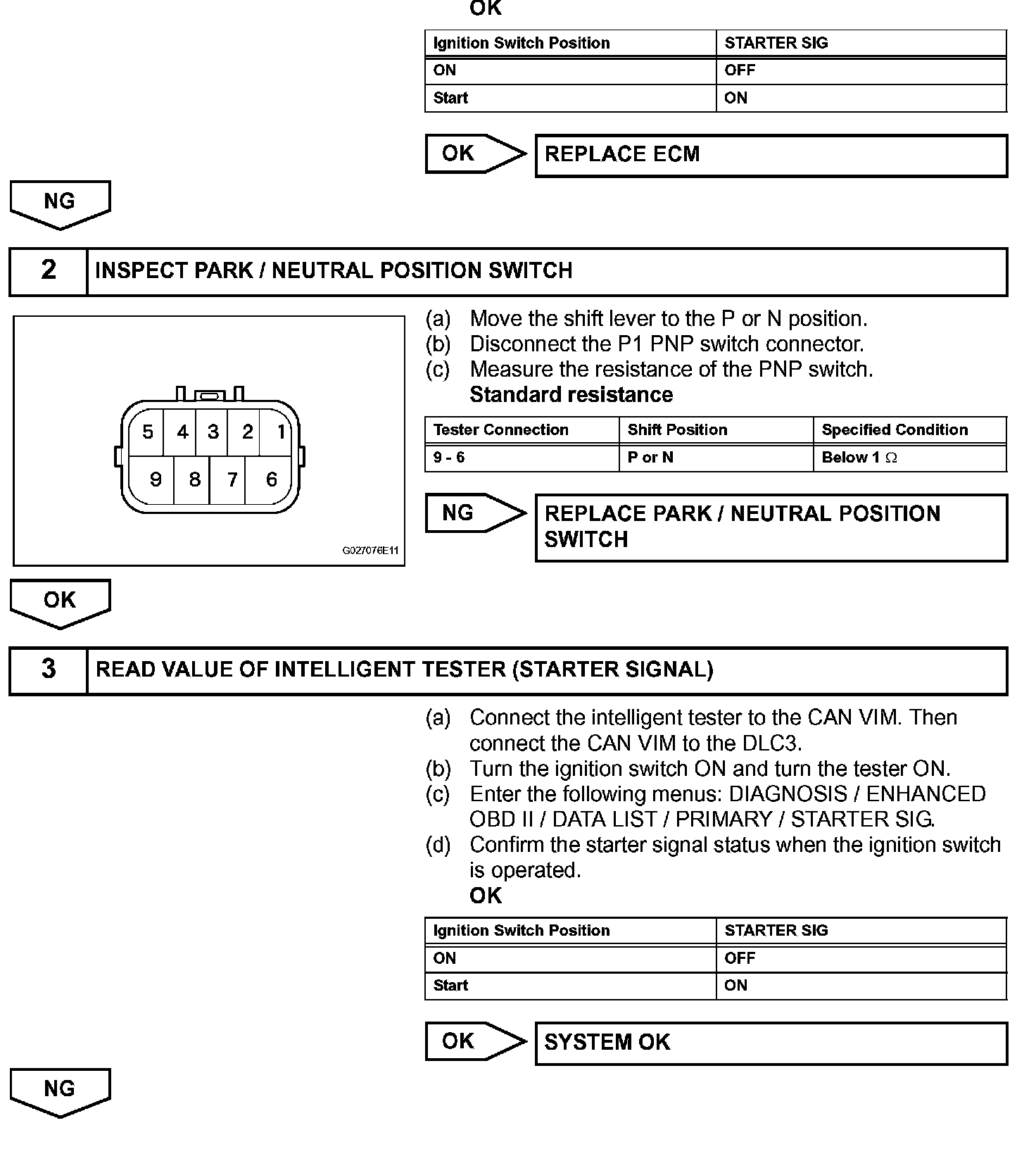

Step 1(Continued)-3:

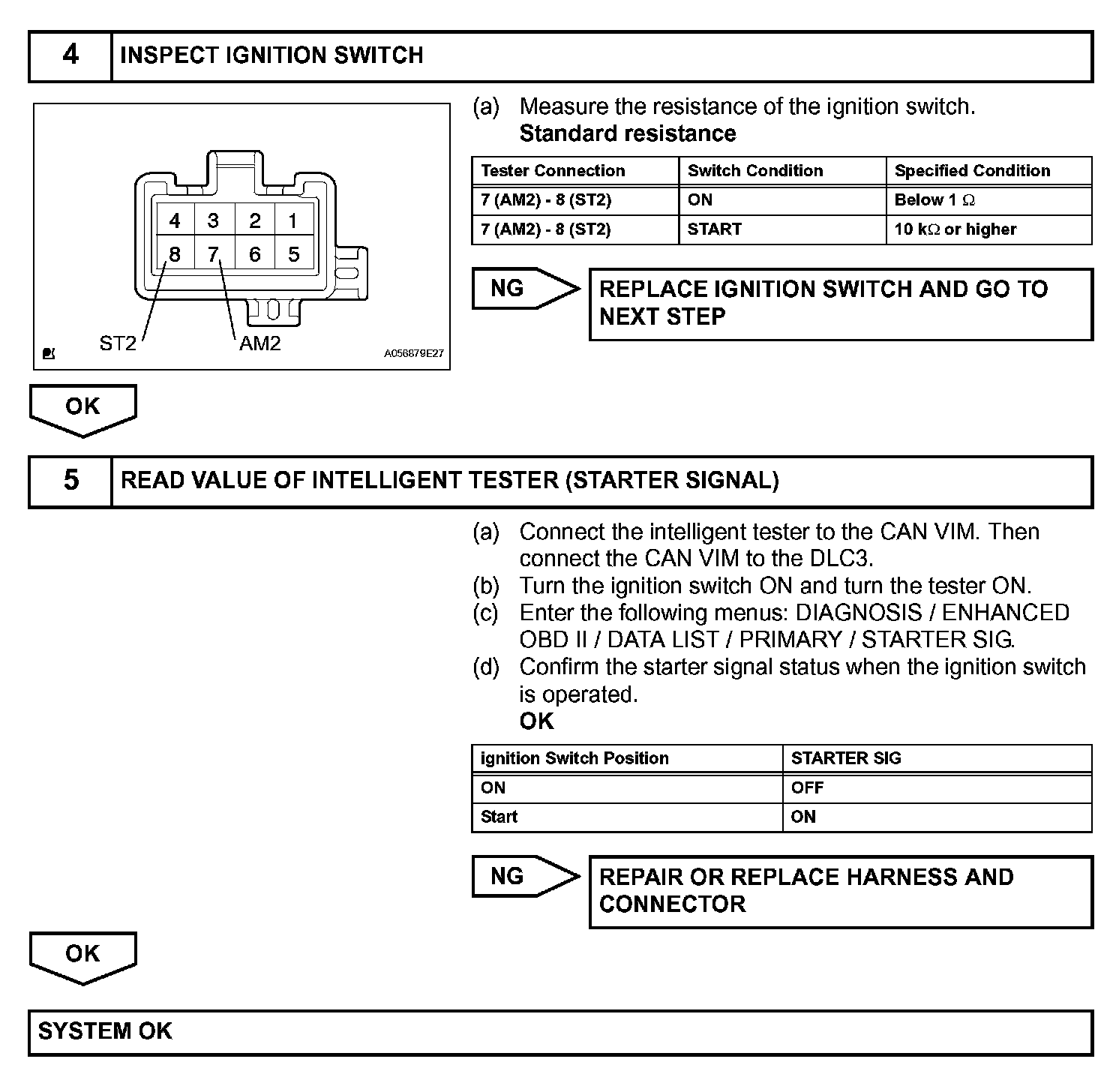

Step 4-5:
INSPECTION PROCEDURE
HINT:
- The following troubleshooting flowchart is based on the premise that the engine is cranked normally. If the engine will not crank, proceed to the problem symptoms table.
- Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
