Engine Control System

DTC P0607 Control Module Performance

DESCRIPTION

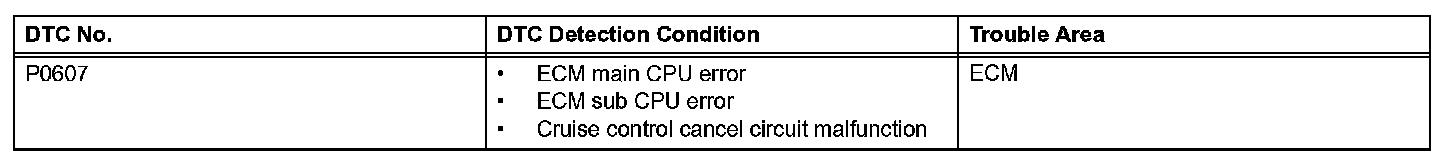

DTC Detection Condition:

The ECM continuously monitors its main and sub CPUs. This self-check ensures that the ECM is functioning properly. If outputs from the CPUs are different and deviate from the standards, the ECM will illuminate the MIL and set a DTC immediately.

The ECM also monitors the cruise control cancel circuit. If this circuit malfunctions, the ECM will set a DTC immediately (MIL is not illuminated).

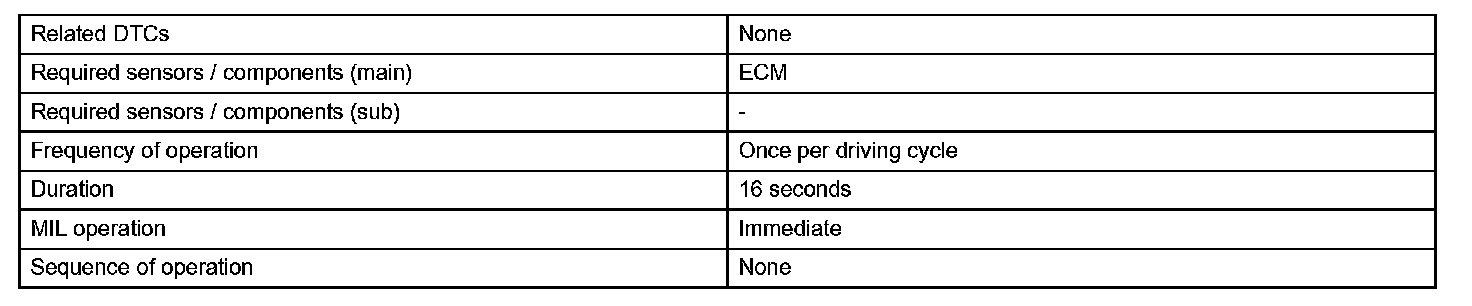

Monitor Strategy:

Typical Enabling Conditions:

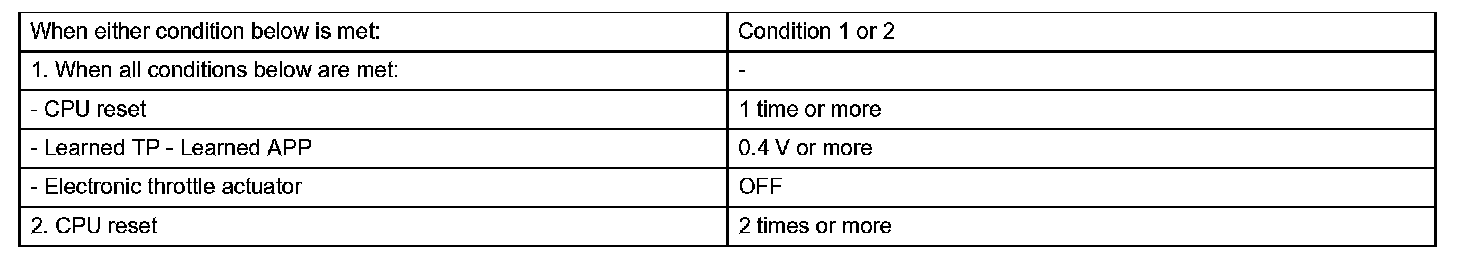

Typical Malfunctions Thresholds:

MONITOR DESCRIPTION

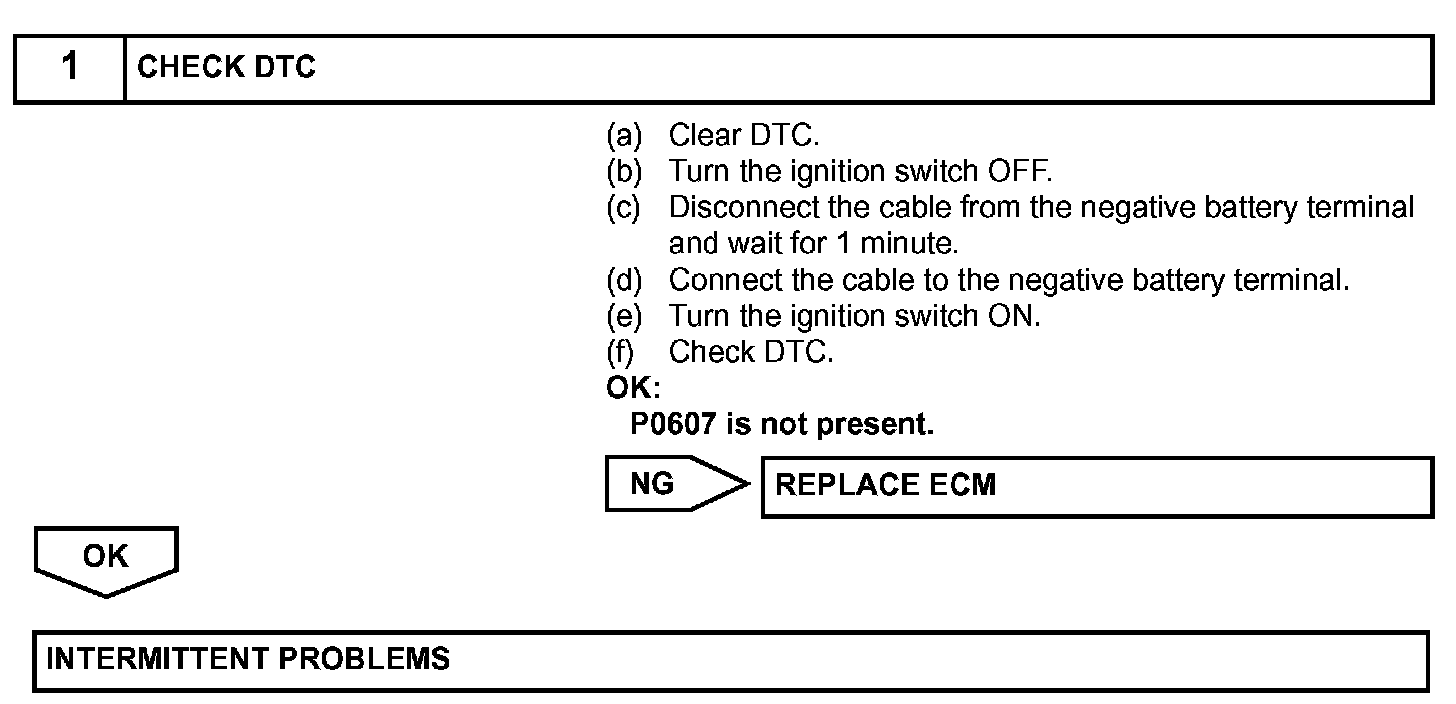

Step 1:

INSPECTION PROCEDURE
