P0560

DTC P0560 System Voltage

MONITOR DESCRIPTION

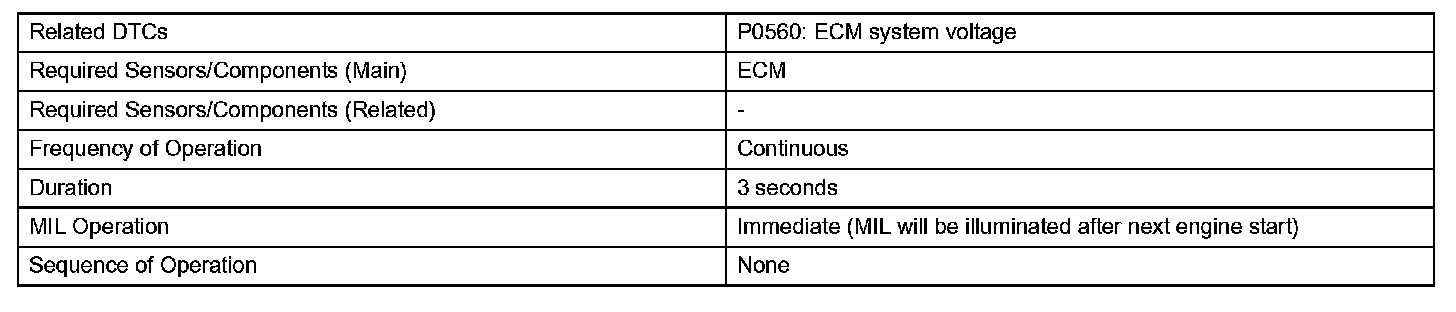

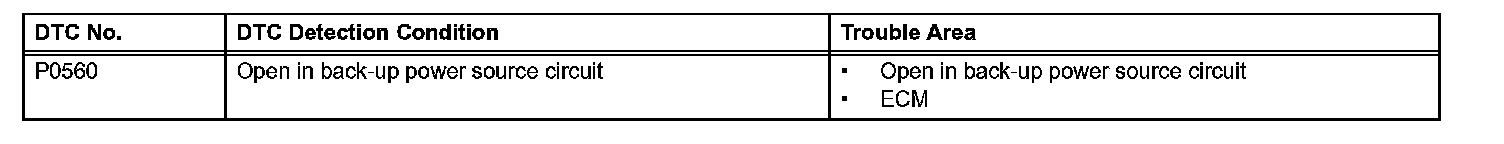

DTC Detection Condition:

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunctions Thresholds:

Component Operating Range:

The battery supplies electricity to the ECM even when the ignition switch is OFF. This electricity allows the ECM to store data such as DTC history, freeze frame data, fuel trim values, and other data. If the battery voltage falls a minimum level, the memory is cleared and the ECM will conclude that there is a fault in the power supply circuit. At the next engine start, the ECM will illuminate the MIL and set a DTC.

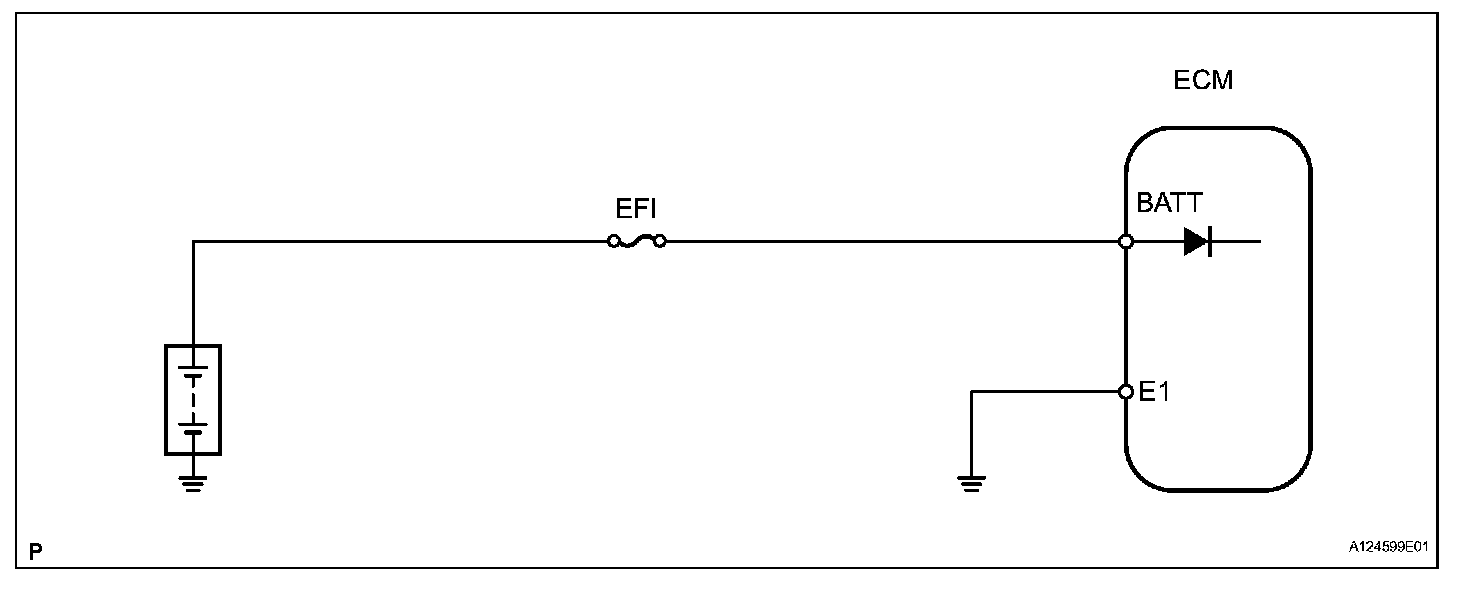

Wiring Diagram:

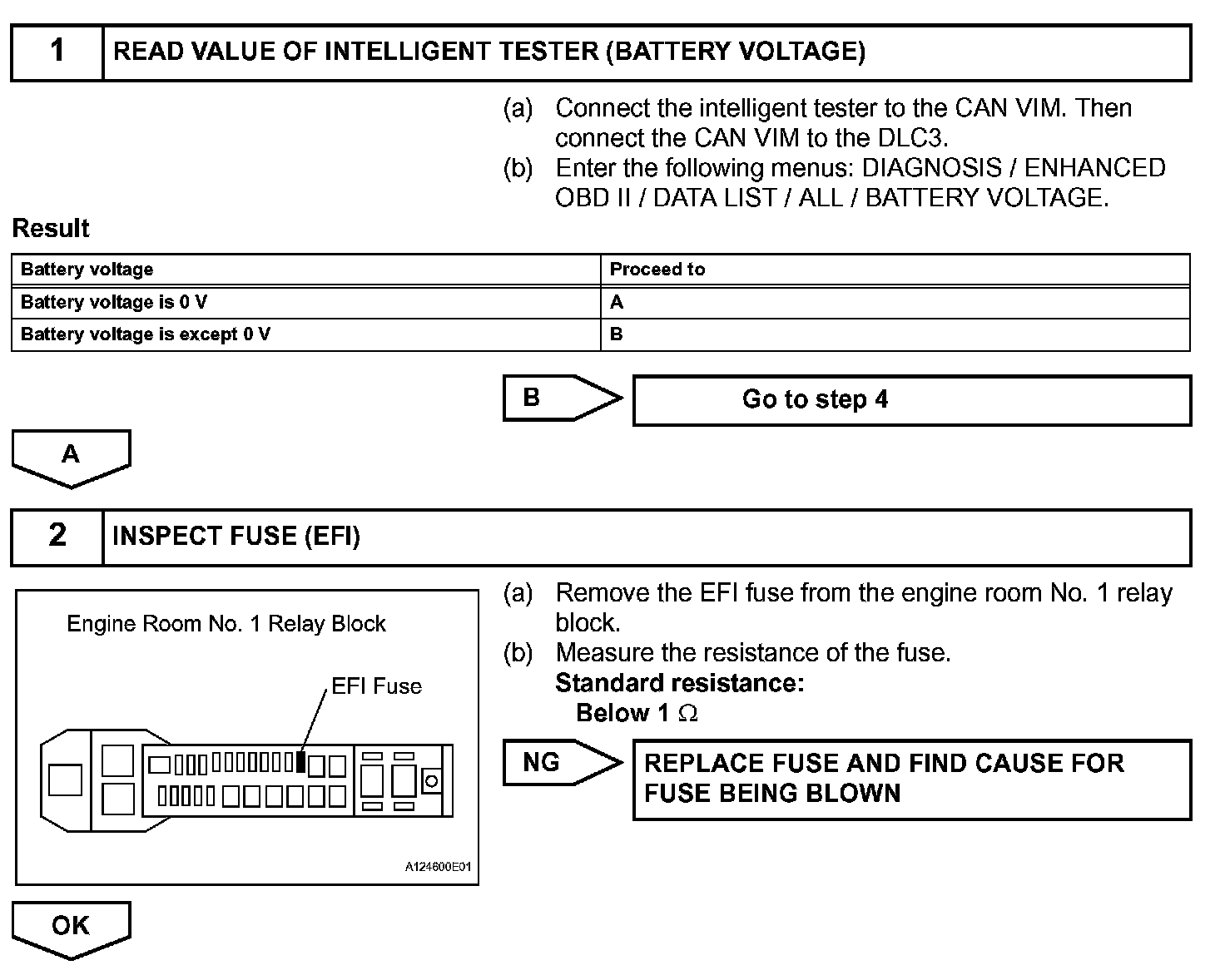

Step 1-2:

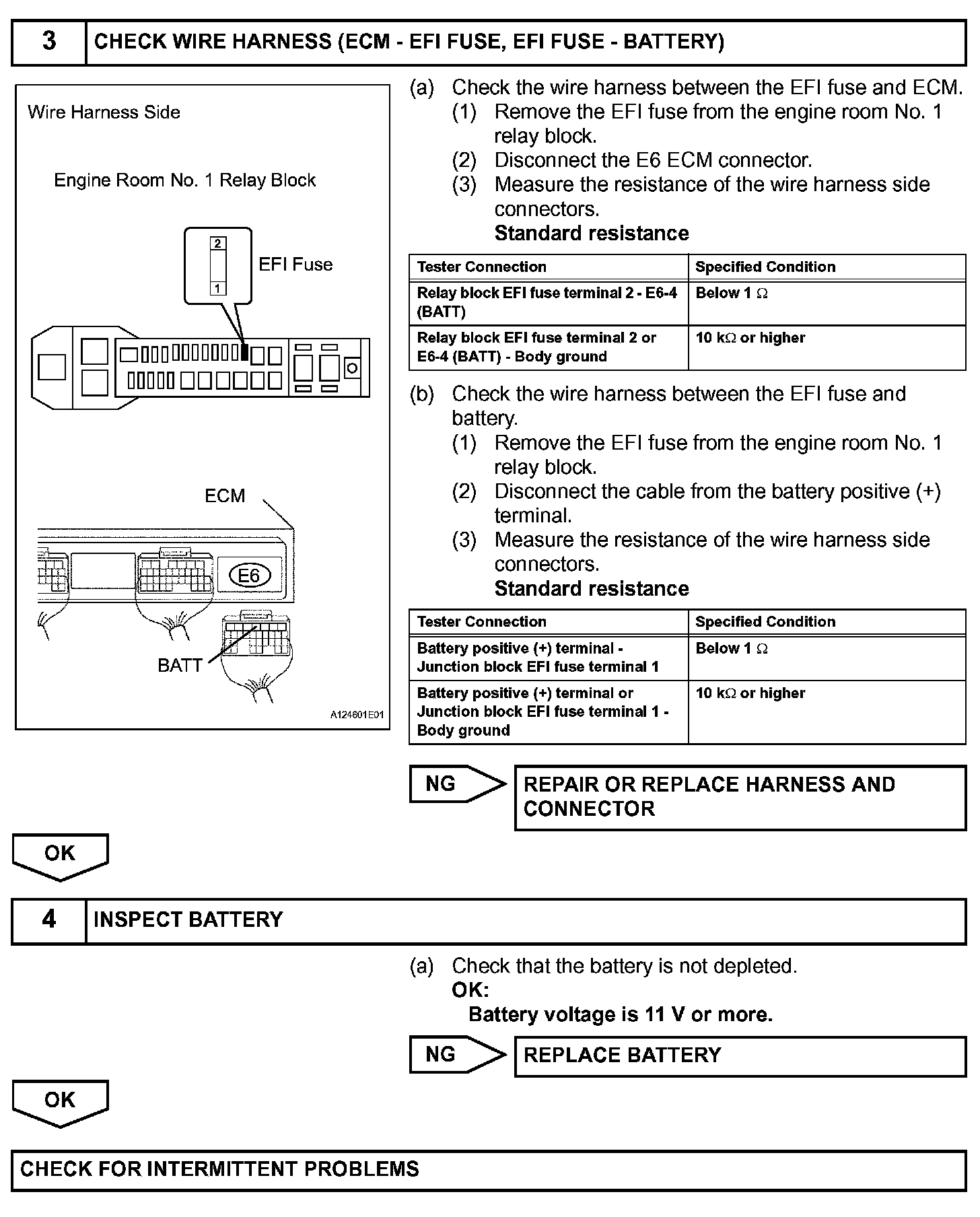

Step 3-4:

INSPECTION PROCEDURE
