P0116

DTC P0116 Engine Coolant Temperature Circuit Range / Performance Problem

DESCRIPTION

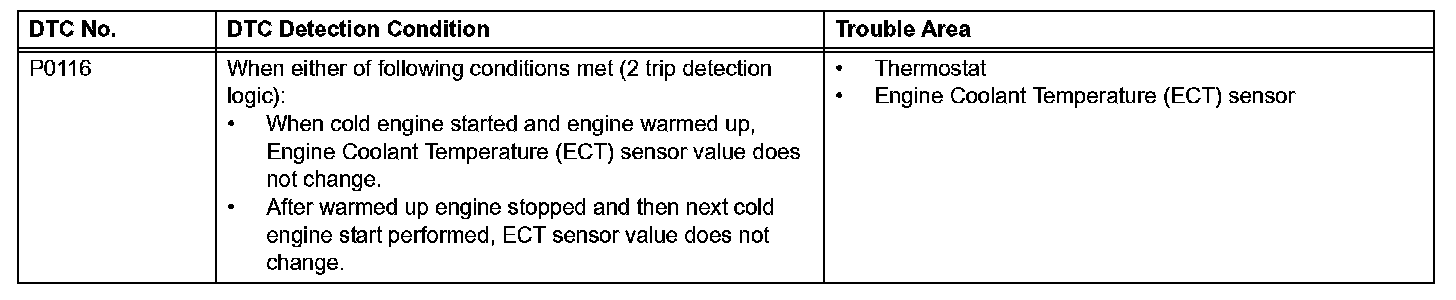

DTC Detection Condition:

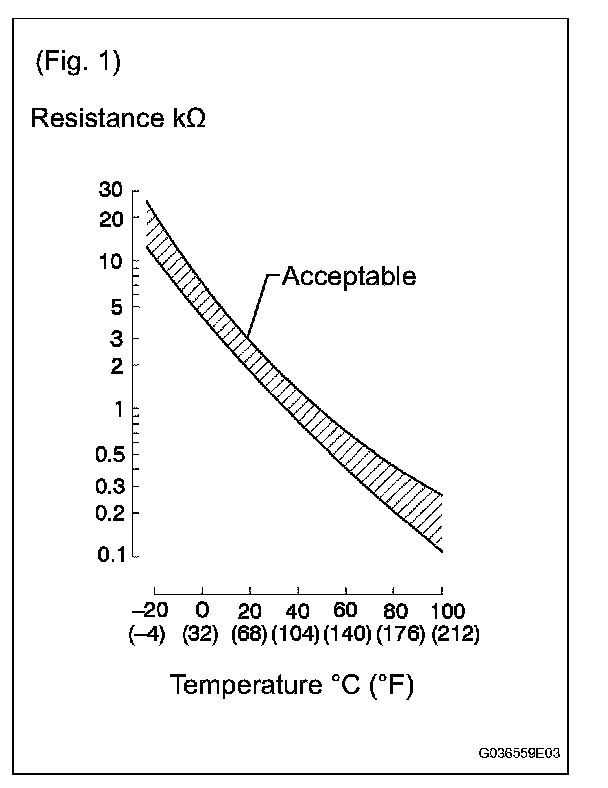

A thermistor is built into the Engine Coolant Temperature (ECT) sensor and changes the resistance value according to the engine coolant temperature.

The structure of the sensor and connection to the ECM is the same as the Intake Air Temperature (IAT) sensor.

MONITOR DESCRIPTION

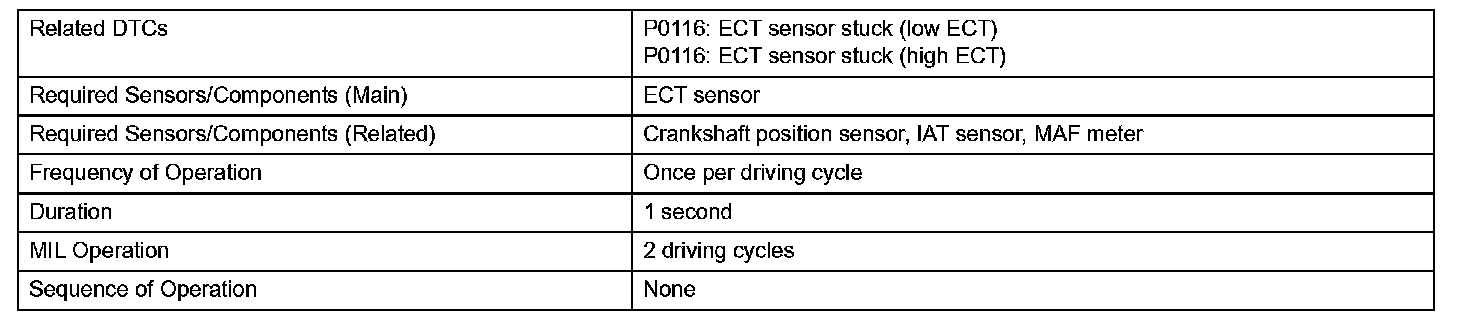

Monitor Strategy:

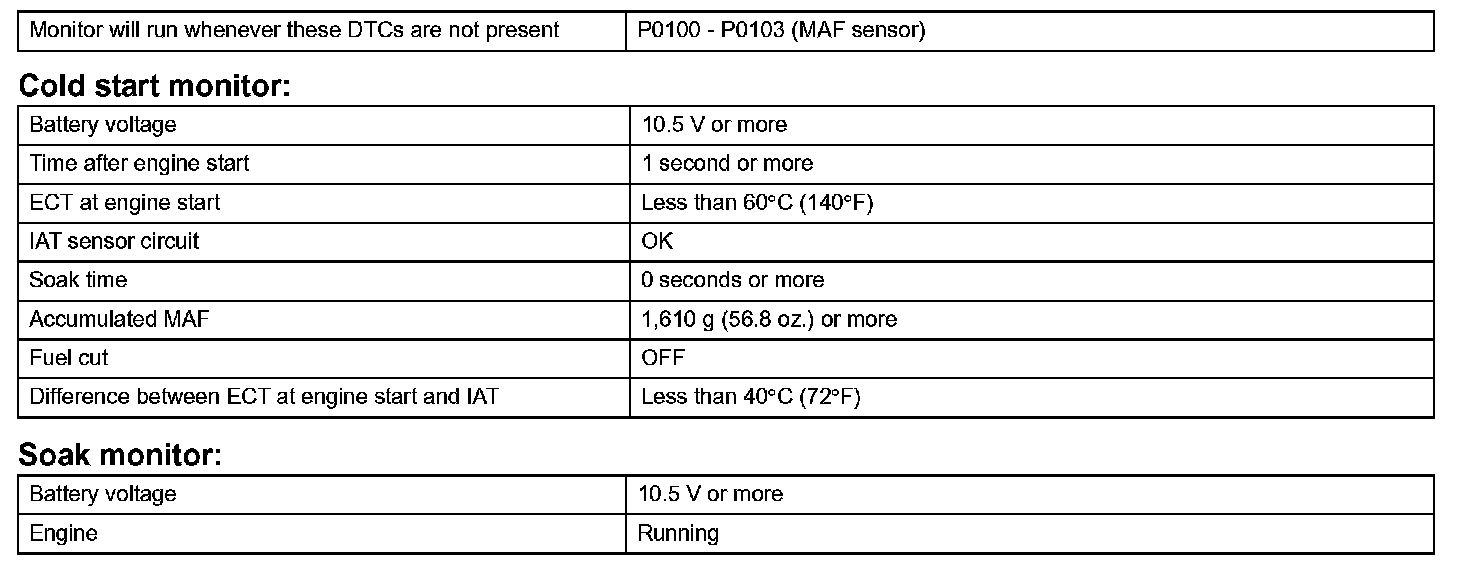

Typical Enabling Conditions (Part 1):

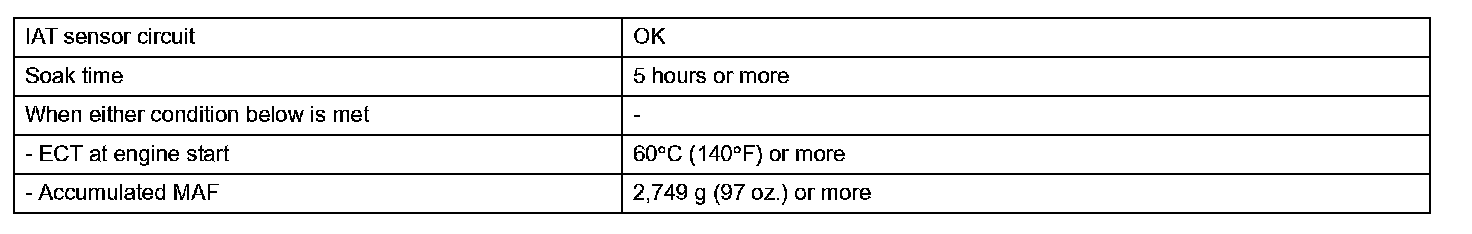

Typical Enabling Conditions (Part 2):

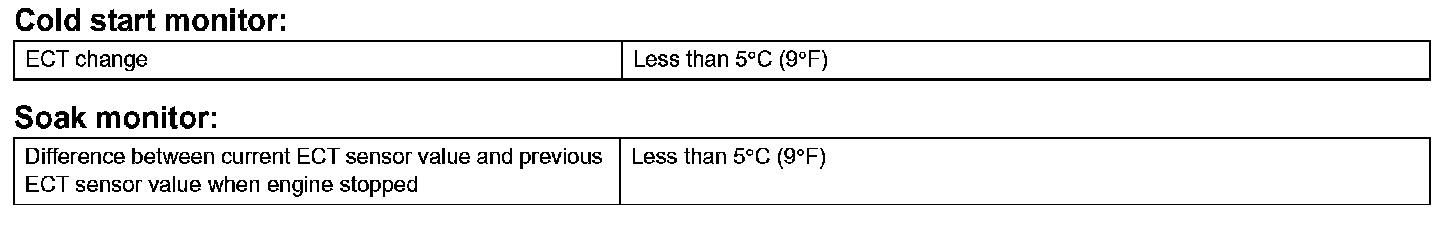

Typical Malfunctions Thresholds:

Component Operating Range:

ECT sensor cold start monitor
When a cold engine start is performed and then the engine is warmed up, if the ECT sensor value does not change, it is determined that a malfunction has occurred. If this is detected in 2 consecutive driving cycles, the MIL is illuminated and a DTC is set.

ECT sensor soak monitor
If the ECT sensor value does not change after the warmed up engine is stopped and then the next cold engine start is performed, it is determined that a malfunction has occurred. If this is detected in 2 consecutive driving cycles, the MIL is illuminated and a DTC is set.

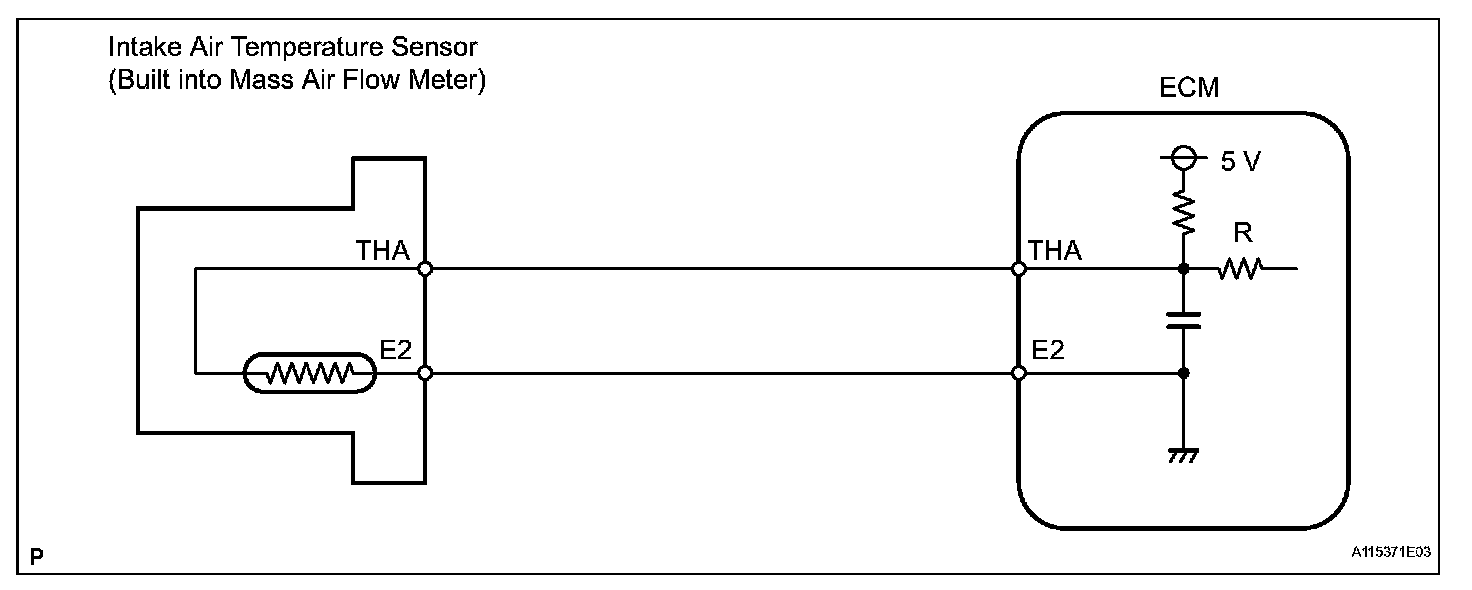

Wiring Diagram:

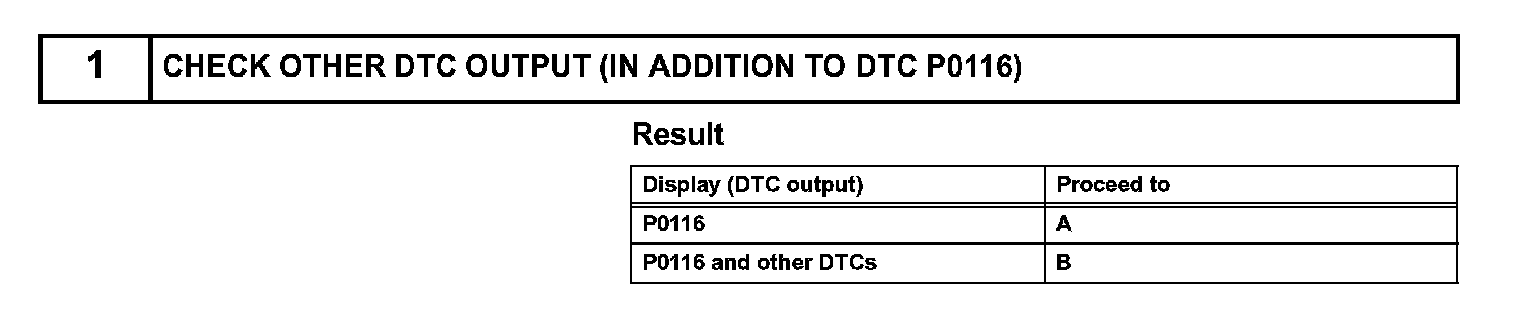

Step 1:

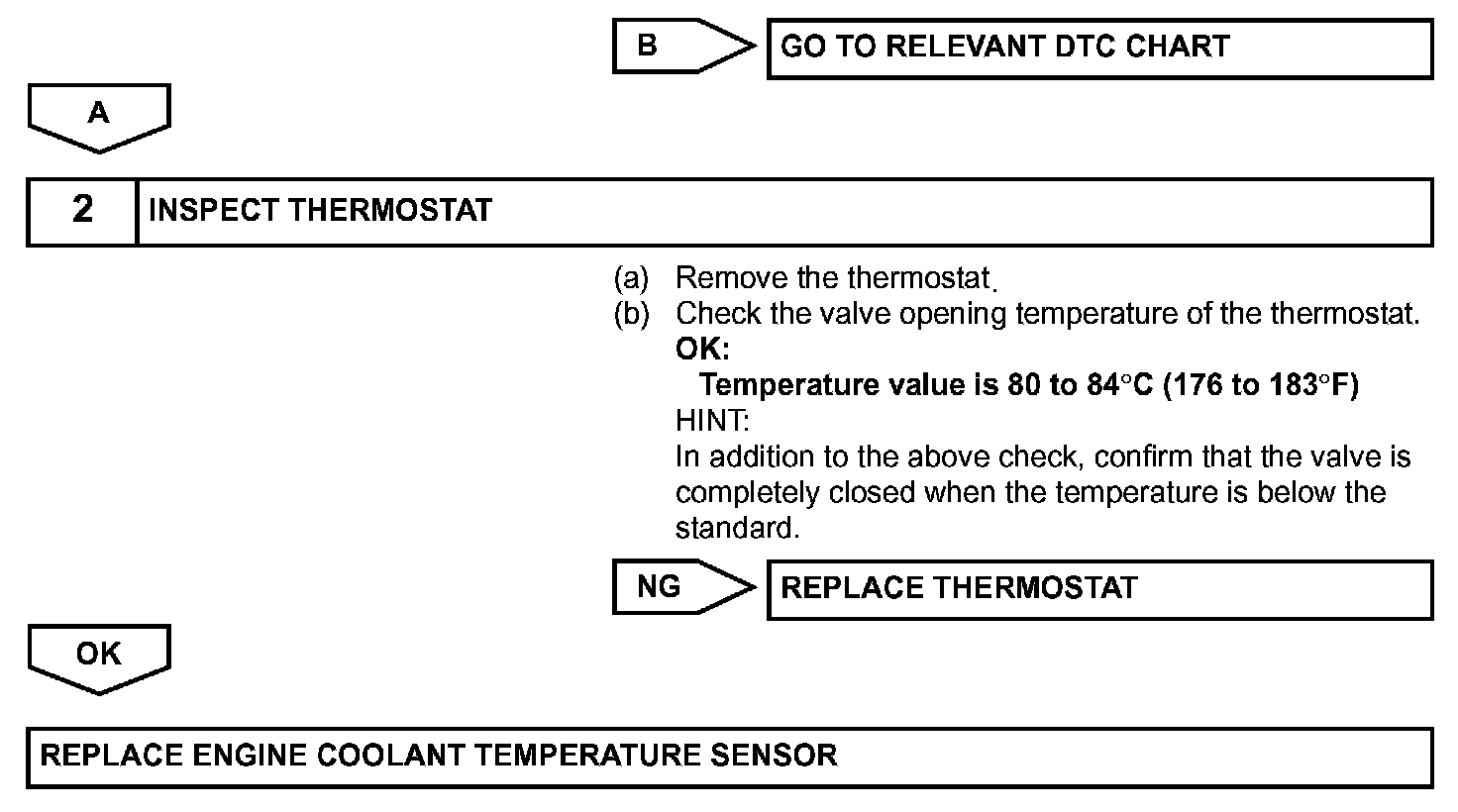

Step 1(Continued)-2:

INSPECTION PROCEDURE

HINT:
- If DTC P0115, P0116, P0117, P0118 and P0125 are output simultaneously, ECT sensor circuit may be open or shorted. Perform the troubleshooting of DTC P0115, P0117 or P0118 first.
- Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
