P0111
DTC P0111 Intake Air Temperature Sensor Gradient Too HighDESCRIPTION

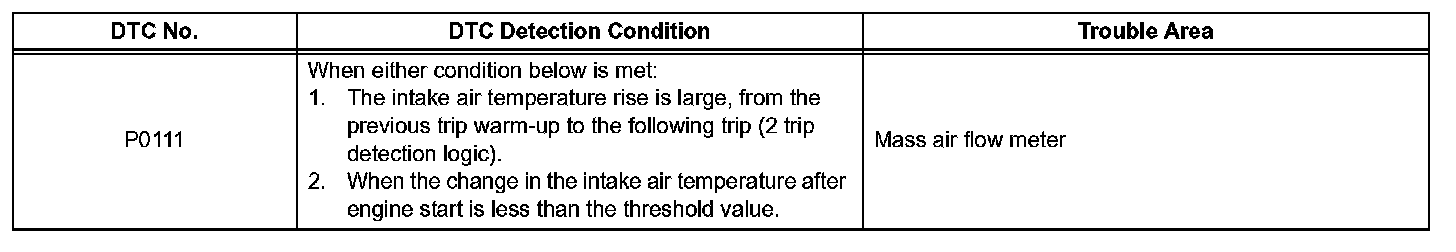

DTC Detection Condition:

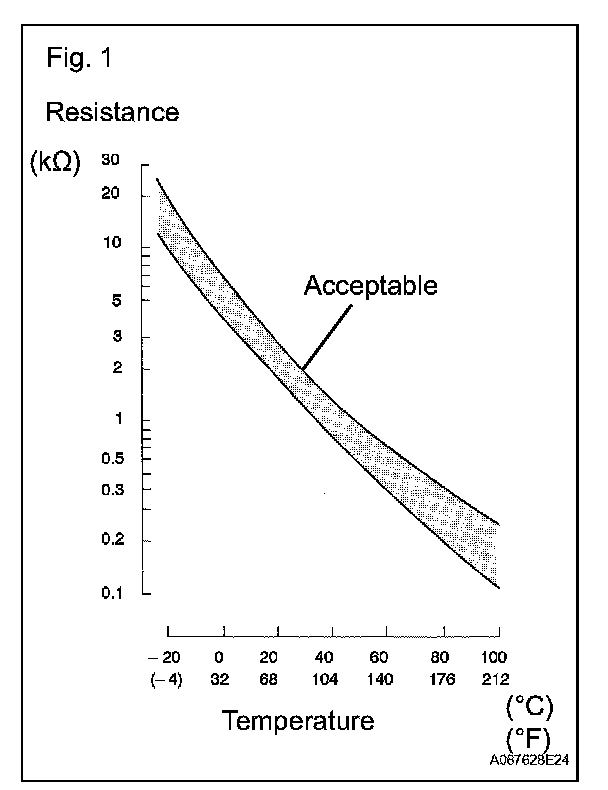

The Intake Air Temperature (IAT) sensor, mounted on the Mass Air Flow (MAF) meter, monitors the IAT. The IAT sensor has a built-in thermistor with a resistance that varies according to the temperature of the intake air. When the IAT is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes (See Fig. 1).
The IAT sensor is powered by a 5 V supply from the THA terminal of the ECM, via resistor R. Resistor R and the IAT sensor are connected in series. When the resistance value of the IAT sensor changes, the voltage at terminal THA also varies accordingly. Based on this signal, the ECM increases the fuel injection volume when the engine is cold to improve driveability.
MONITOR DESCRIPTION

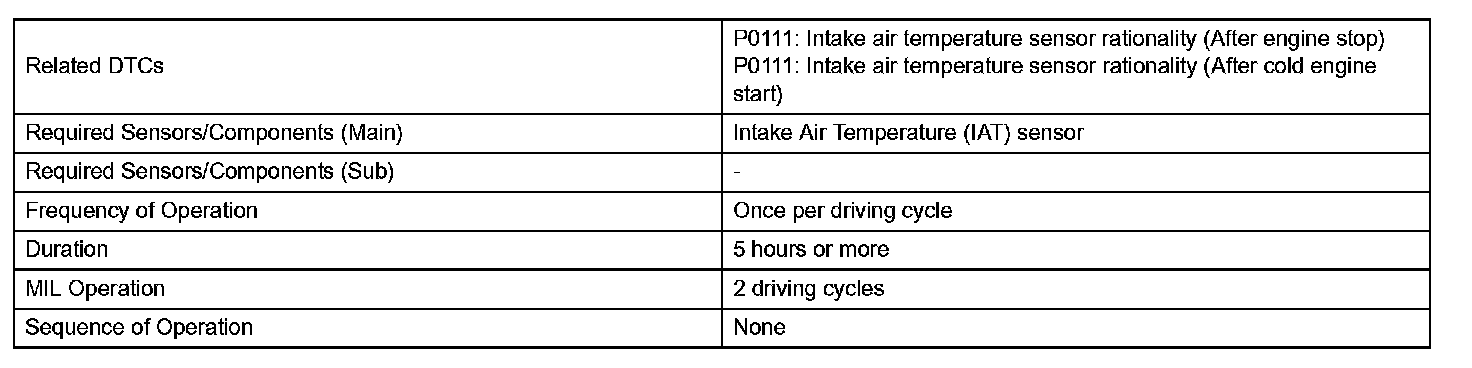

Monitor Strategy:

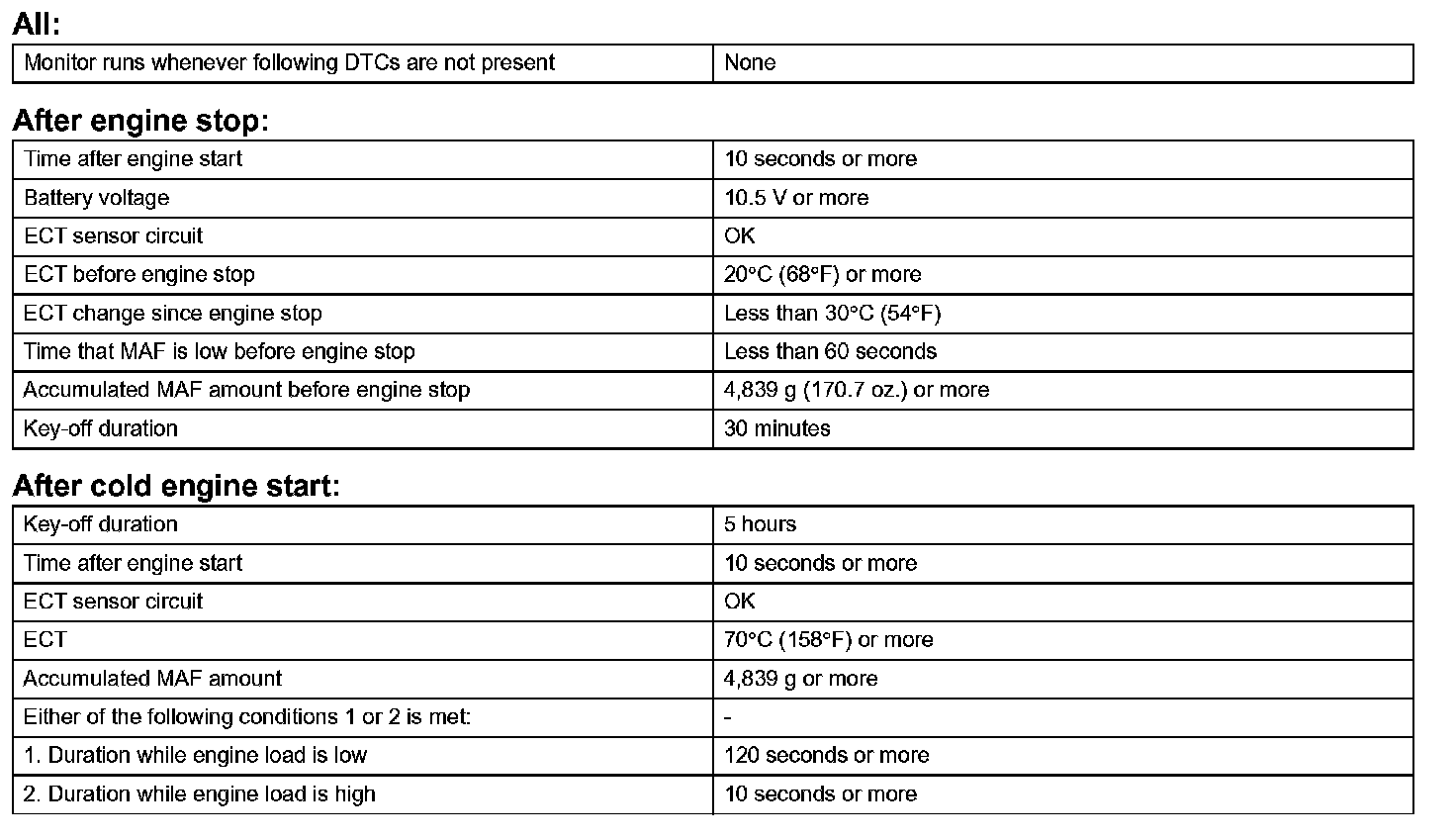

Typical Enabling Conditions:

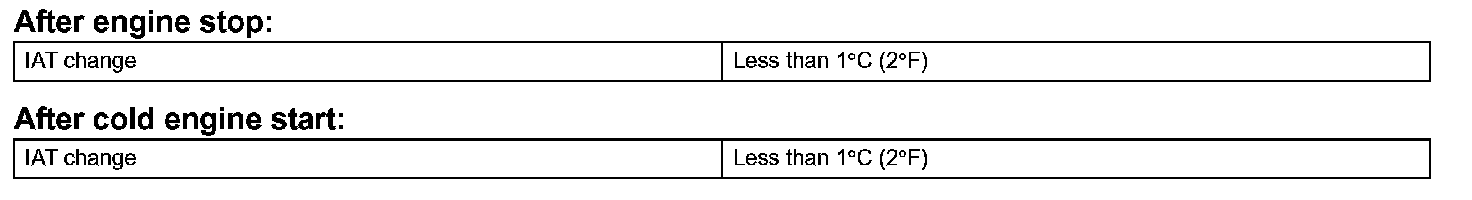

Typical Malfunctions Thresholds:
The ECM performs OBD II monitoring based on the values from the intake air temperature sensor. If there is no change in the sensor value within the normal range, the ECM will not be able to perform OBD II monitoring or will misdiagnose that there is a malfunction in the sensor. The ECM detects the stuck intake air temperature sensor value by performing monitoring after the ignition switch is turned OFF or after the engine is started (short soak or long soak).
Wiring Diagram:

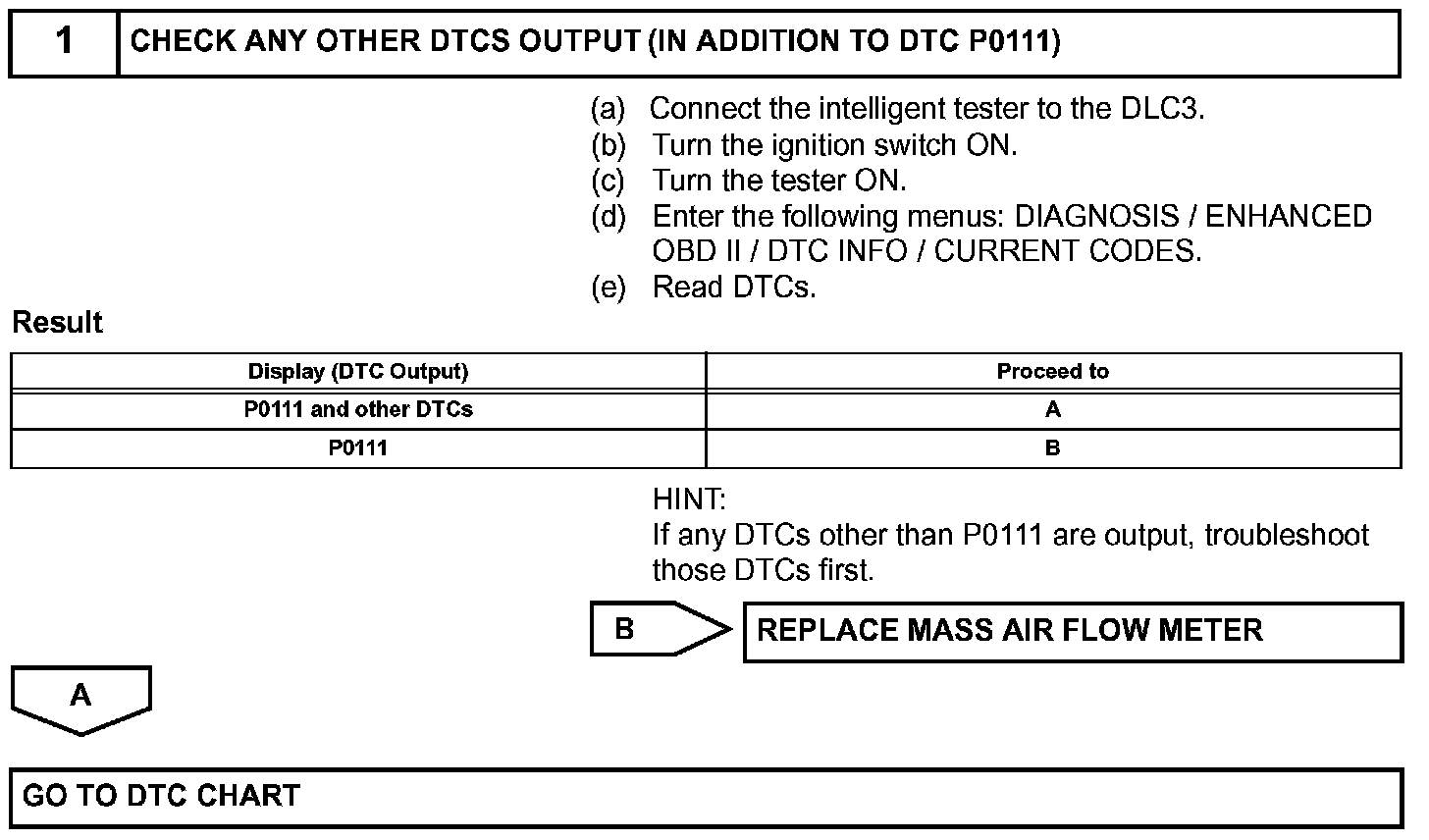

Step 1:
INSPECTION PROCEDURE
