Short to B+ In Driver Side Squib Circuit
DTC B1803/51 Short to B+ in Driver Side Squib CircuitDESCRIPTION
DTC Detection Condition:
The driver side squib circuit consists of the center airbag sensor, the spiral cable and the steering pad.The circuit instructs the SRS to deploy when deployment conditions are met.
These DTCs are recorded when a malfunction is detected in the driver side squib circuit.

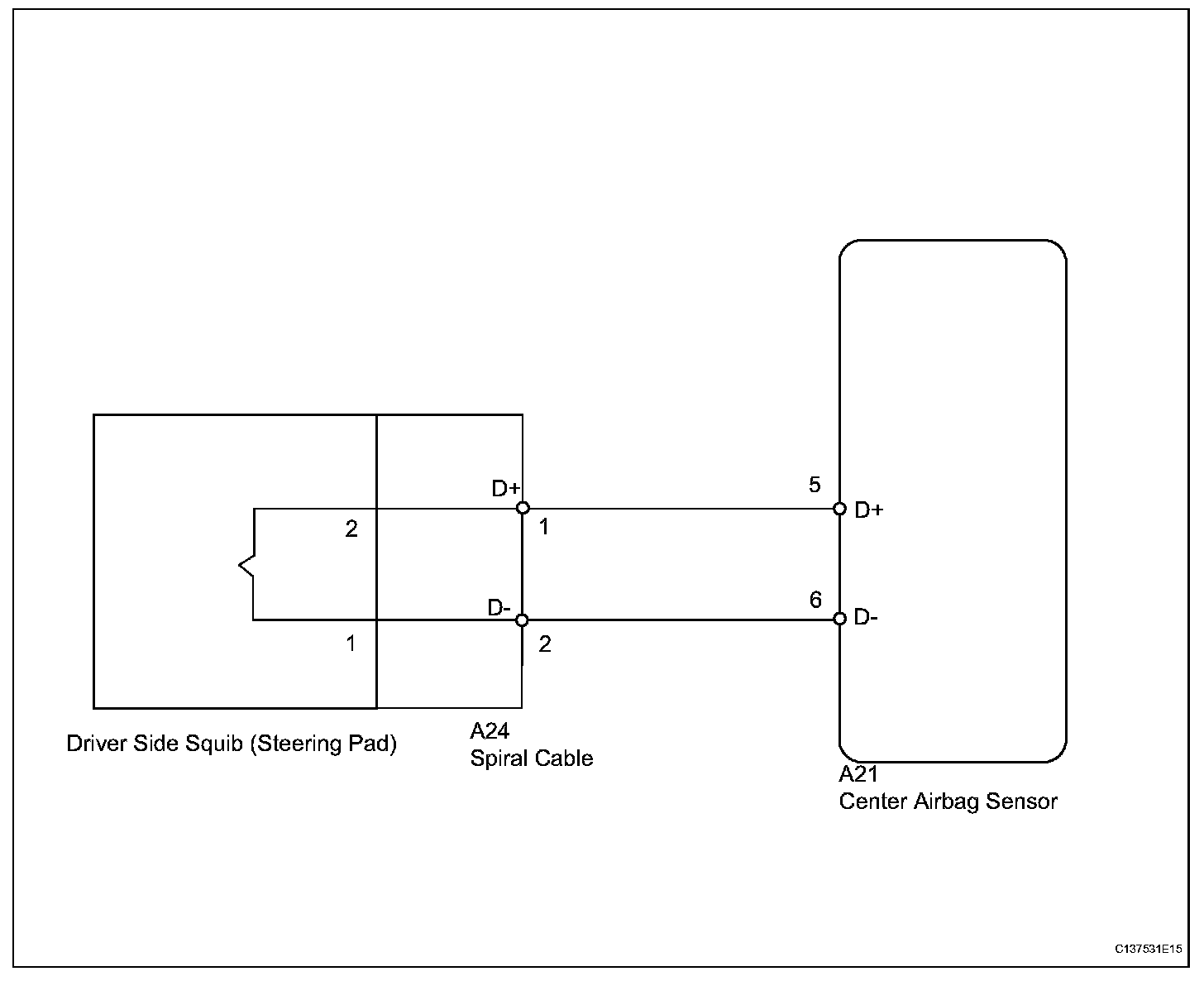

Wiring Diagram:

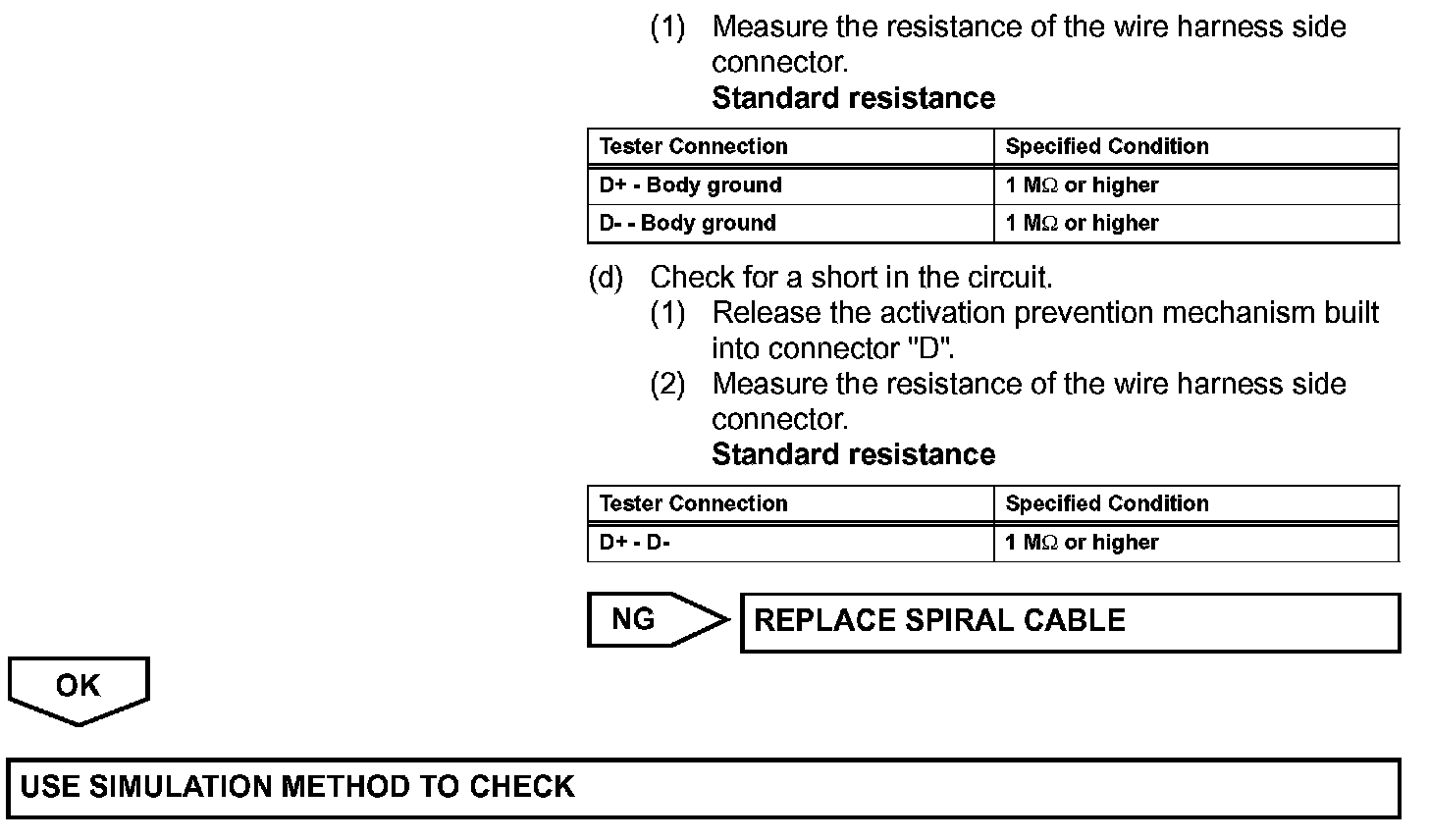

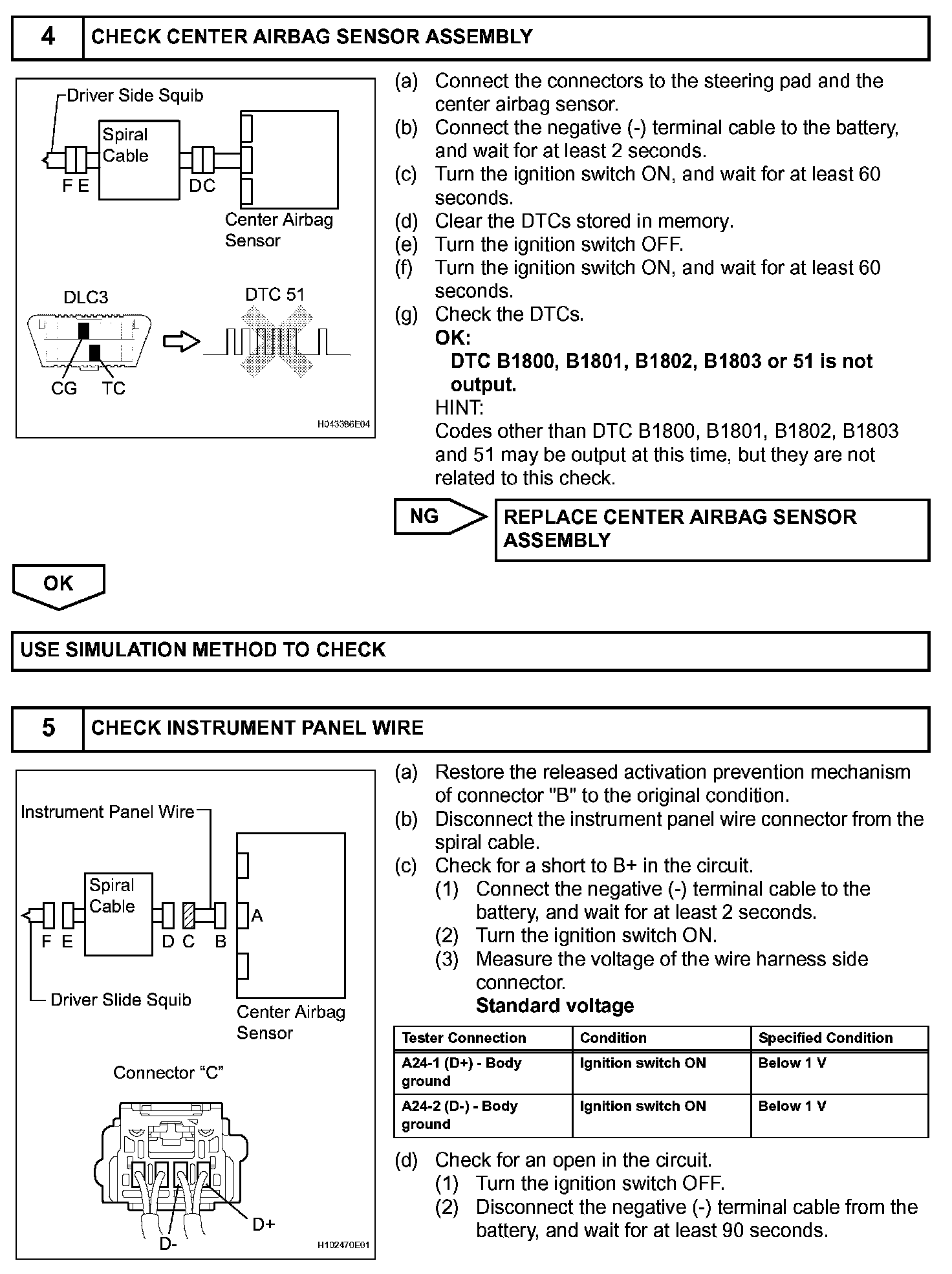

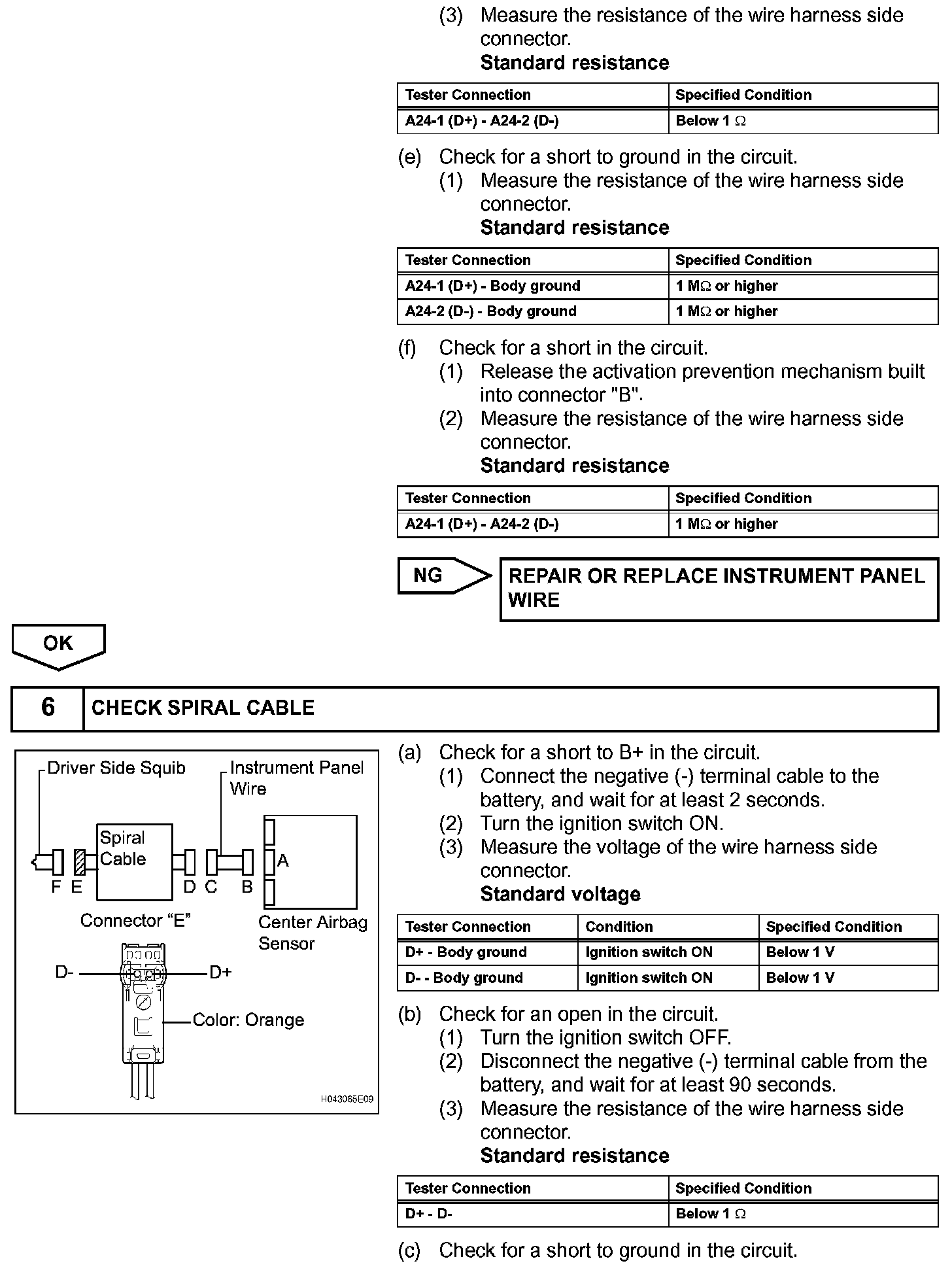

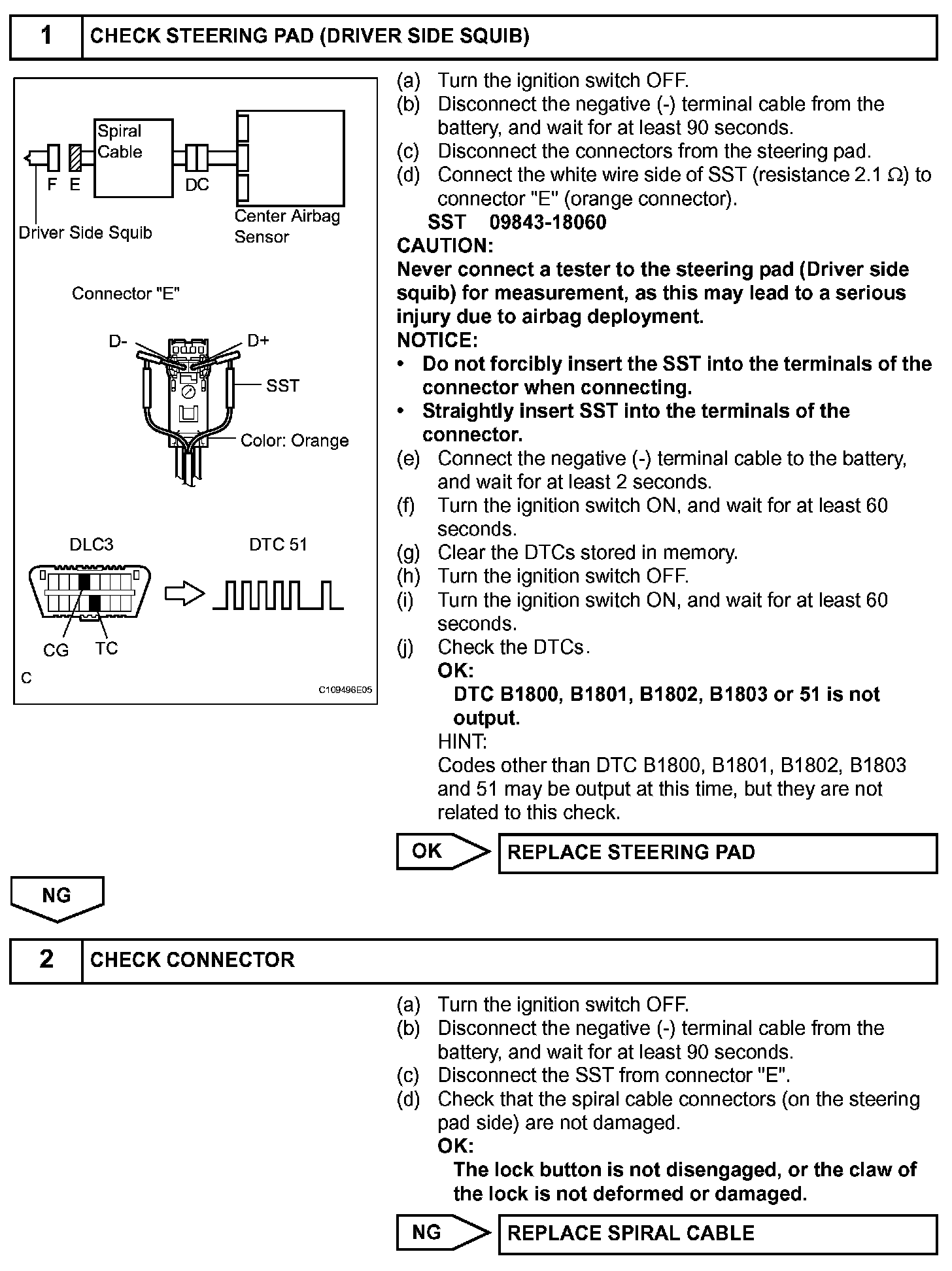

INSPECTION PROCEDURE
HINT:
- Change the intelligent tester to the "check mode" (signal check).
- After selecting the "check mode" (signal check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on various types of roads.
