DTC 31

DTC B1000/31 Center Airbag Sensor Assembly Malfunction

DESCRIPTION

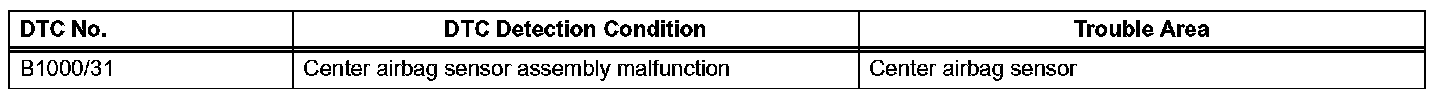

DTC Detection Condition:

The center airbag sensor assembly consists of the airbag sensor, the safing sensor, the drive circuit, the diagnosis circuit, the ignition control circuit, etc.

If the center airbag sensor assembly receives signals from the airbag sensor, it determines whether the SRS should be activated.

DTC B1000/31 is recorded when a malfunction is detected in the center airbag sensor assembly.

HINT: When a trouble code is displayed simultaneously with B1000/31, repair the malfunction indicated by that code (except B1000/31) first.

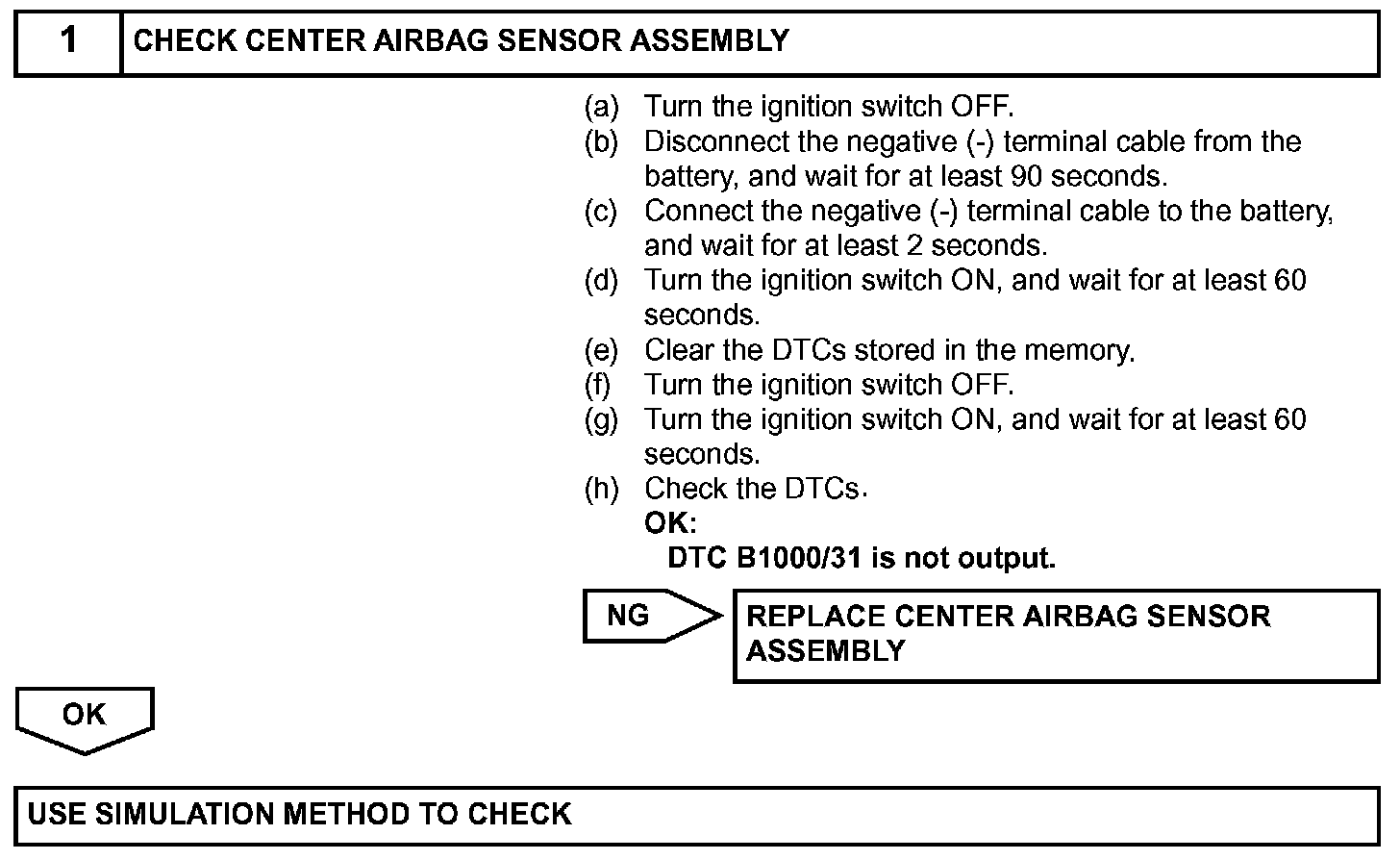

Step 1:

INSPECTION PROCEDURE
