ECM Communication Circuit Malfunction

DTC C1203/53 ECM Communication Circuit Malfunction

DESCRIPTION

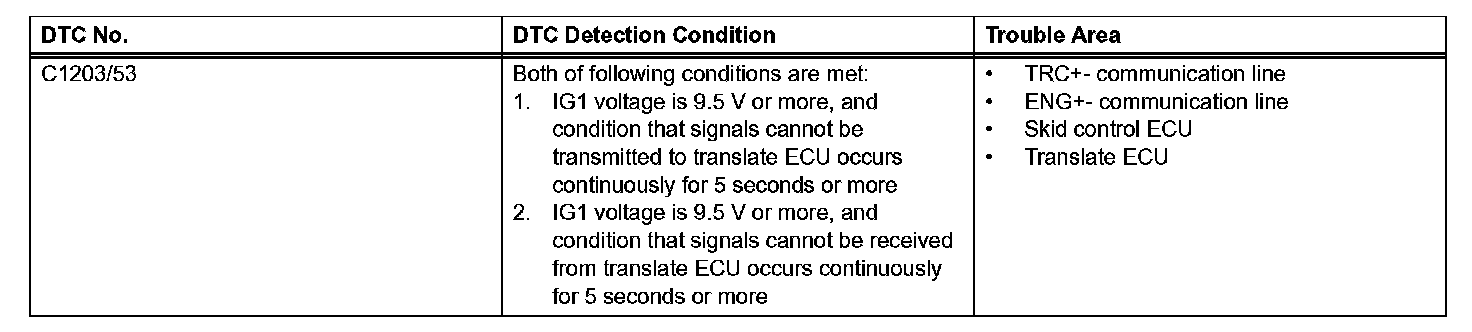

DTC Detection Condition:

The circuit is used to send TRAC & VSC control information from the skid control ECU (TRC+, TRC-) to the translate ECU, and engine control information from the translate ECU to the skid control ECU (ENG+, ENG-).

Wiring Diagram:

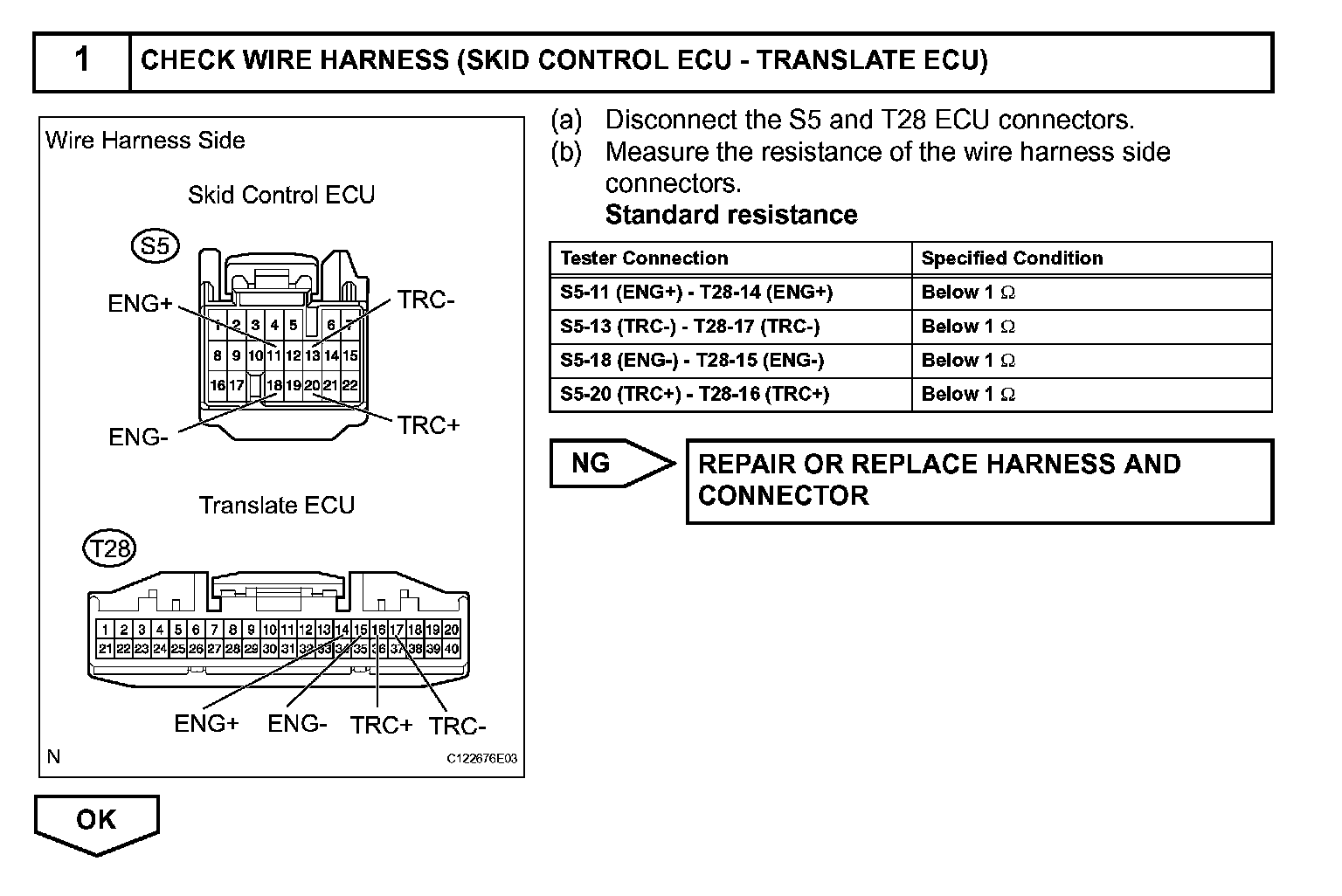

Step 1:

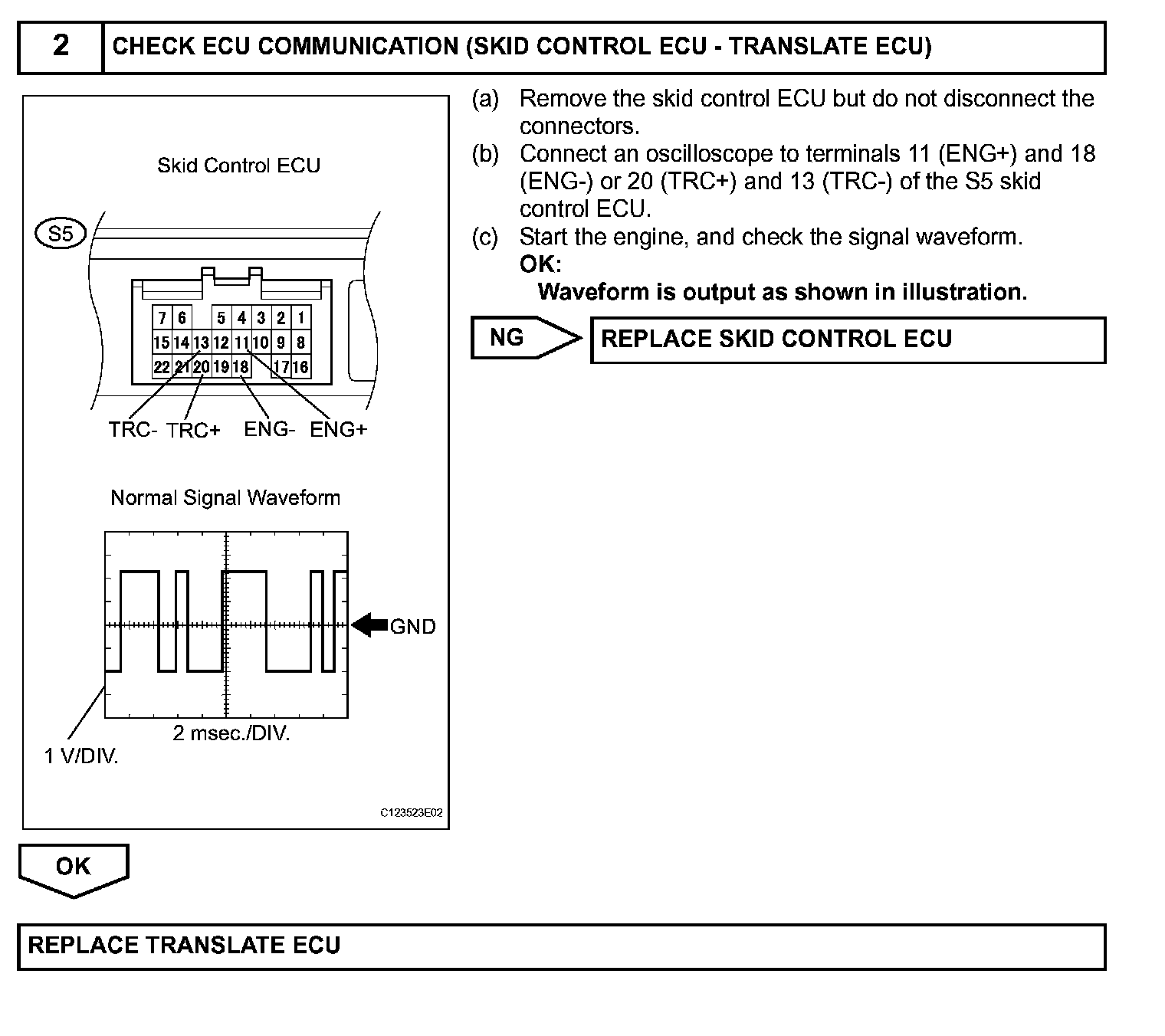

Step 2:

INSPECTION PROCEDURE
