Control Module Communication Bus OFF

DTC U0073/42 Control Module Communication Bus OFF

DESCRIPTION

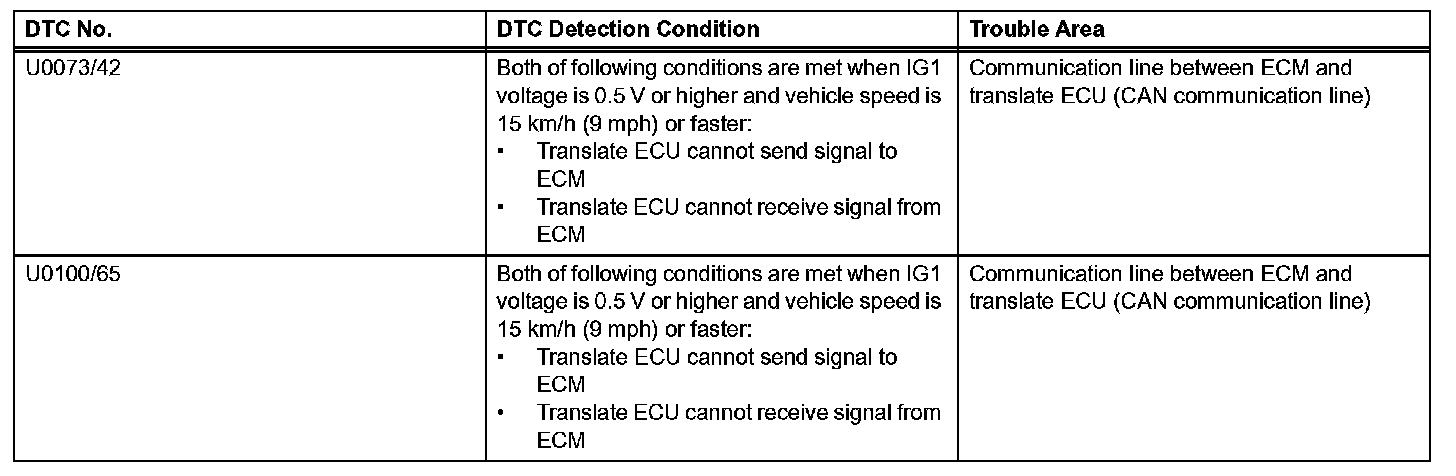

DTC Detection Condition:

The translate ECU inputs the signals from the ECM via the CAN communication system.

HINT: For CAN communication malfunctions, after the malfunction is determined using the translate ECU, the results are sent to the skid control ECU. In total, this takes 7 seconds.

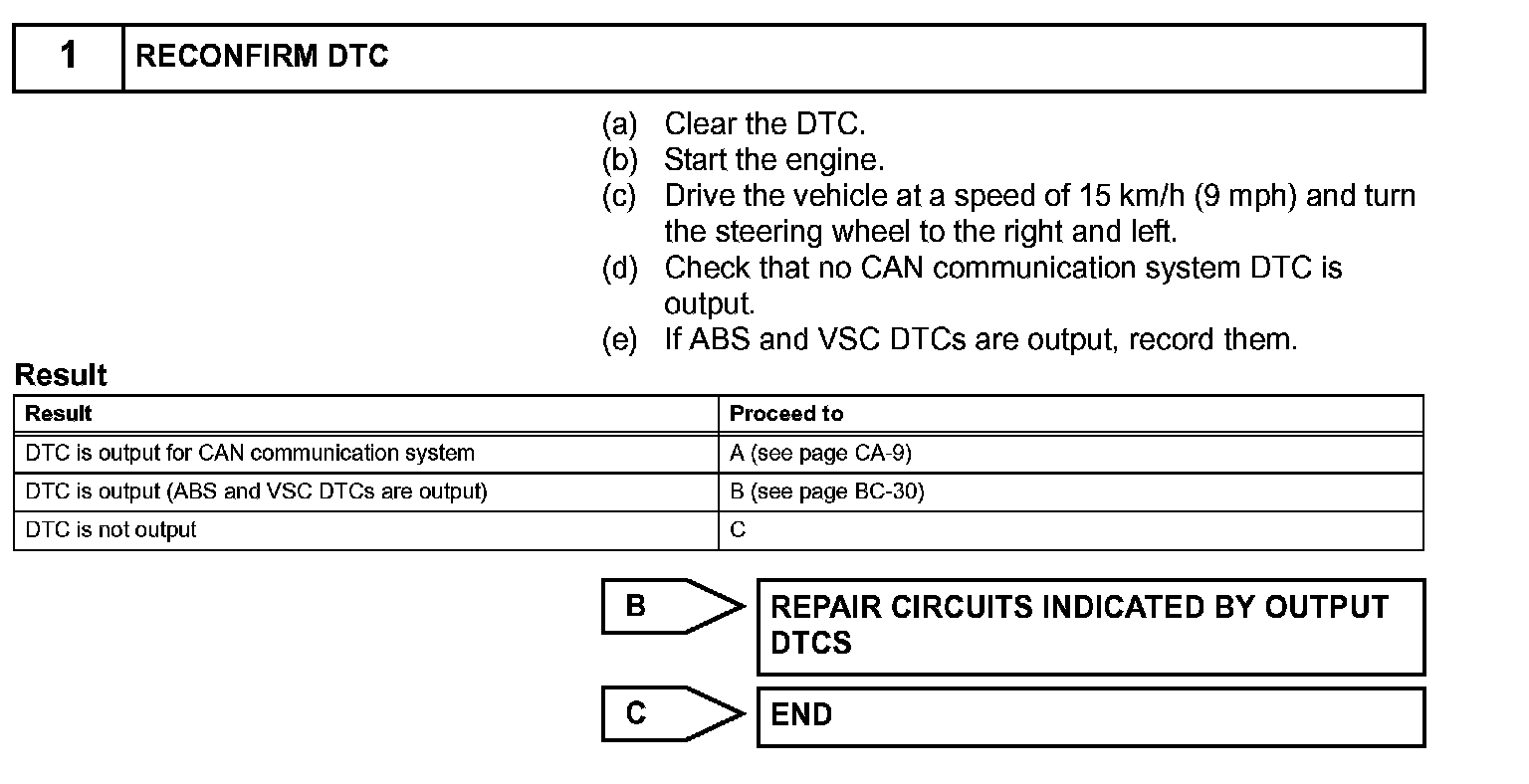

Step 1:

Step 1(Continued):

INSPECTION PROCEDURE

HINT: This circuit uses the CAN communication system. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system will be output.
