Zero Point Calibration of Acceleration Sensor Undone

DTC C1336/39 Zero Point Calibration of Acceleration Sensor Undone

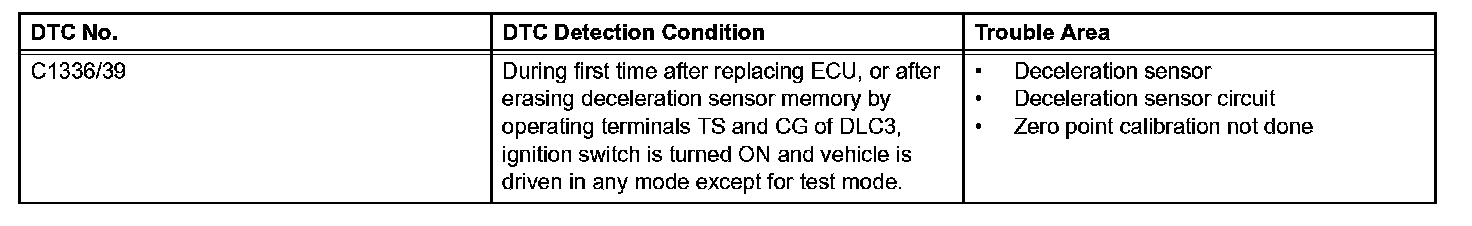

DTC Detection Condition:

DESCRIPTION

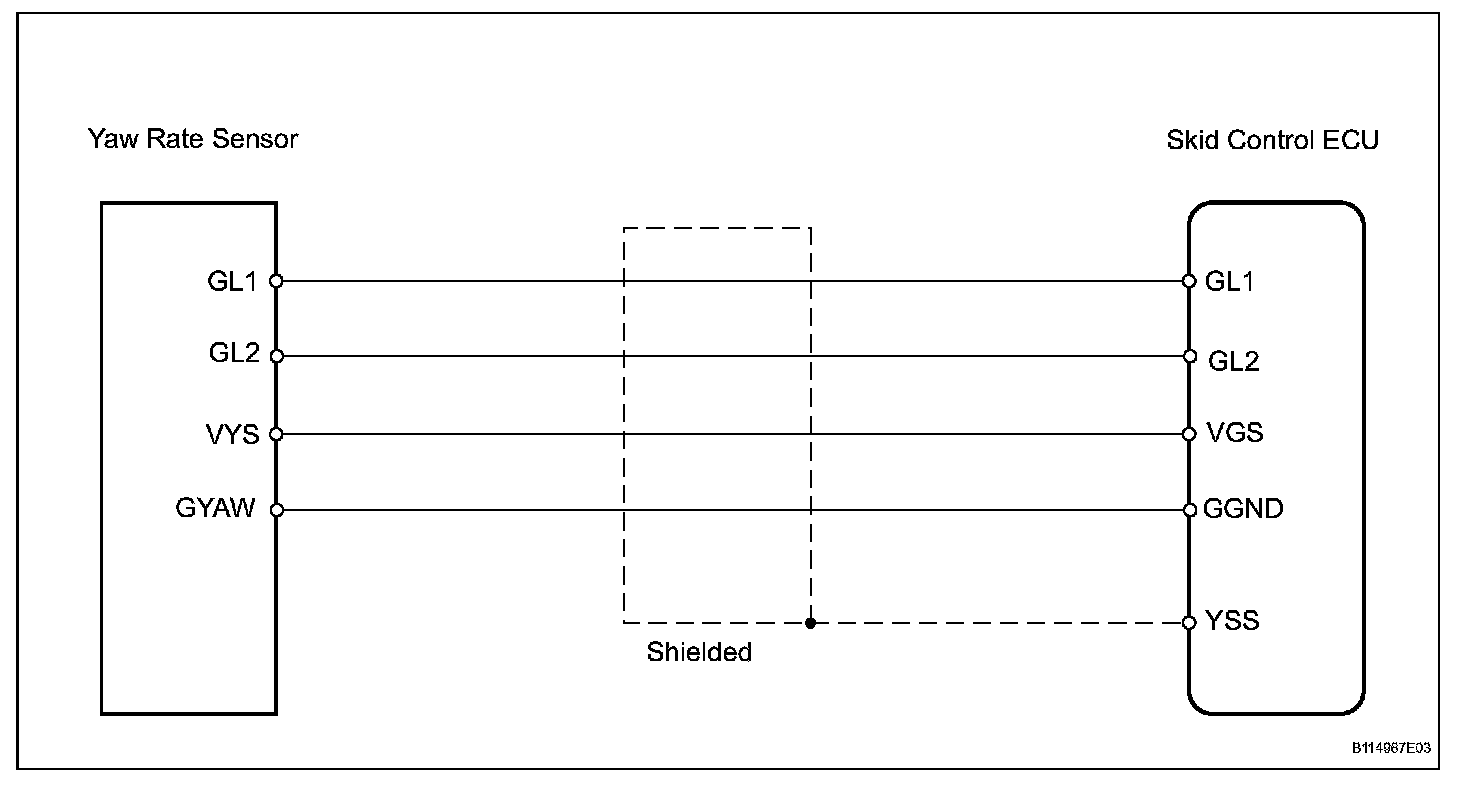

Wiring Diagram:

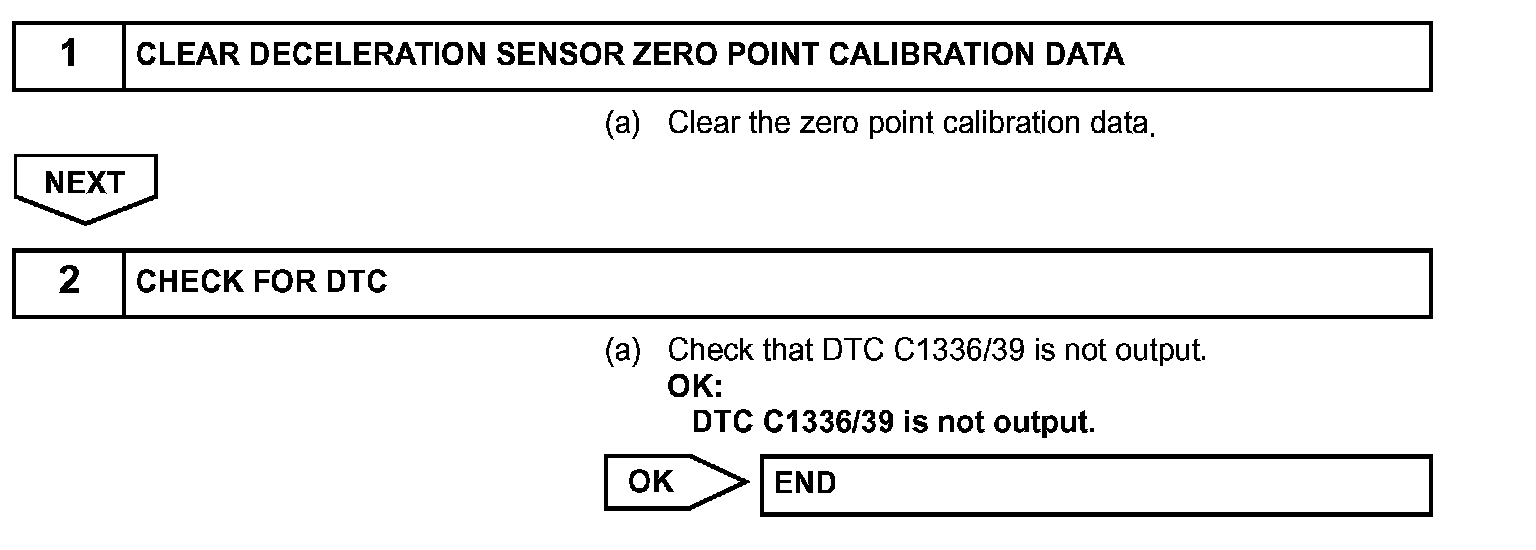

Step 1-2:

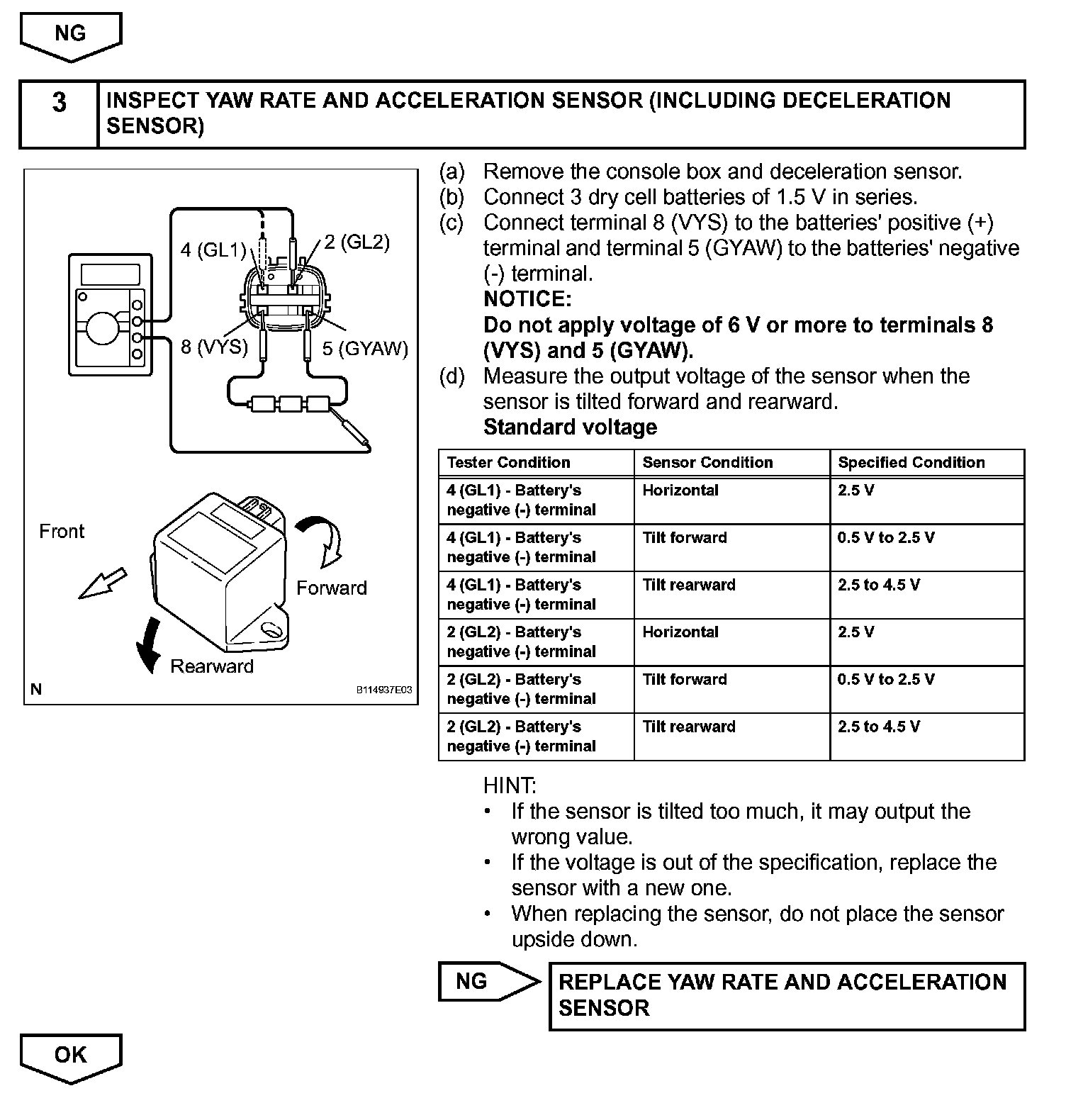

Step 2(Continued)-3:

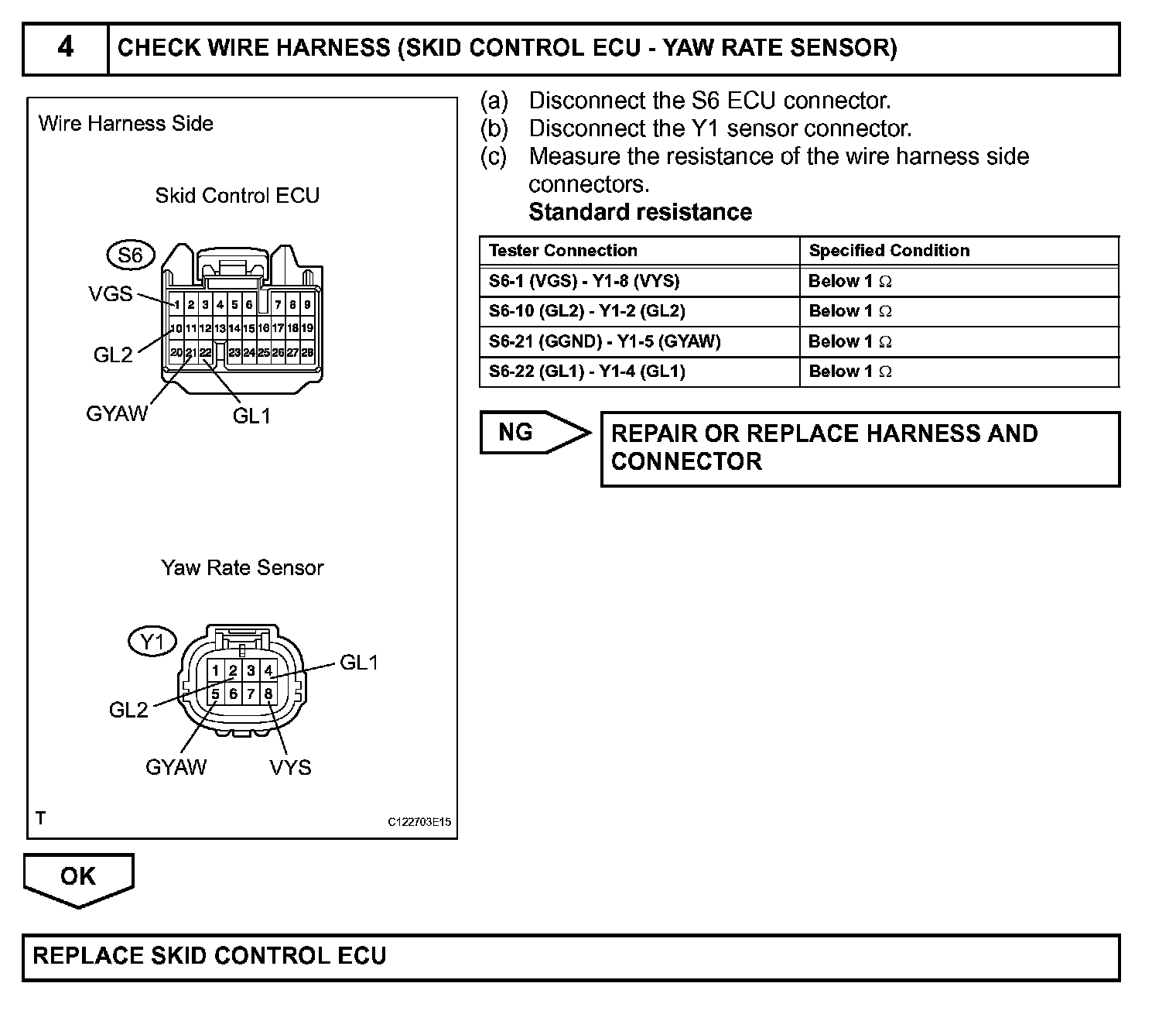

Step 4:

INSPECTION PROCEDURE
