SFI System

DIAGNOSTIC TROUBLE CODE CHART

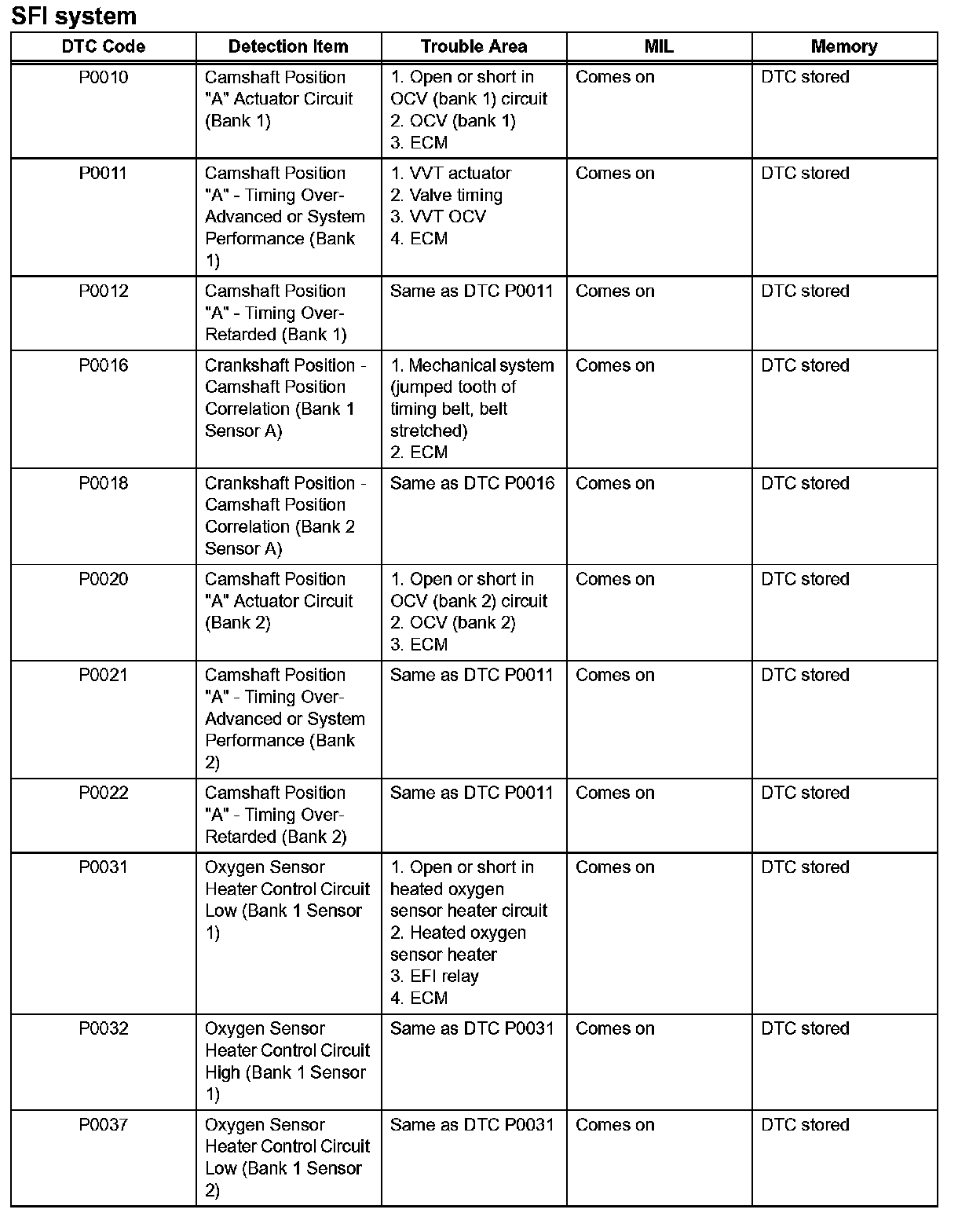

P0010-P0037:

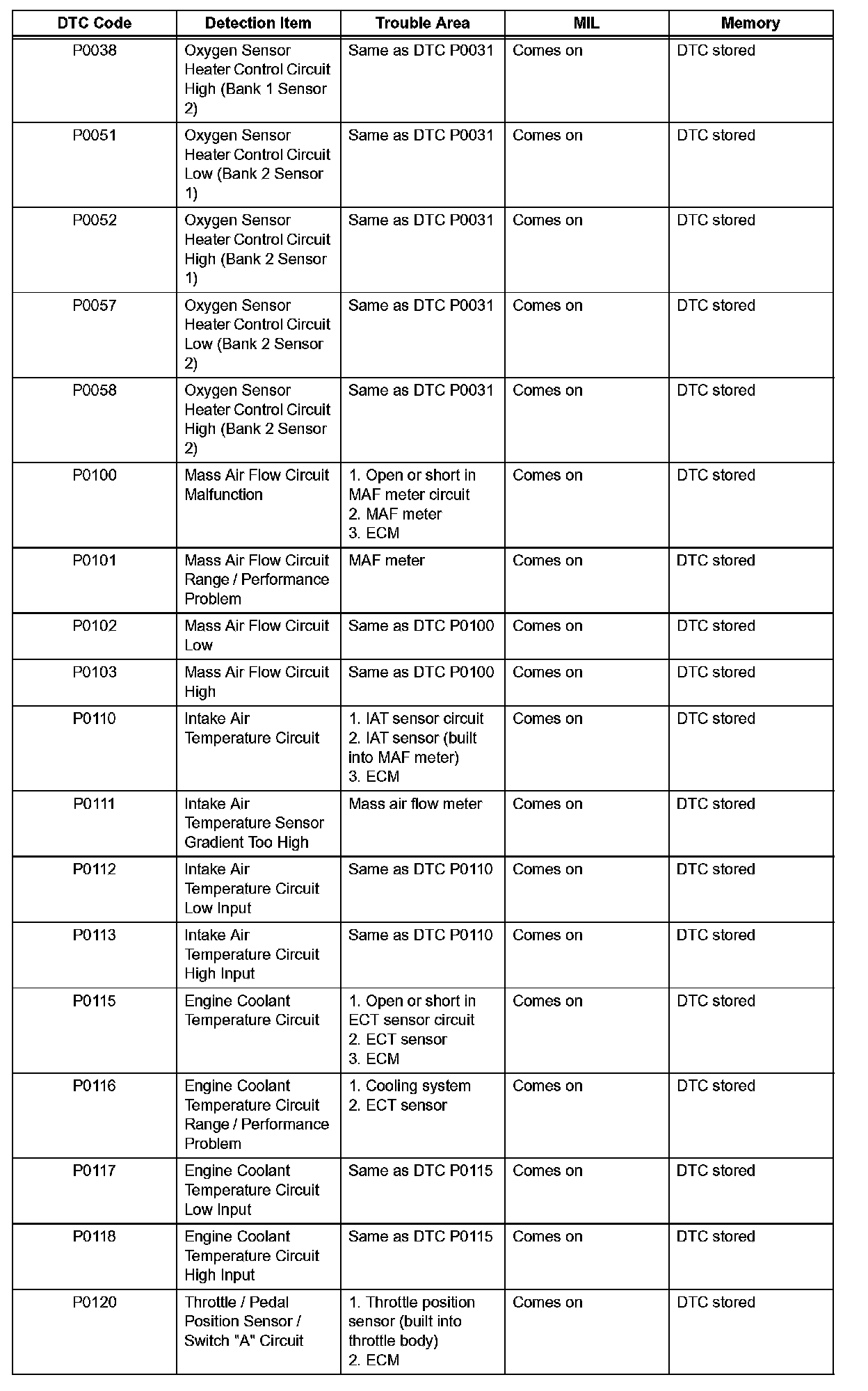

P0038-P0120:

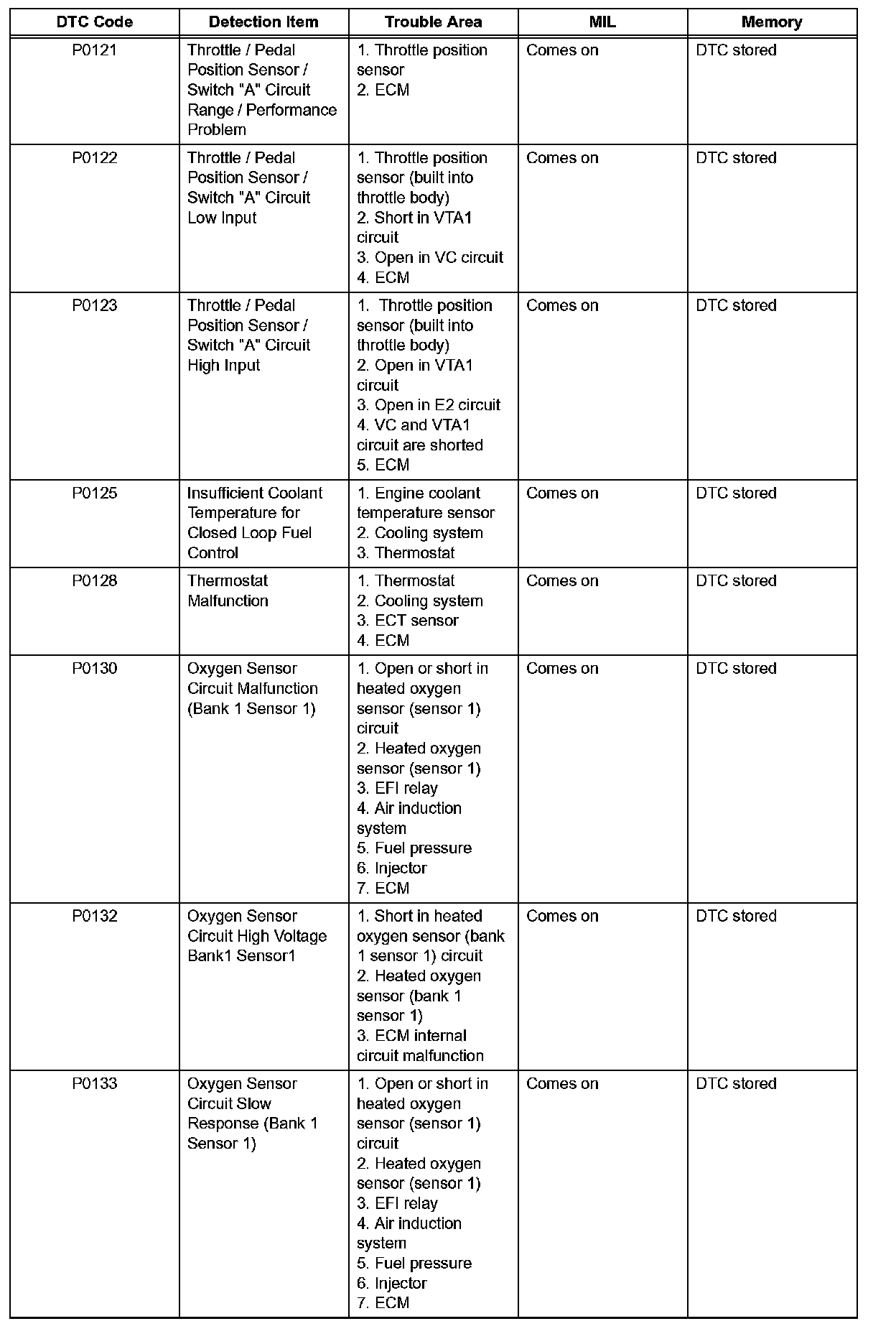

P0121-P0133:

P0134-P0159:

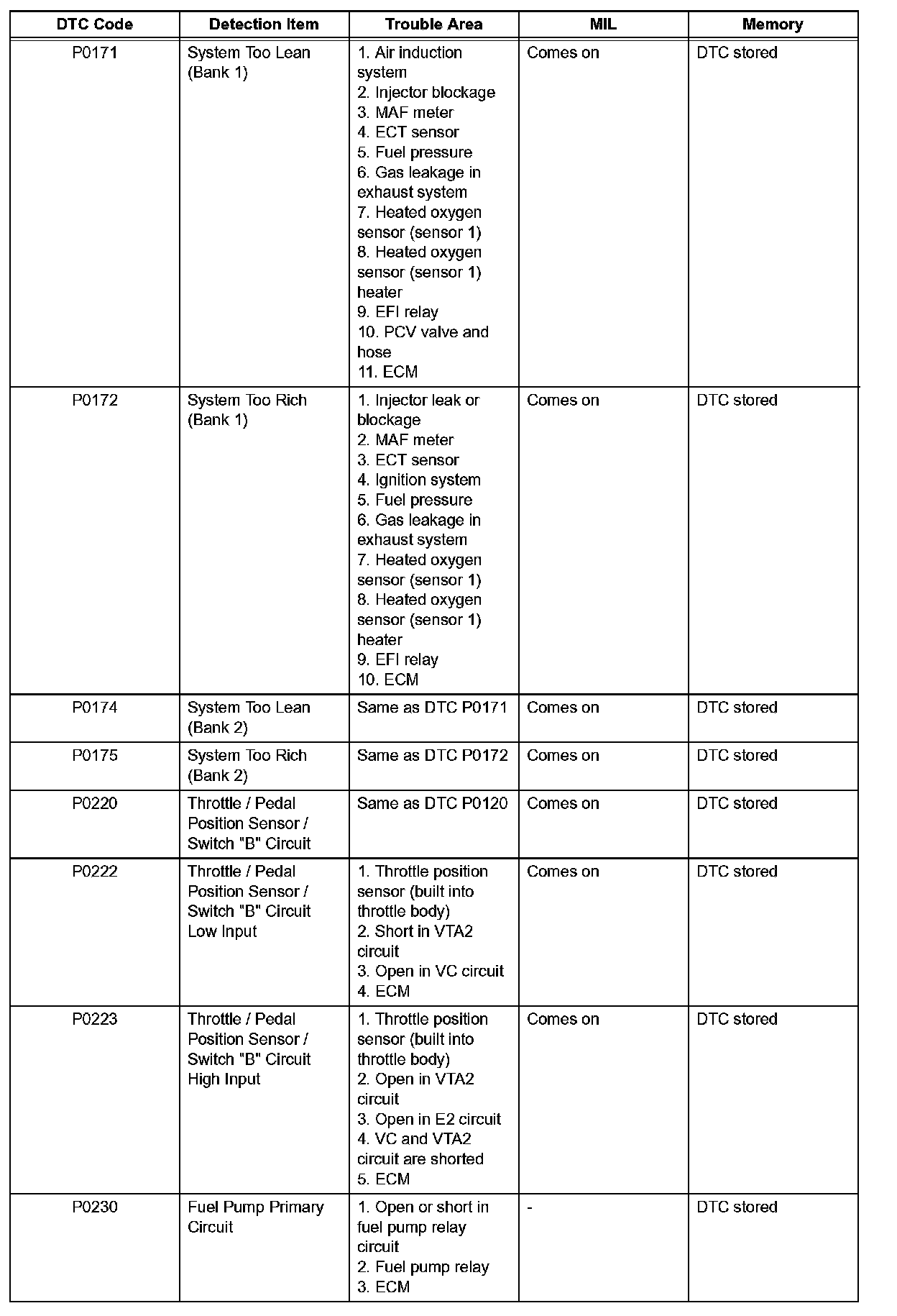

P0171-P0230:

P0300-P0339:

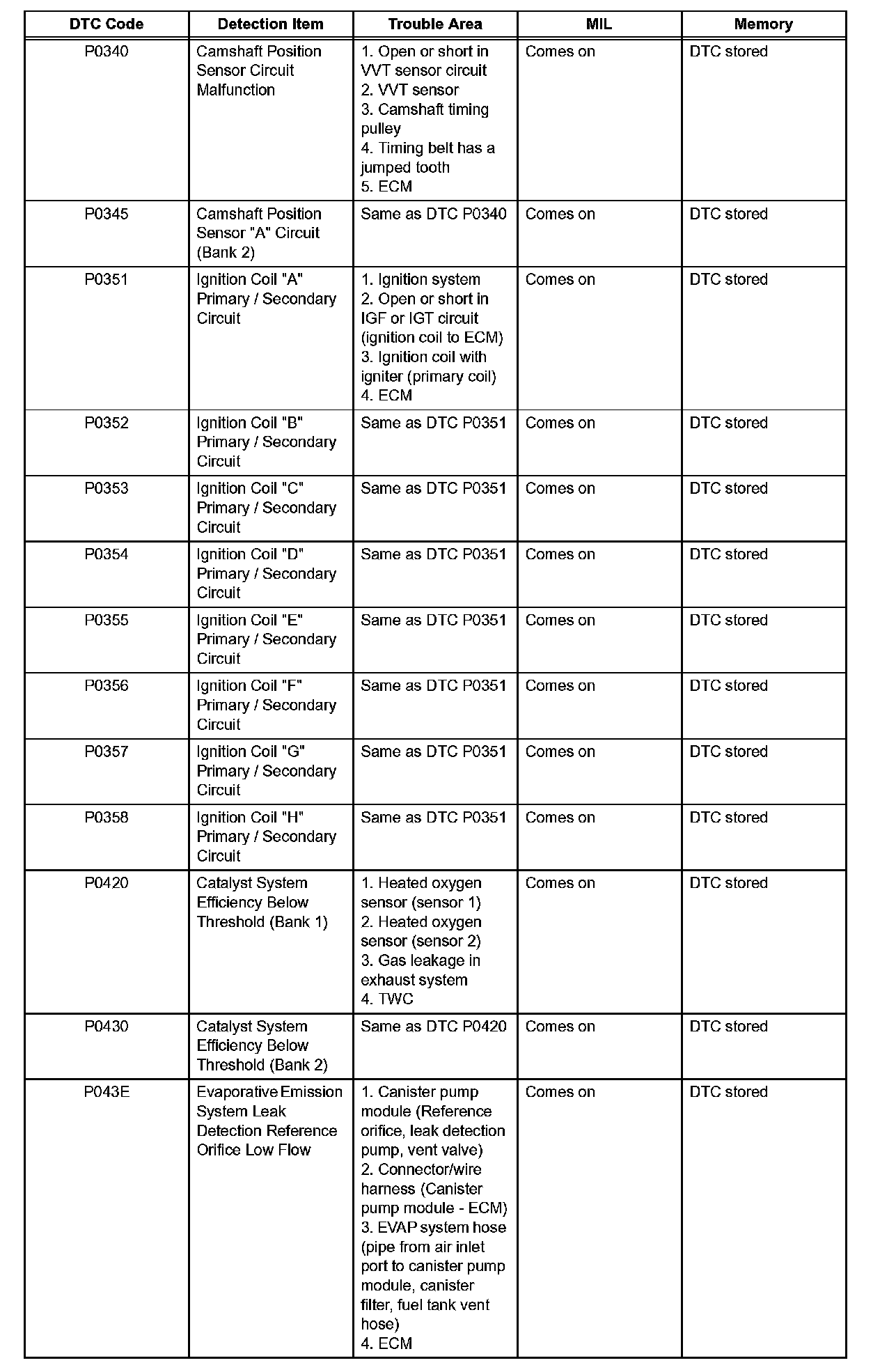

P0340-P043E:

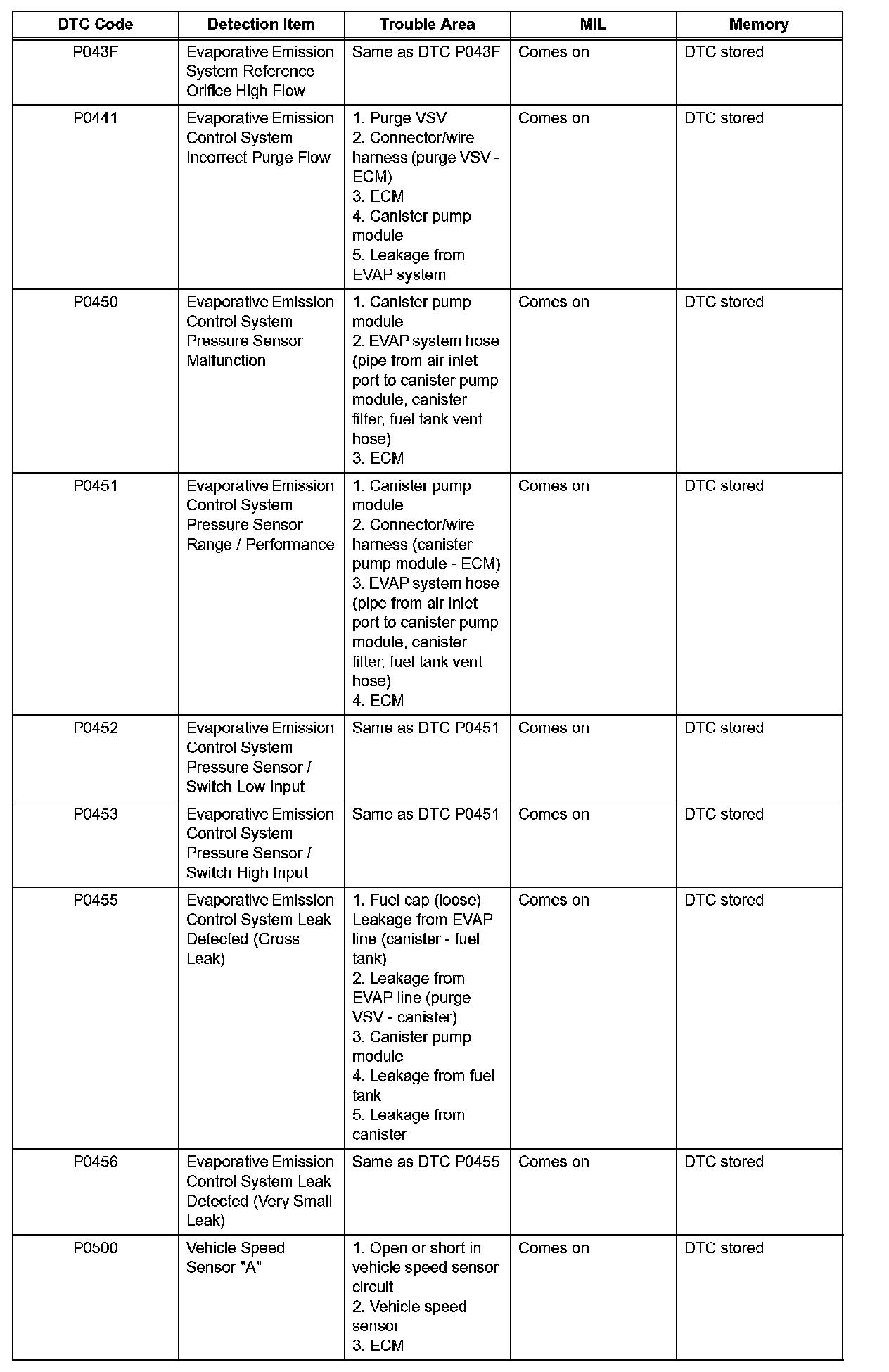

P043F-P0500:

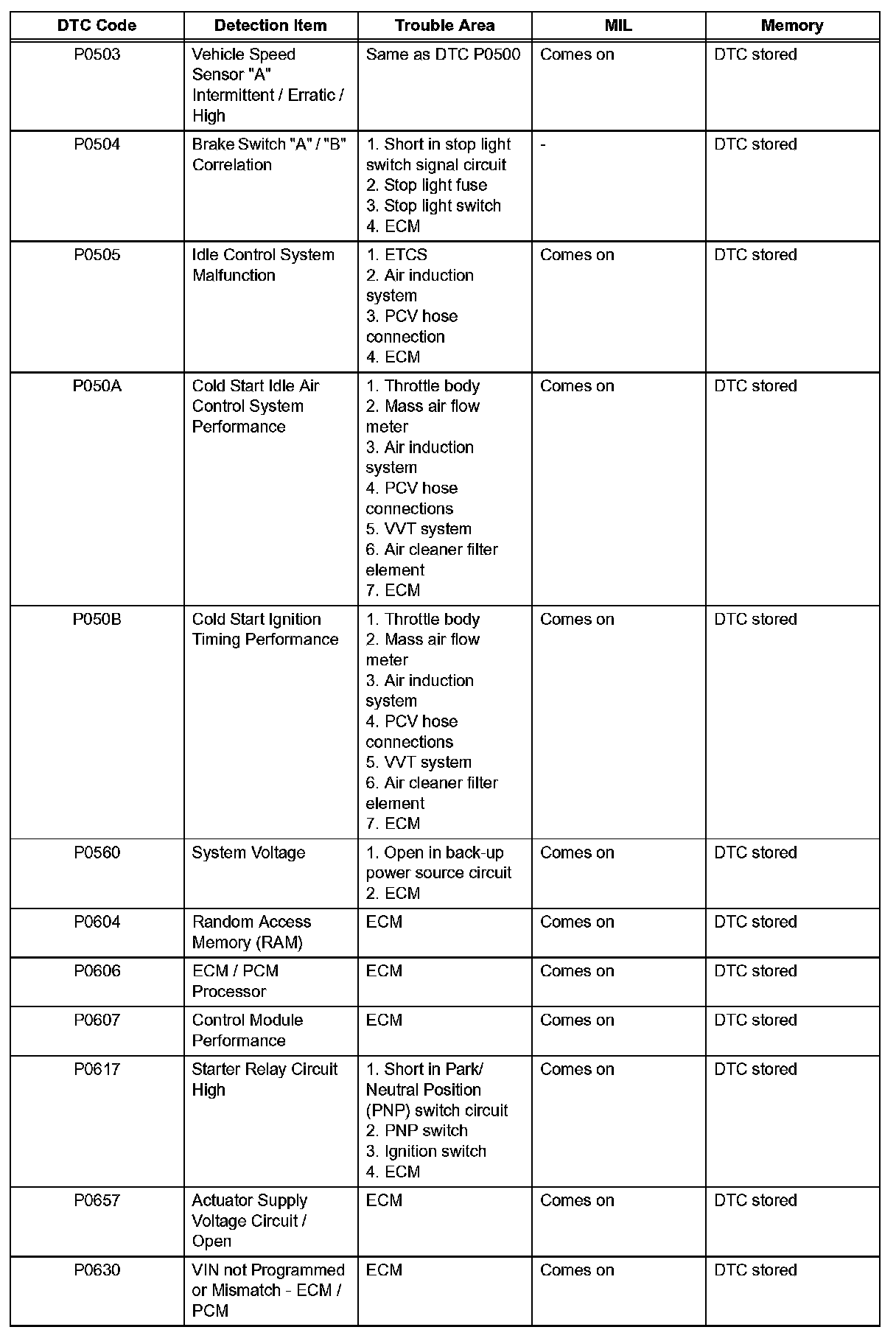

P0503-P0630:

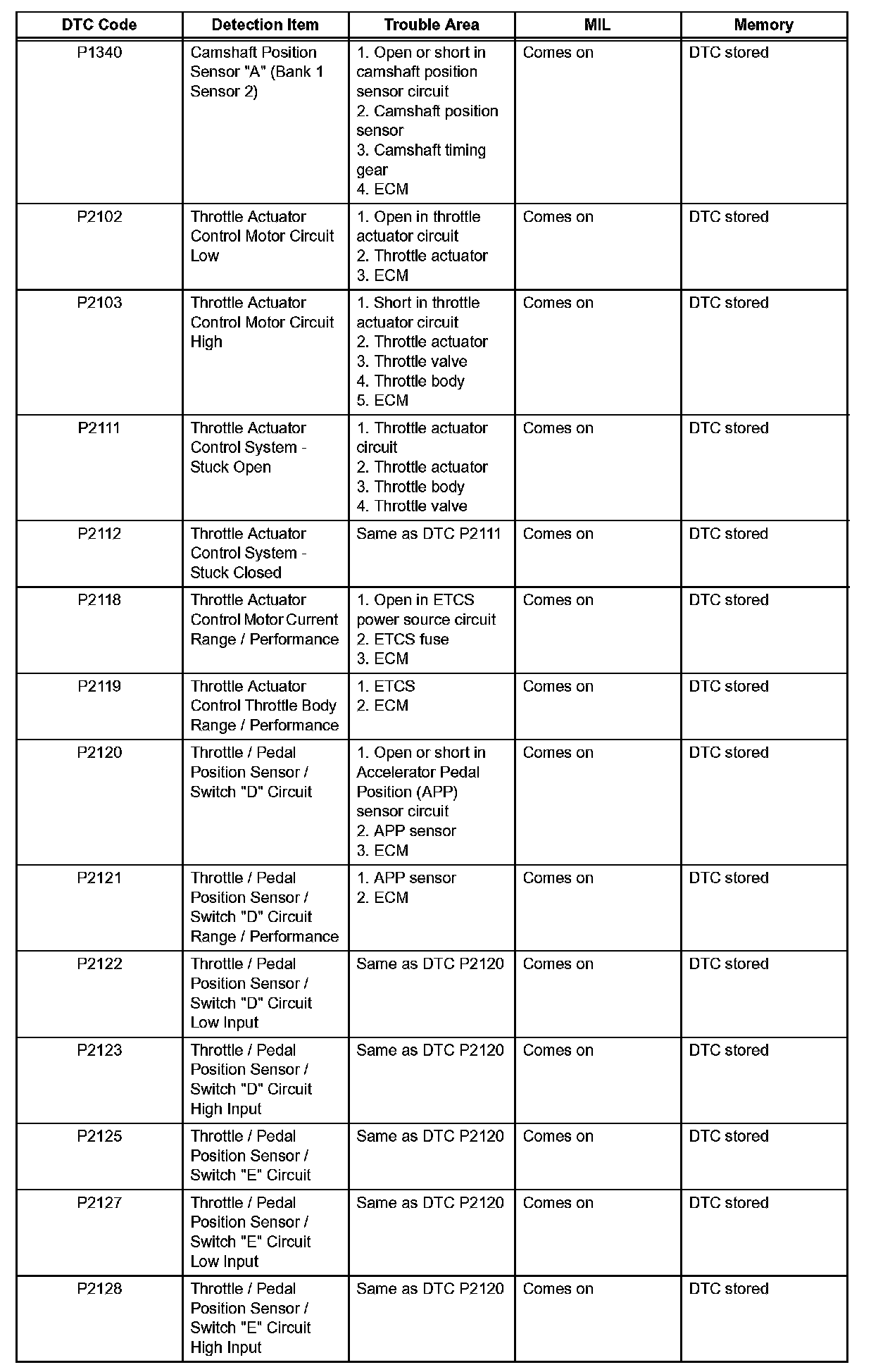

P1340-P2128:

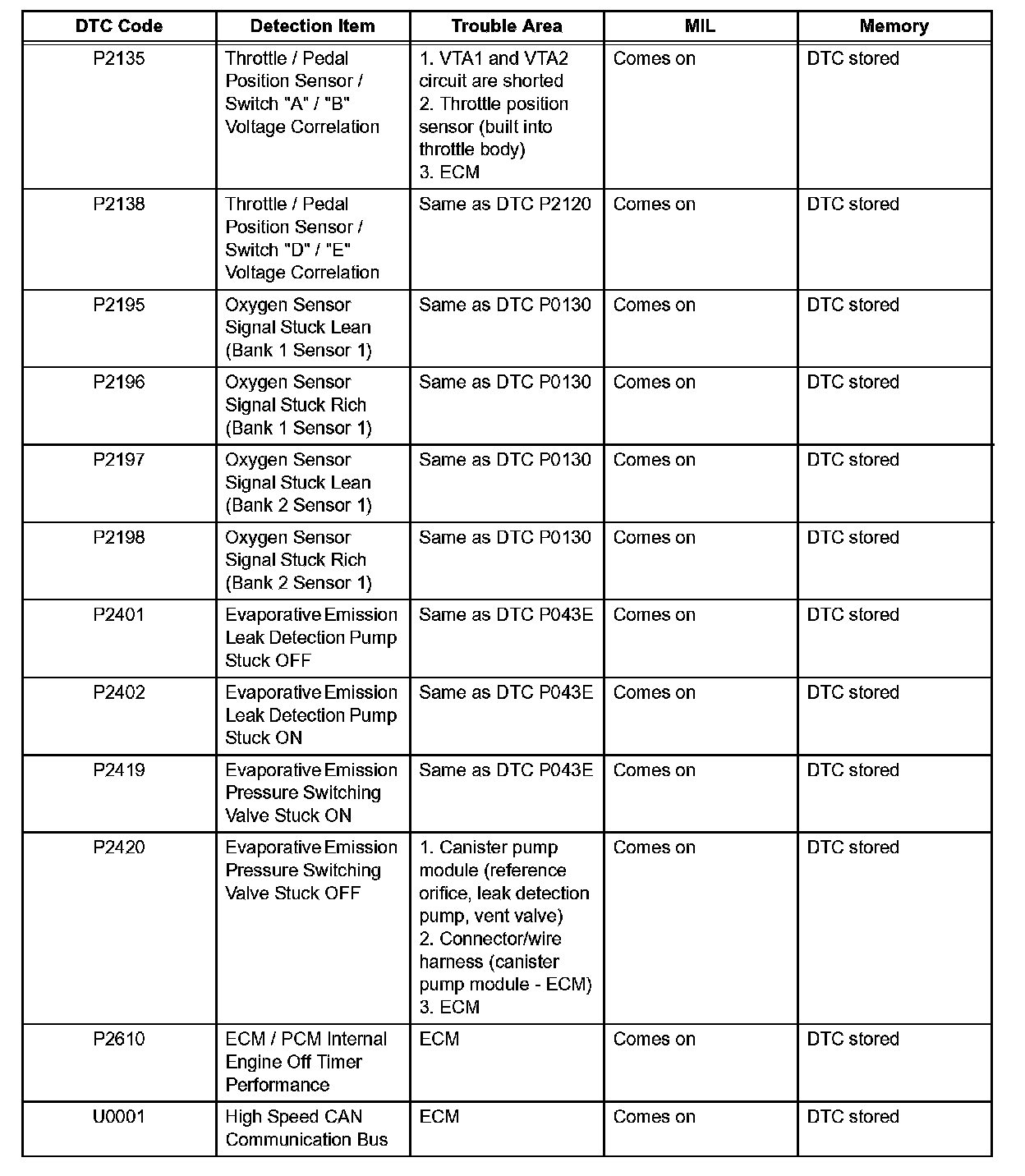

P2135-U0001:

HINT:
- Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the table.
- *: MIL flashes when a catalyst damaged misfire is detected.
