Retractable Hardtop System

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

B2501 - B2516:

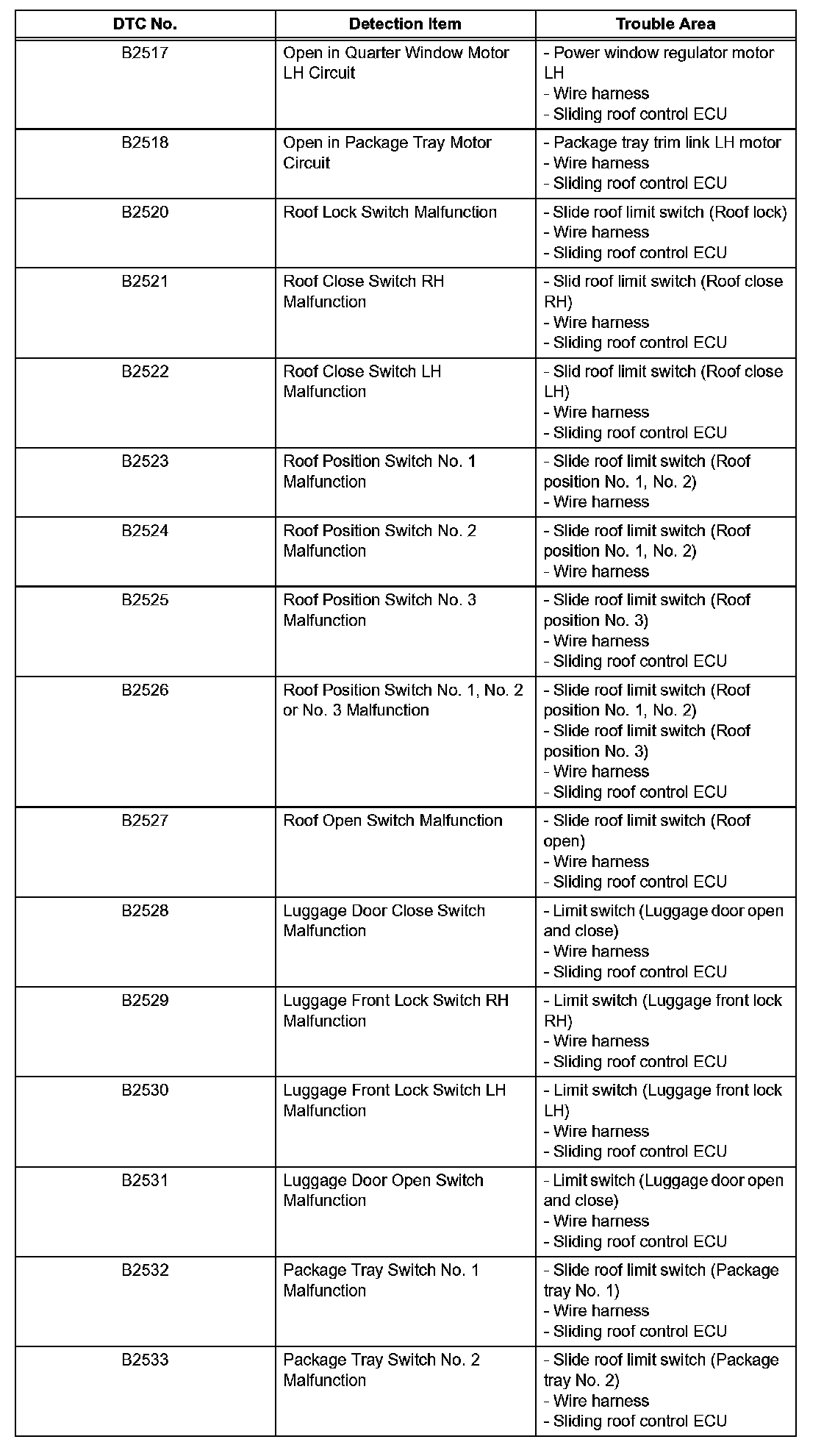

B2517 - B2533:

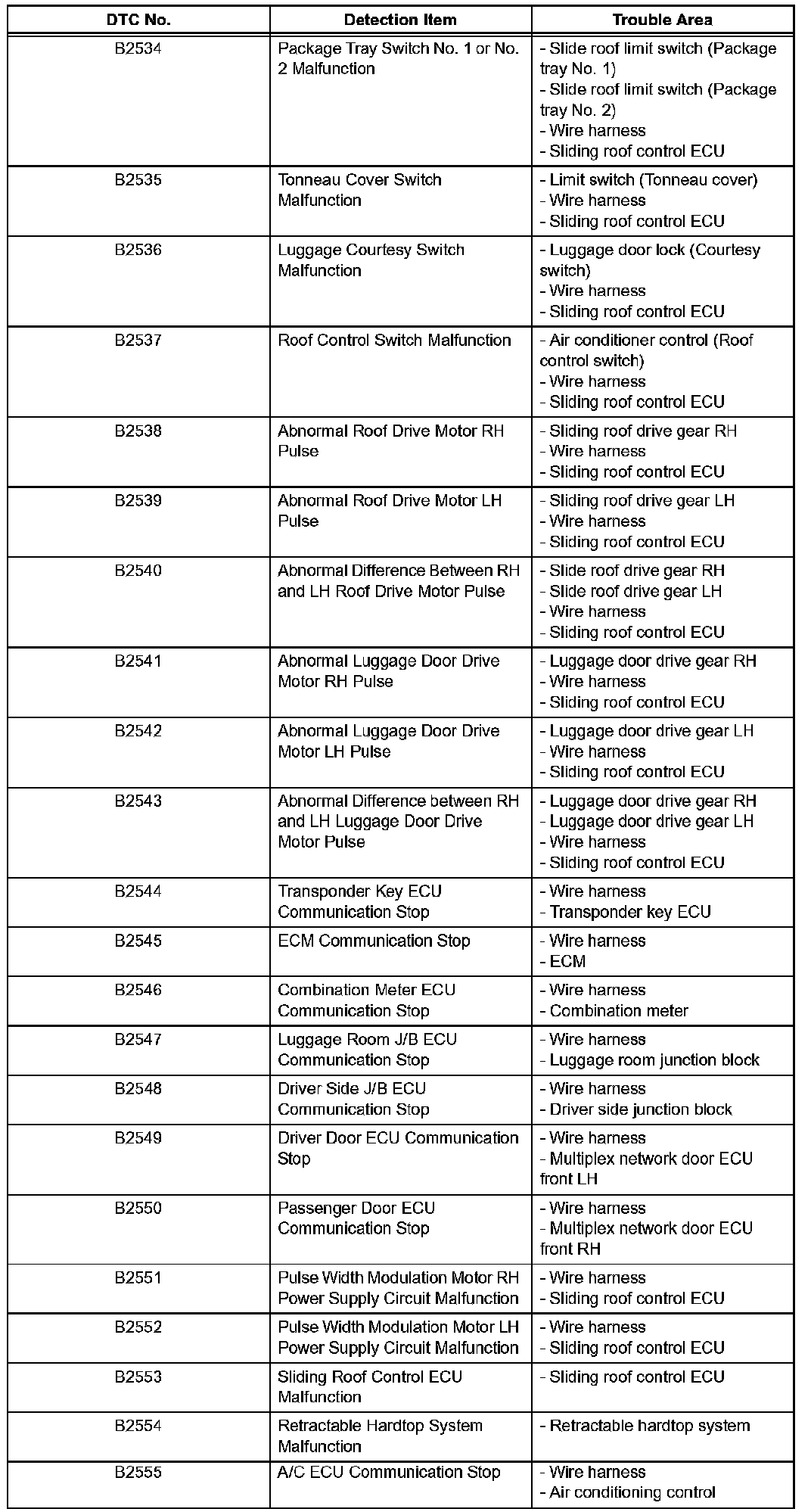

B2534 - B2555:
