Power Window Control System
Power Window Control System

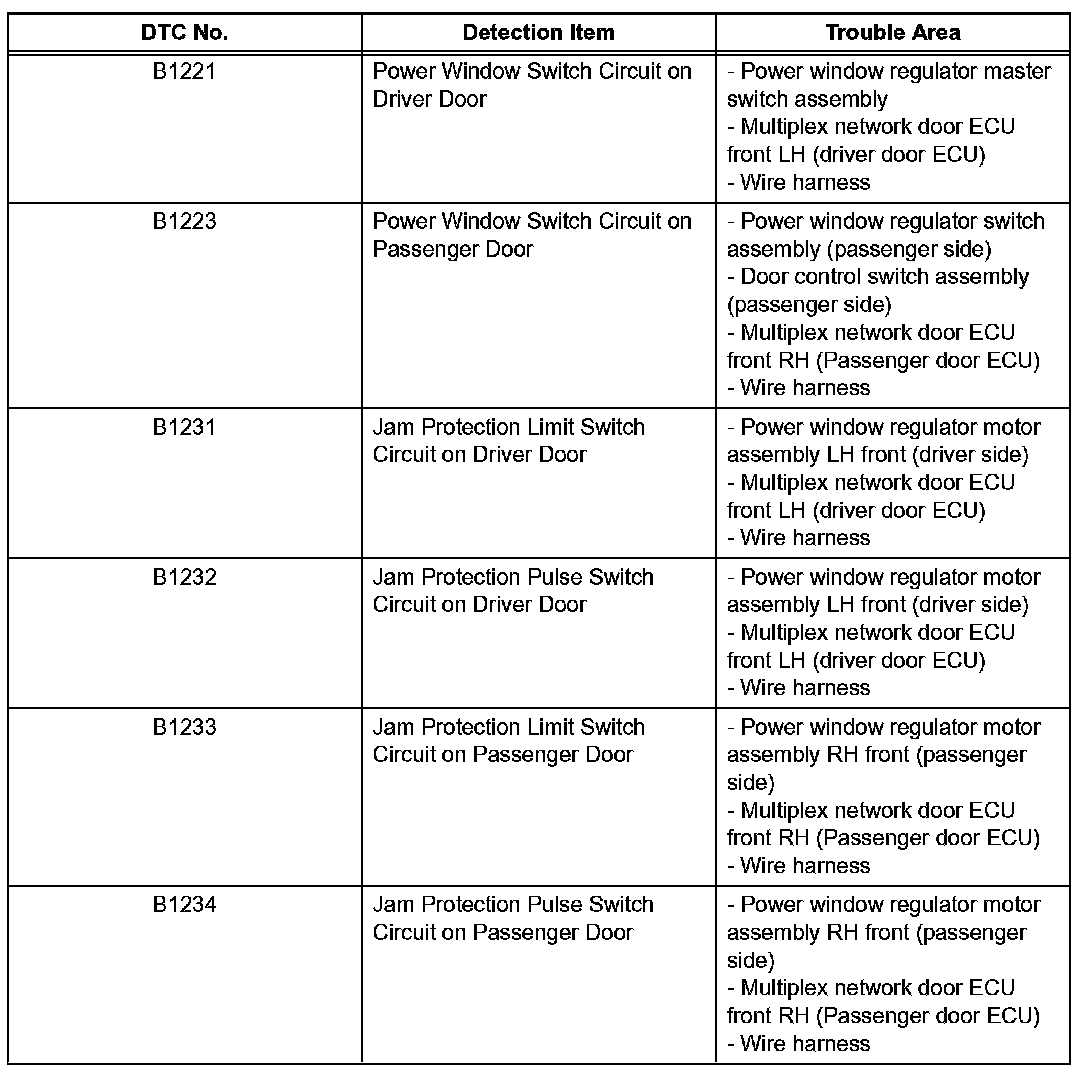

DIAGNOSTIC TROUBLE CODE CHART
HINT:
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.
B1221 - B1234:
