Power Door Lock Control System
Power Door Lock Control System

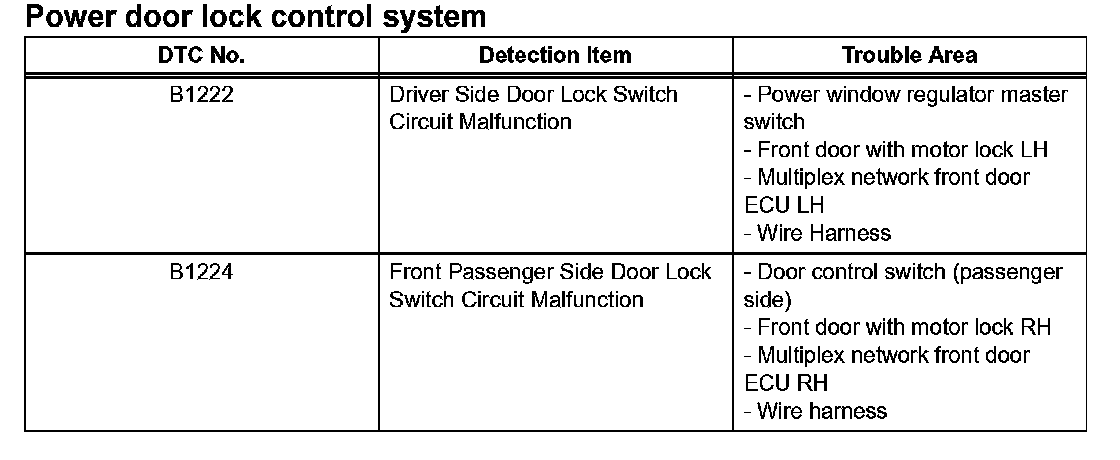

DIAGNOSTIC TROUBLE CODE CHART
B1222 - B1224:
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.
