A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Engine Immobiliser System
Engine Immobiliser System
DIAGNOSTIC TROUBLE CODE CHART
B2780 - B2798:
1.

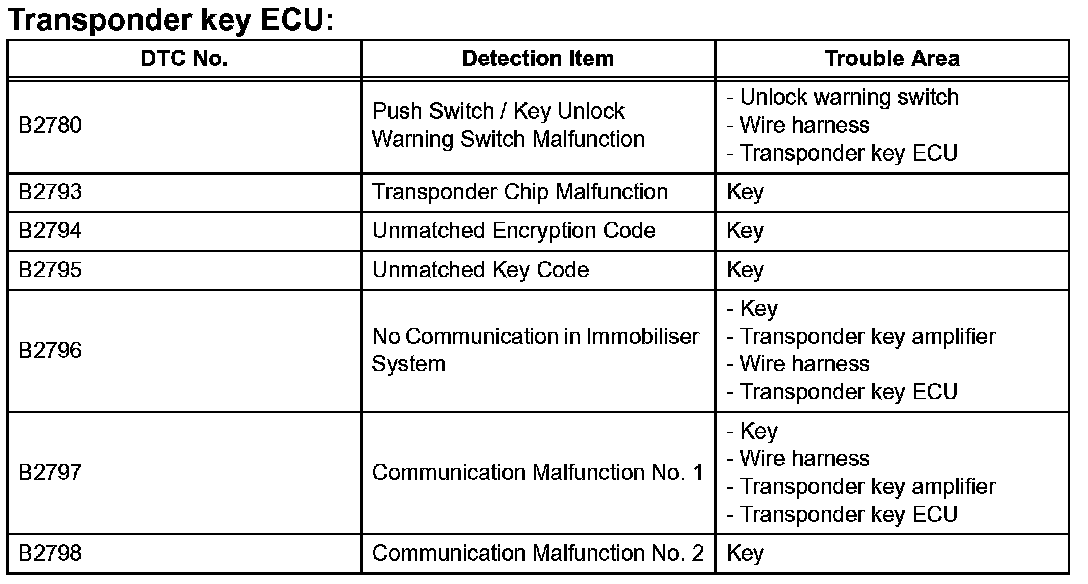

TRANSPONDER KEY ECU DTC CHART
B2799:
2.
ECM DTC CHART
