Cruise Control System
Cruise Control System

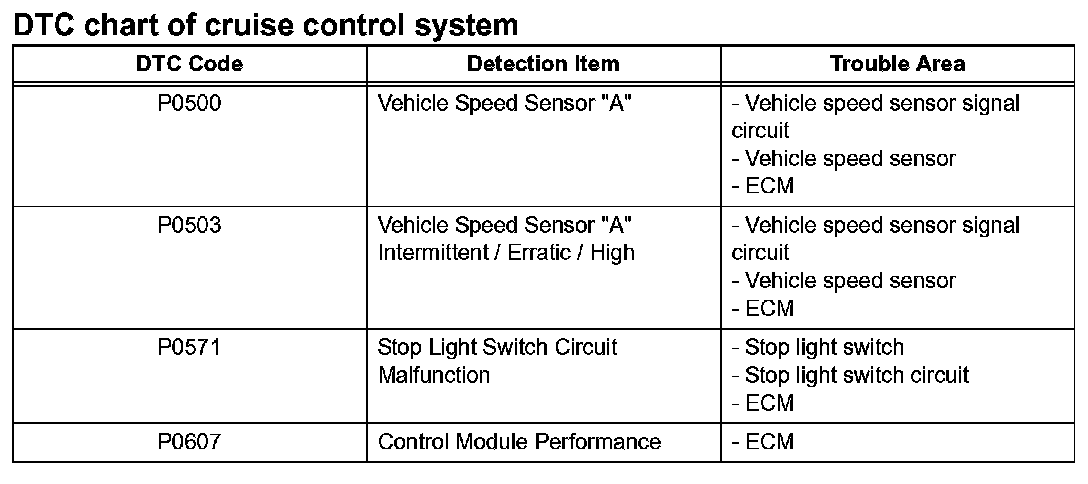

DIAGNOSTIC TROUBLE CODE CHART
P0500 - P0607:
If a trouble code is indicated during the DTC check, check the circuit listed for that code in the table.
