Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

HINT:
^ If a DTC is displayed during the DTC check, check the parts listed in the table and proceed to the DTC given.
^ *1: "Comes on" means the Malfunction Indicator Lamp (MIL) illuminates.
^ *2: "DTC stored" means the ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
^ These DTCs may be output when the clutch, brake, gear components, etc., inside the automatic transmission are damaged.

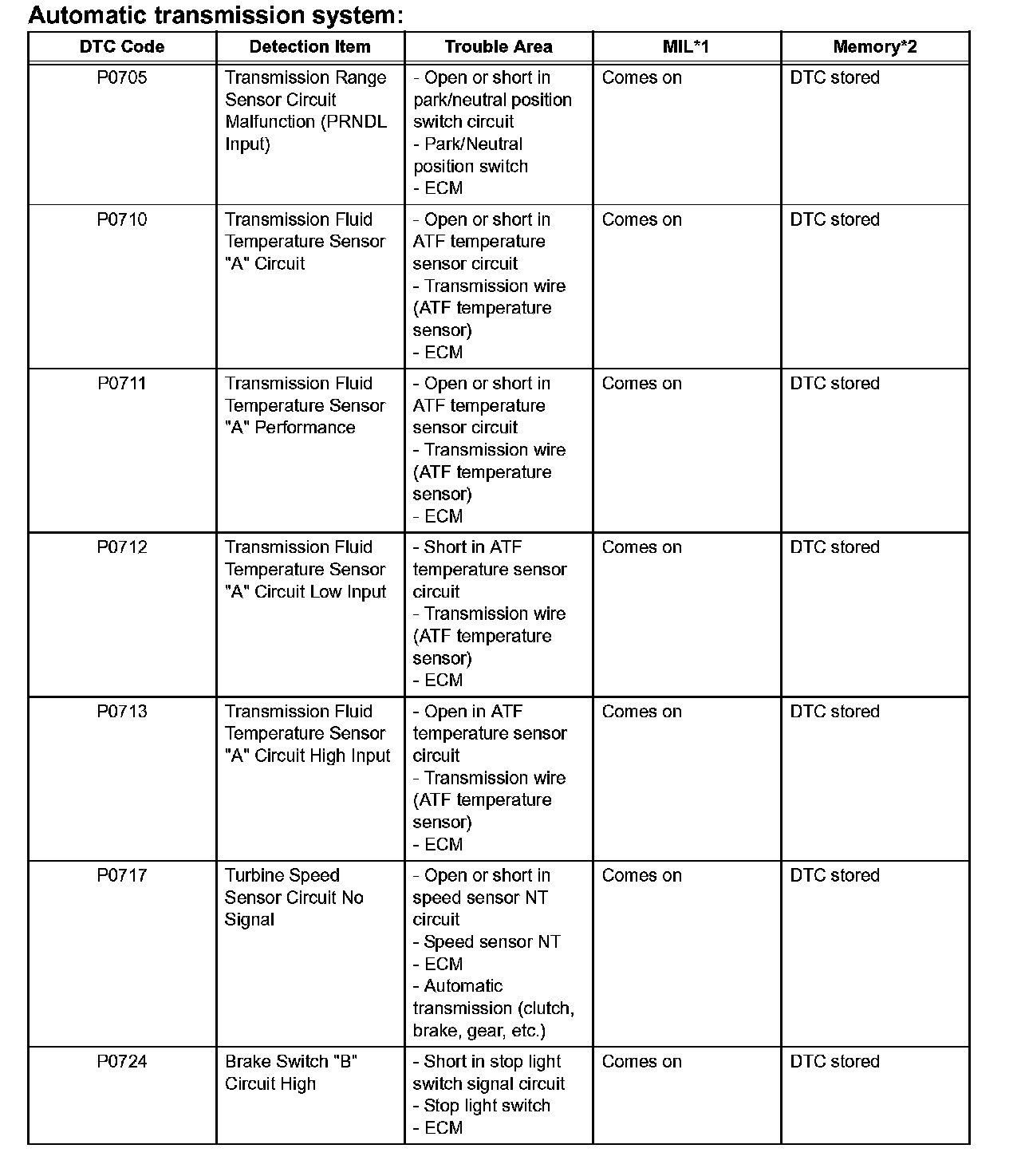

Automatic transmission system:

P0705-P0724:

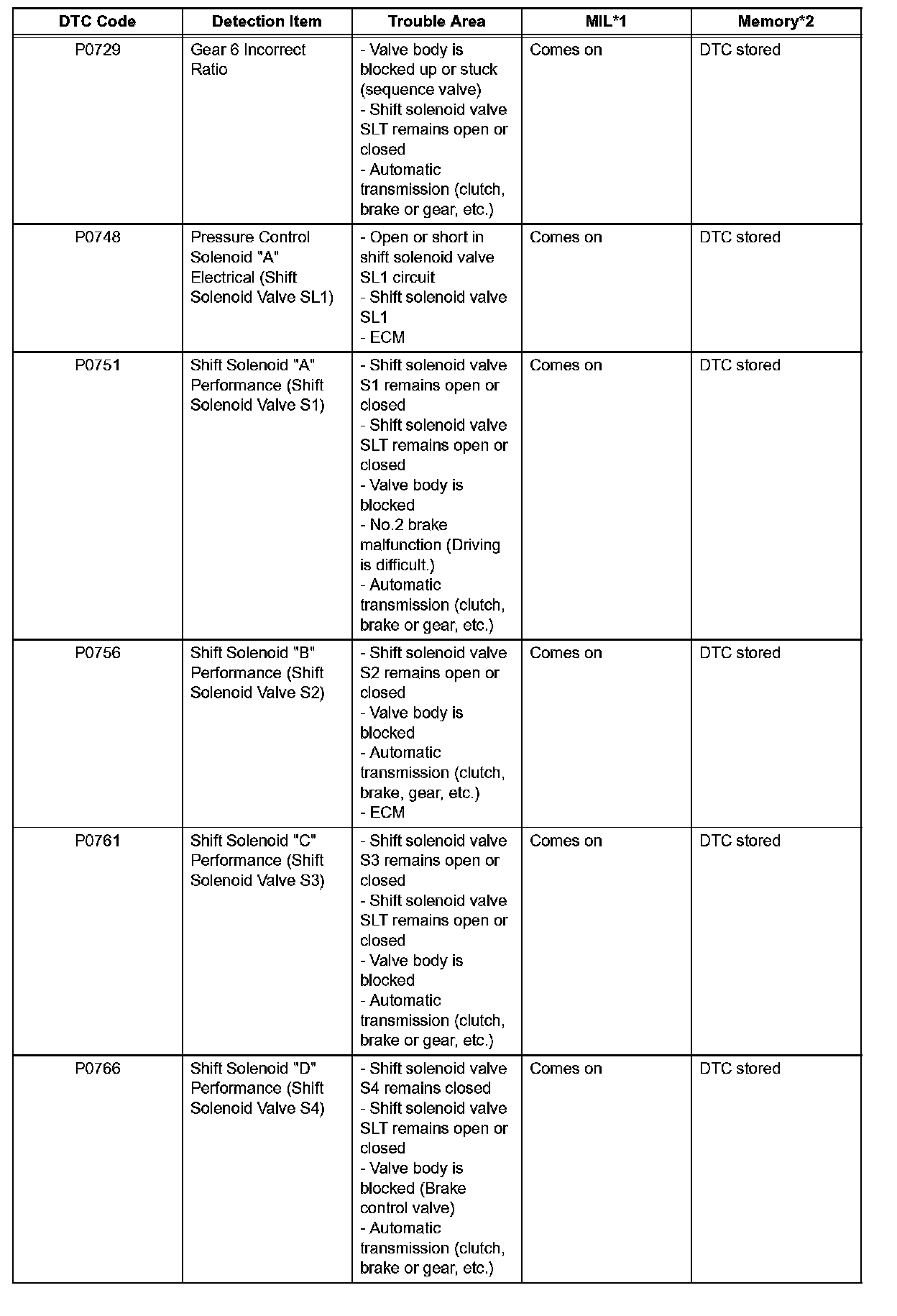

P0729-P0766:

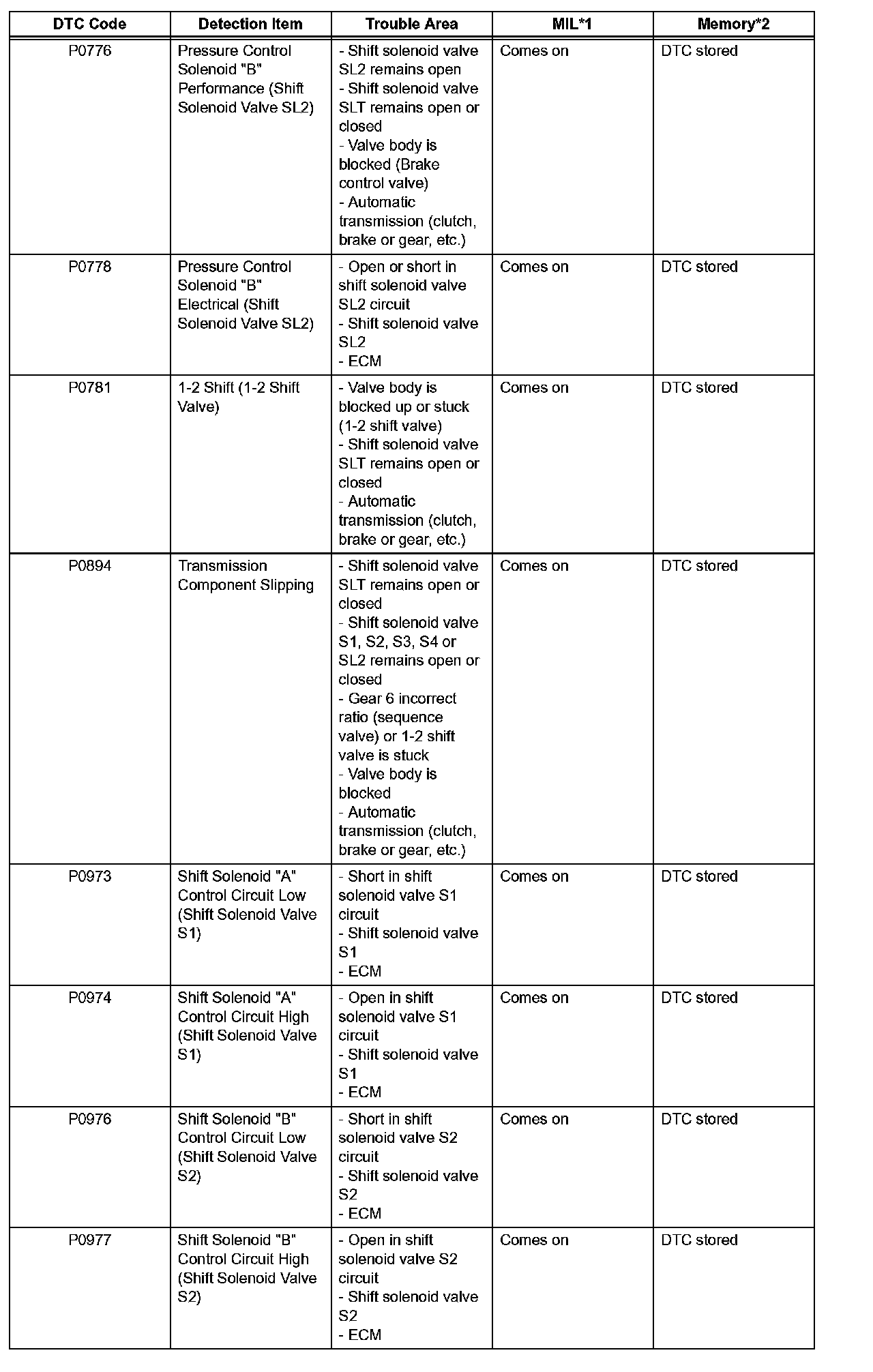

P0776-P0977:

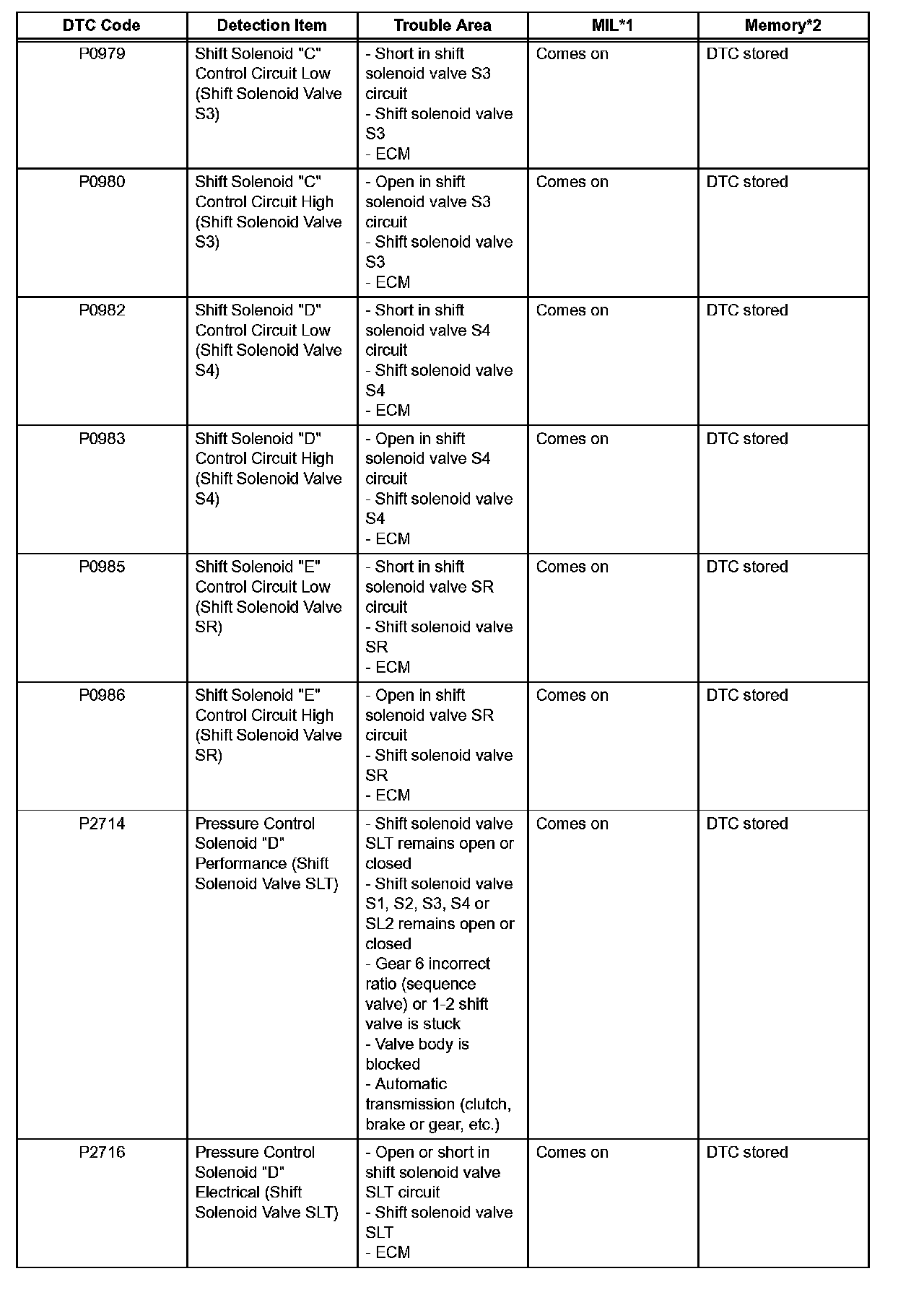

P0979-P2716:

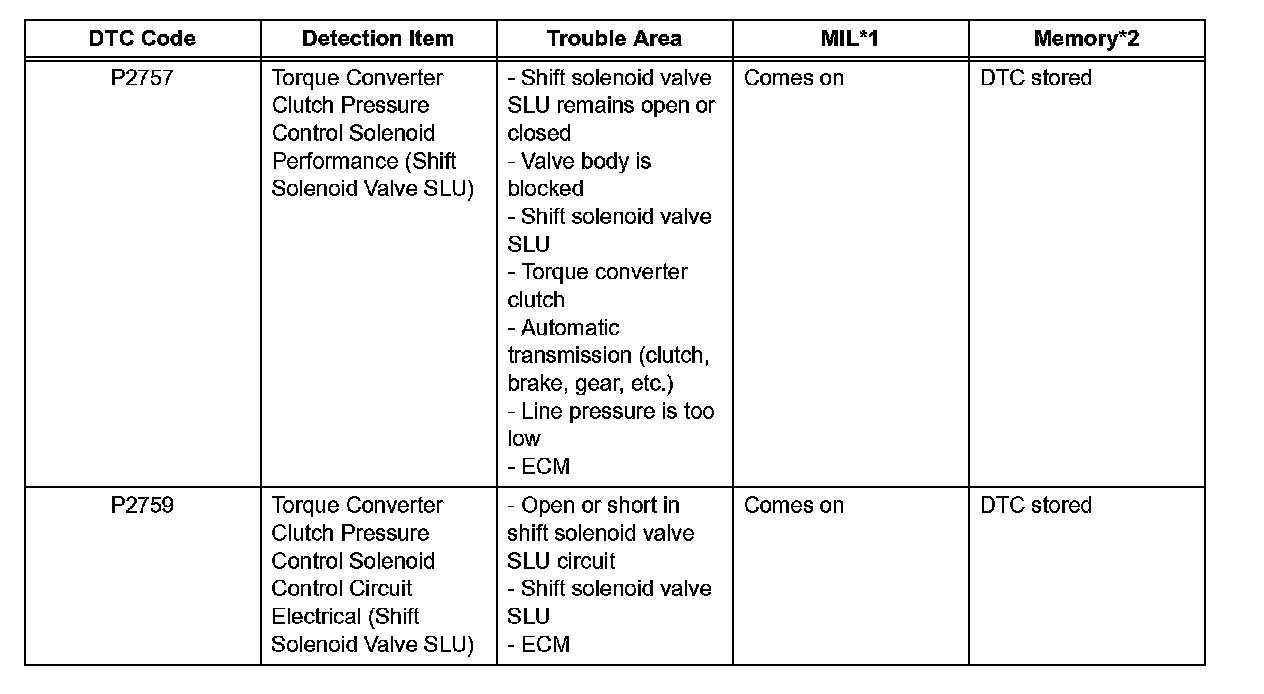

P2757-P2759:
