Airbag System

DIAGNOSTIC TROUBLE CODE CHART

HINT:
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.
- *: w/o Occupant classification system

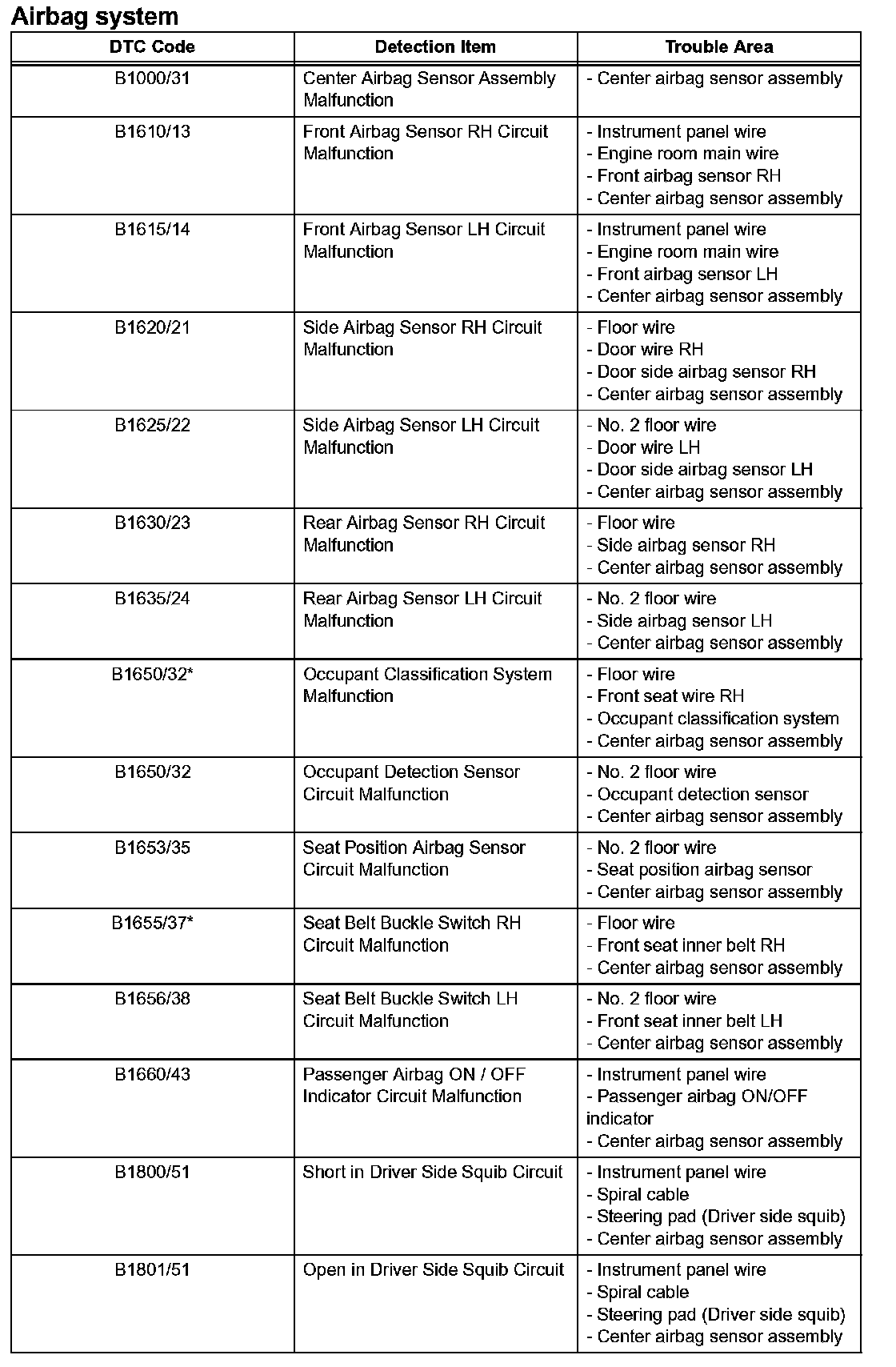

B1000/31-B1801/51:

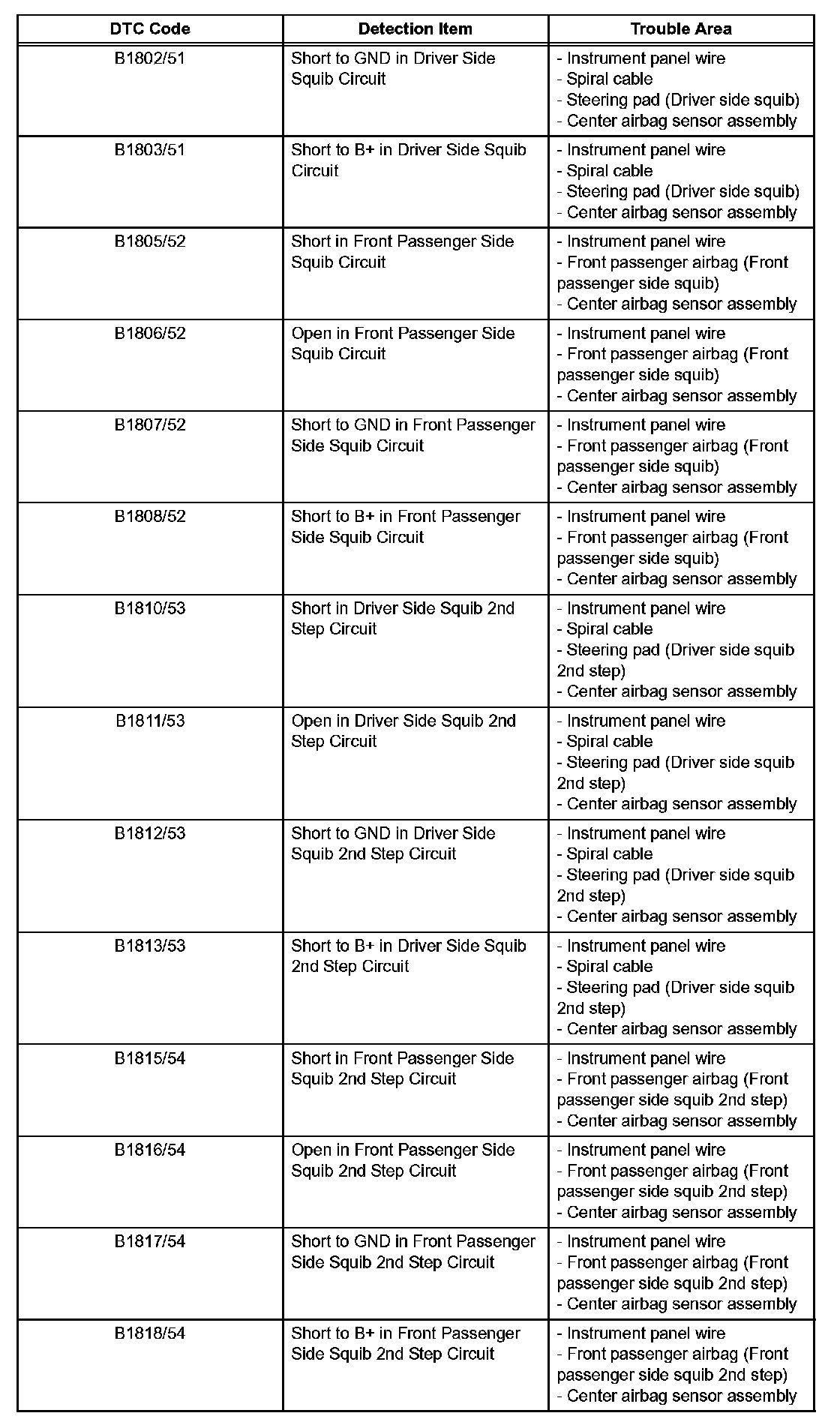

B1802/51-B1818/54:

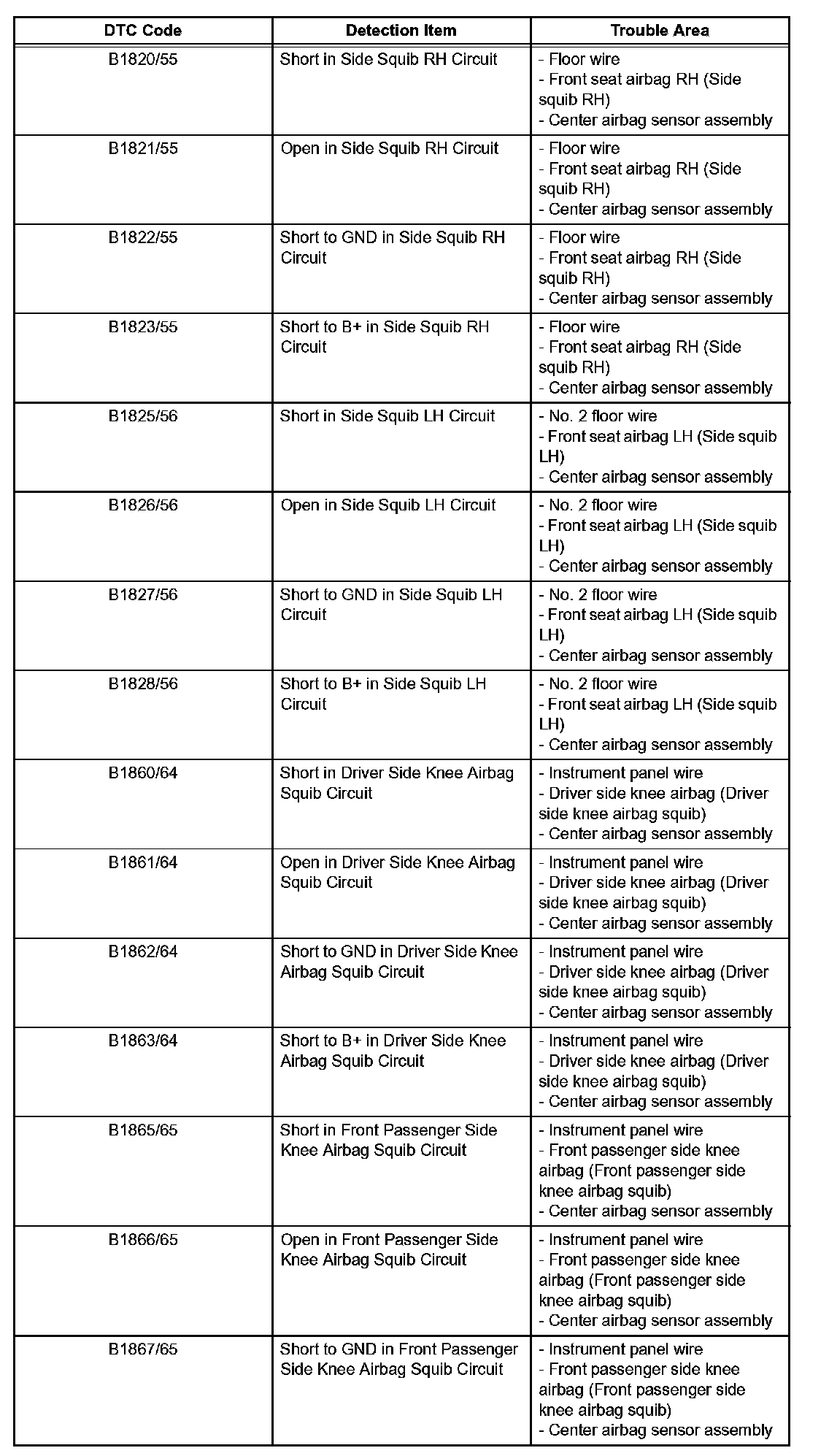

B1820/55-B1867/65:

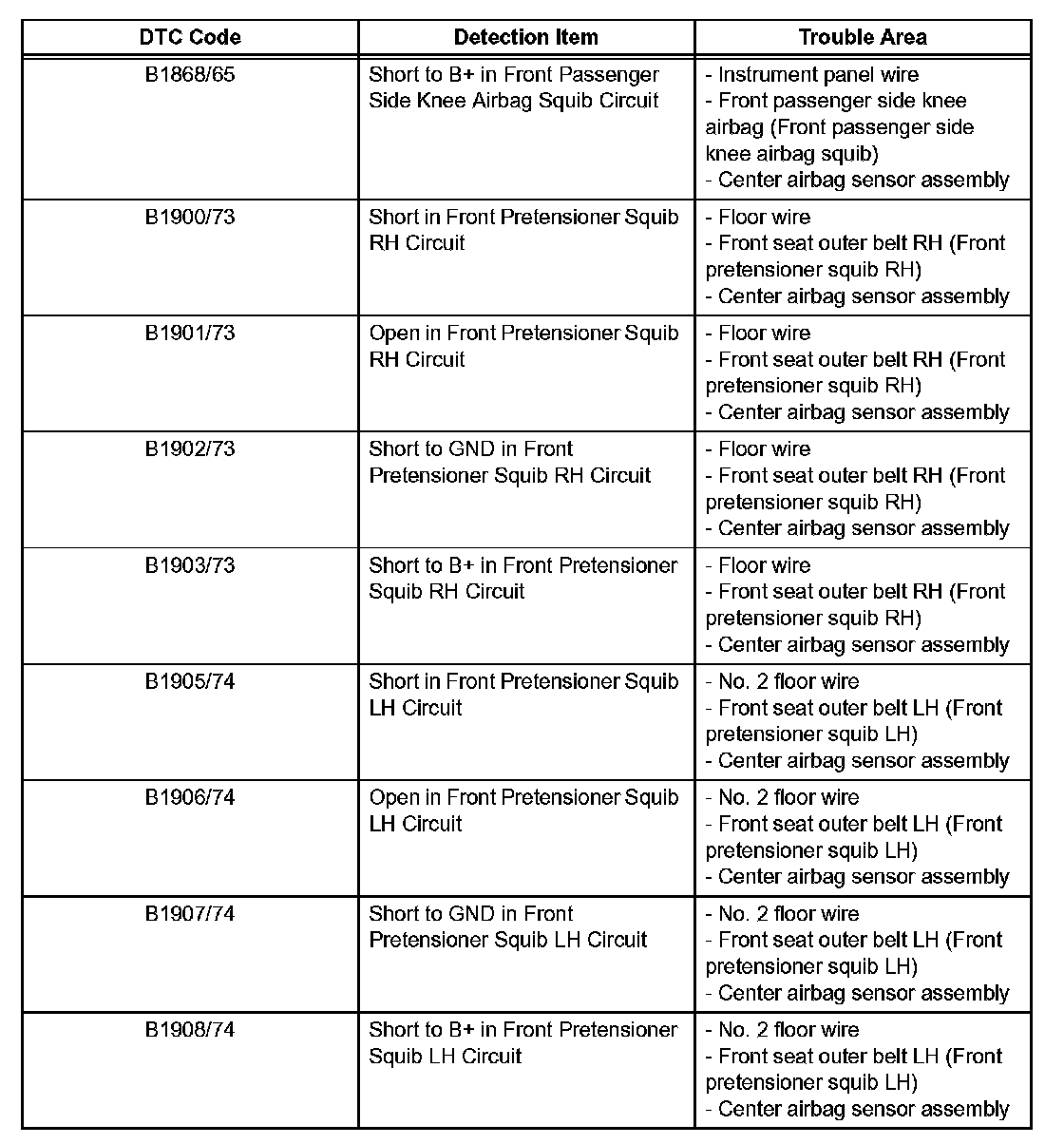

B1868/65-B1908/74:
